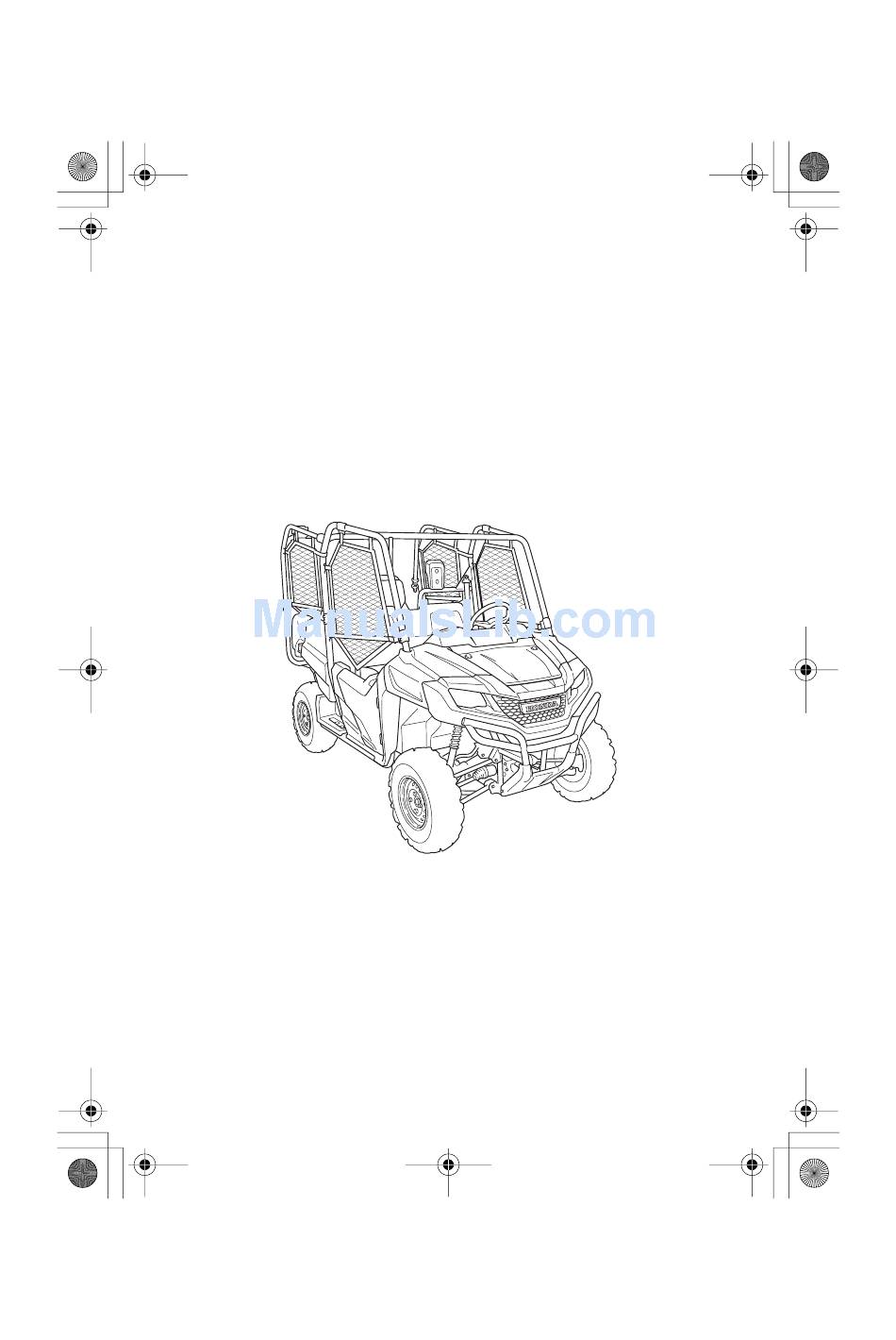

14 SXS700-31HL36000.book 2 ページ ２０１３年５月１４日　火曜日　午前１０時５９分
2014
Honda PIONEER SXS700
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIONEER SXS700 and is the answer not in the manual?

Questions and answers

tracy leech
March 17, 2025

I need a clutch pack and not sure where i can get one from

User image 67d882b2e5d03
0
1 comments:
Mr. Anderson
May 14, 2025

You can find a clutch pack for a Honda SXS700 from THS Moto (The Honda Shop), an authorised Honda Dealer, which offers the Honda Genuine Clutch Kit MUV/SXS700.

This answer is automatically generated

0

Related Manuals for Honda PIONEER SXS700

Summary of Contents for Honda PIONEER SXS700

  • Page 1 14 SXS700-31HL36000.book 2 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 2014 Honda PIONEER SXS700 OWNER’S MANUAL...
  • Page 2 If you have any questions, or if you ever need special service or repairs, remember that your dealer knows your Honda SXS best and is dedicated to your complete satisfaction. Please report any change of address or ownership to your dealer so we will be able to contact you concerning important product information.
  • Page 3 14 SXS700-31HL36000.book 4 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Introduction • The following codes in this manual indicate each country. SXS700 4 Person Model United States of America, Australia, AC, III AC New Zealand CM, III CM Canada SXS700 2 Person Model United States of America, Australia, II AC, IV AC New Zealand II CM, IV CM...

  • Page 4: A Few Words About Safety

    Your safety, and the safety of others, is very important. And A Few Words About Safety operating your Honda safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual.
  • Page 5 14 SXS700-31HL36000.book 6 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 A Few Words About Safety Safety Headings — such as “Important Safety Reminders” or “Important Safety Precautions.” Safety Section — “Driver & Passenger Safety,” beginning on page 1. Instructions — how to operate this vehicle correctly and safely. In addition to the above, your owner's manual is full of information that can help you safely operate and maintain your vehicle.

  • Page 6: Table Of Contents

    Before Driving................61 The importance of wearing a seat belt, helmet and protective eyewear, how to make sure you and your Honda are ready to drive, plus load limits and guidelines on carrying cargo and towing a trailer.
  • Page 7 ID numbers, technical specifications, and other technical facts. Consumer Information (USA & Canada only) .......227 Information on warranties, emissions controls, how to get a service manual, and how to contact Honda. Index ..................234 Alphabetical listing of topics in the manual.
  • Page 8 14 SXS700-31HL36000.book 9 ページ ２０１３年５月１４日　火曜日　午前１０時５９分...

  • Page 9: Driver & Passenger Safety

    This section presents some of the most important information and Driver & Passenger Safety recommendations to help you drive your Honda safely. Please take a few moments to read these pages. This section also shows you the location of safety labels on your vehicle.

  • Page 10: Important Safety Information

    14 SXS700-31HL36000.book 2 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Important Safety Information There is much that you can do to protect yourself and passenger(s). You’ll find many helpful recommendations throughout this manual. The following are those we consider to be most important. Follow Age and Size Recommendations The driver should be at least 16 years old and tall enough to wear the seat belt properly and reach all the controls.
  • Page 11 It’s important to keep your vehicle properly maintained and in safe operating condition. Having a breakdown can be difficult, especially if you are stranded far from your base. To help avoid problems, inspect your Honda before each use and perform all recommended maintenance. Don’t Drink and Drive Alcohol and driving don’t mix.

  • Page 12: Accessories & Modifications

    We strongly recommend that you use only Honda Genuine or Signature Accessories that have been specifically designed or approved and tested for your vehicle. Because Honda cannot test all other accessories, you must be personally responsible for the proper selection, installation, and use of non-Honda accessories.
  • Page 13 Modifications We strongly advise you not to remove any original equipment or modify your Honda in any way that would change its design or operation. Such changes could seriously impair your vehicle’s handling, stability, and braking and make it unsafe to drive.

  • Page 14: Safety Labels

    You, and anyone else who operates or rides in the vehicle, should read and understand this information before driving. The labels should be considered permanent parts of the vehicle. If a label comes off or becomes hard to read, contact your Honda dealer for a replacement. Indicates something apparent.
  • Page 15 14 SXS700-31HL36000.book 7 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Safety Labels (2 Person Model) (4 Person Model) general warning shift & drive select Driver & Passenger Safety...
  • Page 16 14 SXS700-31HL36000.book 8 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Safety Labels loading warning rear passenger warning (4 Person Model only) trailer hitch Driver & Passenger Safety...

  • Page 17: Instruments & Controls

    14 SXS700-31HL36000.book 9 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Instruments & Controls The items listed below are described in this section. Instruments & Controls Operation Component Locations ..........11 Indicators & Displays ..............14 Neutral Indicator..............15 Reverse Indicator ..............15 Parking Brake Indicator ............15 Differential Lock Indicator ............
  • Page 18 14 SXS700-31HL36000.book 10 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Instruments & Controls Seat Belts ................... 49 Passenger Handhold ..............53 Storage Compartments .............. 54 Accessory Power Socket ............. 55 Cargo Bed Controls ..............56 Tailgate Levers ................. 56 Tie-Down Hooks ..............57 Tilt Bed Lever ................58 Trailer Hitch ................

  • Page 19: Operation Component Locations

    14 SXS700-31HL36000.book 11 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Operation Component Locations indicators & displays (page 14) headlight switch ignition switch (page 30) (page 31) shift lever (page 32) drive mode lever (page 33) utility pocket parking brake lever (page 35) accessory power socket (page 55) Instruments &...
  • Page 20 14 SXS700-31HL36000.book 12 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Operation Component Locations side net (page 38) passenger handhold (page 53) seat belt (page 49) door (page 36) Instruments & Controls...
  • Page 21 14 SXS700-31HL36000.book 13 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Operation Component Locations rear door rear seat belt (4 Person Model only) (4 Person Model only) (page 49) (page 36) rear side net (4 Person Model only) rear seat (page 38) (4 Person Model only) (page 45) tailgate levers tilt bed lever (page 58)

  • Page 22: Indicators & Displays

    14 SXS700-31HL36000.book 14 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays The indicators and displays on your Honda SXS keep you informed, alert you to possible problems, and make your driving safer and more enjoyable. Refer to the indicators frequently. Their functions are described on the following pages.

  • Page 23: Neutral Indicator

    14 SXS700-31HL36000.book 15 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Neutral Indicator This indicator comes on and stays on when the transmission is in neutral. Reverse Indicator This indicator comes on and stays on when the transmission is in reverse. Parking Brake Indicator This indicator comes on and stays on when the parking brake is on.
  • Page 24 14 SXS700-31HL36000.book 16 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Multi-function This display includes the following display functions. Speedometer Shows riding speed in miles or display kilometers per hour (page 19). Odometer display Shows fuel gauge, clock, odometer, tripmeter, water temperature gauge, hour meter, maintenance trip meter and maintenance hour meter (page 20).
  • Page 25 14 SXS700-31HL36000.book 17 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Display Check When the ignition switch is turned ON (q) , the multi-function display will temporarily show all the modes and digital segments and initial message. So you can make sure the liquid crystal display is functioning properly.

  • Page 26: Multi-Function Display

    14 SXS700-31HL36000.book 18 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Multi-function Display The multi-function display consists of the following function displays: Speedometer display Odometer display Gear position display gear position display speedometer display mode switch odometer display Instruments & Controls...

  • Page 27: Speedometer Display

    14 SXS700-31HL36000.book 19 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Speedometer Display This display shows speed in miles or kilometers per hour. Mileage Unit Change The speedometer, odometer, tripmeter and maintenance tripmeter show in either “MPH” and “MILE” or “KM/H” and “KM”. To change the mileage unit, press and hold the mode switch for more than 5 seconds in odometer mode (page 20) with the SXS stopped.

  • Page 28: Odometer Display

    14 SXS700-31HL36000.book 20 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Odometer Display This display includes fuel gauge, digital clock, odometer, tripmeter, coolant temperature gauge, hourmeter, maintenance tripmeter, and maintenance hourmeter. Each time you press the mode switch, mode will change as shown in the illustration.
  • Page 29 14 SXS700-31HL36000.book 21 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Fuel gauge The fuel gauge shows the approximate fuel supply available in a graduated display with the fuel symbol. When the segment F goes on, the fuel tank capacity is: 7.9 US gal (30 ℓ) fuel symbol fuel gauge segment F...
  • Page 30 14 SXS700-31HL36000.book 22 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Fuel gauge failure: If the fuel system has an error, the fuel gauge will flash. If this occurs, see your dealer as soon as possible. fuel gauge Instruments & Controls...
  • Page 31 14 SXS700-31HL36000.book 23 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Digital clock The digital clock shows the hour and minute with the clock display. To adjust the time: 1. Turn the ignition switch to ON (q). 2. Press and hold the mode switch in the clock mode. The clock will start blinking.
  • Page 32 14 SXS700-31HL36000.book 24 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Odometer The odometer shows the total miles or kilometers ridden with the ODO display. The odometer locks at 999,999 when the readout exceeds 999,999. odometer display Tripmeter The tripmeter shows the number of miles or kilometers ridden with the TRIP display, since you last reset the tripmeter.
  • Page 33 14 SXS700-31HL36000.book 25 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Coolant temperature gauge The coolant temperature gauge shows engine coolant temperature with the coolant temperature display. When the segment begins to move above the C (Cold) display, the engine is warm enough for the SXS to be ridden.
  • Page 34 14 SXS700-31HL36000.book 26 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Coolant temperature gauge failure: If the coolant temperature system has an error, the coolant temperature gauge will flash and preferentially appear in the display, and/or high coolant/oil temperature indicator will turned on. If this occurs, see your dealer as soon as possible.
  • Page 35 14 SXS700-31HL36000.book 27 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Hourmeter The hourmeter shows accumulated hours while the ignition is ON (q) with the hourmeter display. The hourmeter locks at 99,999.9 when the readout exceeds 99,999.9. hourmeter hourmeter display Instruments & Controls...
  • Page 36 Indicators & Displays Maintenance minder indicator The maintenance minder indicator appears in the display when the mileage or operating hours on your Honda SXS reaches the maintenance interval specified on the maintenance schedule (page 95). Reset the indicator after each scheduled maintenance is performed.

  • Page 37: Gear Position Display

    14 SXS700-31HL36000.book 29 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Indicators & Displays Gear position display Gear position indicator The gear position indicator shows the gear position when the ignition switch is in the ON (q) position. The indicator displays: N for neutral, R for reverse, and D for the drive. “–”...

  • Page 38: Driver Controls

    14 SXS700-31HL36000.book 30 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Driver Controls Ignition Switch The ignition switch is a three-position, key-operated switch used to start and stop the engine. OFF (w) — The engine and all electrical circuits are off. The key can be inserted and removed only when it is in this position. ON (q) —...

  • Page 39: Headlight Switch

    14 SXS700-31HL36000.book 31 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Driver Controls Headlight Switch The headlight switch is located on the front console, to the left of the steering wheel. This switch turns the headlights and taillights on and off. OFF (w) ON (y) headlight switch Instruments &...

  • Page 40: Shift Lever

    14 SXS700-31HL36000.book 32 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Driver Controls Shift Lever Your Honda SXS is equipped with an automatic transmission. The shift lever, located to the right of the steering wheel, has three positions: drive (D), neutral (N), and reverse (R). shift positions...

  • Page 41: Drive Mode Lever

    14 SXS700-31HL36000.book 33 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Driver Controls Drive Mode Lever The drive mode lever, located to the right of the shift lever, has three drive mode positions: 2WD, 4WD and 4WD diff lock. drive mode positions drive mode lever To check your present drive mode, look at the 4WD indicator and differential lock indicator.
  • Page 42 14 SXS700-31HL36000.book 34 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Driver Controls You should change drive modes only when the vehicle is stopped and the engine is idling. NOTICE Changing drive modes while the vehicle is moving could damage the drivetrain. After changing the drive mode, drive several yards, making right and left turns, and make sure that indicators work properly.

  • Page 43: Parking Brake Lever

    14 SXS700-31HL36000.book 35 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Driver Controls Parking Brake Lever The parking brake lever is located on the left side of the steering wheel. To apply the brake, pull the lever down fully. To release it, pull down slightly, push the button at the end of the lever, then push lever forward.

  • Page 44: Doors

    14 SXS700-31HL36000.book 36 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Doors Your Honda SXS is equipped with doors to prevent branches, gravel, or other debris from getting inside the driver’s compartment, and to keep the driver’s and passenger’s legs and feet inside the vehicle if your vehicle ever tips or overturns.
  • Page 45 14 SXS700-31HL36000.book 37 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Doors If the doors rattles when closed, turn the door stopper counterclockwise to adjust the doors. Each door has a double latching mechanism. Adjust the door stoppers, so that it latches on the second click. The left and right doors can be adjusted in the same manner.

  • Page 46: Side Nets

    14 SXS700-31HL36000.book 38 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Side Nets Your Honda SXS is equipped with side nets to prevent branches, or other debris from getting inside the driver’s compartment, and to keep the driver’s and passenger’s hands and arms inside the occupant protective structure (OPS) if the vehicle ever tips or overturns.
  • Page 47 14 SXS700-31HL36000.book 39 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Side Nets Side Nets Set Up The left and right side nets can be set up in the same manner. Inspect the side nets and their mounting hardware for damage as specified in the maintenance schedule on page 95. Front 1.
  • Page 48 14 SXS700-31HL36000.book 40 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Side Nets Rear (4 Person Model only) 1. Hook the side net snap hooks and fasten the side net buckle. 2. Tighten the belt on the side net ring. belt side net ring side net snap hook side net side net buckle side net snap hook...
  • Page 49 14 SXS700-31HL36000.book 41 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Side Nets Front Side Nets The left and right side nets can be opened in the same manner. Open 1. Release the side net buckle. 2. Hook the side net ring onto the side net hook while lifting the side net.
  • Page 50 14 SXS700-31HL36000.book 42 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Side Nets Rear Side Nets (4 Person Model only) The left and right side nets can be opened in the same manner. Open 1. Release the side net buckle and lower side net snap hook. 2.
  • Page 51 Side Nets Roll Up The Side Nets The side nets can be rolled up to make cleaning and maintaining your Honda SXS a little easier. Front Side Nets Roll Up 1. Release the side net buckle and side net ring.
  • Page 52 14 SXS700-31HL36000.book 44 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Side Nets Rear Side Nets Roll Up (4 Person Model only) 1. Release the side net buckle. 2. Unhook the side net snap hooks and slide the D-rings out of the stays. 3. Roll up the side net tightly, folding in the buckle and snap hooks on the way.

  • Page 53: Seat

    Seat Seat 2 Person Model: Your Honda SXS is equipped with a bench seat that has two seating positions and is designed to carry one driver and one passenger only. 4 Person Model: Your Honda SXS is equipped with a bench seat in front, and two jump seats stowed in the rear cargo area.

  • Page 54: Rear Seat Conversion (4 Person Model Only)

    Seat Rear Seat Conversion (4 Person Model only) Unfolding 1. Park your Honda SXS on a firm, level surface, and roll up the rear side nets (page 44). 2. Open the rear door (page 36). 3. Lift up the rear seat back until it latches into position.
  • Page 55 14 SXS700-31HL36000.book 47 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Seat Storing 1. Park your Honda SXS on a firm, level surface, and roll up the rear side nets (page 44). 2. Open the rear door (page 36). 3. Fold up the lower seat back and hook the strap ring to the stay.

  • Page 56: Rear Seat Stopper Adjustment (4 Person Model Only)

    14 SXS700-31HL36000.book 48 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Seat Rear Seat Stopper Adjustment (4 Person Model only) If the rear seat back has excessive vibration in the stored position or if the doors are hard to close, adjust the rear seat stopper. Rear seat stopper is located below the rear door opener handle. 1.

  • Page 57: Seat Belts

    14 SXS700-31HL36000.book 49 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Seat Belts Your Honda SXS is equipped with lap/shoulder seat belts in each seating position. A seat belt keeps you connected to the vehicle so you won’t be thrown out during a crash or rollover. Together with a...
  • Page 58 14 SXS700-31HL36000.book 50 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Seat Belts How you wear a seat belt also matters. For the best protection: Front 1. Insert the latch plate into the buckle, then tug on the belt to make sure it is securely latched. latch plate buckle 2.
  • Page 59 14 SXS700-31HL36000.book 51 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Seat Belts Rear (4 Person Model only) 1. Insert the tip of the latch plate into the outer side of the buckle first. 2. Insert the middle of the latch plate into the center of the buckle, then tug on the belt to make sure they are securely latched.
  • Page 60 14 SXS700-31HL36000.book 52 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Seat Belts If you have been driving in an extremely muddy area, be sure to inspect your belt and remove any dirt or debris before letting the belt retract into the retractor. Failure to do so could clog the retractor and make it inoperable.

  • Page 61: Passenger Handhold

    14 SXS700-31HL36000.book 53 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Passenger Handhold Passenger Handhold The occupant protective structure (OPS) has a handhold to give a passenger extra support when the vehicle travels over rough or bumpy terrain. Passenger can also brace their feet against the floorboard.

  • Page 62: Storage Compartments

    14 SXS700-31HL36000.book 54 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Storage Compartments Your Honda SXS has a document compartment, glove box and two side pockets where you can carry small, lightweight items. document compartment glove box side pocket side pocket To open the document compartment, pull the cover forward. Close the cover securely before riding.

  • Page 63: Accessory Power Socket

    14 SXS700-31HL36000.book 55 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Accessory Power Socket The accessory power socket is located in the center of the lower dash. The socket is intended for 12-volt DC accessories rated for 120 watts (10 amps) or less. Exceeding the limit can blow the accessory socket fuse (see page 202).

  • Page 64: Cargo Bed Controls

    To lower the tailgate, pull each tailgate lever out and unhook the hook as shown below. Reverse the process to secure the tailgate in the upright position. LIFT THE HOOK. hook tailgate levers PULL THE LEVER. TILT GENTLY. Do not drive the Honda SXS with the tailgate lowered. Instruments & Controls...

  • Page 65: Tie-Down Hooks

    14 SXS700-31HL36000.book 57 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Cargo Bed Controls Tie-Down Hooks The cargo bed has tie-down hooks for securing items in the bed. Before using the tie-down hooks, select a firm level surface and set the parking brake. 4 Person Model tie-down hook 2 Person Model tie-down hook...

  • Page 66: Tilt Bed Lever

    Before raising the cargo bed, select a firm level surface and set the parking brake. Your Honda SXS has a tilt bed lever, on the left front side of the bed. Using the lever, the front end of the bed will lift up, making it easier to dump items out the rear or to maintain the air cleaner, lubricate the cargo bed pivots and cargo bed strikers.
  • Page 67 14 SXS700-31HL36000.book 59 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Cargo Bed Controls SLOWLY LIFT UP THE CARGO BED. top of the bed tilt bed lever To lower the cargo bed, make sure that the area under the front of the cargo bed is clear, then manually push down on the top of the bed.

  • Page 68: Trailer Hitch

    14 SXS700-31HL36000.book 60 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Trailer Hitch Your Honda SXS is equipped with a trailer hitch receiver that accepts a 2 inch drawbar. You can purchase an approved drawbar from your Honda dealer. See page 71 for page Towing a Trailer.

  • Page 69: Before Driving

    14 SXS700-31HL36000.book 61 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Before Driving Before driving your SXS, you need to make sure you and your vehicle Before Driving are both ready. This section discusses how to evaluate your driving readiness and what items you should check on your vehicle. It also includes important information about loading cargo.

  • Page 70: Are You Ready To Drive

    14 SXS700-31HL36000.book 62 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Are You Ready to Drive? Before driving your Honda SXS for the first time, we urge you to carefully read this owner’s manual and the labels on your vehicle and make sure you understand all the safety information.

  • Page 71: Protective Apparel

    14 SXS700-31HL36000.book 63 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Are You Ready to Drive? Protective Apparel To help prevent head injury from striking an occupant protective structure (OPS) or other hard object, we recommend that occupants always wear a helmet secured with a chin strap. To protect the eyes from brush and flying objects, we also recommend that occupants wear impact-resistant goggles or a face shield.

  • Page 72: Get To Know Your Vehicle

    14 SXS700-31HL36000.book 64 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Are You Ready to Drive? Get to Know Your Vehicle Because all vehicles have unique characteristics, it’s important to learn how this one operates and handles. We recommend that you take time to practice using the different controls, and get accustomed to how the vehicle accelerates, brakes, and turns in different driving modes, on different surfaces, and on different terrain conditions.

  • Page 73: Is Your Vehicle Ready To Drive

    14 SXS700-31HL36000.book 65 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Is Your Vehicle Ready to Drive? Before driving your Honda SXS, it’s important to inspect the vehicle and correct any problem you find. A pre-drive inspection is a must, not only for safety, but because having a breakdown can be a major inconvenience.

  • Page 74: Pre-Drive Inspection

    14 SXS700-31HL36000.book 66 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Is Your Vehicle Ready to Drive? Pre-drive Inspection Check the following items before driving your Honda SXS: Oil Level Check the engine oil level and add oil, if needed (page 116). Also check under the vehicle for leaks.
  • Page 75 14 SXS700-31HL36000.book 67 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Is Your Vehicle Ready to Drive? Steering Check the steering to make sure it turns smoothly in both gearbox and directions. Check for any tears in the boots. boots If any tears are found, see your dealer. Underbody If the vehicle was last driven in deep grass or a brushy area, look for and remove any debris.
  • Page 76 Make sure all side nets and their mounting hardware are in good condition and that they latch and tighten securely. Remember to take care of any problem you find or have your dealer correct it before you drive your Honda SXS. Before Driving...

  • Page 77: Loading Cargo

    14 SXS700-31HL36000.book 69 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Loading Cargo Your vehicle was designed to carry cargo. However, carrying a load that is too heavy or improperly loaded can adversely affect your vehicle’s handling, stability, and stopping distance and make it unsafe. Before carrying any type of cargo, be sure to read the following pages.

  • Page 78: Loading Guidelines

    14 SXS700-31HL36000.book 70 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Loading Cargo Loading Guidelines • Make sure the tires are properly inflated (page 161). • Place all items on the floor of the cargo bed, and as far forward and centered as possible. • Use the tie-down hooks (page 57) to secure any items that could shift position while you are driving.

  • Page 79: Towing A Trailer

    14 SXS700-31HL36000.book 71 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Towing a Trailer Your vehicle can pull a trailer as well as carry cargo, provided you follow the load limits and guidelines below. Towing Limits There are two main types of limits that apply to towing a trailer: Maximum total trailer weight = 1,500 lb (680 kg) This includes the weight of the trailer and everything in it or on it.

  • Page 80: Loading A Trailer

    14 SXS700-31HL36000.book 72 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Towing a Trailer To achieve a proper tongue load, start by placing 60 percent of the load toward the front of the trailer and 40 percent toward the rear, then readjust the load as needed. Loading a Trailer •...

  • Page 81: Basic Operation & Driving Guidelines

    14 SXS700-31HL36000.book 73 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Basic Operation & Driving Guidelines This section gives information on how to start and stop your engine. Basic Operation & Driving Guidelines It also provides guidelines for operating on different types of terrain, driving with cargo, and towing a trailer. Basic Operation ................

  • Page 82: Basic Operation

    14 SXS700-31HL36000.book 74 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Basic Operation Starting & Stopping the Engine For safety, we recommend that you start the engine in a well- ventilated area. If that is not practical, move the vehicle outdoors as soon as possible. The engine’s exhaust contains carbon monoxide, a colorless and odorless gas that can cause illness and even death.
  • Page 83 14 SXS700-31HL36000.book 75 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Basic Operation Starting the engine: 1. Apply the parking brake. 2. Make sure the shift lever is in neutral. Press on the brake pedal. 3. To start the engine, without touching the accelerator pedal, insert the key and turn the ignition switch to the START (p) position.

  • Page 84: Selecting A Shift Position

    14 SXS700-31HL36000.book 76 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Basic Operation To stop the engine, turn the ignition switch to the OFF (w) position. Remember to apply the parking brake and remove the key if you plan to leave the vehicle. Selecting a Shift Position You can drive your vehicle either forward or backward by moving the shift lever from neutral (N) to drive (D) or reverse (R).

  • Page 85: Parking

    14 SXS700-31HL36000.book 77 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Basic Operation Parking Look for a level parking area with a firm surface. Avoid parking on a slope or on loose or slippery surfaces when possible. If you must park on a slope, block the wheels to help keep the vehicle from sliding. After bringing your vehicle to a stop: 1.

  • Page 86: Driving Guidelines

    Follow all safe-driving guidelines in this owner’s manual. Safe Driving Precautions Before driving your Honda SXS for the first time, please review the “Driver & Passenger Safety” section (page 1), the “Before Driving” section (page 61), and the precautions below.
  • Page 87 RBDC is available at www.ROHVA.org. Off-highway Use Only Your Honda SXS was designed for use on a wide variety of terrain and situations. However, it should not be driven on any public road, paved or unpaved, because it is not equipped to legally or safely drive on such roads.

  • Page 88: Off-Road Driving Considerations

    Your Honda SXS was designed and intended for off-road use. In the event that you must drive on a paved surface, be aware that your Honda SXS will feel and handle different than it does on dirt. The tires will also wear much faster.
  • Page 89 14 SXS700-31HL36000.book 81 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Driving Guidelines Surface Considerations The kind of surface you drive on can have important effects on how your vehicle handles. For example, on loose or soft surfaces you’ll need more time and distance to accelerate, turn, or brake to a stop. Avoid any sudden sharp turn, particularly on pavement and other hard surfaces.

  • Page 90: Basic Driving

    • Do not drive across a steep slope with a trailer. Basic Driving Making Turns The basic turning technique for Honda SXS is to drive at low speed and gradually adjust the amount of steering to suit the surface. Do not make sudden sharp turns, either off-road or on pavement.

  • Page 91: Driving On Hills

    14 SXS700-31HL36000.book 83 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Driving Guidelines Driving on Hills Hills present some of the greatest challenges and hazards, especially if you are carrying cargo or pulling a trailer. If you are new to off- road driving, start with gentle inclines, take time to learn how your vehicle handles on slopes, and read the information that follows.
  • Page 92 Driving Guidelines Driving Up a Hill If you decide that it is safe to drive your Honda SXS up a hill: • Select an appropriate drive mode for the hill. • Approach the hill with enough speed to smoothly start up the hill.
  • Page 93 14 SXS700-31HL36000.book 85 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Driving Guidelines If you decide it is safe to drive down a hill: • Hold the steering wheel firmly and drive straight back down the hill. • Gently apply the brakes to help control speed, but do not “ride” the brakes.

  • Page 94: Driving Through Water

    • Avoid getting the spark plug or air cleaner wet, as this would cause the engine to stop. Driving at Night If you drive your Honda SXS at night, always drive slower and more cautiously than you would in daylight. Basic Operation & Driving Guidelines...

  • Page 95: Servicing Your Honda

    14 SXS700-31HL36000.book 87 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Servicing Your Honda To help keep your Honda SXS in good shape, this section includes a Servicing Your Honda Maintenance Schedule for required service and step-by-step instructions for specific maintenance tasks. You’ll also find important safety precautions, information on fuels and oils, and tips for keeping your Honda looking good.
  • Page 96 14 SXS700-31HL36000.book 88 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Servicing Your Honda Clip Removal ................107 Seat Removal................108 Jack Up Point & Support Point ..........109 Service Procedures Fluids, Filters & Lubricants Fuel ..................110 Engine Oil & Filter ..............113 Front Final Gear Oil..............123 Rear Final Gear Oil ..............

  • Page 97: The Importance Of Maintenance

    Frequent servicing of the air cleaner is especially important to help you avoid a possible costly engine repair. If your Honda SXS overturns or is involved in a crash, be sure your dealer inspects all major parts, even if you are able to make some repairs.

  • Page 98: Maintenance Safety

    Other tasks that are more difficult and require special tools are best performed by professionals. Removing the wheels should normally be handled only by a Honda technician or other qualified mechanic. Instructions are included in this manual only to assist in emergency service.

  • Page 99: Important Safety Precautions

    Keep cigarettes, sparks, and flames away from all fuel-related parts. Remember that your Honda dealer knows your Honda SXS best and is fully equipped to maintain and repair it. To ensure the best quality and reliability, use only new Honda Genuine Parts or other equivalents for repair and replacement.

  • Page 100: Maintenance Schedule

    Honda dealer knows your Honda SXS best and is fully equipped to maintain and repair it. If you decide to do your own maintenance, use only Honda Genuine Parts or their equivalents for repair or replacement to ensure the best quality and reliability.
  • Page 101 Maintenance Minder Messages on the Multi-function Display The maintenance minder indicator appears in the multi-function display when the mileage or operating hours on your Honda SXS reaches the maintenance interval specified on the maintenance schedule.
  • Page 102 * Should be serviced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Service Manual (page 228). ** In the interest of safety, we recommend these items be serviced only by your dealer.
  • Page 103 * Should be serviced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Service Manual (page 228). Note 1 Service more frequently when operating in dusty areas, sand or snow.
  • Page 104 * Should be serviced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Service Manual (page 228). ** In the interest of safety, we recommend these items be serviced only by your dealer.

  • Page 105: Maintenance Record

    Keeping an accurate maintenance record will help ensure that your Honda SXS is properly maintained. Retain detailed receipts to verify the maintenance was performed. If the Honda SXS is sold, these receipts should be transferred with the Honda SXS to the new owner.

  • Page 106: Maintenance Component Locations

    (page 108) (page 142) (page 118) parking brake lever spark plug tool kit (page 158) (page 144) (page 103) engine oil dipstick battery engine oil fill cap (page 172) (page 116) main fuse (page 203) Servicing Your Honda...
  • Page 107 14 SXS700-31HL36000.book 99 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Maintenance Component Locations fuse box front hood (page 204) (page 105) coolant reserve tank (page 128) fuel fill cap (page 110) front final gear oil fill cap front final gear oil drain bolt (pages 123, 124) Servicing Your Honda...
  • Page 108 Indicates something visible. Indicates something concealed. air cleaner (page 133) air cleaner housing rear final gear oil fill cap drain tube (page 136) rear final gear oil drain bolt (pages 125, 126) engine oil drain bolt (page 118) Servicing Your Honda...
  • Page 109 14 SXS700-31HL36000.book 101 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Maintenance Component Locations driveshaft boots brake light switch (page 169) (page 159) brake fluid reservoir tank (page 154) front brake caliper (page 156) Servicing Your Honda...
  • Page 110 14 SXS700-31HL36000.book 102 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Maintenance Component Locations Indicates something visible. Indicates something concealed. rear suspension spring pre-load adjuster (page 151) rear brake caliper driveshaft boots (page 156) (page 169) Servicing Your Honda...

  • Page 111: Tool Kit

    To access the tool kit, remove the seat (page 108), and right side rubber dust cover. An optional, larger tool kit may be available. Check with your dealer’s parts department. UNDER SEAT RIGHT SIDE tool kit tool kit compartment right side rubber dust cover Servicing Your Honda...

  • Page 112: Owner's Manual Storage

    Store your owner’s manual in the storage compartment on the inside of the glove box. The owner’s manual should be stored in the plastic bag. Be careful not to flood this area when washing your Honda SXS. RIGHT SIDE glove box owner’s manual...

  • Page 113: Front Hood

    Removal 1. Turn the knobs clockwise. 2. Remove the front hood. Installation 1. Insert the hooks into the slots. 2. Turn the knobs counterclockwise. hooks front hood knobs slots Servicing Your Honda...

  • Page 114: Air Guide Plate Removal

    1. Remove the front hood (page 105). 2. Remove the clips (page 107) and air guide plate. Installation 1. Insert the prongs into the frame. 2. Install the clips. 3. Install the front hood. air guide plate clips prongs Servicing Your Honda...

  • Page 115: Clip Removal

    1. Pull up the center pin to release the lock. 2. Pull out the clip of the hole. Installation 1. Insert the clip into the hole. 2. Press down the center pin securely to lock the clip. Servicing Your Honda...

  • Page 116: Seat Removal

    1. Open the doors (page 36). 2. Pull the front of the front seat upward then slide it slightly forward. grommets hooks front seat prongs Installation Insert the hooks into the frame and the prongs into the grommets of the front seat. Servicing Your Honda...

  • Page 117: Jack Up Point & Support Point

    • Place a jack only at the specified jack-up point. • Do not leave any person or cargo in the vehicle. • Do not place any object above or under a jack. support point support point jack up point jack up point Servicing Your Honda...

  • Page 118: Fuel

    86 (or higher) Use only unleaded fuel in your Honda. If you drive your Honda in a country where leaded fuel might be available, take precautions to use only unleaded fuel. Your engine is designed to use any unleaded gasoline that has a pump octane number of 86 or higher.
  • Page 119 1. Open the right side door (page 36). 2. Turn the fuel fill cap counterclockwise. 3. Add fuel until the level reaches the bottom of the filler neck. Avoid over filling the tank. There should be no fuel in the filler neck. Servicing Your Honda...
  • Page 120 • Wipe up spills immediately. 4. After refueling, turn the fuel fill cap clockwise securely and close the door. If you replace the fuel fill cap, use only a Honda Genuine replacement part. NOTICE Gasoline can damage the camouflage coating.

  • Page 121: Engine Oil & Filter

    Change the engine oil as specified in the maintenance schedule on page 95. When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule. Servicing Your Honda...

  • Page 122: Oil Recommendation

    * Suggested oils are equal in performance to SJ oils that are not labeled as energy conserving or resource conserving on the circular API service label. • Your Honda SXS does not need oil additives. Use the recommended oil. • Do not use oils with graphite or molybdenum additives. They may adversely affect clutch operation.
  • Page 123 The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle engines. There are two classes: MA and MB. Oil conforming to the standard is labeled on the oil container. For example, the following label shows the MA classification. (1) oil code (2) oil classification Servicing Your Honda...

  • Page 124: Checking & Adding Oil

    Engine Oil & Filter Checking & Adding Oil Refer to Safety Precautions on page 91. Check the engine oil level each day before operating your Honda SXS and add, if needed. 1. Park your Honda SXS on a firm, level surface.
  • Page 125 7. Reinstall the oil fill cap, dipstick, rubber dust cover and front seat. NOTICE Running the engine with an improper oil level can cause serious engine damage. UNDER SEAT LEFT SIDE rubber dust cover oil fill cap Servicing Your Honda...

  • Page 126: Changing Engine Oil & Filter

    (page 188). If you do not have the skills or the tools, see your dealer. Drain the Engine Oil: 1. Make sure the Honda SXS is parked on level ground. Set the parking brake, and jack up and support your Honda SXS (page 109).
  • Page 127 Engine Oil & Filter 4. Remove the maintenance lid by removing the bolts. 5. Place an oil drain pan under the crankcase. 6. Remove the engine oil drain plug. UNDER BODY maintenance lid drain plug bolts (cont’d) Servicing Your Honda...
  • Page 128 Insert a new oil filter to the oil filter cover. Use only the Honda Genuine oil filter or a filter of equivalent quality specified for your model. Using the wrong Honda filter or a non-Honda filter which is not of equivalent quality may cause engine damage.
  • Page 129 13. Pour the drained oil into a suitable container and dispose of it in an approved manner (page 188). NOTICE Improper disposal of drained fluids is harmful to the environment. (cont’d) Servicing Your Honda...
  • Page 130 17. Reinstall the maintenance lid by tightening the bolts to the specified torque: 9 lbf·ft (12 N·m , 1.2 kgf·m) 18. Lower your Honda SXS safely. 19. Fill the crankcase with the recommended oil, approximately: 3.1 US qt (2.9 ℓ) 20.

  • Page 131: Front Final Gear Oil

    Refer to Safety Precautions on page 91. Check the final gear oil level every 1,800 miles (3,000 km) or 300 hours of operating your Honda SXS and add, if needed. 1. Park your Honda SXS on a firm, level surface.
  • Page 132 Change the oil with the front final gear at normal operating temperature to assure complete and rapid draining. 1. Park the Honda SXS on a firm, level surface. 2. Place an oil drain pan under the oil drain plug. 3. Remove the oil fill cap and the drain plug.

  • Page 133: Rear Final Gear Oil

    Refer to Safety Precautions on page 91. Check the rear final gear oil level every 1,800 miles (3,000 km) or 300 hours of operating your Honda SXS, and add if needed. 1. Park your Honda SXS on a firm, level surface.
  • Page 134 Change the oil with the rear final gear at normal operating temperature to assure complete and rapid draining. 1. Park the Honda SXS on a firm, level surface. 2. Place an oil drain pan under the oil drain plug. 3. Remove the oil fill cap and the drain plug.

  • Page 135: Coolant

    Using tap water may cause engine damage. The factory provides a 50/50 solution of antifreeze and distilled water in this Honda SXS. This coolant solution is recommended for most operating temperatures and provides good corrosion protection.
  • Page 136 Refer to Safety Precautions on page 91. Check the engine coolant level every day before operating your Honda SXS and add, if needed. 1. Make sure the vehicle is parked on a firm, level surface. 2. Remove the front hood (page 105).
  • Page 137 M I N reserve tank 5. Add coolant to the reserve tank as required to bring the coolant level to the MAX level mark. 6. After adding coolant, install the reserve tank cap and install the front hood. Servicing Your Honda...
  • Page 138 Refer to Safety Precautions on page 91. Coolant should be replaced by your dealer, unless you have the proper tools and service data, and are mechanically qualified. Refer to the official Honda Service Manual. WARNING WARNING Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.
  • Page 139 Have the radiator checked by your dealer if more than 20% of the radiator surface air flow is restricted. Clean the radiator core after driving your Honda SXS in mud. To clean the radiator core: 1. Remove the front hood (page 105).

  • Page 140: Air Cleaner

    Your dealer can help you determine the correct service interval for your driving conditions. Your Honda SXS’s air cleaner has very specific performance requirements. Use a new Honda Genuine air cleaner specified for your model or an air cleaner of equal quality. NOTICE Using the wrong air cleaner may result in premature engine wear.
  • Page 141 (4 Person Model only) Remove the rear center cover. 2. Unlatch the retainer clips. 3. Remove the air cleaner housing cover. UNDER CARGO BED rear center cover (4 Person Model only) retainer clips air cleaner housing cover retainer clips (cont’d) Servicing Your Honda...
  • Page 142 This can tear the foam. 8. Inspect for tears or cracks in the foam or seams of the air cleaner. Replace the air cleaner if it is damaged. UNDER CARGO BED clamp air cleaner screw air cleaner assembly air cleaner body Servicing Your Honda...
  • Page 143 9. Allow the air cleaner to dry thoroughly before applying oil. A wet air cleaner will not fully absorb the oil. 10. Pour clean Pro Honda Foam Filter Oil or an equivalent over the entire surface of the air cleaner. Use both hands to evenly spread the oil into the air cleaner.
  • Page 144 3. Drain the deposits. 4. Reinstall the air cleaner housing drain tube, securing it with the clip. 5. Lower the cargo bed. RIGHT REAR clip air cleaner housing air cleaner housing drain tube Servicing Your Honda...

  • Page 145: Lubrication

    Apply grease to each pivot to prevent corrosion. Check for smooth movement after lubrication. If the movement is not smooth after applying grease, see your dealer. Lubrication Points Lubricate the cargo bed pivots as shown in following illustration. cargo bed pivot Servicing Your Honda...
  • Page 146 Lubricate the cargo bed latch pivots as shown in the following illustration. Lift the cargo bed (page 58). cargo bed latch pivots Lubricate the cargo bed strikers as shown in the following illustration. Lift the cargo bed (page 58). cargo bed strikers Servicing Your Honda...
  • Page 147 Lubricate the tailgate pivots as shown in following illustration. Open the tailgate (page 56). tailgate pivot Lubricate the brake pedal pivot and accelerator pedal pivot as shown in the following illustration. brake pedal pivot accelerator pedal pivot Servicing Your Honda...
  • Page 148 Remove the dust cover. parking brake pivot Lubricate the drive mode lever pivot and shift lever pivot as shown in the following illustration. Remove the front hood (page 105). UNDER FRONT HOOD drive mode lever pivot shift lever pivot Servicing Your Honda...
  • Page 149 Lubricate the door latch as shown in following illustration. Open the door (page 36). (4 Person Model only) door latch door latch Lubricate the rear seat latch as shown in following illustration. (4 Person Model only) rear seat latch Servicing Your Honda...

  • Page 150: Accelerator Pedal

    Check the accelerator pedal play periodically in accordance with the Periodic Maintenance Chart, and adjust the play if necessary. Inspection Check freeplay of the accelerator pedal. Freeplay: 3/16 – 3/8 in (5.0 – 10.0 mm) accelerator pedal 3/16 – 3/8 in (5.0 – 10.0 mm) Servicing Your Honda...
  • Page 151 6. After adjustment, check for smooth operation of the accelerator pedal. 7. Install the remaining parts in the reverse order of removal. UNDER FRONT HOOD LEFT FRONT throttle cable adjuster sleeve decrease freeplay increase lock nut freeplay Servicing Your Honda...

  • Page 152: Spark Plug

    If the electrodes and insulator tip appear unusually fouled or burned, we suggest that you contact your dealer. 6. Discard the spark plug if there is apparent wear or if the insulator is cracked or chipped. Servicing Your Honda...
  • Page 153 The gap should be: 0.039 – 0.043 in (1.00 – 1.10 mm) UNDER SEAT LEFT SIDE spark plug cap spark plug gap 0.039 – 0.043 in (1.00 – 1.10 mm) side electrode center electrode (cont’d) Servicing Your Honda...
  • Page 154 If a plug is too tight, the threads may be damaged. 10. Connect the spark plug cap. Take care to avoid pinching any cables or wires. 11. Install the front seat. Servicing Your Honda...

  • Page 155: Spark Arrester

    1. Allow the engine and muffler to cool. 2. Remove the bolts, the spark arrester and the gasket from the muffler. REAR bolts muffler gasket spark arrester (cont’d) Servicing Your Honda...
  • Page 156 Check the gasket and replace it if necessary. spark arrester screen 4. Install the spark arrester and the gasket in the muffler, and tighten the bolts to the specified torque: 9 lbf·ft (12 N·m , 1.2 kgf·m) Servicing Your Honda...

  • Page 157: Exhaust System

    Exhaust System Exhaust System Inspection Stop the engine and check for any sign of exhaust gas leakage. Listen for exhaust leaks near the muffler, which is located by the left rear wheel well. check for exhaust leakage Servicing Your Honda...

  • Page 158: Suspension

    The way you drive your Honda SXS and the type of ride you want to experience can also influence your suspension needs. Lower spring pre-load provides a softer ride and is usually preferred for light loads and smooth terrain.
  • Page 159 The spring pre-load adjuster has 5 positions for different load or riding conditions. Before adjusting the spring pre-load, jack up your Honda SXS (page 109) to avoid damaging the adjusters. Use the pin spanner to adjust the shock spring pre-load.

  • Page 160: Frame

    This SXS utilizes a multi-component frame design that is non-serviceable. Under no circumstances should the frame lug fasteners be loosened or removed. If a bolt has been loosened or removed, see your Honda dealer before operating the vehicle. frame lug fasteners Servicing Your Honda...

  • Page 161: Brakes

    Honda DOT 4 Brake Fluid The recommended brake fluid is Honda DOT 4 Brake Fluid, or any brake fluid of equal quality and performance. Use fresh brake fluid from a sealed container. Be sure to read the label before opening the sealed container.
  • Page 162 LEFT FRONT brake fluid reservoir tank It should be between the MIN and MAX level marks. If the level is at or below the MIN level mark, check the brake pads for wear (page 156). Servicing Your Honda...
  • Page 163 Other Inspections • Make sure there are no fluid leaks. • Check for deterioration or cracks in the hoses and fittings. If the hoses are worn or cracked, have them replaced by your dealer. Servicing Your Honda...
  • Page 164 Rear: Check the wear indicator. If the wear indicator aligns with the reference mark, replace both pads as a set, see your dealer for this service. REAR brake reference mark caliper wear indicator Servicing Your Honda...
  • Page 165 Brake Pedal Inspection Refer to Safety Precautions on page 91. Check that the brake pedal moves smoothly and does not feel abnormally spongy. Refer to the maintenance schedule. CHECK THAT THE BRAKE PEDAL MOVES SMOOTHLY. brake pedal Servicing Your Honda...
  • Page 166 Parking brake lever freeplay is: 1 9/16 – 2 3/8 in (40 – 60 mm) 1 9/16 – 2 3/8 in (40 – 60 mm) parking brake lever If adjustment is necessary, have the parking brake adjusted by your dealer. Servicing Your Honda...

  • Page 167: Brake Light Switch Adjustment

    Adjustment is done by holding the switch body and turning the adjusting nut. Turn the nut in direction (A) if the switch operates too late, and in direction (B) if the switch operates too soon. UNDER FRONT HOOD LEFT SIDE brake light switch Servicing Your Honda...

  • Page 168: Tires

    14 SXS700-31HL36000.book 160 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Tires To safely operate your Honda SXS, your tires must be the proper type and size, in good condition with adequate tread, and correctly inflated. WARNING WARNING Using tires that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
  • Page 169 Generally, underinflated tires wear unevenly, adversely affect handling, and are more likely to fail from being overheated. Overinflated tires make your Honda SXS drive harshly, are more prone to damage from surface hazards, and wear unevenly.
  • Page 170 Always check air pressure when your tires are “cold.” If you check air pressure when your tires are “warm” — even if your Honda SXS has only been driven for a few miles — the readings will be higher. If you let air out of warm tires to match the recommended cold tire pressures, the tires will be underinflated.
  • Page 171 WARNING WARNING Operating this Honda SXS with improper tires, or with uneven tire pressure may cause loss of control, and you could be seriously injured or killed. • Always use the size and type tires specified in this owner’s manual for this vehicle.
  • Page 172 To check the condition of a tire tread, measure the groove depth in the center of the tire. For best performance, you should replace a tire before the tread depth at the center reaches the following limits: front 3/16 in (4 mm) rear 3/16 in (4 mm) Servicing Your Honda...
  • Page 173 If you choose to have a tire repaired, be sure the repair work is performed by a professional. If you have a tire professionally repaired at a non-Honda facility, we recommend that you have the work checked by your Honda dealer.
  • Page 174 Tires Tire Replacement Refer to Safety Precautions on page 91. The tires that came on your Honda SXS were designed to match the performance capabilities of the vehicle and provide the best combination of handling, braking, and comfort. It is best to replace all four tires. However, if that is not possible, you must replace the tires in pairs (front or rear) with tires of the same size and type as the originals.

  • Page 175: Wheels

    14 SXS700-31HL36000.book 167 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Wheels Inspection Check that the wheel nuts are tight and there are no cracks or deformation in the wheel. CHECK FOR CRACKS OR DEFORMATION. CHECK THAT THE WHEEL NUTS ARE TIGHT Servicing Your Honda...

  • Page 176: Driveshaft Boots

    14 SXS700-31HL36000.book 168 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Driveshaft Boots Refer to Safety Precautions on page 91. Check the rubber driveshaft boots for tears or traces of splattered grease. If necessary, have your dealer replace them. FRONT driveshaft boots REAR driveshaft boots Servicing Your Honda...

  • Page 177: Battery

    Honda SXS, or do not drive frequently, we recommend that you charge the battery frequently (see Battery Charging, page 173). If you do not expect to drive your Honda SXS for at least two weeks, we recommend you remove the battery, or at least disconnect the battery cables (negative cable first).
  • Page 178 Battery Battery Storage Refer to Safety Precautions on page 91. If you plan to store your Honda SXS, we recommend you remove the battery and store it where it can be charged every 30 days to maintain its service life.
  • Page 179 8. Clean the battery box after removing the battery for storage. Dry the battery box. 9. Slow charge the battery (see following section) once every 30 days. positive (+) terminal lead battery rubber band negative (-) terminal lead Servicing Your Honda...
  • Page 180 Reinstall in the reverse order of removal. Be sure to connect the positive (+) terminal first, then the negative (-) terminal. Readjust the clock after the battery is reconnected since the clock goes wrong once the battery is disconnected (page 23). Servicing Your Honda...
  • Page 181 We recommend using a charger designed specifically for your Honda, which can be purchased from your dealer. These units can be left connected for long periods without risking damage to the battery. However, do not intentionally leave the charger connected longer than the time period recommended in the charger’s...

  • Page 182: Appearance Care

    Frequent cleaning and polishing will keep your Honda looking newer longer. Frequent cleaning also identifies you as an owner who values his Honda SXS. A clean Honda SXS is also easier to inspect and service. General Recommendations Refer to Safety Precautions on page 91.
  • Page 183 3. Wash your Honda SXS with a sponge or soft towel. As you wash, check for heavy grime. If necessary, use a mild cleaner/degreaser to remove the grime.
  • Page 184 14 SXS700-31HL36000.book 176 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Appearance Care Spray Cleaning Your Honda SXS Refer to Safety Precautions on page 91. Avoid using spray cleaner products on the tires or suspension components. Suggestions for using spray cleaners: Honda SXS condition Recommended Cleaning...
  • Page 185 (USA & Canada only) If a surface on your Honda SXS is chipped or scratched, your dealer has touch-up paint to match your Honda SXS’s color. Be sure to use your Honda SXS’s color code (page 213) when you buy touch-up paint.
  • Page 186 14 SXS700-31HL36000.book 178 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Servicing Your Honda...

  • Page 187: Tips

    Tips Here’s some helpful advice on how to prepare for an off-road Tips adventure, how to transport and store your Honda, and how to be an environmentally responsible Honda SXS owner. Preparing for a Drive..............180 What to Take to the Operating Area........180 What to Take on the Trail ............

  • Page 188: Preparing For A Drive

    What to Take to the Operating Area Along with your Honda SXS and personal safety gear, you should take along some tools and supplies in case you have a problem. For some of the difficulties you might encounter, see Taking Care of the Unexpected, which begins on page 189.

  • Page 189: What To Take On The Trail

    14 SXS700-31HL36000.book 181 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Preparing for a Drive What to Take on the Trail What you take with you during a ride depends on the kind of terrain, how long you expect to drive, how far you might go from help, and how experienced you or your companions are in making repairs.

  • Page 190: Transporting Your Honda

    14 SXS700-31HL36000.book 182 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Transporting Your Honda Do not tow your Honda SXS behind a car or other vehicle except on a trailer. When you transport your Honda SXS, we recommend that you carry the vehicle in its normal operating position (on all four wheels).
  • Page 191 14 SXS700-31HL36000.book 183 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Transporting Your Honda 2. Secure the vehicle with tie-down straps in the areas shown. • Suitable tie-down straps are available from your dealer. • Ordinary rope is not recommended because it can stretch under load.

  • Page 192: Storing Your Honda

    Storing Your Honda If you won’t be driving for an extended period, such as during the winter, thoroughly inspect your Honda SXS and correct any problem before storing it. That way, needed repairs won’t be forgotten and it will be easier to get your Honda SXS running again.

  • Page 193: Preparation For Storage

    14 SXS700-31HL36000.book 185 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Storing Your Honda Preparation for Storage Refer to Safety Precautions on page 91. 1. Change the engine oil and filter (page 118). 2. Make sure the cooling system is filled with a 50/50% antifreeze solution (page 127).
  • Page 194 9. Place your Honda SXS on blocks to lift all tires off the floor. 10. Cover your Honda SXS with a porous material. Avoid using plastic or similar non-breathing, coated materials that restrict air flow and allow heat and moisture to accumulate.

  • Page 195: Removal From Storage

    Refer to Safety Precautions on page 91. 1. Uncover and clean your Honda SXS. 2. If your Honda SXS has been stored for more than four months — change the engine oil (page 118). 3. If your Honda SXS has been stored for more than two months —...

  • Page 196: You & The Environment

    14 SXS700-31HL36000.book 188 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 You & the Environment Owning and operating a Honda SXS can be enjoyable, but you must do your part to protect nature. When you show respect for the land, wildlife, and other people, you also help preserve off-road driving.

  • Page 197: Taking Care Of The Unexpected

    14 SXS700-31HL36000.book 189 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Taking Care of the Unexpected With all the challenges you can encounter off-road, there’s a chance Taking Care of the Unexpected that sometime something may go wrong. This section gives practical advice to help you deal with a wide range of problems. Take time to read this section before you drive.

  • Page 198: General Guidelines

    Remember to take along your owner’s manual, the tool kit that came with your Honda SXS, and any other items (such as tire repair supplies and additional tools) that might help you solve a problem on your own.
  • Page 199 • Do not continue driving if you are hurt or your Honda SXS is not in safe driving condition. Additional recommendations for specific problems follow.

  • Page 200: If Your Engine Quits Or Won't Start

    14 SXS700-31HL36000.book 192 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 If Your Engine Quits or Won’t Start Proper operation and maintenance can prevent starting and engine performance problems. In many cases, the cause of the problem may be a simple operational oversight. If you have a problem starting the engine — or experience poor engine performance —...
  • Page 201 14 SXS700-31HL36000.book 193 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 If Your Engine Quits or Won’t Start SYMPTOM: Starter motor doesn’t operate. POSSIBLE CAUSE WHAT TO DO transmission not in Shift into neutral or press on neutral the brake pedal. blown fuse Replace with a new fuse of the same rating (page 202).
  • Page 202 14 SXS700-31HL36000.book 194 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 If Your Engine Quits or Won’t Start SYMPTOM: Engine starts, but runs poorly. POSSIBLE CAUSE WHAT TO DO high coolant/oil Check the high coolant/oil temperature temperature indicator. Refer to If the High Coolant/Oil Temperature Indicator Lights, page 200.

  • Page 203: If The Transmission Is Not Functioning Properly

    When the PGM-FI malfunction indicator lamp (MIL) returns to normal: You may drive the vehicle as usual after restarting the engine. However, we urge you to have your Honda SXS inspected by your dealer. (cont’d) Taking Care of the Unexpected...
  • Page 204 Although the PGM-FI malfunction indicator lamp (MIL) is not blinking, the vehicle does not move: If your Honda SXS won’t move, it is possible the transmission is locked. Use the following procedure to unlock the transmission. 1. Shift the shift lever to the neutral (N) position.

  • Page 205: If You Have A Flat Tire

    We strongly recommend that you do not try to drive with a flat tire. The Honda SXS will be hard to handle, and if the tire comes off the rim, it may lock up the wheel and cause you to crash or overturn.
  • Page 206 Removal 1. Park your Honda SXS on a firm, level surface. 2. Loosen — but do not remove — the wheel nuts. 3. Raise the front (or rear) wheels off the ground (page 109). 4. Remove the wheel nuts.
  • Page 207 2. Position the wheel nuts so that the tapered sides face the wheel rim. 3. Hand-tighten the wheel nuts on the wheel, then lower the Honda SXS to the ground before tightening the nuts in a crisscross (rather than circular) pattern to the specified torque: 98 lbf·ft (133 N·m , 13.6 kgf·m) If a torque wrench was not used for installation, see your dealer as soon as possible to verify proper assembly.

  • Page 208: If The High Coolant/Oil Temperature Indicator Lights

    14 SXS700-31HL36000.book 200 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 If the High Coolant/Oil Temperature Indicator Lights Normally, the high coolant/oil temperature indicator will only light momentarily when you turn the ignition ON (q). Occasionally, it may flicker at or near idling speed. High coolant/oil temperature may be caused by restriction of air flow to the radiator (such as mud caked on the radiator), extended idling, an oil leak, a coolant leak, a low oil level, a low coolant level, or extended operation under adverse conditions.
  • Page 209 • Check for an oil leak. • Check the oil level. If necessary, add the recommended oil (page 114) to the upper level mark. If you must leave your Honda SXS to get oil, secure it as much as possible.

  • Page 210: If A Fuse Blows

    14 SXS700-31HL36000.book 202 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 If a Fuse Blows All of the electrical circuits on your Honda SXS have fuses to protect them from damage caused by excess current flow (short circuit or overload). If something electrical on your Honda SXS stops working, the first thing you should check for is a blown fuse.
  • Page 211 14 SXS700-31HL36000.book 203 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 If a Fuse Blows Main Fuse Access 1. To prevent an accidental short circuit, turn the ignition switch OFF (w) before checking or replacing the fuses. 2. To access the main fuse, remove the front seat (page 108) and right side rubber dust cover.
  • Page 212 14 SXS700-31HL36000.book 204 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 If a Fuse Blows Circuit Fuse Access 5. To access the circuit fuse, remove the front hood (page 105). 6. Remove the fuse box cover and fuse cover. 7. To check or replace a circuit fuse, pull the old fuse out. If the fuse is blown, replace it with a spare fuse of the same rating.
  • Page 213 14 SXS700-31HL36000.book 205 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 If a Fuse Blows If you do not have a spare fuse and you cannot drive the Honda SXS without fixing the problem, take a fuse of the same rating or a lower rating from one of the other circuits that you can do without temporarily.

  • Page 214: If You Crash

    If there is minor damage, or you are unsure about possible damage but decide to try driving the Honda SXS back to your base, drive slowly and cautiously. Sometimes, crash damage is hidden or not immediately apparent.

  • Page 215: If You Lose Your Key

    If you don’t know your key number, call the dealer where you purchased your Honda SXS. They may have it listed in their records. If they don’t, transport your Honda SXS to them or the nearest dealer. The dealer will probably have to remove the ignition switch assembly to find the key number so they can make a key for you.

  • Page 216: If The Battery Is Low

    If the battery is low, the starter motor doesn’t operate or works poorly, and you can’t start the engine. Jump starting your Honda SXS should be avoided. Instead, the battery should be removed and recharged (page 173). If you can’t charge the battery or it appears unable to hold a charge, contact your dealer.
  • Page 217 14 SXS700-31HL36000.book 209 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 If the Battery Is Low 1. To prevent an accidental short circuit, turn the ignition switch OFF (w). 2. Remove the front seat (page 108) and right side rubber dust cover. 3. Using a fully charged 12-volt battery, connect the positive (+) side of the jumper cable to the charged battery, and connect the positive (+) side on the other end of the jumper cable to the positive (+) terminal of vehicle battery.

  • Page 218: If A Component Fails

    • If you damage the accelerator cable or other critical component, your Honda SXS may be unsafe to drive. Carefully assess the damage and make any repairs that you can. But if there is any doubt, it’s best to be conservative and safe.

  • Page 219: Technical Information

    Technical Information This section contains dimensions, capacities, and other technical Technical Information data, plus information on government requirements and how to break-in your Honda SXS. Vehicle Identification ..............212 Specifications ................214 Break-in Guidelines..............219 Emission Control Systems (USA & Canada only) ......220 Oxygenated Fuels (USA &...

  • Page 220: Serial Numbers

    14 SXS700-31HL36000.book 212 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Vehicle Identification Serial Numbers The VIN, engine serial number, and key number may be required when ordering replacement parts. You may record these numbers in the Quick Reference section at the rear of this manual. The VIN is stamped on the left side of the frame, located under the rear cargo bed.
  • Page 221 14 SXS700-31HL36000.book 213 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Vehicle Identification Color Label & Code The color label is attached to the front side of the frame. The color code is helpful when ordering replacement parts. You may record the color and code in the Quick Reference section at the rear of this manual.

  • Page 222: Specifications

    API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-stroke oil, or an equivalent Technical Information...
  • Page 223 14 SXS700-31HL36000.book 215 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Specifications Fuel & Lubricants (cont’d) cooling system Pro Honda HP Coolant (USA & recommendation Canada) or an equivalent high quality ethylene glycol antifreeze containing corrosion protection inhibitors specifically recommended for use in aluminum engines cooling system 3.6 US qt (3.4 ℓ)
  • Page 224 14 SXS700-31HL36000.book 216 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Specifications Power Transmission primary reduction 1.333 secondary forward 2.562 reduction reverse 3.153 final reduction front 3.462 rear 3.462 transmission ratio 2.052 1.416 0.933 reverse 2.138 final drive shaft Chassis & Suspension caster 3° trail 0.55 in (14 mm) tire size front: 25X8.00-12 NHS...
  • Page 225 14 SXS700-31HL36000.book 217 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Specifications Electrical battery except Canada YTX14-BS 12 V-12 Ah (10HR) Canada GYZ16H 12V-16 Ah (10HR) generator 0.45 kW/5,000 rpm Lights headlight 12 V 37.5 W x 2 brake/tail light neutral indicator reverse indicator high coolant/oil temperature indicator PGM-FI...
  • Page 226 14 SXS700-31HL36000.book 218 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Specifications Torque Specification engine oil drain 18 lbf·ft (25 N·m, 2.5 kgf·m) bolt engine oil filter 13 lbf·ft (18 N·m, 1.8 kgf·m) bolt maintenance lid 9 lbf·ft (12 N·m, 1.2 kgf·m) mount bolts front final gear 9 lbf·ft (12 N·m, 1.2 kgf·m) oil drain plug front final gear oil...

  • Page 227: Break-In Guidelines

    14 SXS700-31HL36000.book 219 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Break-in Guidelines Help assure your Honda SXS’s future reliability and performance by paying extra attention to how you drive during the first operating day or 15 miles (25 km). During this period, avoid full-throttle starts and rapid acceleration.

  • Page 228: Emission Control Systems (Usa & Canada Only)

    The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), and Environment Canada (EC) require that your Honda off-road utility vehicle comply with applicable emissions standards during its useful life, when operated and maintained according to the instructions provided.
  • Page 229 Carbon monoxide does not react in the same way, but it is toxic. Honda Motor Co., Ltd. utilizes various systems to reduce carbon monoxide, oxides of nitrogen and hydrocarbons. Exhaust Emission Control System The exhaust emission control system includes a PGM-FI system.
  • Page 230 Federal regulations prohibit removing or disabling a device or element of design that may affect your engine’s emission performance unless your Honda off-road utility vehicle will be used exclusively in competition. If you modify your engine for use in sanctioned competition events, you must deface or destroy the emission control information label.
  • Page 231 14 SXS700-31HL36000.book 223 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Emission Control Systems (USA & Canada only) Noise Emission Control System TAMPERING WITH THE NOISE CONTROL SYSTEM IS PROHIBITED: State laws prohibit, or Canadian provincial laws may prohibit, the following acts or the causing thereof: (1) The removal or rendering inoperative by any person, other than for purposes of maintenance, repair or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control...

  • Page 232: Oxygenated Fuels (Usa & Canada Only)

    14 SXS700-31HL36000.book 224 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Oxygenated Fuels (USA & Canada only) Some conventional gasolines are being blended with alcohol or an ether compound. These gasolines are collectively referred to as oxygenated fuels. To meet clean air standards, some areas of the United States and Canada use oxygenated fuels to help reduce emissions.
  • Page 233 14 SXS700-31HL36000.book 225 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Oxygenated Fuels (USA & Canada only) METHANOL (methyl or wood alcohol) 5% by Volume You may use gasoline containing methanol containing up to 5% methanol by volume as long as it also contains cosolvents and corrosion inhibitors to protect the fuel system.

  • Page 234: Petrol Containing Alcohol (Australia & New Zealand Only)

    Engine performance problems resulting from the use of fuels that contain alcohol are not covered under the warranty. Honda cannot endorse the use of fuels containing methanol since evidence of their suitability is not yet complete.

  • Page 235: Consumer Information (Usa & Canada Only)

    Warranty Coverage (USA & Canada only) ......... 229 Warranty Service (USA & Canada only) ........230 Contacting Honda (USA & Canada only) ........231 Your Honda Dealer (USA & Canada only)........232 The Honda Rider’s Club (USA only) ........... 233...

  • Page 236: Authorized Manuals (Usa & Canada Only)

    Canada only) The Service Manual used by your authorized dealer is available from your Honda dealer or Helm, Inc. (USA only, Canada: See your dealer to order authorized manuals.) Also available but not necessary to service your model is the Honda...

  • Page 237: Warranty Coverage (Usa & Canada Only)

    There are responsibilities, restrictions, and exclusions which apply to these warranties. Please read the Warranties Booklet given to you by your Honda dealer at the time of purchase. Be sure to keep your Honda owner’s card with your Warranties Booklet.

  • Page 238: Warranty Service (Usa & Canada Only)

    (such as brakes, tires, etc.). If you believe you have a problem with your Honda SXS, call the service department of your dealer. Make an appointment for an inspection and diagnosis. Remember, as the owner of the Honda SXS, you will be asked to authorize that inspection.

  • Page 239: Contacting Honda (Usa & Canada Only)

    Your owner’s manual was written to cover most of the questions you might ask about your Honda. Any questions not answered in the owner’s manual can be answered by your dealer. If your dealer doesn’t have the answer right away, they will get it for you.

  • Page 240: Your Honda Dealer (Usa & Canada Only)

    Your Honda Dealer (USA & Canada only) Once you purchase your new Honda, get familiar with the organization of your Honda dealer so you can utilize the full range of services available. The service department is there to perform regular maintenance and unexpected repairs.

  • Page 241: The Honda Rider's Club (Usa Only)

    14 SXS700-31HL36000.book 233 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 The Honda Rider’s Club (USA only) The Honda Rider’s Club of America (HRCA) sponsors local riding chapters at Authorized Honda Dealerships across the country. You can log on to the HRCA Clubhouse website for more information at www.hrca.honda.com.

  • Page 242: Index

    ............2 air cleaner, body ..................134 filter ..................132 housing drain tube ..............136 air guide plate removal .............106 air pressure, tire ................161 American Honda, contacting ............231 apparel, protective ..............63 appearance care ...............174 authorized manuals ..............228 battery ..................169 brakes, fluid ..................153 pad wear ................156...
  • Page 243 14 SXS700-31HL36000.book 235 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Index clip removal ................107 color label ................213 compartment, owner’s manual ..............104 storage ..................54 tool kit ..................103 component fails ................210 consumer information ..............227 coolant temperature gauge ............25 crash, if you ................206 crossing a hill ................85 customer service ...............231 differential oil ..............123, 125 digital clock ................23 dipstick ..................116...
  • Page 244 14 SXS700-31HL36000.book 236 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Index engine, number .................212 oil ..................113 pinging ..................110 starting ..................74 stopping ..................74 won’t start ................192 environment ................188 flat tire ..................197 four wheel drive indicator ............29 frame ..................152 fuel gauge ..................21 fuel, fill cap ...................111 oxygenated ................224 recommendation ..............110 tank capacity .................111 fuses ..................202...
  • Page 245 14 SXS700-31HL36000.book 237 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Index hill, approaching a hill ..............83 crossing a hill ................85 driving down a hill ..............84 driving up a hill ................84 stopping on a hill ..............84 hourmeter ..................27 identification, vehicle ..............212 ignition switch ................30 indicators, differential lock indicator ............15 gear position indicator .............29 high coolant/oil temperature indicator ......15, 200 neutral indicator ..............15...
  • Page 246 14 SXS700-31HL36000.book 238 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Index lubrication, differential oil ..............123, 125 engine oil ................114 points ..................137 maintenance, importance ................89 maintenance minder indicator ...........28, 93 precautions ................91 record ..................97 safety ..................90 schedule ..................92 manual, service .................228 maximum weight limit ............3, 69 modifications ................5 multi-function display ..............18 neutral indicator .................15...
  • Page 247 14 SXS700-31HL36000.book 239 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Index parking ..................77 passenger, handhold .................53 no carrying in cargo bed ............3 pedal, accelerator ..............142 petrol containing alcohol ............226 pinging, engine ................110 plug, spark ................144 pre-drive inspection ..............66 problems, unexpected ..............190 protective apparel ...............63 removal, seat ................108 reverse indicator .................15 safety, driving precautions ..............78...
  • Page 248 14 SXS700-31HL36000.book 240 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Index spark arrester ................147 spark knock ................110 spark plug ................144 specifications ................214 speedometer ................19 speedometer display ..............19 starting, engine ..................74 troubleshooting ..............192 stopping engine .................74 storage, owner’s manual ..............104 SXS ..................184 suspension, adjustment ................150 spring pre-load ..............151 switch, headlight .................31 ignition ..................30...
  • Page 249 14 SXS700-31HL36000.book 241 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Index transporting your Honda ............182 tripmeter ..................24 trouble, unexpected ..............189 troubleshooting, starting ............192 turning, on level ground .............82 vehicle identification no. (VIN) ..........212 warning labels ................6 warranty, coverage ................229 extended ................229 service ...................230 washing your SXS ..............175 water, driving through ..............86...
  • Page 250 14 SXS700-31HL36000.book 242 ページ ２０１３年５月１４日　火曜日　午前１０時５９分...
  • Page 251 14 SXS700-31HL36000.book 243 ページ ２０１３年５月１４日　火曜日　午前１０時５９分...
  • Page 252 14 SXS700-31HL36000.book 244 ページ ２０１３年５月１４日　火曜日　午前１０時５９分...
  • Page 253 14 SXS700-31HL36000.book 245 ページ ２０１３年５月１４日　火曜日　午前１０時５９分...

  • Page 254: Quick Reference

    Quick Reference The following is a brief, but important collection of information you Quick Reference need to know about your Honda. You’ll also find space to record important notes. How To Avoid Costly Repairs The engine of your Honda can be the most expensive component to repair.
  • Page 255 14 SXS700-31HL36000.book 247 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Quick Reference Engine No. Color Label Owner’s Name Address City/State Phone Dealer’s Name Address City/State Phone Service Mgr. Quick Reference...
  • Page 256 API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-stroke oil, or an equivalent Maximum 1,728 lb (784 kg) operator, passenger, all...
  • Page 257 BKR5E-11 (NGK) or K16PR-U11 (DENSO) Coolant Ethylene glycol antifreeze (silicate-free) for aluminum engines in 50/50 solution with Pro Honda HP Coolant or an equivalent distilled water Fuses main: 40 A circuit: 15 A x 3, 10 A x 3...
  • Page 258 14 SXS700-31HL36000.book 250 ページ ２０１３年５月１４日　火曜日　午前１０時５９分 Quick Reference These symbols are used in Driver Controls section: SYMBOL COMPONENT SEE PAGE START — ignition switch ON — ignition switch OFF — ignition switch OFF — headlight switch ON — headlight switch Drive — Neutral — Reverse — D, N, R shift lever Quick Reference...
