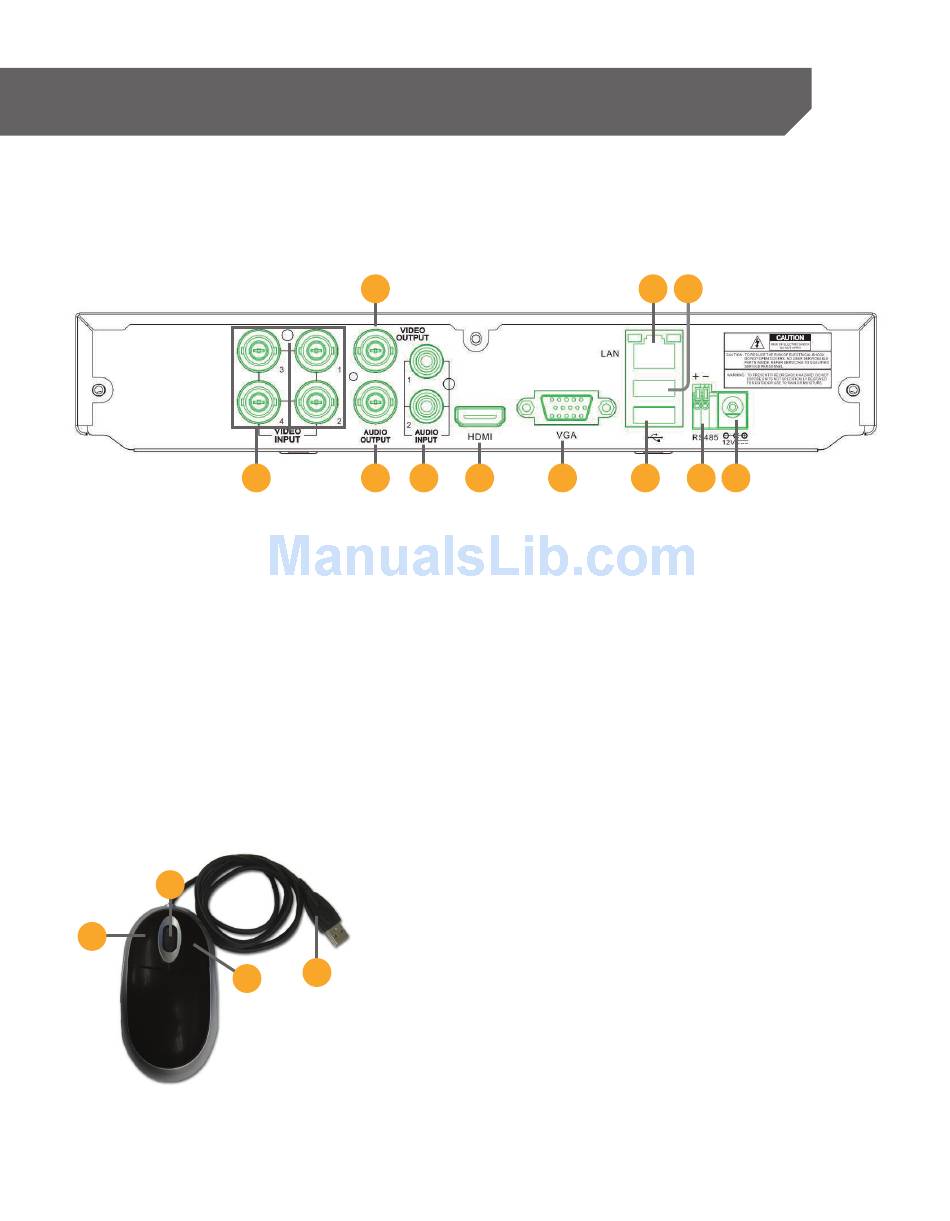

DVR BACK

*May not be exactly as shown. Not all models come with HDMI ports.
1. Video Output: Accepts up to two monitors
2. LAN Connection: Connects to router
3. Mouse input: Connect the USB (before power up)
4. Camera Connect: Camera connections
(4ch or 8ch)
5. Audio Output: Connects to speaker/audio input

MOUSE

2
1
4
1
4 5 6
3

BUTTONS AND CONNECTIONS

9
7 8
6. Audio Input: Accepts a microphone and/or
audio-supported camera (not included)
7. HDMI input: Connects to HDMI
8. VGA: Connects to VGA monitor
9. USB Connection: Connect USB drive for backup.
10. PTZ: Connects to two-wire PTZ camera
(not included)
11. Power Connection: Connect DVR to
power source
1. Select: Click this button to select
highlighted object.
2. Scroll Wheel: This wheel has no function on
this DVR.
3. USB Connection: Connects to the USB mouse
port (top port) on the back of the DVR.
4. Deselect: Allows you to exit the menu you are
currently in. When in live view, it will open
the submenu.
