Summary of Contents for Defender STEALTH1

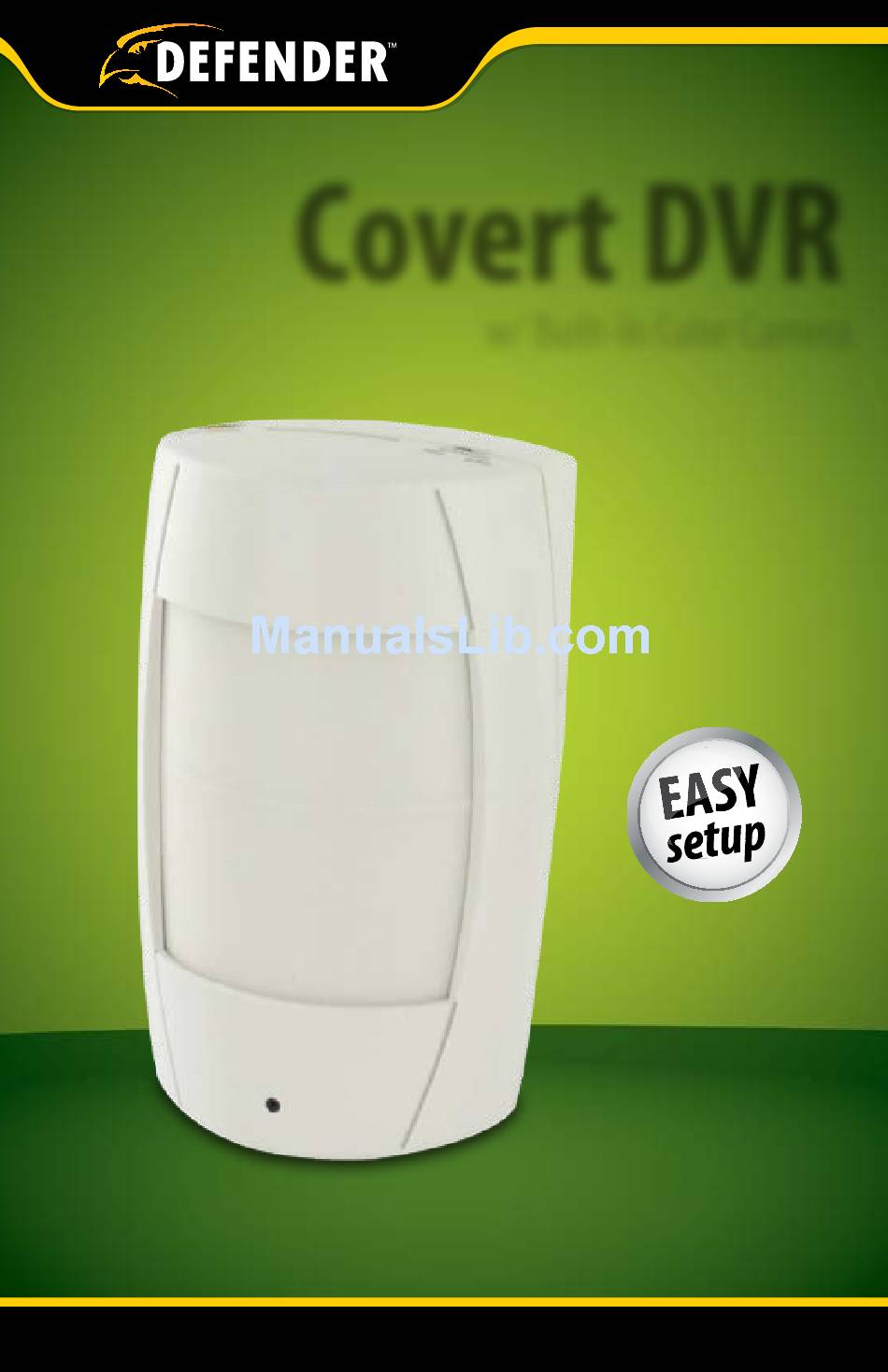

- Page 1 Covert DVR w/ Built-In Color Camera INSTRUCTION MANUAL V1.0 www.defender-usa.com Model#: STEALTH1...
- Page 2 This warranty does not cover shipping costs, insurance, or any other incidental charges. You MUST call Defender before sending any product back for repair. You will be sent a Return Authorization number with return instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #).
-
Page 3: Table Of Contents
CAMERA SPECIFICATIONS ......................17 RECORDING TIMES ........................18 NOTES .............................19 WHAT IS INCLUDED Mounting Power Adapter Covert DVR Bracket • Mounting Hardware • 1 Year Warranty • Instruction Manual • 24/7 Lifetime Live Customer RCA to RCA Support (Male) Wire 1GB SD Card STEALTH1... -
Page 4: Introduction
SD card and view your captured video by connecting to a TV, computer or laptop (SD card reader required). The STEALTH1 can be table mounted or wall mounted which allows you to place it in various locations. You can also power this device using four AA batteries (not included) to make the system completely wireless. -
Page 5: Buttons And Connections
Allows you to mount the camera directly onto the wall 15. Battery Compartment: Camera can be battery powered so the system is completely wireless Note: If changes are made to NTSC/PAL or Stop/Overwrite functions, you must shut off and restart the unit before the changes can take effect. STEALTH1... -
Page 6: Installation
Connect the video cable to the video input jack on the back of your television. Connect the power adapter to a wall outlet. Plug both the video cable and the power adapter into the corresponding jacks on the covert DVR unit. STEALTH1... -
Page 7: Button Functions
If footage is playing, pressing this button prompts the footage to fast forward normally. The more times you press this button, the faster the footage will fast forward • When accessing the main menu, this button works as an enter button. This button also increases values STEALTH1... -
Page 8: Powering On
To quickly format the SD card, turn the DVR off. Then hold the back and forward buttons and switch the DVR on. A “Format OK” message will be displayed when the SD card is successfully formatted 3. When the SD card is recording video successfully, the record LED will flash slowly. STEALTH1... -
Page 9: Record Mode
Note: For more information see Record Setup on Pg 13 If there are multiple recording modes set to record at the same time, the DVR will record using one mode, based on level of importance. The order of importance is: Manual Record Motion Detection Continuous Record STEALTH1... - Page 10 - Manual Record - The DVR will record when the record button is pressed - Motion Record - The DVR will begin recording when motion is detected - Overwrite Mode - The DVR will overwrite the oldest footage once the SD card is full STEALTH1...
-
Page 11: Playback Mode
To pause playback press the play/pause button. To stop playback, press the record button which will bring you back to live view. If your schedule is set to record at that time (motion or continuous), the scheduled recording will begin STEALTH1... -
Page 12: Main Menu
To Exit the Search and Play Menu: To return to the main menu, press the menu button Use the rewind and fast forward buttons to scroll to EXIT. Press the menu button again, this will bring you back to the main menu. STEALTH1... -
Page 13: Main Menu
When in a menu screen with adjustable settings, press the fast forward (+) or rewind (-) buttons to increase or decrease the setting that is highlighted. To exit the menu you are in, press the menu button. STEALTH1... -
Page 14: Date/Time Setup
The energy bar will fluctuate based on the movement of the object. If the energy bar moves past the threshold, then you should change the threshold to a higher value to avoid false alarms and recordings. STEALTH1... -
Page 15: Manual And Schedule Record
Press the fast forward (+) button to enter the time menu. Press the fast forward (+) and rewind (-) buttons to adjust the time you would like video to be recorded. STEALTH1... -
Page 16: Motion Record
Image Size/Frame Rate/Quality: To adjust these settings, use the Record and Play buttons to scroll to which setting you want to change, then press the fast forward (+) and rewind (-) buttons to increase or decrease value of the setting. STEALTH1... -
Page 17: Sd Card Options
Motion record is ON and records from 11:00am till 3:00pm with a resolution of 640x480, 12 frames per second and medium quality video. Continuous Record is ON and records from 1:00pm till 3:00pm with a resolution of 320x240, 30 frames per second and medium quality video. STEALTH1... -
Page 18: Factory Default
Video Display Output 1 CH RCA Composite Live Viewing Single Screen Live Resolution 640 x 480 Live Frame Rate 30 FPS Play Search Mode By Date, Time Play Speed Forward/Rewind: x1/x2/x4/x8/x16/x32 Play Mode Single Screen OSD and System Menu Display STEALTH1... -
Page 19: Camera Specifications
1/6" Color CMOS Sensor Resolution 640 x 480 Outdoor Use Focal Length Board Lens f3.62mm / F2.8 Focus Type Fixed Min. Illumination 2 lux Motion Detection Viewing Angle 66 Degrees Auto Auto White Balance Auto Signal/Noise Ratio 46 dB STEALTH1... -
Page 20: Recording Times
RECORDING TIMES NOTES STEALTH1... -
Page 21: Notes
NOTES STEALTH1... - Page 22 Disclaimer Defender does not endorse the use of any Defender products for illegal activities. Defender is not respon- sible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a Defender product is in use by the consumer.
