User's Manual
GB
Instruzoni per l'uso
IT
2610
2620
2630
2640
07.07.2015 / 97-9682
www.hwam.com
www.hwam.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HWAM 2610

Summary of Contents for HWAM 2610

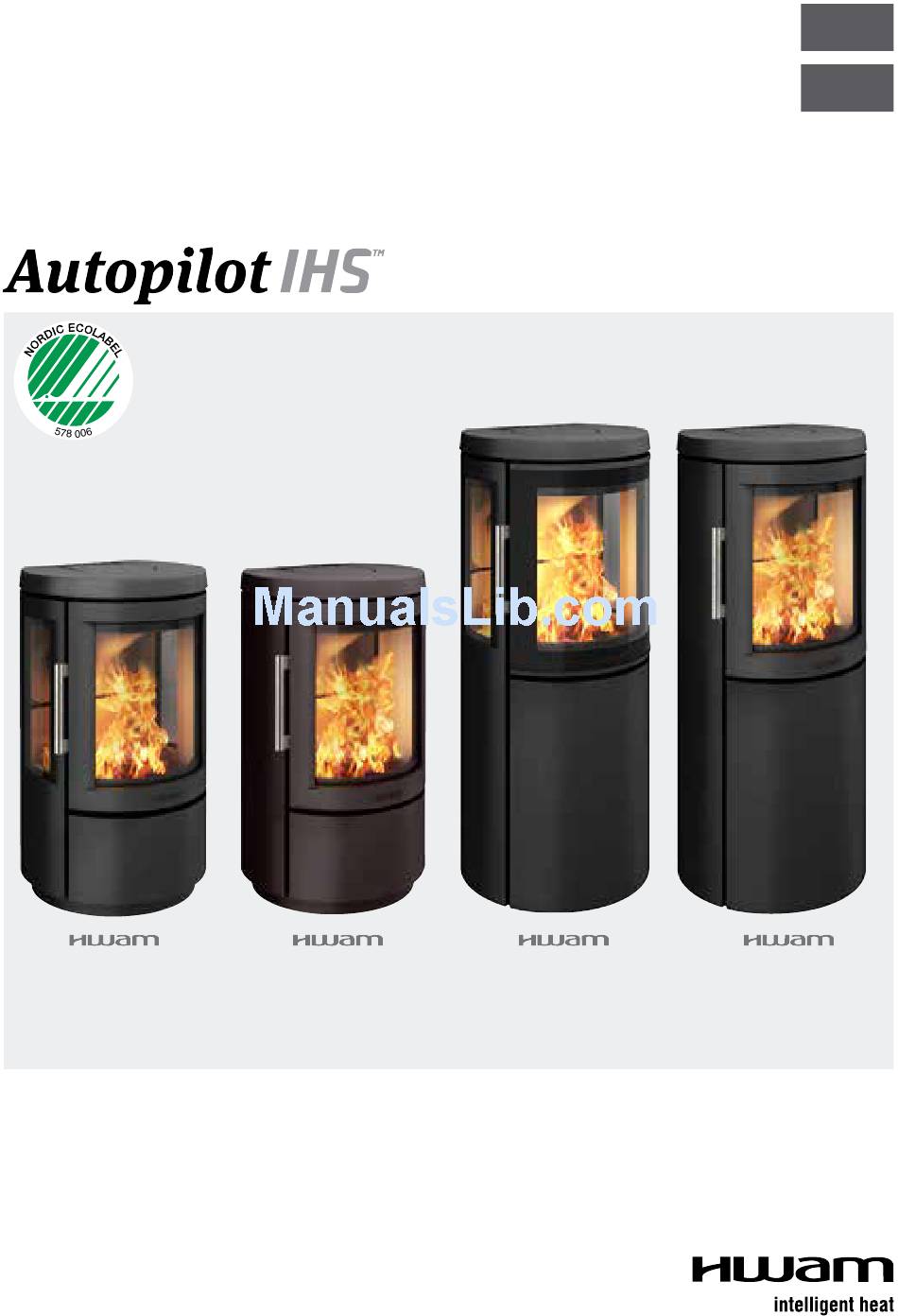

  • Page 1 User's Manual Instruzoni per l'uso 2610 2620 2630 2640 07.07.2015 / 97-9682 www.hwam.com www.hwam.com...
  • Page 5 Congratulations on your new wood-burning stove complete with a HWAM Autopilot IHS IHS is short for “Intelligent Heat System”, which is a digital control of the combustion in your new wood-burning stove. The purpose of the HWAM Autopilot IHS is to control the combustion in an environmentally optimal and economically efficient way, with a view to generating greater user comfort.

  • Page 6: Installation

    A window that opens or an adjustable air vent should be sufficient, but it is also possible to connect the stove to a HWAM fresh air system. The air inlet/grating must be placed so that they do not become blocked.
  • Page 7 If HWAM 2610/2620 is placed on a flammable floor, always mount it on a plinth whether or not the floor is covered by a non-flammable material, such as a plate of glass or steel. The plinth is an accessory. Contact your HWAM dealer for more information.

  • Page 8: Fitting The Loose Parts

    • Built-in pipe sleeve (12). Fits smoke flue. • Wall rosette (13). Covers disruption to wall around pipe sleeve. • Joint (14). Sealed with packing material. • Smoke outlets (15) of the HWAM stove. • Smoke flue regulating damper (16). • Soot door (17).
  • Page 9 HWAM Autopilot IHS The chimney draft is created by the differences in temperature inside and outside the chimney. The higher the temperature within the chimney, the greater the draft.

  • Page 10: Emote Control

    If the chimney is too tall to be cleaned from above, it must be equipped with a soot door. In case of a chimney fire and overheating, the HWAM Autopilot IHS will enter a security mode and automatically adjust all dampers, effectively quenching the fire.

  • Page 11: Thermostat Adjustment

    Thermostat adjustment The HWAM Autopilot IHS has a thermostat function, which attempts to keep the room temperature at the desired level. The thermostat works like a radiator.
  • Page 12 The restoking alarm When the combustion progresses to the ember phase, a restoking alarm will go off. The alarm will light up three times with a ten second interval and it is supported by sound. Three different amounts of wood are recommended for restoking: A small amount of wood (700 - 1200 g) A medium amount of wood (1000 - 2000 g) A large amount of wood (1800 - 3000 g)

  • Page 13: F Iring Manual - Wood

    Information about removal and recycling The remote control contains batteries and must hence be disposed of separately in accordance with the HWAM A/S • www.hwam.com national rules and regulations in force. Serial number: xxxxxxxxxx RoHS Compliant...

  • Page 14: Fuel Type

    In certain cases it is necessary to assist the draught in the chimney by burning a couple of newspaper pages on top of the wood ready to be lit. Read more on www.hwam.

  • Page 15: F Iring In General

    a desired heat level, which suits the room in which the stove is installed. When the thermostat is set at a heat level, the control function will adapt to this temperature. • If the room temperature is lower than the desired heat level, the control function increases the flue gas temperature in order to increase the heat radiation from the stove.
  • Page 16 A good combustion is achieved when the fire gets the right amount of oxygen supply at the right time and place in the combustion chamber. The HWAM Autopilot IHS allows for variations in external circumstances.

  • Page 17: Maintenance

    AintEnAncE Cleaning Any maintenance of the stove should only be carried out when it is cold. Daily maintenance is limited to vacuum cleaning the stove externally, using the soft brush attachment. You can also dust the stove using a dry, soft cloth or brush. But remember, only when the stove is cold. Do not use water, spirit or any other kind of cleaner, as this will damage the lacquer.

  • Page 18: Operational Problems

    At interruptions that you cannot yourself rectify, you should contact the dealer. EclARAtion oF ERFoRMAncE The DoP can be downloaded from our website via the following links: HWAM 2610 with Autopilot IHS www.hwam.com/dop/2610ihs HWAM 2620 with Autopilot IHS www.hwam.com/dop/2620ihs HWAM 2630 with Autopilot IHS www.hwam.com/dop/2630ihs...
  • Page 19 www.hwam.com...
