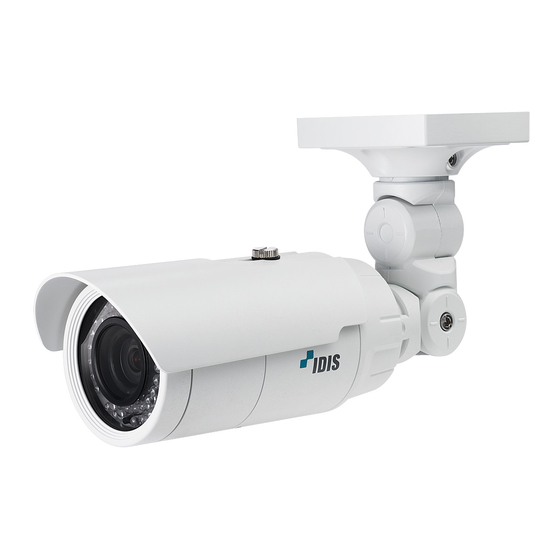

Idis DC-T1232WR Installation Manual
Hide thumbs
Also See for DC-T1232WR:
- Quick manual (8 pages) ,
- Operation manual (46 pages) ,
- Operation manual (49 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Idis DC-T1232WR
Summary of Contents for Idis DC-T1232WR
- Page 1 DC-T Series Installation Manual DC-T1232WR / DC-T1234WR / DC-T1233WHR Powered by...
-
Page 2: Safety Symbols
Before reading this manual This is a basic installation manual for use of an IDIS netework camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product. -
Page 3: Safety Precautions
Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. -
Page 4: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements. -
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Web) lets you remotely view live video using a web • Automatic web casting code (HTML) generation browser. In addition, you can use the IDIS Solution Suite • Up to 10 simultaneous remote monitoring Compact to manage network cameras and view/record connections video. - Page 7 • Day & Night feature (built-in IR cut filter changer) Remote monitoring and recording via multistreaming are available using the IDIS Solution Suite Compact • Motion detection by PIR (Passive Infrared) sensor DC- program. For more information on using IDIS Solution T1234WR only Suite Compact, refer to its operation manual.
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Ferrite Core Mounting Bracket Camera Sun Shield Open Source Guide Quick Guide... -
Page 9: Overview
Part 1 – Introduction Overview Product color and design may vary depending on the model. Body • Lens Optical zoom lens is installed. • IR LED A sensor in the bottom middle monitors lighting levels and activates the IR LED during low-lighting conditions. -
Page 10: Cable
PoE switch use, refer to the switch manufacturer's operation manual. You can configure, manage, and upgrade this camera and monitor its images from a remote computer over the network. For more information on network connection setup, refer to the IDIS Discovery operation manual. - Page 11 Part 1 – Introduction • Alarm in • Check your local laws and regulations on making Connect an alarm-in device to this port. Connect a video or audio recordings. The user will be held mechanical or electrical switch to the IN and GND liable for any violation of the law.
-
Page 12: Factory Reset
Refer to the IDIS Discovery Screw the bottom cover to the mounting bracket by operation manual for details on remote factory using screws provided with the camera. -
Page 13: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout DC-T1232WR model Network Camera Power Monitor Out Power Network Remote Monitoring DC-T1234WR model... - Page 14 Part 2 - Camera Connection DC-T1233WHR model Audio In Audio Out Power Sensor In Alarm Out Network Camera Monitor Out Power Network Remote Monitoring DirectIP™ NVR makes it easy to use cameras without extra network configurations. Each camera can be controlled via the DirectIP™ NVR setup menu, without any PC. For detailed camera settings, please see the camera setting pages of DirectIP™...
-
Page 15: With Non Directip™ Nvr-Based Layout
Part 2 - Camera Connection With non DirectIP™ NVR-based Layout DC-T1232WR model Network Camera Network Remote Monitoring (IDIS Solution Suite Remote Recording Compact or IDIS Web) (IDIS Solution Suite Compact) DC-T1234WR model Alarm Out Network Camera Network Remote Monitoring Remote Recording... - Page 16 Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact.
-
Page 17: Part 3 - Appendix
Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 18: Specifications
Signal-to-Noise Ratio > 31.2 dB Dynamic Range > 74.7 dB (Digital WDR) Electronic Shutter Auto IR LED DC-T1233WHR / DC-T1232WR LED x 42 (850 nm) DC-T1234WR LED x 24 (850 nm) White LED* LED x 6 Lighting Sensor Supported IR Range... - Page 19 Part 3 - Appendix Video Compression Algorithm H.264, M-JPEG (Four levels) Compression Resolution 352x240, 704x480, 1280x720, 1920x1080 Bitrate Control H.264 –CBR / VBR (up to 12 Mbps) Max. Transmission Rate 30 ips @ 1920x1080 + 4 ips @ 1920x1080 (frames per second) Multi-Stream Primary, Secondary, Tertiary Audio...
- Page 20 11.43” x 3.5" x 3.5" (290.2mm x 90.5mm x 90.5mm) Weight (Main Unit) 2.6 lbs. (1.17kg) Boot up temperature* DC-T1234WR, 32°F to 122°F (0°C to 50°C) DC-T1232WR DC-T1233WHR 32°F to 122°F (0°C to 50°C) [-4°F to 122°F (-20°C to 50°C) when the heater is operating] Working Temperature* DC-T1234WR, 14°F to 122°F (-10°C to 50°C)
- Page 22 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
