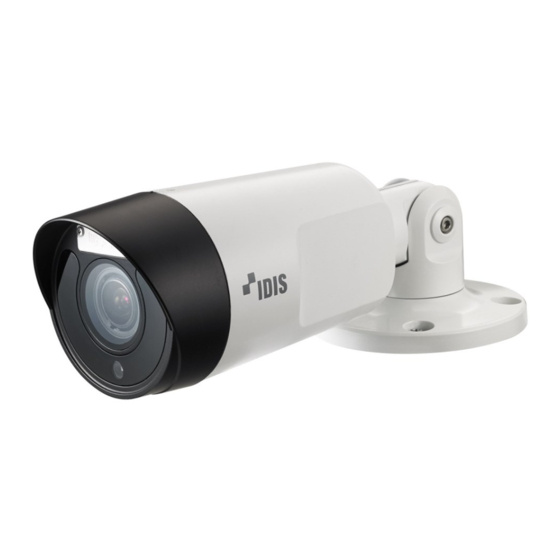

DC-T4533HRX
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-T4533HRX and is the answer not in the manual?

Questions and answers

Related Manuals for Idis DC-T4533HRX

Summary of Contents for Idis DC-T4533HRX

  • Page 1 Network Camera Operation Manual DC-T4533HRX Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Remote Setup ........7 Remote Setup .
  • Page 6 Part 2 - IDIS Web ........

  • Page 7: Part 1 - Remote Setup

    Configure basic network camera settings and all other system settings. Screen images may vary depending on the model. Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon.

  • Page 8: Quick Setup

    Part 1 - Remote Setup Quick Setup From the Remote Setup screen, select the menu on the left to display the current settings. Select an option under the menu to change the corresponding settings. Once you have changed the settings, click Save to apply the settings. Quick Setup allows you to set up System, Network, Video, Audio, and other basic settings needed for camera use.

  • Page 9: General

    There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program. - ONVIF Event Type •...

  • Page 10: Date/Time

    Part 1 - Remote Setup Date/Time User/Group • User/Group: Change remote camera control • Date/Time: Change the camera’s date/time settings permission settings for users and user groups. and display formats and configure the time zone and daylight saving time settings. Click Save to apply the - Add Group: Add a new user group.

  • Page 11: Network

    Part 1 - Remote Setup Network zoom remotely from a website using webcasting. • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted.
  • Page 12 Part 1 - Remote Setup • Type: Select the type of network you are using. If this • Check Use to activate IPv6. option has been changed, click Save to apply the • Type: Select the type of network you are using. If this current settings, and then restart Remote Setup.

  • Page 13: Fen

    Web browser. (If you can not access special characters, you can access by changing the encoding.) The FEN Server operated by IDIS is a service to its clients and may go offline without notice for server update purposes or due to an unexpected failure.

  • Page 14: Port/Qos

    Web / HTTP ports are enabled by default and cannot be disabled. By enabling IDIS Web and RTSP ports, you will be able to use the IDIS Web program or a media player that supports RTSP (Real-Time Streaming Protocol) service to connect to the camera. When Click Apply to use the recommended port numbers.

  • Page 15: Bandwidth Control

    Part 1 - Remote Setup Bandwidth Control • In a WAN environment, it is recommended that you use the UPnP function if you record video by using the FEN function or FEN connection is not smooth. Regulates the camera’s network bandwidth use based Otherwise, monitoring or recording might not be on network traffic fluctuations.

  • Page 16: Security

    Part 1 - Remote Setup Security • SSL: Select this option to enable SSL (Secure Sockets Layer). Enabling this option applies SSL protocol protection on data transmitted out. However, programs and systems that do not support SSL will not be able to connect to the camera. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup.

  • Page 17: Ieee 802.1X

    Part 1 - Remote Setup Video IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Certificates: Upload a certificate or a private key. You may be prompted to enter a password for the private key.

  • Page 18: Camera

    Part 1 - Remote Setup Camera White Balance Configure White Balance settings. Image Sensor Configure Image Sensor settings. • Preset: Use preconfigured white balance settings. - Auto: Allow the system to adjust the white balance automatically. The system will assess the lighting conditions and adjust the white balance •...
  • Page 19 Part 1 - Remote Setup - HSBLC (High Suppress Backlight Compensation): Exposure When a certain area of images is too bright Configure Exposure settings. due to backlight under low lighting conditions and it causes the other area to be too dark, this function provides the other area of images brightly and clearly by blocking the backlight in the certain area.
  • Page 20 Part 1 - Remote Setup • IR Cut Filter: IR Cut Filter blocks out the infrared Day & Night spectrum. You can ensure clear images at all times by Configure Day & Night settings. blocking out the infrared spectrum in high-lighting conditions and allowing the infrared spectrum to pass through in low-lighting conditions.

  • Page 21: Streaming

    Part 1 - Remote Setup Streaming Miscellaneous Configure Miscellaneous settings. • IR Strength: Set the brightness of the IR LED. The • Primary/Secondary/Tertiary/Quaternary: higher the value is set, the brighter it is. Multistreaming is supported. Enable/disable streaming use. The stream you set first has priority. •...
  • Page 22 Part 1 - Remote Setup • Compression: Choose the streaming compression • Multi-View Streaming: Designate a specific area of method. The H.265 compression does not support the screen and stream images from that area only. ONVIF Protocol and RTSP. (not supported for the primary stream) Click Setup to designate a streaming area.

  • Page 23: Webcasting

    Part 1 - Remote Setup - Resolution Limit: Indicates the maximum Webcasting resolution that can be set for the streaming area. - Resolution: Designate a streaming area. Use the webcasting service to view live images from the Designated area is marked in red on the screen. You camera on a web site.

  • Page 24: Mat

    Part 1 - Remote Setup • Frame Rate: Designate the frame rate to be used between the end of the Inactivity Period and the next motion detection. When the slow shutter mode is Select the MAT option to use the MAT (Motion Adaptive enabled under Video >...

  • Page 25: Privacy Masking

    Part 1 - Remote Setup Audio Privacy Masking Select Privacy Masking to set up a privacy mask over Configure audio in/out settings. a specific area. The section on which a privacy mask is applied will appear as black when monitoring video. •...

  • Page 26: Audio

    Part 1 - Remote Setup Event Action In/Out Designate event detection alert actions. • Audio Codec: Select an audio codec. • Input: Select an option and then adjust the volume. Noise Filter reduces the environmental noise and enhances the voice. If you turn on the noise filter, the sound may be distorted somewhat.

  • Page 27: Alarm Out

    Part 1 - Remote Setup Alarm out Email Select Email to send out emails. Select Alarm Out to enable alarm out. • SMTP Server/Port: Enter the SMTP server’s IP address • Dwell Time: Designate the alarm out duration. When (or domain name) and port number you received an event occurs, alarm out will be generated for the from the network administrator.

  • Page 28: Remote Callback

    Select Remote Callback to send callback messages to a Select Audio Alarm to generate audio. remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 29: Ftp Upload

    Part 1 - Remote Setup FTP Upload Select FTP Upload to upload .jpg image of the event detected to an FTP server. - FTP Server: Enter the FTP server’s IP address (or domain name). - Upload Path: Designate the file upload path. - Port: Enter the FTP server’s port number.

  • Page 30: Record

    Part 1 - Remote Setup - Resolution/Quality: Choose the resolution and Record quality of the images to upload to the FTP server. Range of resolution settings you can use here can vary depe nding on the resolution setting applied Select Record to record video on the SD memory card. under Video >...
  • Page 31 • Recordings saved on the SD memory card can be cause the recording to exceed the 60MB limit and searched and played back from the IDIS Solution stop before the end of the specified recording Suite Compact program or remotely from the duration.

  • Page 32: Event

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 33: Motion Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 34: Trip-Zone

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 35: Audio Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 36: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 37: System Event

    Action must be configured correctly in order to send out emails and messages. • System Alive: Select to check the system status and • Remote Callback is not supported on IDIS Web. then set up a schedule. • The camera must be registered to the remote - Send Email: Select to send out an email when the system in order to use the Remote Callback feature.

  • Page 38: Part 2 - Idis Web

    – Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select) • If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https).
  • Page 39 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown.

  • Page 40: Web Live Mode

    2013-05-29 16:25:22 2013-05-29 16:25:22 Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 41 Part 2 - IDIS Web Shows login information. Indicates the camera's number. Used to control zoom and focus at a remote location. • One push button - Press this button to find the optimum focus automatically. - It is recommended to get an approximate focus using the manual focusing button before pressing the one push button for fast and efficient focusing.
  • Page 42 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. Click to enable or disable each function. • Fisheye Dewarping: This function is not supported. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Live mode does not affect the camera's name on the remote system.

  • Page 43: Web Search Mode

    113.49 NC-D320-IP & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays time information of the video recording from the remote locale. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 44 Part 2 - IDIS Web Click to configure rendering mode and OSD settings. Select rendering mode to adjust the video output rate or select which OSD elements to display on the screen from the OSD list. TYPE 1 Click to switch over to Web Live mode.
  • Page 45 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. Click to enable or disable each function. • Fisheye Dewarping: This function is not supported. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Search mode does not affect the camera's name on the remote system.

  • Page 46: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio In/Out Event Action Alarm Out Email Remote Callback...

  • Page 47: Index

    Part 3 - Appendix Index ONVIF Protocol Bitrate Control Quality Camera Name Remote Port Compression Resolution RTSP Port Date/Time DSCP FEN Name Time Sync FEN Server Frame Rate Use FEN Use HTTPS IDIS Web port User/Group IPFiltering Use UPnP Network Bandwidth Limit V1.0...
  • Page 49 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
