2.3 WIRING DESCRIPTION
The wiring method for the MCP SERIES is shown in Figure A.
REAR VIEW
Wiring Instructions:
1. Utility panel circuit breaker required is 35A or larger
2. Utility wire guage must be 8 guage or larger.
3. Connect utility per drawing.
4. Connect output load connections and jumper wires for correct voltages per drawings.
5. Use proper size AWG wires for all connections.
NOTE: PARA SYSTEMS DOES NOT PROVIDE AC OUTPUT OVERCURRENT PROTEC-
TION. OUTPUT OVERCURRENT PROTECTION IS TO BE PROVIDED BY THE USER.

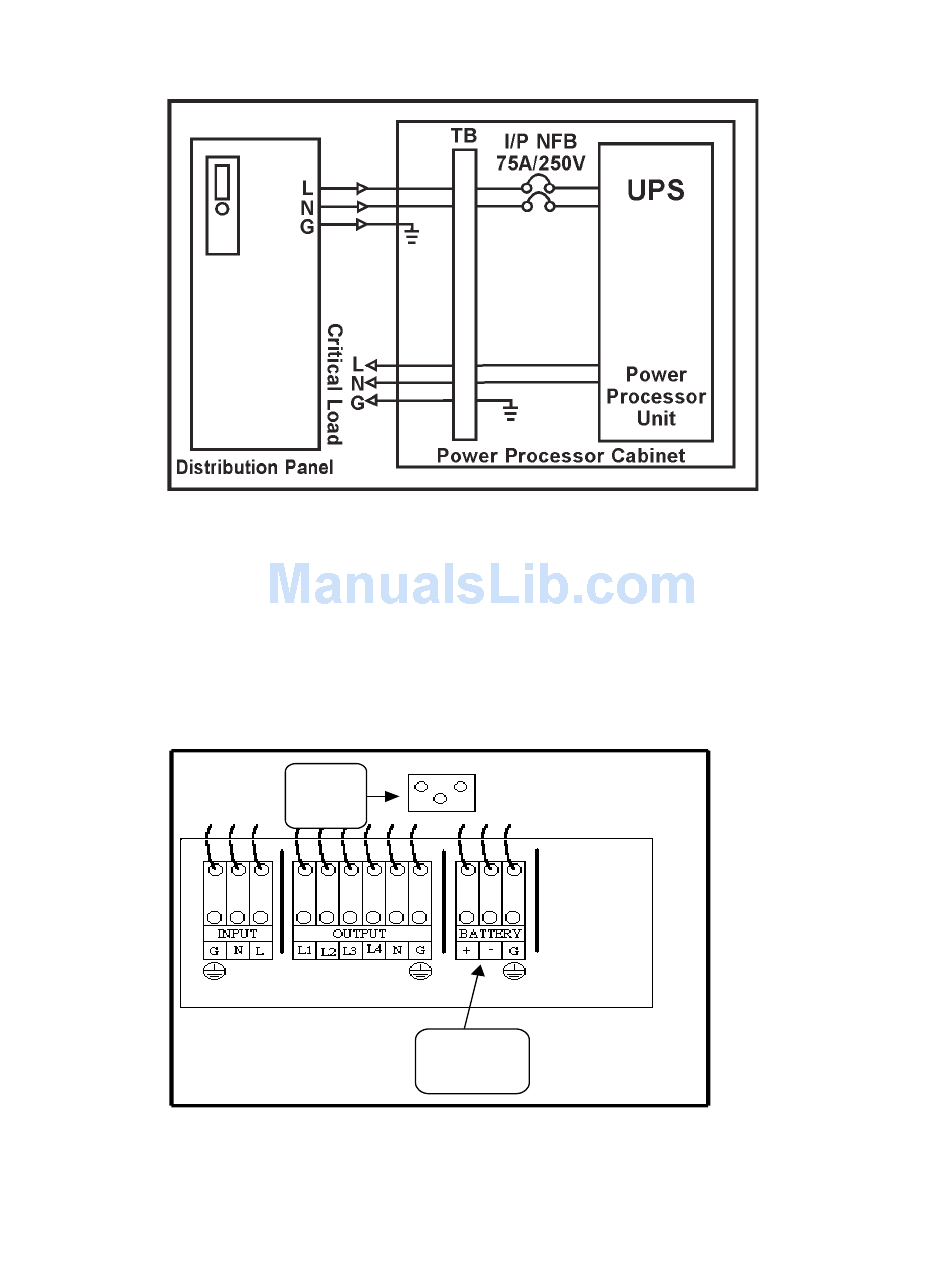

Figure A - Wiring Diagram for MCP 6001, & MCP10001
6 KV A
O N L Y
1 0 KV A
O N L Y
Page 7
