Switches And Displays - Minuteman Continuous Power MCP 10001 User Manual

MCP 6001

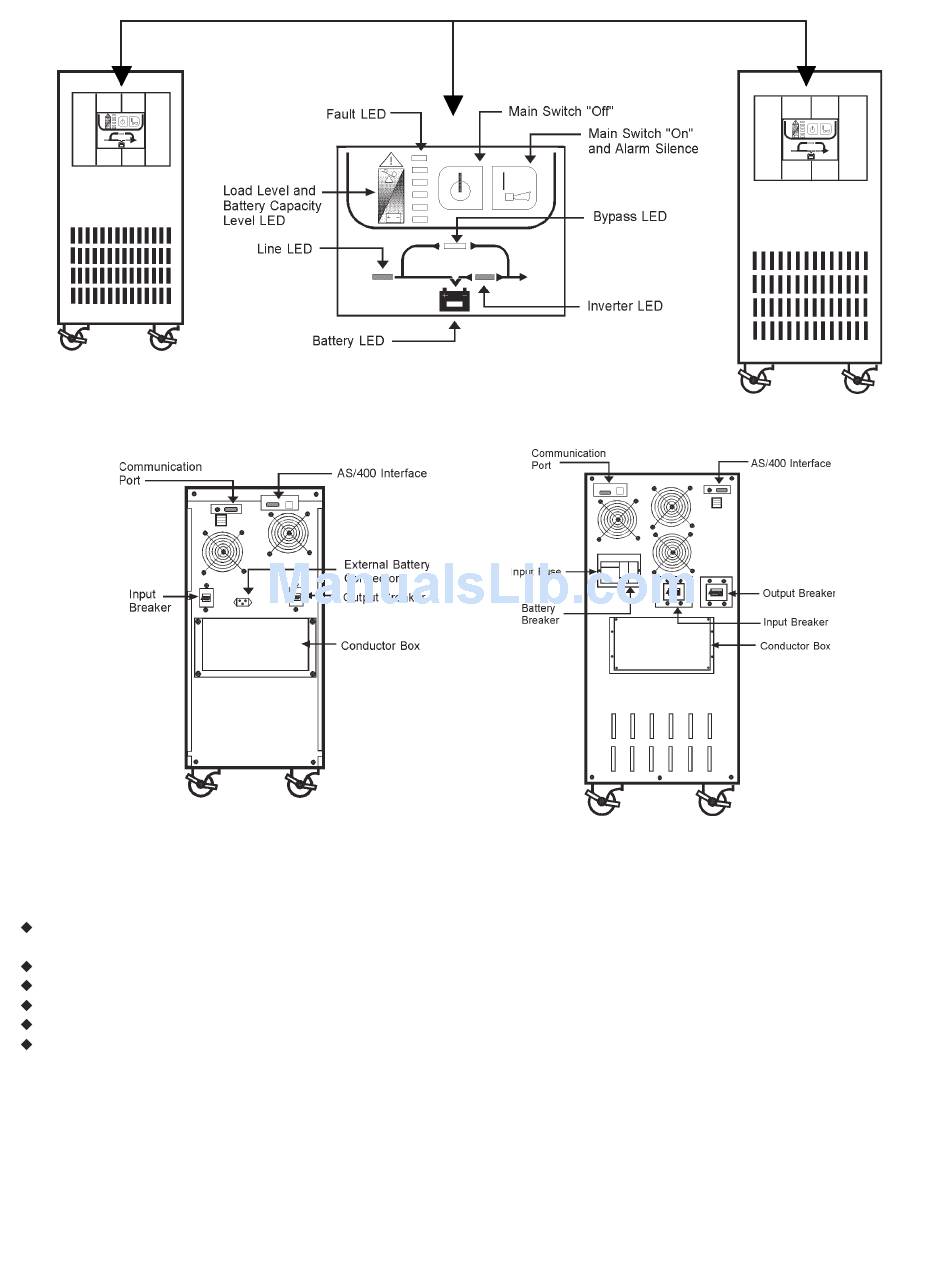

Front View

1.4 SWITCHES AND DISPLAYS

ON/OFF switches: Push the " ON " button until the alarm sounds to turn on UPS. Push " OFF " button until the alarm sounds
to turn off UPS.
LINE LED: This light is on when the incoming AC line is normal.
BYPASS LED: T his light is on when the UPS is providing power directly from the incoming AC line through the bypass route.
INVERTER LED: The light is on when the UPS is operating in " INVERTER MODE "
FAULT LED: The light is on when the UPS is in fault condition and the alarm will sound continuously.
LOAD LEVEL & BATTERY CAPACITY LEVEL: The lights form the bar graph indicate how much load or battery capacity
is present in the UPS. Each LED represents a different level:
first LED 0-35%
second LED 35-55%
third LED 55-75%
fourth LED 75-95%
fifth LED 95-110%
The bar graph shows load level during line mode. The number of " ON " LEDs increases upwards as the load increases. The
UPS will go to battery mode when AC line power fails and the bar graph displays remaining battery capacity. The number of
"ON" LEDs decreases upwards with the decreasing of battery capacity.
MCP Control Panel
MCP 6001
Rear View
MCP 10001
Rear View
Page 3
MCP 10001
Front View
