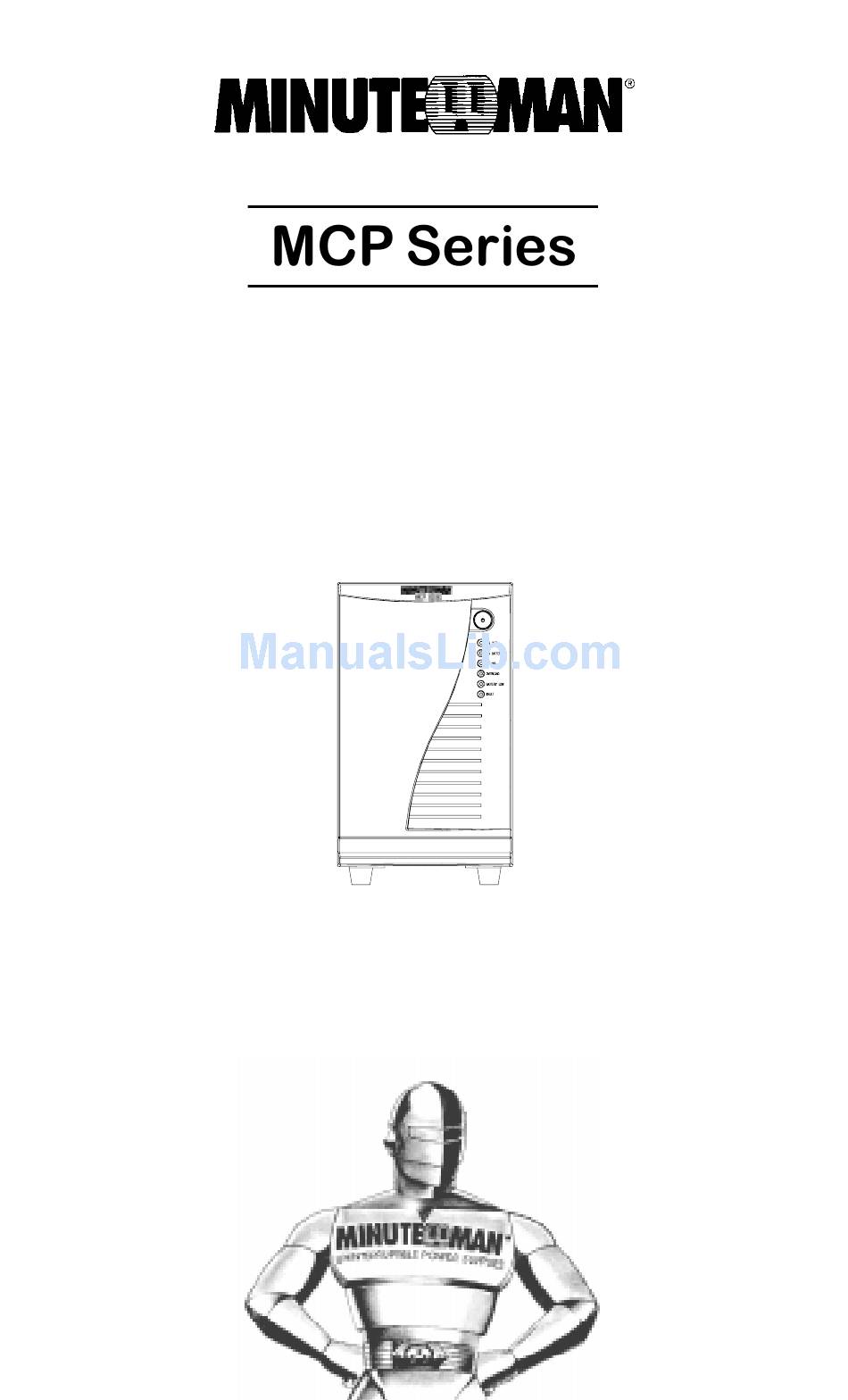

Minuteman MCP 1000 User Manual

Mcp series

Advertisement

Uninterruptible Power Supply
MCP 1000, MCP 1000i
MCP 2000, MCP 2000i
MCP 3000, MCP 3000i
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCP 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Minuteman MCP 1000

  • Page 1 Uninterruptible Power Supply MCP 1000, MCP 1000i MCP 2000, MCP 2000i MCP 3000, MCP 3000i User’s Manual...
  • Page 3: Table Of Contents

    MCP Series User’s Manual Introduction Controls and Indicators Installation Operation Troubleshooting Replacing the Batteries Obtaining Service Specifications Limited Product Warranty ã Copyright Para Systems, Inc., 1998...
  • Page 4: Explanation Of Symbols

    EXPLANATION OF SYMBOLS Some or all of the following symbols may be used in this manual or may appear on your unit. Please take a moment to familiarize yourself with these symbols and their associ- ated meanings.
  • Page 5 Thank you for purchasing a Minuteman power protection product. It has been designed and manufactured to provide many years of trouble free service. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS Please read the manual before installing your MCP Series UPS as it pro- vides the information that should be followed during installation and mainte- nance of the UPS and batteries allowing you to correctly set up your system for the maximum safety and performance.
  • Page 6: Receiving Inspection

    Receiving Inspection After removing your Minuteman UPS from its carton, it should be inspected for damage that may have occurred in shipping. Immediately notify the carrier and place of purchase if any damage is found. Warranty claims for damage caused by the carrier will not be honored.
  • Page 7 As a general policy, Para systems Inc. (Para Systems) does not recommend the use of any of its products in life support applications where failure or malfunction of the Para Systems product can be reasonably expected to cause failure of the life support device or to signifi- cantly affect its safety or effectiveness.
  • Page 8: Front Panel

    FRONT PANEL MCP Series 1000(i), 2000(i), and 3000(i) KVA front panel POWER SWITCH Press and release the power switch button to turn the unit on or off. LED INDICATORS ON LINE LED: This indicates that the AC line is normal. ON BATTERY LED: This indicates that the UPS is in battery mode.
  • Page 9: Rear Panel

    The Input Power connection varies on all models. For units utilizing IEC input sockets, input power cords are included. The following cords are standard for input power connections for the following models: MCP 1000(IEC 320 C-13/5-15P), MCP 1000i(IEC 320 C-13/C-14), MCP 2000i(IEC 320 C-13/C-14), and MCP 3000i(IEC 320 C-19/pigtail). The MCP 2000 and MCP 3000 utilize a standard 6ft.
  • Page 10 MCP 1000i Rear Panel MCP 2000 Rear Panel...
  • Page 11 MCP 2000i Rear Panel MCP 3000 Rear Panel...
  • Page 12: Installation & Placement

    INSTALLATION PLACEMENT The safe and continuous operation of the UPS depends partially on the care taken by the user. Please note the following precautions: · Install the UPS in a temperature controlled, indoor environment that is free of conductive contaminants. ·...
  • Page 13 COMPUTER INTERFACE CONNECTIONS Minuteman Power Management software and interface cables kits are used with these ports (software and cables are optional and available from Minuteman). Use only Minuteman or Minuteman approved interface cables with these UPS’s. Connect the interface cable to the DB-9 connector on the rear of the UPS (either RS-232 or Dry Contact).
  • Page 14: Operation

    NOTE: For hardwire I/O configurations for the MCP 2000(i) and the MCP 3000(i), units are considered fixed. When connecting equipment to hardwire I/O configurations ensure use of proper size gauge wires for all connections. CAUTION! THE UPS IS RATED 2000VA OR GREATER. A LASER PRINTER DRAWS SIG- NIFICANTLY MORE POWER WHEN PRINTING THAN AT IDLE AND MAY OVER- LOAD THE UPS.
  • Page 15: Communication Interface

    COMMUNICATION INTERFACE (1) RS232 NC----------------- TXD--------------- RXD--------------- NC----------------- Signal Ground--- Pin2: UPS transmits serial data to computer. Pin3: UPS receives serial data from computer. Pin5: Signal ground. The RS232 communication port provides the following features: Monitoring charger status ¨ Monitoring battery status and condition ¨...
  • Page 16: Troubleshooting Chart

    TROUBLESHOOTING CHART Symtom UPS not on On Battery LED is illuminated even though there is normal AC present Fault LED is illuminated UPS does not provide expected backup time Overload LED is illuminated Battery Low LED is illuminated Communication does not work properly Possible Cause Power switch is in Off...
  • Page 17: Replacing The Batteries

    REPLACING THE BATTERIES WARNING! hazardous voltages. It is recommended that you turn the UPS off and disconnect the input power cord from the receptacles prior to connecting or disconnecting the battery terminals. Only UPS’s that have external battery packs can be changed “HOT”, that is with your AC power connected to the unit, and while supplying power to your equipment.
  • Page 18 If electrolyte contacts the skin, wash it off immediately with water. If electrolyte · contacts the eyes, flush thoroughly and immediately with water. Seek medical attention. Determine if the battery is inadvertently grounded. If inadvertently grounded, remove · source of ground. Contact with any part of a grounded battery can result in electric shock.
  • Page 19 IF THE UPS REQUIRES SERVICE Use the TROUBLESHOOTING chart section 5 to eliminate obvious causes. Verify that no circuit breakers are tripped. A tripped circuit breaker is the most common problem. Call your dealer for assistance. If you cannot reach your dealer or if he cannot resolve the problem, call or fax Minuteman Technical Support at the following numbers: Voice phone (972) 446-7363, FAX line (972) 446-9011, e-mail: support@minuteman-ups.com.
  • Page 20: Specifications

    Electromagnetic immunity Audible noise at 1 m (3ft.) Size (H x W x D) Weight- Net (shipping) Safety and approval EMC Verification *Options available. N/A for MCP 1000(i) MCP 1000 (MCP 1000i) (MCP 2000i) 0-138 (0-275 VAC) 88-138 (160-275 VAC) 120VAC...
  • Page 21: Limited Product Warranty

    Para Systems Inc. (Para Systems) warrants this equipment, when properly applied and operated within specified conditions, against faulty materials or workmanship for a period of three years from the date of original purchase by the end user. For equipment sites within the United States and Canada, this warranty covers repair or replacement of defective equipment at the discretion of Para Systems.
  • Page 22 NOTES:...
  • Page 24 Para Systems, Inc. 1455 Lemay Dr. Carrollton, TX 75007 Phone: (972) 446-7363 Fax: (972) 446-9011 QuickFax Info Systems: 800-263-3933 www.minuteman-ups.com P/N: 34000130 REV: 0...

This manual is also suitable for:

Mcp 1000iMcp 2000Mcp 2000iMcp 3000Mcp 3000i
