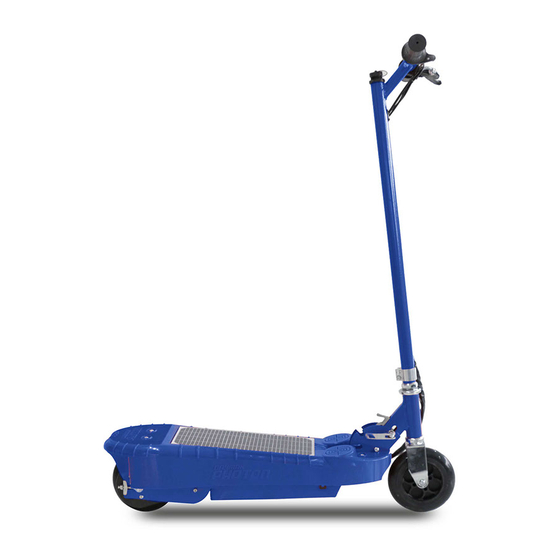

- Page 1 Photon Standard / Deluxe User Manual User Manual Version 1 © 2015 Daymak Inc.
- Page 2 About Daymak Daymak, a Toronto-based company, incorporated in 2002, is a leading developer and distributor of personal light electric vehicles. Daymak’s goal is to reduce the carbon foot- print one electric vehicle at a time! Please visit www.daymak.com for more information.
-
Page 3: Table Of Contents
Table of Contents Introduction..............................4 Scooter Diagram .............................5 Riding Instructions ............................6 Brakes, Lights & Range..........................8 Charging your Photon...........................9 Solar Panels & Drive Belt ..........................10 Folding / Unfolding .............................11 Troubleshooting Guide ..........................12 FM Radio / Bluetooth............................12 Technical Speci cations ..........................13... -
Page 4: Introduction
Liability Daymak does not assume any liability for damages, loss of pro ts, or claims from third parties due to improper use of this product. Daymak does not assume any liability for dam- ages due to problems with the product resulting from service by a third party that is not certi ed by Daymak. -
Page 5: Scooter Diagram
This diagram illustrates the various parts of your electric scooter. Please note that many of these parts are not user-serviceable and should be repaired only by trained professionals. This is especially true of the elec- trical systems and the mechanical components. Photon Standard Photon Deluxe 1. Throttle 1. -
Page 6: Riding Instructions
Riding Instructions This guide assumes that you already know how to ride a standard kick scooter. Before you try to ride an electric kick scooter, you should be very familiar with controlling and operat- ing a kick scooter. Important Notes •... - Page 7 Inspecting your Electric Scooter Always inspect your scooter before you ride it, to make sure its safety features are oper- ating properly. Many accidents can be avoided with routine inspections. Once you are comfortable with your scooter, you will be able to detect small changes in the way it feels. If anything changes between uses, make sure to have it properly examined.
-
Page 8: Brakes, Lights & Range
Brakes Your scooter has a hand-operated brake located on the left hand side. It is connected to the rear wheel. Squeeze the lever to activate the brake. When the brakes are activated, the power to the engine is automatically turned o , until you release the brakes. -
Page 9: Charging Your Photon
Charging your Scooter In order to prevent overcharging the battery for your scooter, follow the chart below. Please note that power use depend on the rider and recommended time for charging are averages. SCOOTER USE TIME (BATTERY DISCHARGE TIME) CHARGING TIME 0 - 20 minutes 4 - 6 hours 20 - 30 minutes... -
Page 10: Solar Panels & Drive Belt
Solar Panels Avoid placing excessive weight on the solar panels - any cracks, scratches or scu s on the tempered glass covering the solar panel a ects light harnessing e caciency. For optimal use of the solar panel, place the scooter in an area without obstructions from direct sun- light. -
Page 11: Folding / Unfolding
Folding the Steering Column Your scooter is shipped in the folded and locked position. To unfold, lift the quick release handle near the bottom of the steering column, then bring the steering column to an up- right position until the rod snaps in place securely (SEE FIGURE4). FIGURE4 QUICK RELEASE FOLD LATCH Battery Care... -
Page 12: Troubleshooting Guide
FM Radio / Bluetooth and Remote Functions If the PLAY/MODE button is pressed on the provided remote, by default the built-in radio should turn on. To change radio stations, press the |<<< or >>>|. To turn the volume up or down, press and hold |<<<... -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS SPECIFICATION PHOTON STANDARD PHOTON DELUXE MOTOR 100W 100W BATTERY TYPE SEALED LEAD ACID SEALED LEAD ACID BATTERY 24V 4.5AH 24V 4.5AH BATTERY LIFE 300 CYCLES 300 CYCLES SOLAR PANEL SIZE 300mmx130mm 300mmx130mm SOLAR OUTPUT 28V~0.23A (~6.4W) 28V~0.23A (~6.4W)
