Summary of Contents for Daymak RICKSHAW KING

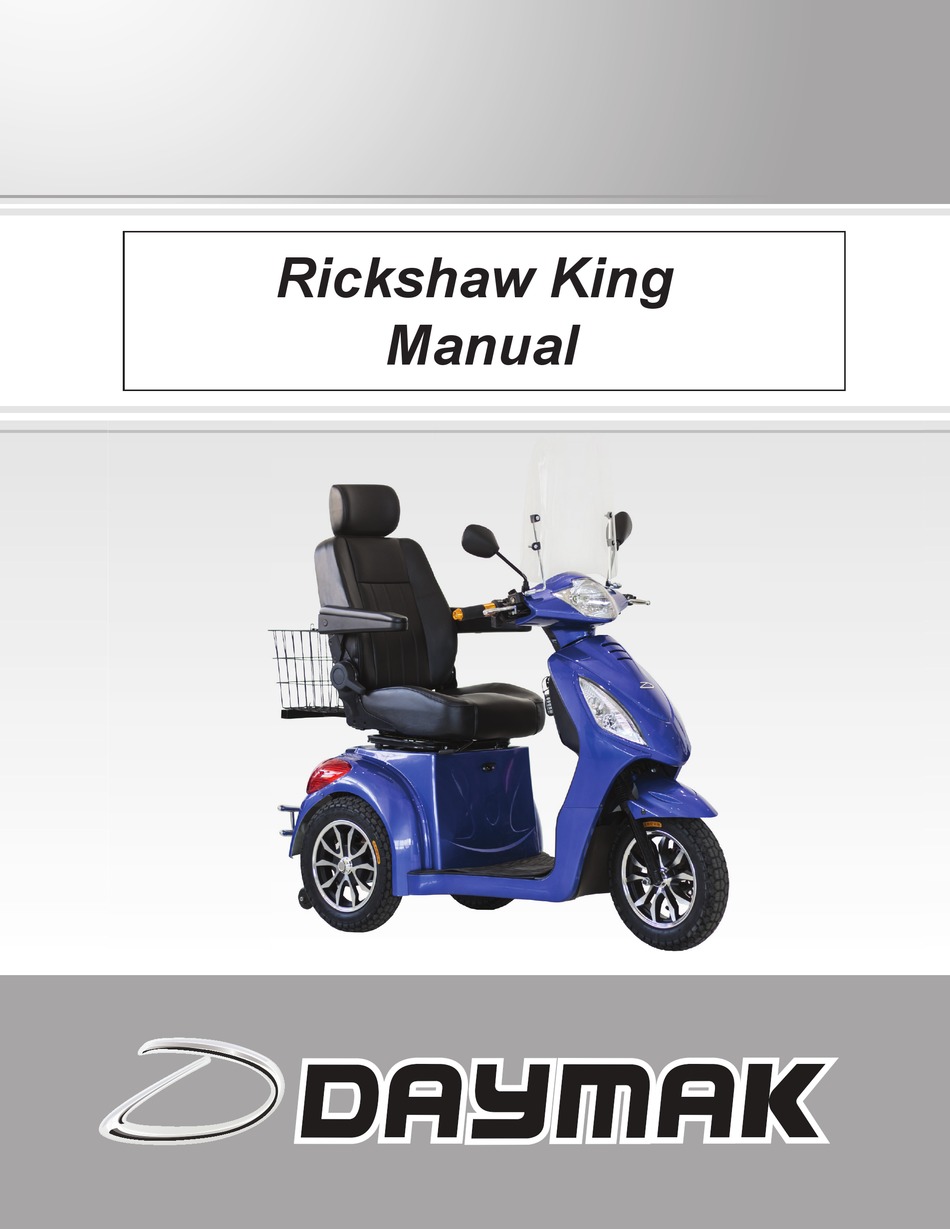

Page 1 Gatto Electric Bike Rickshaw King Manual User Manual...
Page 2: Table Of Contents
Table of Contents About Daymak Safety Mobility Scooter Diagram Riding Instructions Starting The Vehicle Steering Lock Driving the Vehicle Features Right Handlebar Display Dashboard Left Handlebar Radio / Mp3 Remote Control Bluetooth App Bluetooth Features Storage Seat Charging your unit...
Page 3: About Daymak
Daymak warranties, services, and stocks parts for everything it sells. We support our prod- ucts. Please feel free to visit our website. You’ll nd the latest in cool transportation solutions,...
Page 4: Safety
Safety When operating the Rickshaw King please make sure you adhere to the following: Always check your mirrors and blind spots when operating the vehicle. Turn on headlights when in need of additional visibility. Make sure that your battery power is suﬃ cient before you go out to ride Obey all laws of the road.
Page 5: Mobility Scooter Diagram
Mobility Scooter Diagram Diagram 1: This diagram illustrates the various parts of your mobility scooter. Please note that many of these parts are not user-serviceable and should be repaired only by trained professionals. This is especially true of the elec- trical systems and the mechanical components.
Page 6: Riding Instructions
To turn o the unit turn it the opposite direction. Steering lock To lock the steering to prevent theft, the Rickshaw King comes with a locking mechanism that locks the wheel perpen- dicular to the unit. To engage this: 1) Turn handlebars so they are facing the left.
Page 7: Driving The Vehicle
Riding Instructions Driving the vehicle Make sure that you are properly situated on the unit. Once the vehicle is on (you will see that the dashboard is lit up). Use the throttle on the right hand to rotate towards you. Pictured to the right is the throttle and the braking mechanism.
Page 8: Display Dashboard
Features The Rickshaw King features a digital LED display to show your speed travel time and moe. A) Speed - Your current speed that you are travelling in KM/h B) Battery / Voltage reading - Shows how much power you have. 5 Bars means it has a full battery.
Page 9: Radio / Mp3
Radio / Mp3 The Rickshaw King comes with a built in radio and mp3 player so you can listen to your music. The Mp3 player can take either a USB stick or MicroUSB card. Put your songs on to your drive as Mp3’s for compatibility.
Page 10: Remote Control
Remote Control The Rickshaw King comes with a remote control that allows you to arm and disarm the alarm system as well as change songs that you are listening to. A) Alarm / Volume Reset - Once the unit is turned o press this button to turn on the alarm.
Page 11 Bluetooth Features Fast Start: Fast start has priority while opening at the same time as soft start. Reduces the time needed to achieve maximum speed. Higher values make your bike accelerate quicker (1-10) Fast start supersedes slow start when it is activated. Soft Start: Display the star mode and range adjustment of controller while starting.
Page 12: Bluetooth Features
Bluetooth Features Battery Current Limit (A): Adjust the max output of battery (50%~100%) Too small out- put current a ects starting torque. Change the max output current of the battery. (50- 100%) Smaller values can have an e ect on acceleration and torque. Phase Current Limit (A): Adjust the max phase current of motor (50%~100%) Too small phase current a ects starting torque.
Page 13: Storage
Storage The Rickshaw King comes with a basket for storage as well as storage compartment under the seat. To access the storage compartment under the seat you must unlock it using the key and lift the seat up.
Page 14: Seat
Seat The Rickshaw King features an adjustable seat to make sure you are comforatble when you ride. To pivot the seat to angle it forward or back lift the lever pictured above and push the seat the direction you want it to go while holding it.
Page 15: Charging Your Unit
To charge the unit take the charger that came with the Rickshaw King and plug it into a wall socket. Then take the other end of the charger and plug it into the unit.
Page 16: Safety And Troubleshooting
Safety and Troubleshooting Mirrors If you are having trouble adjusting the mirrors you may need to adjust them at the base. Lift the cover as seen in gure A) up and use a wrench to losen the bolt at gure B). Repo- sition it as needed and then screw back in the mirror and retighten the bolt then put the cover back over it.
Page 17: Brake Lock
Brake lock To prevent the Rickshaw King from rolling backwards when the unit is o , you need to put on the brake lock. To engage the brake lock 1) Pull the rear brake (left brake handle) towards you. 2) Using your index nger pull the black lever also towards you.
Page 18: 60 Second Check
Service For all technical service please contact us at 1-800-649-9320 for help or visit us online at Daymak.com We recommend that you don’t try to x things yourself and that you should have a trained technician do any service work.
Page 19 THANK YOU FOR CHOOSING DAYMAK...
