Audix VX5 Manual

VX5
Condenser Vocal
Microphone
OVERVIEW

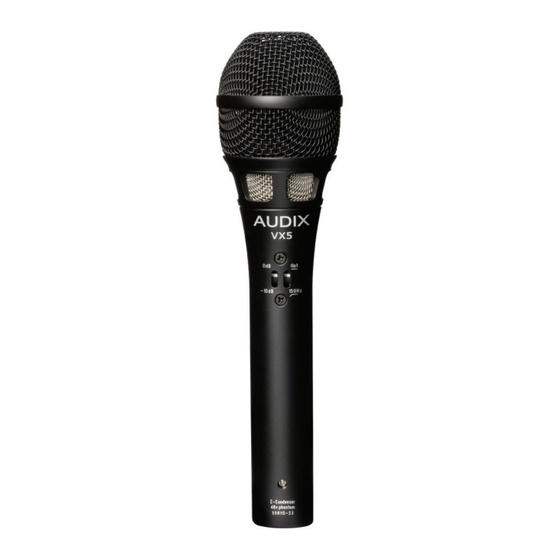

The VX5 is a professional vocal condenser microphone designed for a wide variety
of live, studio and broadcast applications. With an ability to duplicate studio quality
sound on stage, the VX5 is known for its smooth and accurate frequency response,
resistance to feedback and ability to handle very high sound pressure levels without
distortion.
The VX5 is characterized with a tight and uniformly controlled supercardioid polar
pattern which helps to isolate the vocals from the rest of the instruments on stage.
With a wide frequency range of 40 Hz - 16.5 kHz, the VX5 has a very clean and natural
sound with exceptional transient response. This mic requires 9 - 52 volts phantom
power.
Other features include a 14 mm gold vapor diaphragm, an acoustically ported steel
mesh grill with multi-stage pop filter and a -10 dB pad and bass roll-off filter. The VX5
will handle sound pressure levels in excess of 140 dB (with pad and roll-off engaged)
and will provide over 20 dB of ambient noise rejection on live stages.
In addition to vocal applications, the VX5 is ideally suited to capture acoustic
instruments such as guitar, woodwinds, brass, percussion toys, drum overheads,
hi-hat and piano. It is a very versitile mic for home studio recording. The VX5 is well
balanced, comfortable to hold, durable, and designed with very high standards and
tight tolerances.
The VX5 is manufactured with a precision die cast zinc alloy body, durable black
E-coat finish and gold plated XLR connector.
SUPPLIED ACCESSORIES
MC1 - Heavy-duty nylon molded clip with brass insert
P1 - Carrying pouch
OPTIONAL ACCESSORIES
WS357 - Optional high quality external foam windscreen for reducing
wind, sibilance, and pop noise.
SMT25 - Optional low profile shock mount system with nylon cable
and thumbscrew for positioning.
APS2 - Two-channel 48 V phantom power supply for condenser microphones.
110 V switchable to 240 V. Detachable power cord.
CBL20 - 20' premium XLR-XLR balanced mic cable. Quad conductor, twisted pair
with braided shield for maximum conductivity. 6mm PVC jacketed.
CBLDR25 - 25' premium right angle XLR-XLR balanced mic cable. Quad conductor,
twisted pair with braided shield for maximum conductivity. 6mm PVC jacketed.
MC1 P1 WS357 SMT25
FEATURES
· Premium electret condenser for vocals
and acoustic instruments
· Smooth accurate frequency response
· Switches for -10 dB pad and bass roll-off
· Suited for acoustic music as well as loud stages
· Designed, assembled & tested in the USA
· 3 year warranty
APPLICATIONS
· Stage or studio
· Lead or background vocals
· Speech
· Acoustic instrumentals
VX5
APS2 CBL20 CBLDR25
