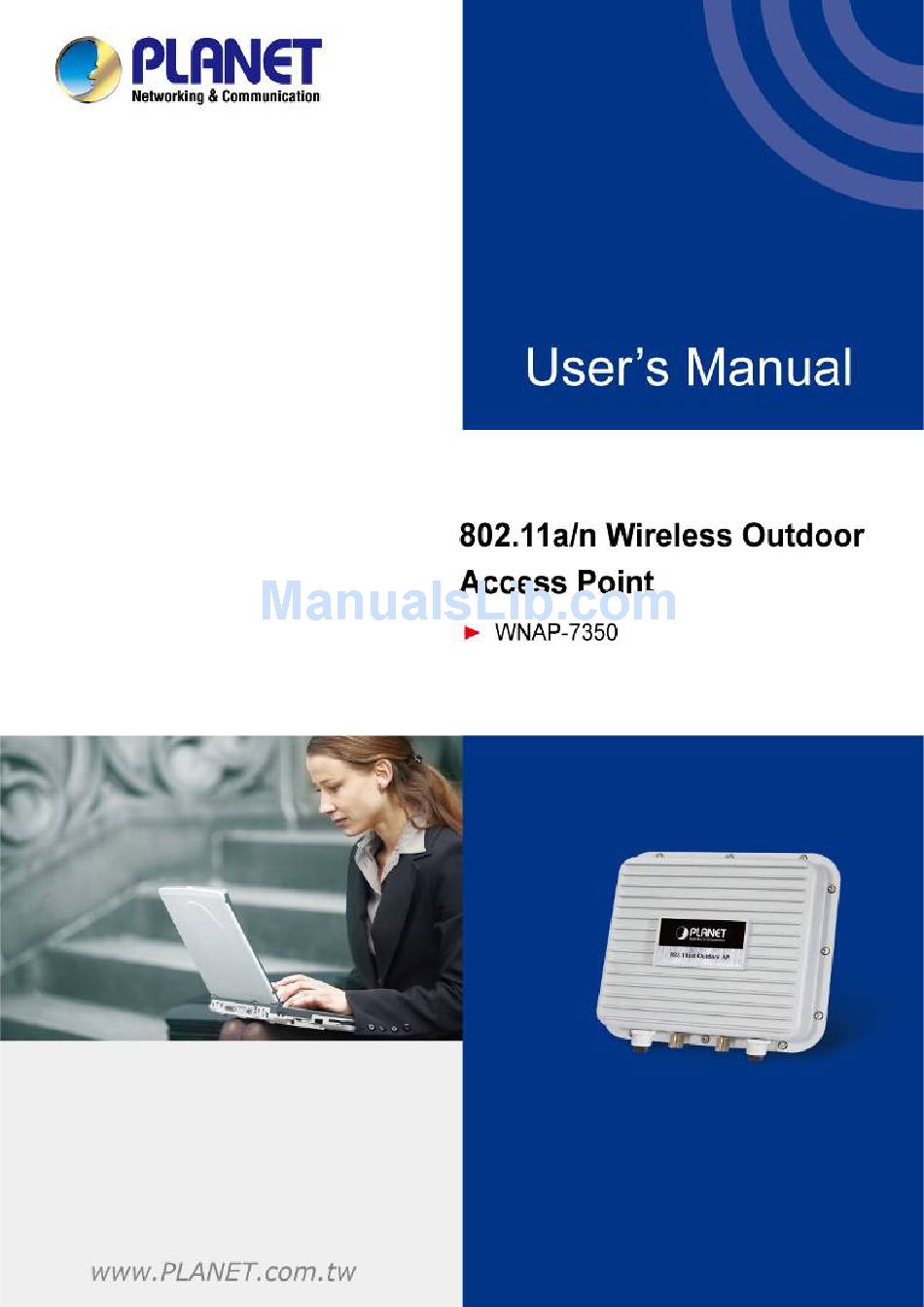

Planet WNAP-7350 User Manual

Wireless outdoor access point
Hide thumbs Also See for WNAP-7350:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Manual

Advertisement

Table of Contents
loading

Related Manuals for Planet WNAP-7350

Summary of Contents for Planet WNAP-7350

  • Page 2 Copyright Copyright  2012 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. CE Mark Warning This is a Class B product.
  • Page 4 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual for PLANET 802.11a/n Wireless Outdoor Access Point Model: WNAP-7350 Rev: 2.0 (December, 2012) Part No. EM-WNAP-7350_v2.0 (2081-E10510-001)

  • Page 5: Table Of Contents

    CONTENTS Chapter 1. Product Introduction......................1 Package Contents ........................1 Product Description ........................2 Product Features .......................... 6 Product Specification........................7 Chapter 2. Hardware Installation ......................10 Hardware Description ........................10 2.1.1 The Rear Panel.......................10 Chapter 3. Connecting to the AP ......................12 Preparation before Installation....................12 3.1.1 Professional Installation Required ................12...
  • Page 6 5.1.3.4. Client Bridge (Slave AP Bridge) ..................42 5.1.4 Advanced – System Log..................42 5.1.5 Advanced – Tools ....................43 5.1.5.1. Ping..........................43 5.1.5.2. Traceroute........................44 5.1.5.3. Throughput........................44 Firewall Settings .........................45 5.1.6 MAC/IP/Port Filtering ....................45 5.1.7 Virtual Server ......................46 5.1.8 DMZ ........................47 5.1.9 Firewall........................48 5.1.10 QoS.........................49...
  • Page 7 A.32 What is Modulation Coding Scheme (MCS)?..............84 A.33 What is Frame Aggregation? ....................84 A.34 What is Guard Intervals (GI)? ...................85 Appendix B: Configuring the PC in Windows 7 ................86 Appendix C: Use Planet Smart Discovery to find AP ..............89 Appendix D: Specifications........................90...

  • Page 8: Chapter 1. Product Introduction

    User Manual of WNAP-7350 Chapter 1. Product Introduction Package Contents Thank you for choosing PLANET WNAP-7350. Before installing the AP, please verify the contents inside the package box. WNAP-7350 Wireless AP Quick Installation Guide CD-ROM (User Manual included) PoE Injector & Power Cord...

  • Page 9: Product Description

    AP. As an IEEE 802.11a/n compliant wireless device, the WNAP-7350 is able to give stable and efficient wireless performance for long distance application; while designed with IEEE 802.11n standard and 2T2R MIMO technology makes it possible to deliver six times faster data rate up to 300Mbps than normal 802.11a wireless device.
  • Page 10 The WNAP-7350 supports multiple wireless communication connectivity (AP / Client CPE / WDS PtP / WDS PtMP / Repeater) allowing for various application requirements and thus it gives users more comprehensive experience when using the WNAP-7350. It helps users to easily build a wireless network and extend the wireless range of existing wireless network.
  • Page 11 Furthermore, the WNAP-7350 is also suitable to be integrated with PoE Solar Power System to offer farther Wireless service in remote areas. It enables the wireless LAN deployment becomes more flexible and worries free from the power...
  • Page 12 User Manual of WNAP-7350 Easy Installation & Management With user-friendly Web UI and step by step Setup Wizard, the WNAP-7350 is easier to install, even for users who never experience setting up a wireless network. Furthermore, with SNMP-Based management interface,...

  • Page 13: Product Features

    User Manual of WNAP-7350 Product Features  Industrial Compliant Wireless LAN & LAN  Compliant with IEEE 802.11n wireless technology capable of up to 300Mbps data rate  Backward compatible with 802.11a standard  Equipped with 10/100Mbps RJ-45 Ports for LAN & WAN, Auto MDI/ MDI-X supported Fixed-network Broadband AP ...

  • Page 14: Product Specification

    User Manual of WNAP-7350 Product Specification WNAP-7350 Product 5GHz 300Mbps 802.11a/n Wireless Outdoor Access Point Hardware Specifications IEEE 802.11a/n Wireless LAN IEEE 802.11i Wireless Security IEEE 802.3 10Base-T Ethernet Standard support IEEE 802.3u 100Base-TX Ethernet IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet / PD...
  • Page 15 User Manual of WNAP-7350 IEEE 802.11a: -91dBm Receiver Sensitivity IEEE 802.11n: -92dBm Output Power Control 3~27dBm Software Features Built-in DHCP server supporting static IP address distributing Supports 802.1d STP (Spanning Tree)  Static IP  Dynamic IP  PPPoE  PPTP ...
  • Page 16 User Manual of WNAP-7350 Dimension (W x D x H) 239 x 269 x 80mm Weight 2.4kg Installation Pole mounting or Wall mounting AP: IEEE 802.3af/at PoE / 48VDC input (PoE Injector included) Power Requirements PoE Injector: 100~240VAC Power Consumption 7.68W...

  • Page 17: Chapter 2. Hardware Installation

    User Manual of WNAP-7350 Chapter 2. Hardware Installation Please follow the instructions below to connect WNAP-7350 to the existing network devices and your computers. Hardware Description  Dimension: 269 x 239 x 80mm (W x D x H) Figure 2-1 Three-way View 2.1.1 The Rear Panel...
  • Page 18 User Manual of WNAP-7350 Rear Panel Figure 2-2 Rear Panel Interface Description 10/100Mbps RJ-45 port , Auto MDI/ MDI-X & 802.3af/at PoE supported Connect LAN port to the PoE injector or PoE switch to power on the (802.3af/at PoE/PD port) device.

  • Page 19: Chapter 3. Connecting To The Ap

    To keep you safe and install the hardware properly, please read and follow these safety precautions. If you are installing WNAP-7350 for the first time, for your safety as well as others’, please seek assistance from a professional installer who has received safety training on the hazards involved.
  • Page 20 User Manual of WNAP-7350 OUTDOOR INSTALLATION WARNING IMPORTANT SAFETY PRECAUTIONS: LIVES MAY BE AT RISK! Carefully observe these instructions and any special instructions that are included with the equipment you are installing. CONTACTING POWER LINES CAN BE LETHAL. Make sure no power lines are anywhere where possible contact can be made.

  • Page 21: Installing The Ap

    Please install the AP according to the following steps. Don't forget to pull out the power plug and keep your hands dry. Step 1. Plug the N-Type (M) to N-Type (M) RF cables into the antenna connectors of the WNAP-7350, and then connect the N-Type (F) antennas to the other side of the RF cables.
  • Page 22 User Manual of WNAP-7350 Figure 3-4 Step 5a. Pole Mounting: (a.1) Attach the mounting bracket to the back of the device by using four screws and flat washers. (a.2) Assemble the M bracket to the outside of the mounting bracket by using four screws and flat washers.
  • Page 23 User Manual of WNAP-7350 Figure 3-6 Step 5. Connect the power cord to the power socket on the PoE injector, and the other end into an electrical outlet. Then power on the AP. -16-...

  • Page 24: Chapter 4. Quick Installation Guide

    Connect the WNAP-7350 with your PC by an Ethernet cable plugging in LAN port of PoE injector in one side and in LAN port of PC in the other side. Please power on the WNAP-7350 by PoE from PoE injector or PoE switch.
  • Page 25 User Manual of WNAP-7350 Figure 4-1 Now click OK to save your settings. Now, you can run the Ping command in the command prompt to verify the network connection between your PC and the AP. The following example is in Windows XP OS. Please follow the steps below: Click on Start >...
  • Page 26 User Manual of WNAP-7350 Figure 4-2 In the run box type “cmd” and click OK. (Windows Vista users type “cmd” in the Start .Search box.)At the prompt. Figure 4-3 Open a command prompt, and type ping 192.168.1.1, and then press Enter.
  • Page 27 User Manual of WNAP-7350 Figure 4-4 Success result of Ping command If the result displayed is similar to Figure 4-5, it means the connection between your PC and the AP has failed. Figure 4-5 Failure result of Ping command If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your AP. Some firewall software programs may block a DHCP request on newly installed adapters.

  • Page 28: Starting Setup In The Web Ui

    User Manual of WNAP-7350 Starting Setup in the Web UI It is easy to configure and manage the WNAP-7350 with the web browser. Step 1. To access the configuration page, open a web-browser and enter the default IP address http://192.168.1.1 in the web address field of the browser.
  • Page 29 After entering the username and password, the Status page screen appears as Figure 4-8 Figure 4-8 WNAP-7350 Web UI Screenshot Step 2. Go to “Easy Setup” to choose an Operation Mode. Please refer to the instructions in the next chapter for configuring the other Operation Modes.

  • Page 30: Chapter 5. Configuring The Ap

    Easy Setup, and Advanced) below, allowing you to manage the AP with ease. Figure 5-1 Status In this page, you can view information about the current running status of WNAP-7350, including WAN interface, LAN interface, Wireless interface, and firmware version information. Status ...
  • Page 31 User Manual of WNAP-7350 Object Description Internet Configuration  Connected Type Displays current Internet connection type.  Disconnected: Indicates that the Ethernet cable from your ISP side is / is not correctly connected to the WAN port on the AP or the AP is not logically connected to your ISP.

  • Page 32: Dhcp Clients

    User Manual of WNAP-7350 Figure 5-1-2 Object Description Memory  Memory Left/ Displays the retain memory and total memory. Memory Total WAN/LAN  WAN Rx packets Displays the real-time packets received from WAN port.  WAN Rx bytes Displays the real-time bytes received from WAN port.

  • Page 33: Easy Setup

    User Manual of WNAP-7350 Figure 5-1-3 Object Description  MAC address Displays MAC address of a given host. Displays IP address(es) that client(s) obtained from the DHCP  IP Address server.  Expires in Remaining time for a corresponding IP address lease.

  • Page 34: Advanced

    User Manual of WNAP-7350 Advanced “Advanced” includes the following four submenus (Advanced, Firewall Settings, Network Settings, and Wireless Settings). Clicking any of them enters corresponding interface for configuration. Below explains, in details, each such feature. Figure 5-3-1 5.1.1 Advanced - Management This section allows you to manage the Wireless AP.

  • Page 35: Web Interface Settings (Password)

    User Manual of WNAP-7350 5.1.1.1. Web Interface Settings (Password) Figure 5-3-2 Object Description  User Name Display the User Name info.  Password Enter the new password that you prefer for login.  Re-enter to confirm Re-enter the new password to confirm.

  • Page 36: Configuration

    User Manual of WNAP-7350 Click the “Browse…” button to select the new firmware for upgrading. Object Description  Software Version Display the current Software Version info.  Location Click the “Browse…” button to select the new firmware in this field.

  • Page 37: Load Factory Defaults

    User Manual of WNAP-7350 5.1.1.4. Load Factory Defaults Figure 5-3-5 Click the “Load Default” button to reset it to factory default settings. 5.1.1.5. Reboot System Figure 5-3-6 Click the “Reboot Now!” button to restart the Wireless AP. -30-...

  • Page 38: Scheduling Reboot

    User Manual of WNAP-7350 5.1.1.6. Scheduling Reboot Figure 5-3-7 Select “Enable” to configure the system auto reboot according to the Duration Time (Time interval). Object Description Enable: select it to enable the Scheduling Reboot.  Enable Scheduling Reboot Disable: select it to disable the Scheduling Reboot.

  • Page 39: Time Zone Settings

    User Manual of WNAP-7350 5.1.2.1. Time Zone Settings Figure 5-3-8 The page includes the following fields: Object Description  Current Time Display the current Time.  Sync with host Click it to sync your PC’s time to the device.  Time Zone Select your current time zone.
  • Page 40 Planet DDNS account. Please refer to the FAQ (http://www.planetddns.com/index.php/faq) for how to register a free account. Please refer to the procedure listed as following to configure using Planet DDNS service. Step 1. Select “planetddns.com” to choose Planet DDNS service.

  • Page 41: Upnp Settings

    Please remember to enter the remote management port number that you have configured in Step 3. Figure 5-3-13 You can go to My Devices page of Planet DDNS website to check if the “Last Connection IP” is displayed. This indicates your DDNS service is work properly. Figure 5-3-14 5.1.2.3.

  • Page 42: Snmp Settings

    User Manual of WNAP-7350 Figure 5-3-15 In the computer connected with WNAP-7350, go to “Network” to check the WNAP-7350 is displayed in the list. Double-click it to logon the Web UI of WNAP-7350. Figure 5-3-16 5.1.2.4. SNMP Settings Enable SNMP function will allow the network management station to retrieve statistics and status from the SNMP Agent in the device.

  • Page 43: Advanced - Operation Mode

    In the Access Point Mode with Router Function, WNAP-7350 acts as central connection point, which wireless clients can connect to. The DHCP & NAT is enabled, so the clients wirelessly connected to WNAP-7350 can share the internet connection by connecting WNAP-7350 to a DSL/Cable modem.

  • Page 44: Ap Bridge (Ap+Wds)

    User Manual of WNAP-7350 1. Connect the LAN port of WNAP-7350 to the POE port of the PoE Injector with an Ethernet cable. 2. Connect the DSL/Cable Modem to the WAN port of the WNAP-7350. 3. Plug one end of the power cord into the PoE Injector, and the other end in electrical socket.

  • Page 45: Client Router (Wisp)

    Client Router Mode is act completely opposite to the AP Router Mode. 1. Connect the LAN port of WNAP-7350 to the POE port of the PoE Injector with an Ethernet cable. 2. Connect the PC to the LAN port of the PoE Injector with an Ethernet cable.
  • Page 46 User Manual of WNAP-7350 WISP Setup Procedure: Step 1. Go to Advanced-> Wireless Settings-> Profile Settings. Figure 5-3-21 Step 2. Click “Site Survey” to discover the Wireless Internet Service Provider. Step 3. Select the WISP’s AP, and the click “Select”.
  • Page 47 User Manual of WNAP-7350 Figure 5-3-23 Step 5. The profile should be listed in the Profile List as the figure shown as below. Figure 5-3-24 Step 6. Go to “Advanced-> Network Settings-> LAN” to enable DHCP Server. -40-...
  • Page 48 User Manual of WNAP-7350 Figure 5-3-25 Step 7. Go to “Advanced-> Network Settings-> WAN” to configure the WAN Connection. Figure 5-3-26 Step 8. Configure the wired client’s TCP/IP setting to “Obtain an IP address automatically”. Figure 5-3-27 -41-...

  • Page 49: Client Bridge (Slave Ap Bridge)

    SSID and Security Password to associate with it. 1. Connect the LAN port of WNAP-7350 to the POE port of the PoE Injector with an Ethernet cable. 2. Connect the PC to the LAN port of the PoE Injector with an Ethernet cable.

  • Page 50: Advanced - Tools

    User Manual of WNAP-7350 Click “Clear” to erase the current system log. Figure 5-3-29 5.1.5 Advanced – Tools The Tools included Ping, Traceroute, and Throughput can help user diagnostic the network connection. 5.1.5.1. Ping Ping is a network tool used to test whether a particular host is reachable across an IP network.

  • Page 51: Traceroute

    User Manual of WNAP-7350 5.1.5.2. Traceroute Traceroute is a computer network diagnostic tool for displaying the route (path) and measuring transit delays of packets across an Internet Protocol (IP) network. It can help identify connection problems. Enter the IP or Hostname, and click “Start” to diagnostic your internet connection.

  • Page 52: Firewall Settings

    User Manual of WNAP-7350 Firewall Settings 5.1.6 MAC/IP/Port Filtering Figure 5-4-1 The page includes the following fields: Object Description  MAC/IP/Port Filtering Select Enable to enable the MAC/IP/Port Filtering function.  Default Policy Select a policy for filtering rule. Fill in the MAC address of source NIC, to restrict data ...

  • Page 53: Virtual Server

    User Manual of WNAP-7350 (SIP) Select the protocol that you want to restrict. There are four  Protocol options: None, TCP, UDP and ICMP. Fill in the start-port and end-port number of destination, to  Destination Port Range restrict data transmission.

  • Page 54: Dmz

    User Manual of WNAP-7350 Object Description  Virtual Server Select Enable to enable the Virtual Server function. To forward data packets coming from WAN to a specific IP  IP address address that hosted in local network behind the NAT firewall, fill in the IP address.

  • Page 55: Firewall

    User Manual of WNAP-7350 5.1.9 Firewall Figure 5-4-4 The page includes the following fields: Object Description  Remote Management Select Deny or Allow for remote management function. (via WAN)  Remote Management Configure the port for remote management. Port  Ping from WAN Filter Select Deny or Allow for Ping permit from WAN.

  • Page 56: Qos

    User Manual of WNAP-7350 5.1.10 QoS Quality of Service provides an efficient way for clients on the network to share the bandwidth with a promised quality of Internet service. Without QoS, all computers and devices on the network will compete with each other to get the bandwidth, and some applications which require guaranteed bandwidth (like video streaming and network telephone) will be affected.

  • Page 57: Content Filtering

    User Manual of WNAP-7350 Set the limit of total download bandwidth in kbits. To disable  Download Bandwidth download bandwidth limitation, input ‘0’ here.  Target Set the target of QoS rule. Specify the local (source) IP address that will be affected by this rule.

  • Page 58: Web Host Filter Settings

    User Manual of WNAP-7350 Figure 5-4-6 5.1.11.2. Web Host Filter Settings The Webs Host Filter option allows you to set up a list of keyword you would like to deny through your network. Please enter a Host (keyword) for filtering.

  • Page 59: Static (Fixed Ip)

    User Manual of WNAP-7350 WAN Connection Types: 5.1.12.1. Static (Fixed IP) If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting, select Static (Fixed IP). The Static IP settings page will appear as the figure shown as below.

  • Page 60: Cable/Dynamic Ip (Dhcp)

    User Manual of WNAP-7350 5.1.12.2. Cable/Dynamic IP (DHCP) If your ISP provides the DHCP service, please choose Cable/Dynamic IP (DHCP) type, and the AP Router will automatically obtain IP parameters from your ISP. You can see the page shown as the below.

  • Page 61: Ipsec

    User Manual of WNAP-7350 Figure 5-5-3 The page includes the following fields: Object Description  WAN Connections Select PPPoE (ADSL) from the list.  Host Name This option specifies the Host Name of the AP Router. Enter the User Name and Password provided by your ISP.
  • Page 62 User Manual of WNAP-7350 Figure 5-5-4 Figure 5-5-5 The page includes the following fields: Object Description  WAN Connections Select IPSEC from the list. (Optional) Enter the DNS IP address in dotted-decimal notation provided  Primary DNS Server by your ISP.
  • Page 63 User Manual of WNAP-7350 For an IPSec connection, all host addresses must be of the same  Connection address family Address Family (IPv4 and IPv6 use different Address Families).  IPSec Operation Mode Select the IPSec Operation Mode from the drop-down list.
  • Page 64 User Manual of WNAP-7350 Group 2 1024 bits MODP group RFC 2409 Group 3 EC2N group on GP(2^155) RFC 2409 Group 4 EC2N group on GP(2^185) RFC 2409 Group 5 1536 bits MODP group RFC 3526  IPSec Authentication The AP supports SHA1 & MD5 authentication algorithms.

  • Page 65: Pptp

    User Manual of WNAP-7350 of generating new keys at intervals is called dynamic rekeying or key regeneration. Lifetimes allow you to force the generation of a new key after a specific interval. For example, if the communication takes 12 hours and you specify the key lifetime as 1 hour, 12 keys will be generated (one every 1 hour) during the exchange.

  • Page 66: L2Tp

    User Manual of WNAP-7350 Enter the User Name and Password provided by your ISP.  User Name / Password These fields are case-sensitive. Static IP/ Dynamic IP: Choose either as you are given by your ISP and If you choose static IP and enter the domain name, ...

  • Page 67: Lan

    User Manual of WNAP-7350 Enter the User Name and Password provided by your ISP.  User Name / Password These fields are case-sensitive. Static IP/ Dynamic IP: Choose either as you are given by your ISP and If you choose static IP and enter the domain name, ...

  • Page 68: Dhcp Server

    User Manual of WNAP-7350 5.1.13.1. DHCP Server Figure 5-5-9 The page includes the following fields: Object Description  DHCP Server Select DHCP Server to enable DHCP server feature.  Local Domain Name (Optional) Input the domain name of your network.

  • Page 69: Vlan

    User Manual of WNAP-7350 5.1.14 VLAN Figure 5-5-11 The page includes the following fields: Object Description  VLAN Setup Check this box to enable the VLAN function.  Management VLAN ID Configure a specified VLAN to be the management VLAN.

  • Page 70: Advanced Routing

    User Manual of WNAP-7350 5.1.15 Advanced Routing Figure 5-5-12 The page includes the following fields: Object Description  Destination The IP address of packets that can be routed. Defines the type of destination. ( Host: Signal IP address / Net: Portion ...

  • Page 71: Ipv6

    User Manual of WNAP-7350 5.1.16 IPv6 Use this section to configure your IPv6 Connection type. If you are unsure of your connection method, please contact your Internet Service Provider. Figure 5-5-13 The page includes the following fields: Object Description Choose the mode to be used by the AP/Router to the IPv6 Internet.

  • Page 72: Wireless Settings

    User Manual of WNAP-7350 configuration Stateless (RADVD). Stateful (DHCPv6): This type of configuration is suitable for small organizations and individuals. It allows each host to determine its address from the contents of received user advertisements. It makes use of the IEEE EUI-64 standard to define the network ID portion of the address.
  • Page 73 The value is auto determined by distance between the radios, data rate of average environment. It is the wireless network name. The SSID can be 32 bytes long.  Network Name (SSID) User can use the default SSID or change it. The default SSID is WNAP-7350. -66-...

  • Page 74: Wireless Mode - Wds Access Point

    User Manual of WNAP-7350  WPS Choice Enable it to use WPS associating with AP or Client device.  Encryption Settings Select the encryption type that you would like to use.  WPA Algorithms Select the WPA Algorithms that you would like to use.
  • Page 75 It is the wireless network name. The SSID can be 32 bytes long.  Network Name (SSID) User can use the default SSID or change it. The default SSID is WNAP-7350.  Encryption Settings Select the encryption type that you would like to use.

  • Page 76: Wireless Mode - Wds Repeater

    User Manual of WNAP-7350 5.1.17.3. Wireless Mode – WDS Repeater Figure 5-6-3 The page includes the following fields: Object Description Click to select Wireless Mode from pull down menu. There are 4 options available: Access Point: This mode allows wireless clients or Stations(STA) to access...
  • Page 77  Network Name (SSID) User can use the default SSID or change it. The default SSID is WNAP-7350. It is the wireless network name of Root AP.  Root AP SSID The SSID must be the same with Root AP so that the connection can be established successfully.

  • Page 78: Wireless Mode - Wds Client

    User Manual of WNAP-7350 5.1.17.4. Wireless Mode – WDS Client Figure 5-6-4 The page includes the following fields: Object Description Click to select Wireless Mode from pull down menu. There are 4 options available: Access Point: This mode allows wireless clients or Stations(STA) to access...
  • Page 79 User Manual of WNAP-7350 Select the operating channel width to WiFi 11na (mixed), HT20 or  Network Mode HT40MHz. An extension channel is a secondary channel used to bond with the  Extension Channel primary channel to increase this range to 40MHz. Bonded channels allow for greater bandwidth on the local network.

  • Page 80: Profile Settings

    User Manual of WNAP-7350 5.1.18 Profile Settings In Client Bridge and Client Router operation modes, please go to “Advanced-> Wireless Settings-> Profile Settings” to configure the wireless client function to connect with the wireless AP. Figure 5-6-5 The page includes the following fields:...
  • Page 81 User Manual of WNAP-7350  BSSID (optional) Indicate the Basic Service Set ID of the associated AP  Encryption Settings Select the encryption type that you would like to use. To decrease the chances of data retransmission at long distance, the ...

  • Page 82: Advanced

    User Manual of WNAP-7350 5.1.19 Advanced Figure 5-6-6 The page includes the following fields: Object Description  Wireless On/Off Click this button to switch the Wireless Radio On or Off.  AP MAC Address Display the AP MAC Address of wireless interface.

  • Page 83: Access Control

    User Manual of WNAP-7350 milliseconds. The default value is 100. This value determines the interval of the Delivery Traffic Indication Message (DTIM). You can specify the value between 1-255  DTIM Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval.

  • Page 84: Logout

    User Manual of WNAP-7350 Figure 5-6-7 The page includes the following fields: Object Description Select the SSID which you would like to configure access  SSID control. Allow Listed: allow the packets not specified by any access control policy to pass through the AP Router.

  • Page 85: Appendix A: Faq

    User Manual of WNAP-7350 Appendix A: FAQ A.1 What and how to find my PC’s IP and MAC address? IP address is the identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol route messages based on the IP address of the destination. The format of an IP address is a 32-bit numeric address written as four numbers separated by periods.

  • Page 86: What Is Bssid

    User Manual of WNAP-7350 Example 1: wireless Infrastructure Mode Ad hoc mode (also called peer-to-peer mode or an Independent Basic Service Set, or IBSS) is simply a set of 802.11 wireless stations that communicate directly with one another without using an access point or any connection to a wired network.

  • Page 87: What Are The Open System And Shared Key Authentications

    User Manual of WNAP-7350 Solutions to overcome the interferences:  Minimizing the number of walls and ceilings.  Position the WLAN antenna for best reception.  Keep WLAN devices away from other electrical devices, eg: microwaves, monitors, electric motors…etc. ...

  • Page 88: What Is Rts (Request To Send) Threshold

    User Manual of WNAP-7350 want to try lowering your fragmentation threshold. This will cause packets to be broken into smaller fragments. These small fragments, if corrupted, can be resent faster than a larger fragment. Fragmentation increases overhead, so you'll want to keep this value as close to the maximum value as possible.

  • Page 89: What Is Wi-Fi Protected Access (Wpa)

    User Manual of WNAP-7350 run that way to enhance network security. However it's no replacement for WEP, MAC filtering or other protections. A.15 What is Wi-Fi Protected Access (WPA)? Wi-Fi’s original security mechanism, Wired Equivalent Privacy (WEP), has been viewed as insufficient for securing confidential business communications.

  • Page 90: What Is Inter-Access Point Protocol (Iapp)

    User Manual of WNAP-7350 A.20 What is Inter-Access Point Protocol (IAPP)? The IEEE 802.11f Inter-Access Point Protocol (IAPP) supports Access Point Vendor interoperability, enabling roaming of 802.11 Stations within IP subnet. IAPP defines messages and data to be exchanged between Access Points and between the IAPP and high layer management entities to support roaming.

  • Page 91: What Is Vpn

    User Manual of WNAP-7350 A.27 What is VPN? VPN is the abbreviation of Virtual Private Network. It is designed for creating point-to point private link via shared or public network. A.28 What is IPSEC? IPSEC is the abbreviation of IP Security. It is used to transferring data securely under VPN.

  • Page 92: What Is Guard Intervals (Gi)

    User Manual of WNAP-7350 A.34 What is Guard Intervals (GI)? A GI is a period of time between symbol transmission that allows reflections (from multipath) from the previous data transmission to settle before transmitting a new symbol. The 802.11n specifies two guard intervals: 400ns (short) and 800ns (long).

  • Page 93: Appendix B: Configuring The Pc In Windows 7

    User Manual of WNAP-7350 Appendix B: Configuring the PC in Windows 7 In this section, we’ll introduce how to configure the TCP/IP correctly in Windows 7. First make sure your Network Adapter is working, refer to the adapter’s manual if needed.
  • Page 94 User Manual of WNAP-7350 Figure B-2 In the prompt page shown below, double click on the Internet Protocol Version 4 (TCP/IPv4). Figure B-3 -87-...
  • Page 95 User Manual of WNAP-7350 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you can configure the TCP/IP protocol below:  Setting IP address manually Select Use the following IP address radio button.

  • Page 96: Appendix C: Use Planet Smart Discovery To Find Ap

    Step 3: Click “Refresh” button to update the current connected devices list, the screen is shown as follow. Figure C-1 Step 3: Select the WNAP-7350 from the list, and then click “Connect to Device” button to login the Web Management Configuration Page.

  • Page 97: Appendix D: Specifications

    User Manual of WNAP-7350 Appendix D: Specifications WNAP-7350 Product 5GHz 300Mbps 802.11a/n Wireless Outdoor Access Point Hardware Specifications IEEE 802.11a/n Wireless LAN IEEE 802.11i Wireless Security IEEE 802.3 10Base-T Ethernet Standard support IEEE 802.3u 100Base-TX Ethernet IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet / PD...
  • Page 98 User Manual of WNAP-7350 IEEE 802.11n: 24 ± 1dBm IEEE 802.11a: -91dBm Receiver Sensitivity IEEE 802.11n: -92dBm Output Power Control 3~27dBm Software Features Built-in DHCP server supporting static IP address distributing Supports 802.1d STP (Spanning Tree)  Static IP  Dynamic IP ...
  • Page 99 User Manual of WNAP-7350 Material Aluminum Dimension (W x D x H) 239 x 269 x 80mm Weight 2.4kg Installation Pole mounting or Wall mounting AP: IEEE 802.3af/at PoE / 48VDC input (PoE Injector included) Power Requirements PoE Injector: 100~240VAC Power Consumption 7.68W...
  • Page 100 *Model Number WNAP-7350 * Produced by: Manufacturer’s Name : Planet Technology Corp. Manufacturer’s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) is herewith confirmed to comply with the requirements set out in the Council Directive on the 1999/5/EC R&TTE.
