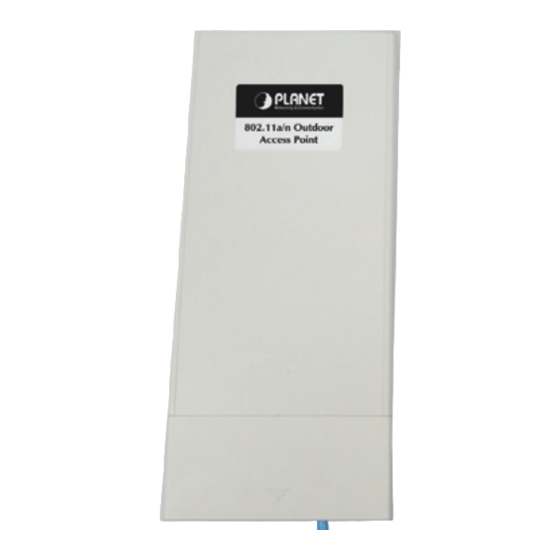

Planet WNAP-7300 Quick Installation Manual

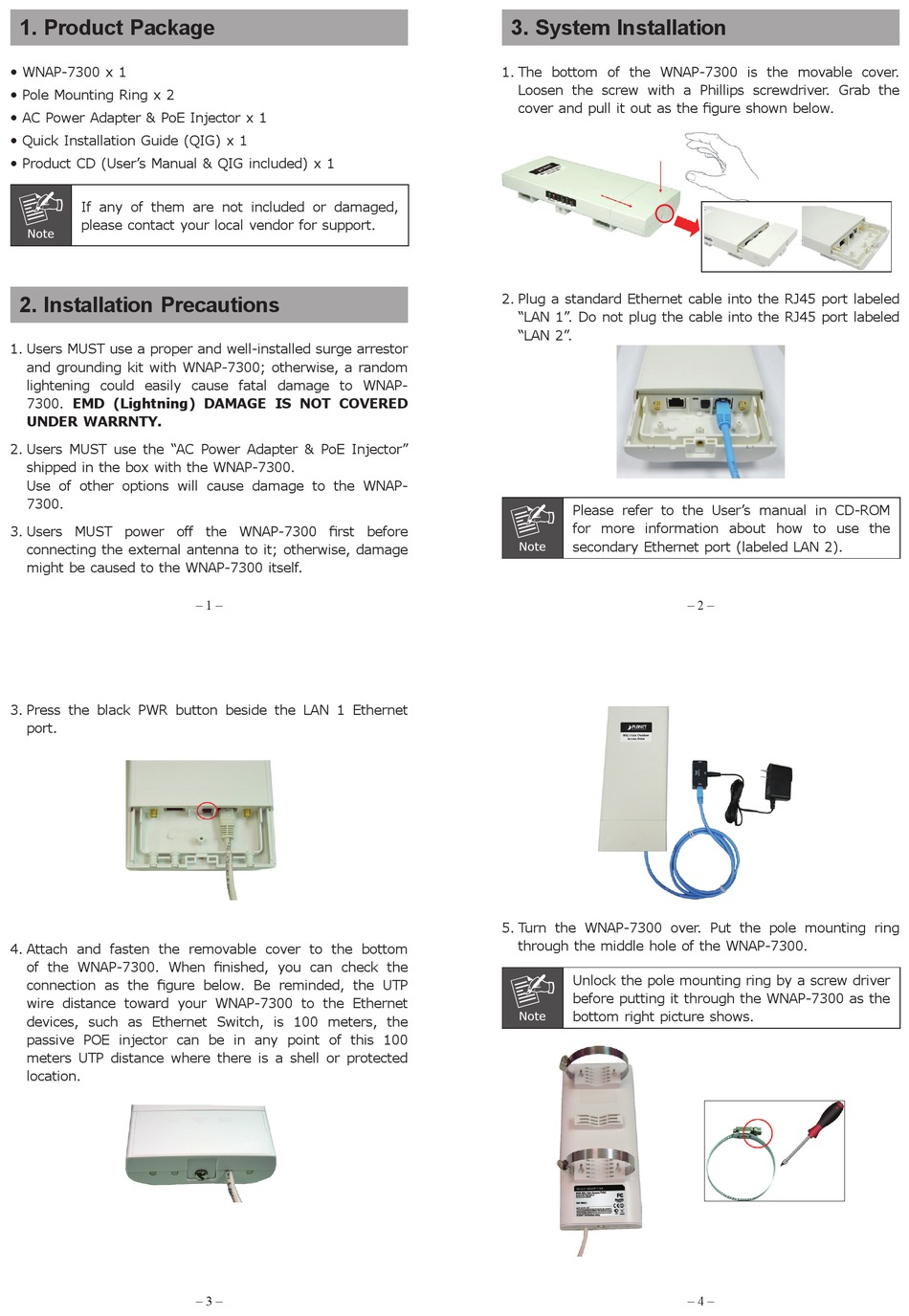

1. Product Package

 WNAP-7300 x 1
 Pole Mounting Ring x 2
 AC Power Adapter & PoE Injector x 1
 Quick Installation Guide (QIG) x 1
 Product CD (User's Manual & QIG included) x 1
If any of them are not included or damaged,
please contact your local vendor for support.
Note

2. Installation Precautions

1. Users MUST use a proper and well-installed surge arrestor
and grounding kit with WNAP-7300; otherwise, a random
lightening could easily cause fatal damage to WNAP-
7300. EMD (Lightning) DAMAGE IS NOT COVERED
UNDER WARRNTY.
2. Users MUST use the "AC Power Adapter & PoE Injector"
shipped in the box with the WNAP-7300.
Use of other options will cause damage to the WNAP-
7300.
3. Users MUST power off the WNAP-7300 first before
connecting the external antenna to it; otherwise, damage
might be caused to the WNAP-7300 itself.
3. Press the black PWR button beside the LAN 1 Ethernet
port.
4. Attach and fasten the removable cover to the bottom
of the WNAP-7300. When finished, you can check the
connection as the figure below. Be reminded, the UTP
wire distance toward your WNAP-7300 to the Ethernet
devices, such as Ethernet Switch, is 100 meters, the
passive POE injector can be in any point of this 100
meters UTP distance where there is a shell or protected
location.
– 1 –
– 3 –
3. System Installation
1. The bottom of the WNAP-7300 is the movable cover.
Loosen the screw with a Phillips screwdriver. Grab the
cover and pull it out as the figure shown below.
2. Plug a standard Ethernet cable into the RJ45 port labeled
"LAN 1". Do not plug the cable into the RJ45 port labeled
"LAN 2".
Please refer to the User's manual in CD-ROM
for more information about how to use the
secondary Ethernet port (labeled LAN 2).
Note
5. Turn the WNAP-7300 over. Put the pole mounting ring
through the middle hole of the WNAP-7300.
Unlock the pole mounting ring by a screw driver
before putting it through the WNAP-7300 as the
Note bottom right picture shows.
– 2 –
– 4 –
