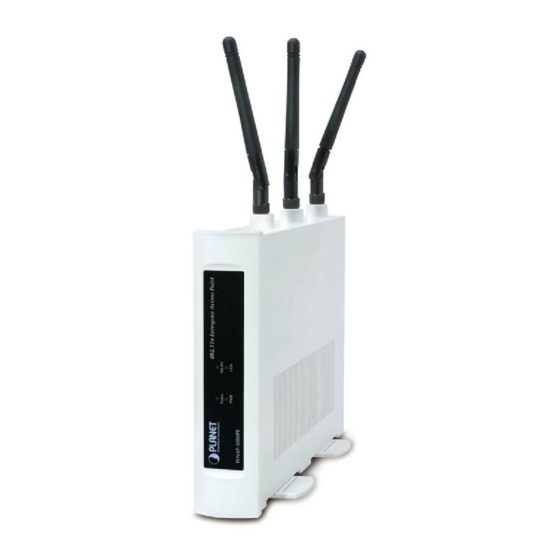

- Page 1 802.11n Enterprise PoE Access Point WNAP-3000PE Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents Package Content ....................3 Physical Details ....................4 Front panel ....................4 LED definition ..................... 4 Back Panel ....................5 Hardware Installation ..................6 General installation ..................6 PoE installation ................... 6 Web Configuration ................... 7 Further Configuration ..................8... -
Page 3: Package Content
Package Content WNAP-3000PE x 1 2dBi Dipole Antenna x 3 Power Adapter x 1 Quick Installation Guide x 1 CD-ROM x 1 If any of the above items are missing or damaged, contact your local dealer for support. Note... -
Page 4: Physical Details
Physical Details Front panel LED definition On - Normal operation. Power Off - No power On - Idle Off - Wireless connection is not available. WLAN Flashing - Data is being transmitted or received via the Wireless access point. Data includes “network traffic” as well as user data. -
Page 5: Back Panel
Back Panel This button has two (2) functions: Reboot - When pressed and released, the Wireless Access Point will reboot (restart). Reset to Factory Defaults - This button can also be used to clear ALL data and restore ALL settings to the factory default values. -
Page 6: Hardware Installation
4. Connect the unpowered Ethernet port on the PoE adapter to your Hub or switch. 5. Connect the power supply to the PoE adapter and power up. 6. Check the LEDs on the WNAP-3000PE to see it is drawing power via the Ethernet connection. -
Page 7: Web Configuration
Web Configuration WNAP-3000PE provides a user friendly interface for users to configure it via web browser. Please follow the steps below to configure WNAP-3000PE basic settings. 1. The default value of WNAP-3000PE doesn’t enable DHCP server, please double check obtain the IP from DHCP server in your network, otherwise, please configure static IP address in your PC to an unused value in the range 192.168.0.1 ~ 192.168.0.254, with a Network Mask of 255.255.255.0. -
Page 8: Further Configuration
Further Configuration If you want to configure WNAP-3000PE with more detail settings, please refer to our manual in the CD-ROM and configure with your Web Browser. If you have any difficulty on resolving the problem while installing or using WNAP-3000PE, please...
