Planet WNAP-7325 Quick Installation Manual

Planet WNAP-7325 Quick Installation Manual

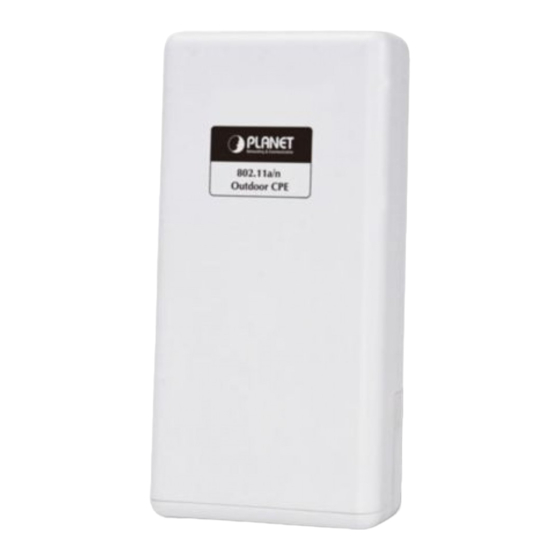

300mbps 802.11a/n wireless outdoor cpe

Advertisement

Quick Links

Quick Installation Guide
WNAP-7325
300Mbps 802.11a/n Wireless Outdoor CPE

1. Package Contents

Thank you for choosing PLANET WNAP-7325. Before installing the
AP, please verify the contents inside the package box.
WNAP-7325
PoE Injector & Power Cord
If there is any item missing or damaged, please
contact the seller immediately.
Note
– 1 –
Bottom Panel Description – Port
Grounding Terminal
Reset Button
LAN2

4. Hardware Installation

STEP 1: (A) Push the latch on the bottom of the WNAP-7325
to remove the sliding cover.
1
– 3 –
Quick Guide
Plastic Strap x 1
PoE LAN
2

2. Installation Precautions

1. Users MUST use a proper and well-installed
surge arrestor and grounding wired with the
WNAP-7325; otherwise, a sudden lightning
could cause fatal damage to the WNAP-7325.
EMD (Lightning) DAMAGE IS NOT COVERED
UNDER WARRANTY.
2. Users MUST use the "Power cord and PoE
Caution
Injector"
shipped
WNAP-7325. Use of other options will cause
damage to the WNAP-7325.
3. Physical Introduction
Rear Panel Description – LED Indication
Power LED
LAN 1 LED
LAN 2 LED
– 2 –
(B) Plug the RJ45 Ethernet cable into the PoE LAN Port of the
WNAP-7325. Then, slide back the cover of the WNAP-7325
to finish the installation.
3
STEP 2: Plug the power cord into the DC port and the other
side into the AC socket. Then, plug the RJ45 cable
(as shown in picture 4 under Step 1) into the POE
port of the PoE injector.
Ethernet Cable
24V PoE Injector
PoE Port
Ethernet Cable
Data+Power
2
– 4 –
in
the
box
with
the
Signal Indicator
4
Data
PC
1
Power
Data In
PoE Out
