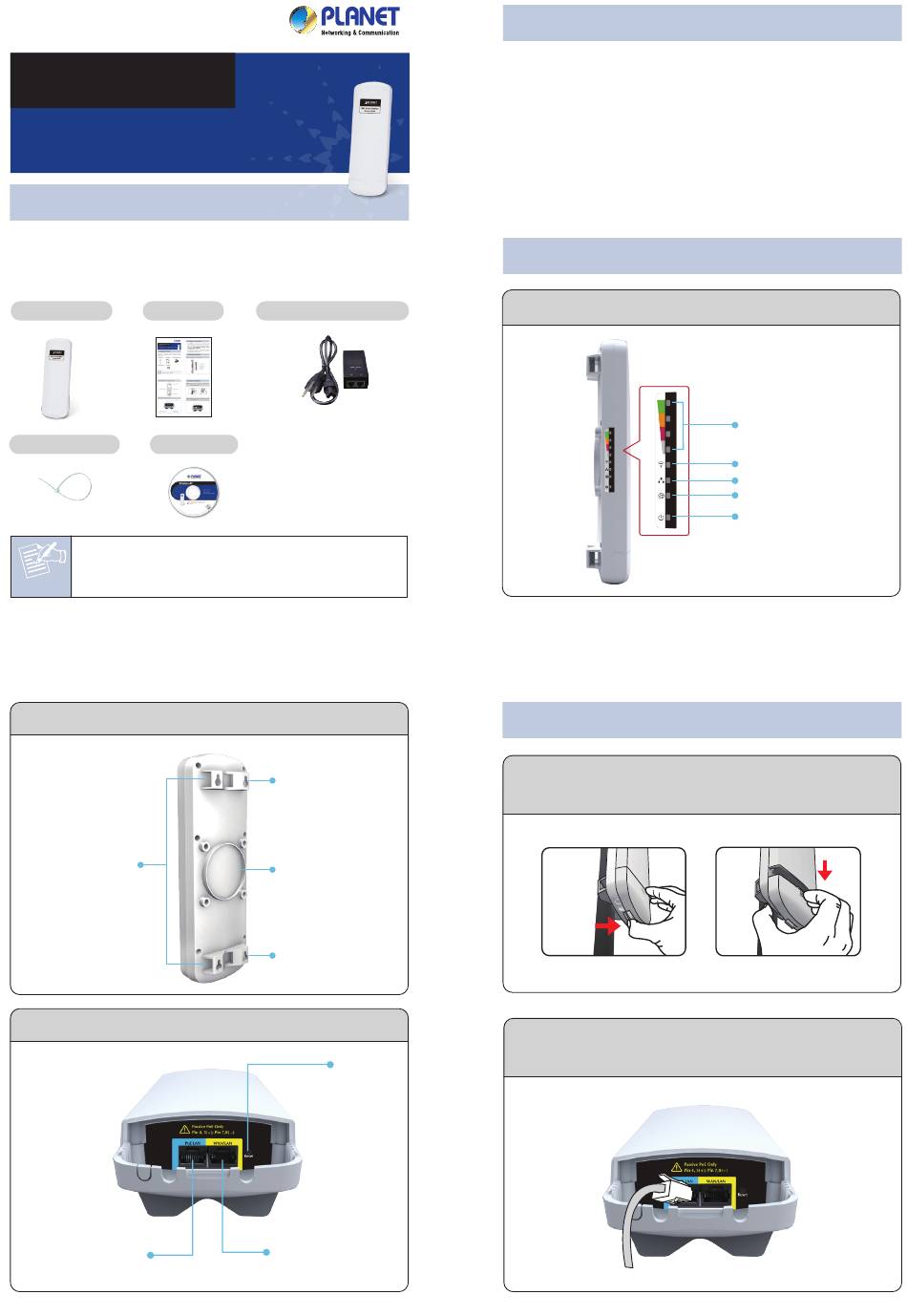

Planet WNAP-7320 Quick Installation Manual

Quick Installation Guide

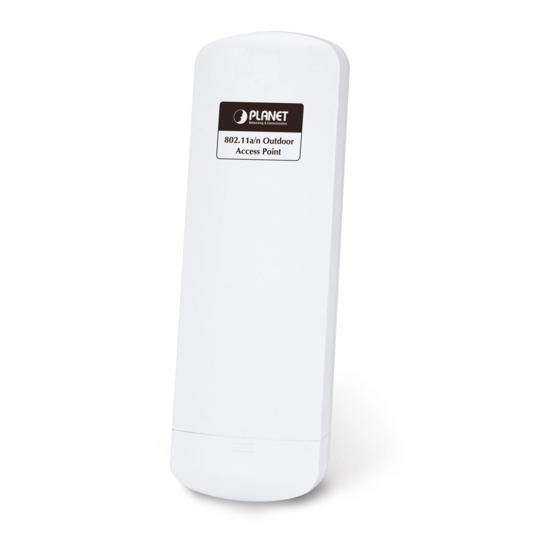

WNAP-7320
300Mbps 802.11a/n Wireless Outdoor AP

1. Package Contents

Thank you for choosing PLANET WNAP-7320. Before
installing the AP, please verify the contents inside the
package box.
WNAP-7320 Quick Guide
Mounting Tie x 2 CD-ROM
If there is any item missed or damaged, please
contact the seller immediately.
Note
Rear Panel Description – Mounting Design
Pole Mount Holders
Bottom Panel Description – Port
LAN (Passive PoE)
Pin4,5 (+); Pin 7, 8 (-)
PoE Injector & Power Cord
– 1 –
Wall Mount Hole
L-Mount (Option)
Wall Mount Hole
Reset
WAN (Router Mode)
LAN (Bridge Mode)
– 3 –

2. Installation Precautions

1. Users MUST use a proper and well-installed surge
arrestor and grounding kit with WNAP-7320; otherwise, a
random lightening could easily cause fatal damage to
WNAP-7320. EMD (Lightning) DAMAGE IS NOT
COVERED UNDER WARRANTY.
2. Users MUST use the "Power cord & PoE Injector" shipped
in the box with the WNAP-7320. Use of other options will
cause damage to the WNAP-7320.
3. Physical Introduction
Side Panel Description – LED Indication

4. Hardware Installation

STEP 1: Push the latch in the bottom of WNAP-7320 to
remove the sliding cover.
STEP 2: Plug the RJ-45 Ethernet cable into the PoE LAN
Port of WNAP-7320.
Signal Indicator
Wireless LED
LAN Port LED
WAN Port LED
Power LED
– 2 –
– 4 –
