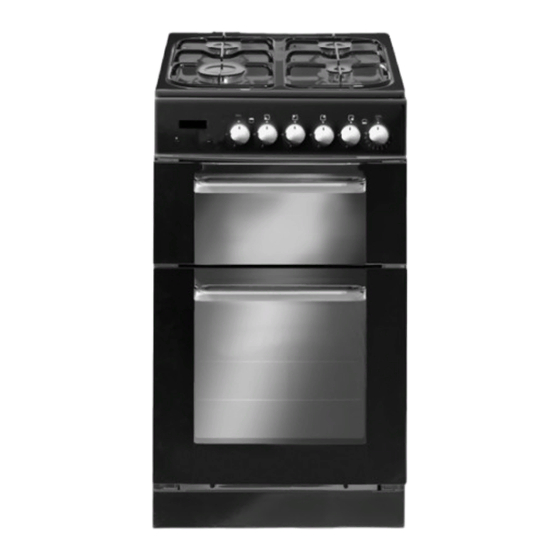

Baumatic BCG520SL Instruction Manual

50 cm twin cavity gas slot-in cooker
Hide thumbs Also See for BCG520SL:
Table of Contents

Advertisement

Quick Links

Download this manual
BCG520SL/BL/IV/R
50 cm Twin cavity gas
slot-in cooker
y
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCG520SL and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BCG520SL

Summary of Contents for Baumatic BCG520SL

  • Page 1 BCG520SL/BL/IV/R 50 cm Twin cavity gas slot-in cooker...
  • Page 2 User Manual for your Baumatic BCG520SL/BL/IV/R 50 cm Twin cavity gas slot-in cooker NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Minimum flow adjustment for hob gas taps Gas adjustment (conversion to LPG for the oven and grill) 34 – 35 Minimum flow adjustment for the oven and grill burners 35 - 37 My appliance isn’t working correctly 38 – 39 Baumatic consumables Contact details...

  • Page 4: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.

  • Page 5: Important Safety Information

    Baumatic’s Conditions Of Guarantee. The foregoing does not affect your statutory rights. o Repairs may only be carried out by Baumatic service engineers or their authorised service agents. Warning and safety instructions o This appliance complies with all current European safety legislation.
  • Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
  • Page 7 o Do not store chemicals, food stuffs, pressurised containers in or on the cooker or in cabinets immediately above or next to the cooker. o Do not heat up unopened food containers, as pressure can build up which may cause the container to burst. o Do not place flammable or plastic items on or near the hob burners, these types of materials should also not be placed in the oven or the compartment below the oven.
  • Page 8 Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.

  • Page 9: Specifications

    Specifications Product dimensions: Height: 900 - 920 mm Width: 500 mm Depth: 600 mm Product specifications: o 4 zone gas hob: o 1 x 2.70 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Flame failure safety device on each burner o Pushbutton ignition o Enamelled pan stands...

  • Page 10: Standard Accessories

    Standard accessories o 2 x Enamelled baking trays with handle o 1 x Shelf o 1 x Trivet o LPG conversion jets Electrical details Rated Voltage: 220 - 240 Vac 50 Hz Supply Connection: 3 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 0.015 kW...

  • Page 11: Control Panel

    For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. The rating plate for your oven can be located on the front frame of the oven cavity. Model Number ……………………………….

  • Page 12: Oven Timer

    Thermostat control knob (hob) o Use control knob relevant burner temperature intensity. Oven timer 1) Alarm stop icon (press minus button to stop alarm). 2) Timer minus button. 3) Timer plus button. 4) Time-setting mode indicator (press plus and minus buttons together to enter this mode).

  • Page 13: Setting And Using The Oven Timer

    Setting and using the oven timer Setting the time of day Before using the oven for the first time you should set the time of day. o Press the plus (3) and minus (2) buttons simultaneously to enter the time-setting mode. The display will automatically show “12.00”.

  • Page 14: Using The Oven

    Using the oven Before first use o To remove any residue from the oven that may have been left from the manufacturing process, you should select the main or grill oven function and turn the thermostat dial to its maximum temperature setting.

  • Page 15: Using The Main Oven

    Using the main oven o To turn the main oven on, press and turn the control dial to the large flame position. o While still holding the dial inwards, press and hold the bottom half of the ignition button until the oven burner ignites. o If the flame goes out, repeat all the steps above keeping the dial pressed in for about five seconds longer.

  • Page 16: Base Burner Appliances

    Base burner appliances IMPORTANT: Your appliance is a Continental style/base burner gas oven, please follow the guidance below, to achieve the best cooking results. o There are two different types of heating methods for gas ovens, traditional U.K. style and Continental style. o In U.K.

  • Page 17: Using The Grill

    Using the grill o To turn the grill on press and turn the control dial to the large flame position. o While still holding in the control knob, press and hold the bottom half of the ignition button until the grill burner ignites.

  • Page 18: Cooking Guidelines

    Cooking guidelines o Please refer to the information given on food packaging for guidance on cooking temperatures and times. Once familiar with the performance of your appliance, temperatures and times can be varied to suit personal preference. o Make sure that frozen foods are thoroughly thawed before cooking, unless the instructions on the food packaging advise that you can “cook from frozen”.

  • Page 19: Using The Hob Top

    Using the hob top Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). o You should switch on one burner at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.

  • Page 20: Hob Guidelines

    Hob guidelines o The diameter of the bottom of the pan should correspond to that of the burner. o The burner flame must never extend beyond the diameter of the pan. o Use flat bottomed pans only. o When possible, keep a lid on the pan whilst cooking. o Cook vegetables with as little water as possible, to reduce cooking times.

  • Page 21: Cleaning The Gas Hob Top

    Any damage that is caused to the appliance by a cleaning product will not be fixed by Baumatic free of charge, even if the appliance is within the guarantee period. Cleaning the gas hob top o Remove the dirty pan supports from the hob and place in warm soapy water for some time.

  • Page 22: Replacing The Oven Bulb

    o The body near the nozzle should always be clean. Dirt accumulating around the nozzle may clog it, as a result of which the burner will not light or will light only with a small flame. To clean the nozzle use a brush soaked in solvent. o Dry all the elements of the burner carefully as wet elements may not light properly.

  • Page 23: Removing The Oven Door For Cleaning

    Removing the oven door for cleaning To facilitate the cleaning of the inside of the cooker and the outer frame of the oven, the door can be removed as follows:- o The hinges (A) have two movable bolts on them (B). o If you raise both of the movable bolts (B), then the hinges (A) are released from the oven housing.

  • Page 24: Installation

    Installation The installation must be carried out by a suitably qualified person, in accordance with the current version of the following. o UK Regulations and Safety Standards or their European Norm Replacements. o Building Regulations (issued by the Department of the Environment).

  • Page 25: Ventilation Requirements

    (including the burners). o Baumatic do not recommend that the cooker is positioned below wall cupboards, as the heat and steam from the appliance and what is being cooked, may damage the cupboard and its contents.

  • Page 26: Safety Chain Anchors

    o For room volumes between 5m³ and 10m³ an air vent of 50cm² is required. Safety chain anchors o In order to eliminate the risk of the oven falling forward, two chains have been installed at the rear of the cooker. Before use, these will need to be fastened securely to the wall behind the appliance with the anchor brackets supplied.

  • Page 27: Securing The Safety Chains

    Securing the safety chains o Before securing the safety chains, check that you have completed the installation process and that all connections have been made successfully and that the cooker is in its final operating position. o To fix the security chains to their anchor brackets: Loosen the hex nut at the unattached end of the safety chain, until it is flush with the screw end.

  • Page 28: Electrical Connection

    Electrical connection YOUR COOKER IS INTENDED FOR FITTED AND PERMANENT INSTALLATION. o Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. o We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C.

  • Page 29: Gas Connection

    Conversion for use on LPG and other gases must only be undertaken by a qualified person. For information on the use of other gases, please contact the Baumatic Customer Care Department. o The cooker must be installed by a qualified person, in...

  • Page 30: Gas Safety

    Gas Safety (Installation and Use) Regulations o It is the law that all gas appliances are installed by competent persons in accordance with the current edition of the Gas Safety Installation and Use Regulations. o It is in your interest and that of safety to ensure compliance with the law.
  • Page 31 o Connection to the cooker should be made with an approved appliance flexible connection to BS 669. o If the cooker has been converted for use with LPG, then it should be connected to the gas supply using an appropriate bayonet type hose.

  • Page 32: Gas Adjustment (Conversion To Lpg For The Hob Top)

    Gas adjustment (Conversion to LPG for the hob top) All work must be carried out by a GASSAFE registered engineer. IMPORTANT: Always isolate the cooker from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Remove the pan supports, burner cap and burner rings.

  • Page 33: Minimum Flow Adjustment For Hob Gas Taps

    Minimum flow adjustment for hob gas taps. All work must be carried out by a GASSAFE registered engineer. o Ignite the large (rapid) burner and set the control knob to the minimum position. o Remove the control knob to access a small adjusting screw. o Using a suitable screwdriver, turn the screw clockwise to decrease the flow of gas and make the flame smaller.

  • Page 34: Gas Adjustment (Conversion To Lpg For The Oven And Grill)

    Gas adjustment (Conversion to LPG for the oven and grill) work must carried GASSAFE registered engineer. IMPORTANT: Always isolate the cooker from the electricity supply before changing the injectors and/or adjusting the minimum flow of the burners. o Before you can change the injectors on the grill and oven burners, you must unscrew the burners from their fixing brackets.

  • Page 35: Minimum Flow Adjustment For The Oven And Grill Burners

    o Unscrew the injector and replace it with the required injector for the new gas supply according to the table below. Burner Type Gas Type Pressure Injector Power Mbar Marking (Kw) (1/100mm) Max Min Oven Burner Natural 1.05 Liquid Gas 28..30/37 0.72 Grill Burner Natural...
  • Page 36 o To take off the control panel, remove the screws fixing the control panel. o When the screws have been removed, you can take off the control knobs and remove the control panel by pulling it to the front. o Locate the adjusting screws for the grill and oven burners. These will be positioned to the left hand side of the grill and oven thermostat taps.
  • Page 37 o With the control panel removed, refit the oven and gas thermostat control knobs. Ignite each burner separately and set the control knob to the minimum position. o Using a suitable screwdriver, turn the screw clockwise to decrease the flow of gas and make the flame smaller. Turn the screw anti-clockwise to increase the flow of gas and make the flamer bigger.

  • Page 38: My Appliance Isn't Working Correctly

    My appliance isn’t working correctly The gas oven burner or grill burner do not light. * Check that the oven is switched on at your mains supply. * Check that the fuse in the spur outlet doesn’t need replacing. * Check that there is not a problem with your gas supply Food is cooking too quickly or too slowly.
  • Page 39 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the...

  • Page 40: Baumatic Consumables

    BC005 Stainless Steel Cleaner and Protector (250ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk...

  • Page 41: Contact Details

    Czech Republic Baumatic CR spol s.r.o. United Kingdom Lípovà 665 Baumatic Ltd., 460 01 Liberec 4 Baumatic Buildings, Czech Republic 6 Bennet Road, Reading, Berkshire +420 483 577 200 RG2 0QX United Kingdom www.baumatic.cz Sales Telephone Slovakia (0118) 933 6900 Baumatic Slovakia, s.r.o.
