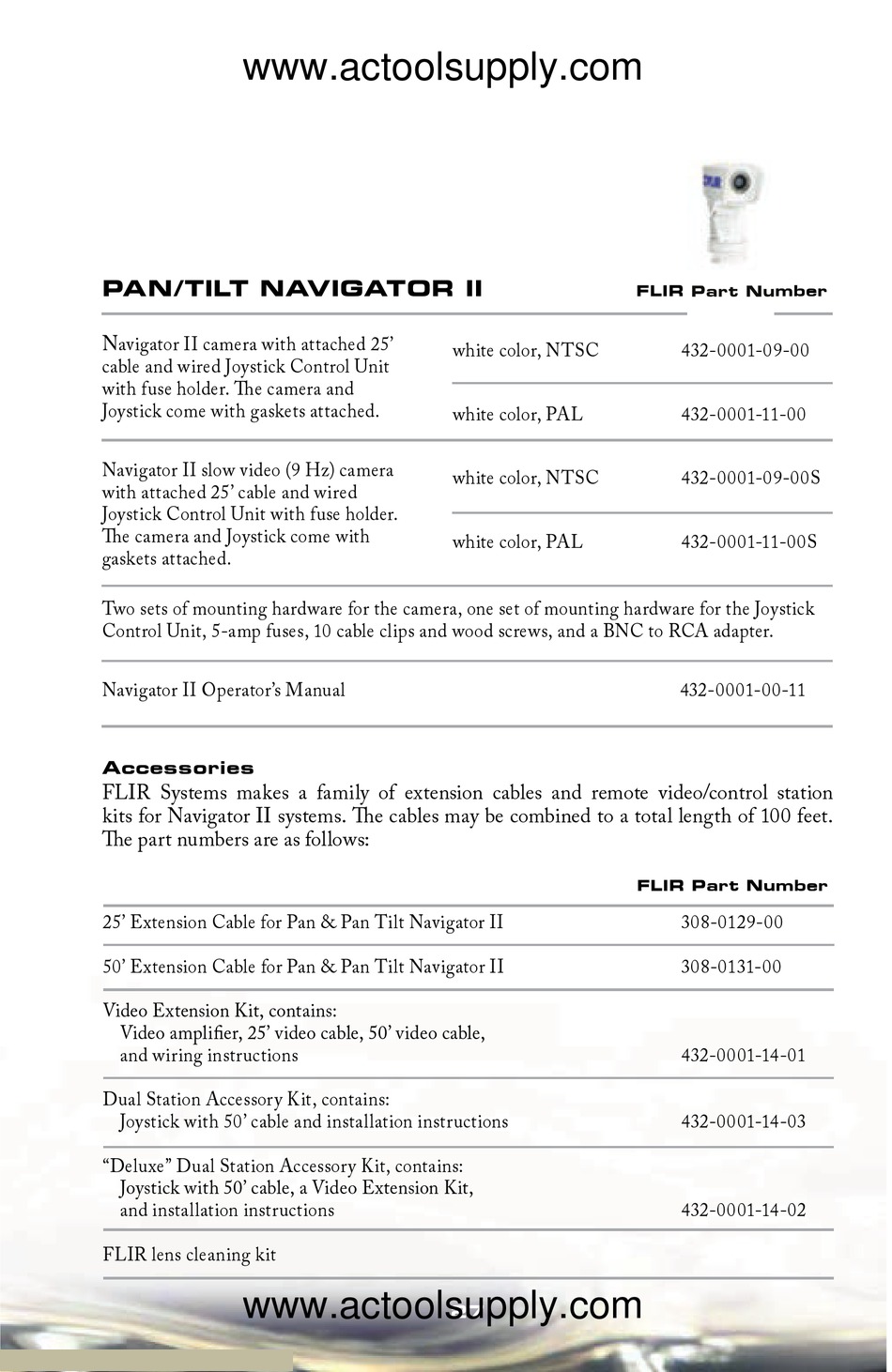

PAN/TILT NAVIGATOR II
N
avigator II camera with attached 25'
cable and wired Joystick Control Unit
with fuse holder. e camera and
Joystick come with gaskets attached.
Navigator II slow video (9 Hz) camera
with attached 25' cable and wired
Joystick Control Unit with fuse holder.
e camera and Joystick come with
gaskets attached.
Two sets of mounting hardware for the camera, one set of mounting hardware for the Joystick
Control Unit, 5-amp fuses, 10 cable clips and wood screws, and a BNC to RCA adapter.
Navigator II Operator's Manual
Accessories
FLIR Systems makes a family of extension cables and remote video/control station
kits for Navigator II systems.
e part numbers are as follows:
25' Extension Cable for Pan & Pan Tilt Navigator II
50' Extension Cable for Pan & Pan Tilt Navigator II
Video Extension Kit, contains:
Video amplifier, 25' video cable, 50' video cable,
and wiring instructions
Dual Station Accessory Kit, contains:
Joystick with 50' cable and installation instructions
"Deluxe" Dual Station Accessory Kit, contains:
Joystick with 50' cable, a Video Extension Kit,
and installation instructions
FLIR lens cleaning kit
www.actoolsupply.com
white color, NTSC
white color, PAL
white color, NTSC
white color, PAL
e cables may be combined to a total length of 100 feet.
27
FLIR Part Number Part Number
432-0001-09-00
432-0001-11-00
432-0001-09-00S
432-0001-11-00S
432-0001-00-11
FLIR Part Number
308-0129-00
308-0131-00
432-0001-14-01
432-0001-14-03
432-0001-14-02
