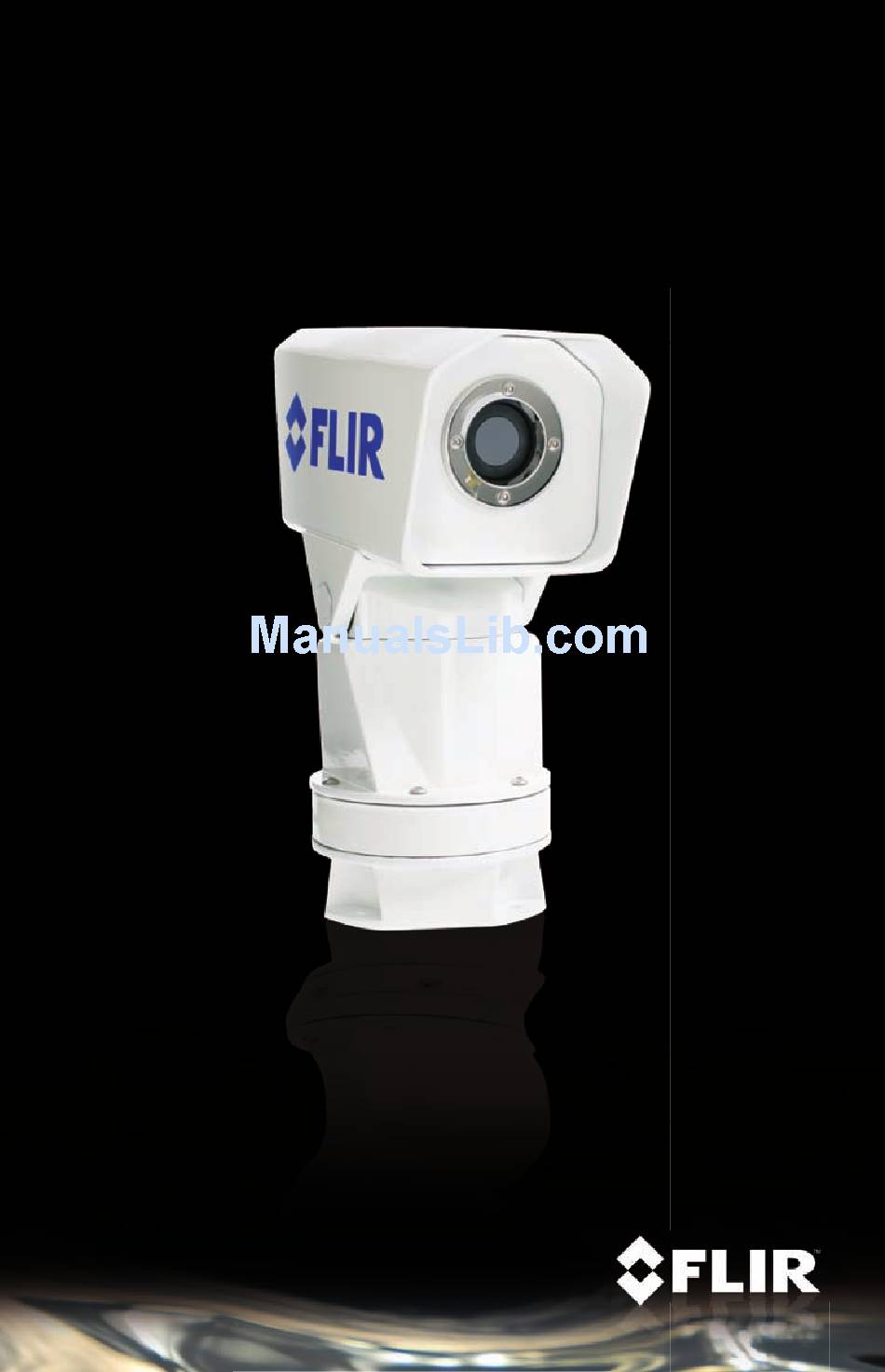

Navigator
II
™
OPERATOR'S MANUAL
FOR STATIC AND PAN/ TILT CONFIGURATIONS

Advertisement

Table of Contents
loading

Related Manuals for FLIR Navigator II

Summary of Contents for FLIR Navigator II

  • Page 1 Navigator ™ OPERATOR’S MANUAL FOR STATIC AND PAN/ TILT CONFIGURATIONS...
  • Page 3 FLIR has just recently made it available to the public, and only to a select few at that! By purchasing a FLIR thermal imager, you have established yourself as a mariner on the leading edge of technological advancement.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1 CAUTIONS 2 OPERATION 2.1 Navigator II Static Version 2.2 Navigator II Pan/Tilt Version 3 CARING FOR YOUR NAVIGATOR 3.1 Care and Maintenance 3.2 Replacing the fuses 3.3 Cleaning 4 FUNDAMENTALS OF INFRARED 4.1 All About Infrared Technology 4.2 Even More About Infrared...

  • Page 5: Cautions

    Refer to the Caring For Your Navigator II section for instructions. • e Navigator II runs off of 12 VDC. Plugging it in to any other power level will damage the system. •...

  • Page 6: Operation

    OPERATION...

  • Page 7: Navigator Ii Static Version

    NAVIGATOR II OPERATION FLIR makes two versions of the Navigator II: the Static version, which stays pointed in one direction relative to the vessel (usually straight ahead), and the Pan/Tilt version that can look up and down (+/- 45° relative to the horizon), and 360° around.

  • Page 8: Navigator Ii Pan/Tilt Version

    Make sure that this switch or circuit breaker is turned on, then turn on your display and select the Navigator II as the video source for your display. From there, use the controls on the Joystick Control Unit (JCU) to operate and confi...
  • Page 9 2X ZOOM – zoom setting on and off . Navigator II Pan/Tilt has a 2X electronic zoom. Press the Zoom button to select and de-select this option. A “2X” icon will appear when this control is active. cycles through SCENE –...

  • Page 10: Caring For Your Navigator

    CARE AND MAINTENANCE...

  • Page 11: Care And Maintenance

    Navigator II is a simple, yet sophisticated device, built to provide years of trouble-free use. If you do run into problems with your Navigator II, try these simple steps: If the camera will not produce an image, check the fuse fi...

  • Page 12: Fundamentals Of Infrared

    ALL ABOUT INFRARED...

  • Page 13: All About Infrared Technology

    ALL ABOUT INFRARED Intro e Navigator II detects diff erences in heat and displays them as black and white TV video. It may look like a black and white version of what your eyes see, but it’s not. e Navigator II sees heat, not light.

  • Page 14: Even More About Infrared

    EVEN MORE ABOUT INFRARED...
  • Page 15 In fact, you can get years of enjoyable, productive use out of your Navigator II without knowing anything in this section. But, if you would like to learn more about thermal imaging – how it was discovered and developed – read Infrared –...
  • Page 16 Another reason to care about the weather e time of day and weather conditions in which you use your Navigator II can have a signifi cant infl uence on how objects look on the screen. Remember that thermal imagers detect and display...
  • Page 17 Navigator II is used can have a direct impact on your ability to detect and recognize objects. When things are exposed to the sun, they absorb infrared radiation. As the duration of this exposure increases throughout the day, thermal contrast between targets decreases.

  • Page 18: Appendix

    APPENDIX...

  • Page 19: Parts

    APPENDIX Parts List e Navigator II includes the following thermal imaging components: If the components you have are diff erent from those enumerated in this Parts List, please call us immediately at 877.747.3547. STATIC NAVIGATOR II FLIR Part Number Navigator II camera with attached 25’...

  • Page 20: Accessories

    Accessories FLIR Systems makes a family of extension cables and remote video/control station kits for Navigator II systems. e cables may be combined to a total length of 100 feet. e part numbers are as follows: For the STATIC Navigator II FLIR Part Number 25’...

  • Page 21: Specifi Cations

    Specifications Static Pan/Tilt System Overview Size 7.3”x4.0”x7.4” 7.3”x4.0”x7.4” 7.3”x4.0”x9.5” 7.3”x4.0”x9.5” Weight Thermal Imaging Performance Sensor type 320 x 240 Microbolometer 320 x 240 Microbolometer 36° x 27° 36° x 27° E zoom System Specifi cations Pan/Tilt Coverage 360° Az/ +/-45° Video Output NTSC or PAL NTSC or PAL...
  • Page 22 Navigator II imaging system is controlled by US export laws. ere are special versions of this system that are approved for international distribution. Please contact FLIR Systems if you have any questions.
  • Page 24 Equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. ©2007 FLIR Systems, Inc. Specifi cations are subject to change without notice, check our website: www.fl ir.com. Document Number: 432-0001-00-11...
