EQUIPMENT DESCRIPTION

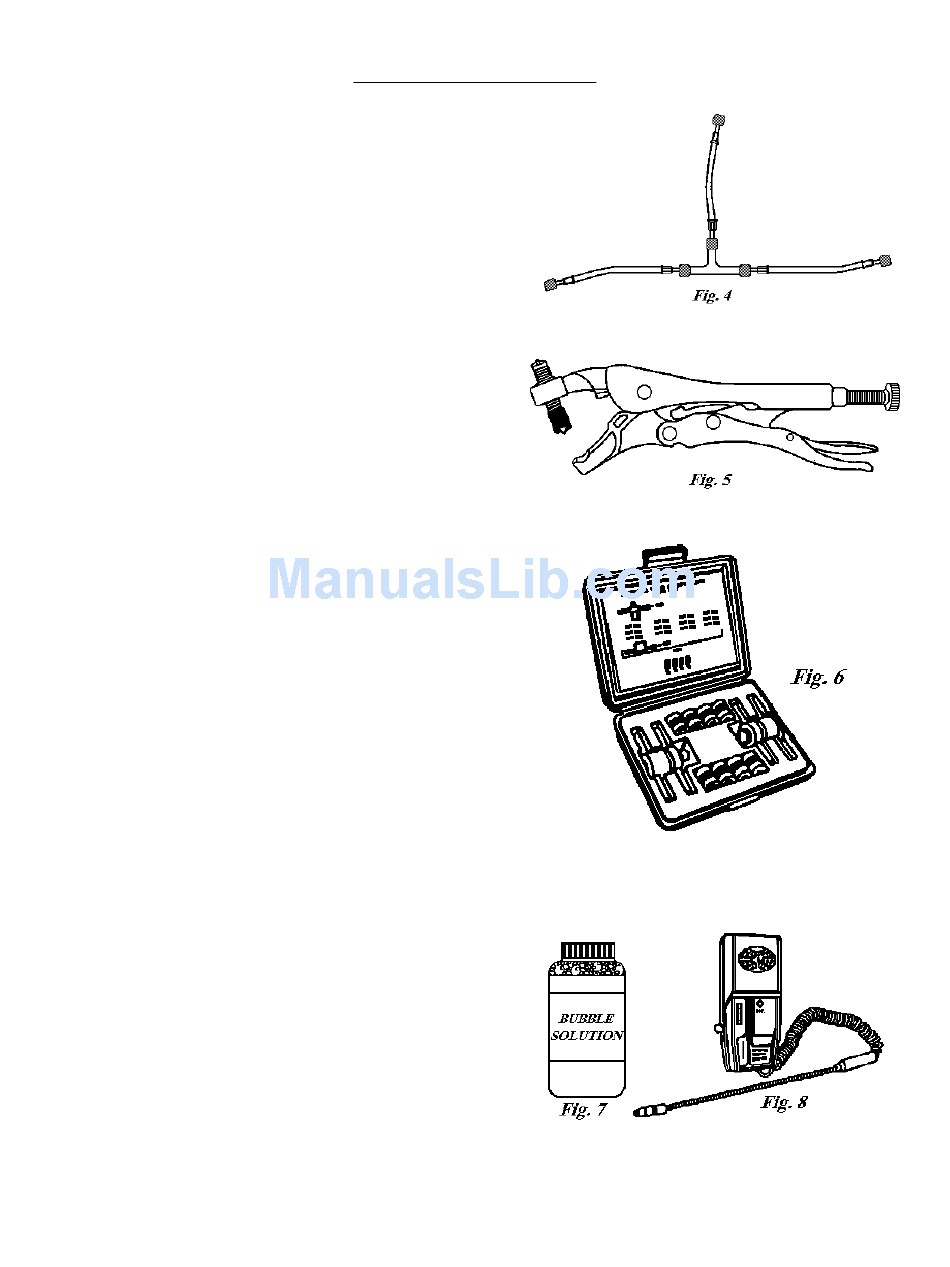

Purging Hose Configuration – This arrangement of three

4' to 6' hoses with low-loss fittings and a ¼" male flare

Tee fitting can be used to purge a sealed system for both

operating and non-operating compressor situations. No

hand valves are required. (Fig. 4)

Piercing Tool with Access Valve – These access valves

can be installed without the need for brazing and will

not remain on the system when repairs are completed.

(Fig. 5)

Process Tube Adaptor Kit – This kit allows the attachment of

hand valves to various sizes of exposed tubing ends during back

flushing, charging, and/or evacuating a sealed system. (Fig. 6)

Bubble Solution or Electronic Leak Detector – Bubble

solution is the recommended means of checking for high-

side leaks after repairing a pressurized sealed system. (Fig.

7) An electronic leak detector will also detect the presence

of any refrigerant escaping from the sealed system. (Fig. 8)
