Viking Side-By-Side & Bottom-Mount Refrigerator/Freezer Installation Manual

Side-by-side & bottom-mount refrigerator/freezer.
Hide thumbs

Advertisement

Viking Installation Guide
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
vikingrange.com

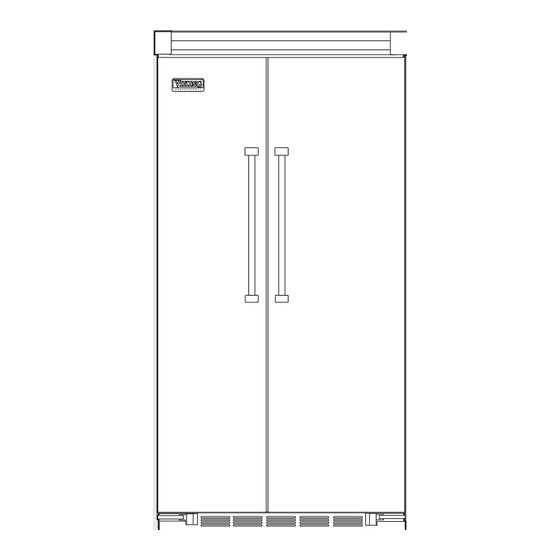

Side-By-Side &
Bottom-Mount Refrigerator/Freezer
U L
U L
C
F20414C
(091207J)

Advertisement

Table of Contents

   Related Manuals for Viking Side-By-Side & Bottom-Mount Refrigerator/Freezer

   Summary of Contents for Viking Side-By-Side & Bottom-Mount Refrigerator/Freezer

  • Page 1 Viking Installation Guide Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-VIKING1 (845-4641) or visit the Viking Web site at vikingrange.com Side-By-Side & Bottom-Mount Refrigerator/Freezer F20414C (091207J)
  • Page 2: Table Of Contents

    Table of Contents IMPORTANT– Please Read and Follow! • Make sure that incoming voltage is the same Warnings & Important Information_____________________________________________________ 3 Your safety and the safety of others is as unit rating. An electric rating plate Professional & Professional Integrated Side-by-Side very important.
  • Page 3: Dimensions & Specifications (professional 42" & 48")

    Dimensions Specifications (Professional Side-By-Side) (Professional Side-By-Side) 42” Professional Side-By-Side 42” Professional Description VCSB423 VCSB423D Overall width 42” (106.7 cm) Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. Overall depth from rear To front edge of side trim: 22-3/16”...
  • Page 4 Dimensions Specifications (Professional Side-By-Side) (Professional Side-By-Side) 42” Professional Integrated Side-By-Side Description VISB423 VISB423D 42” Professional Integrated Overall width 42” (106.7 cm) Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. Overall depth from rear To front edge of side trim: 23-3/8”...
  • Page 5: Cutout Dimensions (42")

    Cutout Dimensions Anti-Tip Dimensions (Professional Side-By-Side) (Professional Side-By-Side) 42” Professional 42” Professional & Professional Integrated Professional Anti-Tip Location Electric Outlet Location 6 ” Two 2”x 4” Mounting Boards (1 5 .2 c m ) 3” (7.6 cm) x 3-1/2” (8.9 cm) 9 ”...
  • Page 6: Anti-tip Dimensions (48")

    Cutout Dimensions Anti-Tip Dimensions (Professional Side-By-Side) (Professional Side-By-Side) 48” Professional & Professional Integrated 48” Professional & Professional Integrated Professional Anti-Tip Location Electric Outlet Location 6 ” (1 5 .2 Two 2”x 4” Mounting Boards c m ) 3” (7.6 cm) x 3-1/2” (8.9 cm) 9 ”...
  • Page 7 Dimensions Specifications (Professional Bottom-Mount) (Professional Bottom-Mount) 36” Professional Bottom-Mount 36” Professional Description VCBB363 Overall width 36” (91.5 cm) Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. Overall depth from rear To front edge of side trim: 22-3/16”...
  • Page 8: Anti-tip Dimensions (36")

    Cutout Dimensions Anti-Tip Dimensions (Professional Bottom-Mount) (Professional Bottom-Mount) 36” Professional & Professional Integrated 36” Professional & Professional Integrated Professional Anti-Tip Location Electric Outlet Location 6 ” (1 5 .2 Two 2”x 4” Mounting Boards c m ) 3” (7.6 cm) x 3-1/2” (8.9 cm) 9 ”...
  • Page 9: Cabinet Information (professional)

    Cabinet Information Cabinet Information (Professional) (Professional) Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door face protrudes 2-1/2” (6.4 cm) from the cabinet face. The handle protrudes an additional face protrudes 2-1/2”...
  • Page 10 Cabinet Information Cabinet Information (Professional Integrated) (Professional Integrated) Professional Integrated models fit flush in standard 24” (61.0 cm) deep cabinet openings with no Professional Integrated models fit flush in standard 24” (61.0 cm) deep cabinet openings with no protrusion into the room except the handle protrudes 2-1/2” (6.4 cm) into the room. protrusion into the room except the handle protrudes 2-1/2”...
  • Page 11: Designer Side-by-side

    Dimensions Specifications (Designer Side-By-Side) (Designer Side-By-Side) 42” Designer Side-By-Side Description DDSB423 DDSB423D Designer 42” Overall width 42” (106.7 cm) Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. Overall depth from rear To front edge of side trim: 23-3/8”...
  • Page 12 Cutout Dimensions Anti-Tip Dimensions (Designer Side-By-Side) (Designer Side-By-Side) 42” Designer 42” Designer Electric Outlet Location 6 ” (1 5 .2 c m ) Anti-Tip Location 9 ” (2 2 .9 c m ) 9 ” (2 2 .9 c m ) 7 9 –...
  • Page 13: Cutout Dimensions (42")

    Cutout Dimensions Anti-Tip Dimensions (Designer Side-By-Side) (Designer Side-By-Side) 48” Designer 48” Designer Electric Outlet Location 6 ” Anti-Tip Location (1 5 .2 c m ) 9 ” (2 2 .9 c m ) 9 ” (2 2 .9 c m ) 7 9 –...
  • Page 14: Designer Bottom-mount

    Dimensions Specifications (Designer Bottom-Mount) (Designer Bottom-Mount) 36” Designer Bottom-Mount Designer 36” Description DDBB363 Overall width 36” (91.5 cm) Overall height from bottom 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max. Overall depth from rear To front edge of side trim: 23-3/8”...
  • Page 15: Anti-tip Dimensions (36")

    Cutout Dimensions Anti-Tip Dimensions (Designer Bottom-Mount) (Designer Bottom-Mount) 36” Designer 36” Designer Electric Outlet Location 6 ” (1 5 .2 c m ) Anti-Tip Location 9 ” (2 2 .9 c m ) 7 9 – 3 2 ” 1 – 1 / / 8 ”...
  • Page 16: Cabinet Information (designer)

    Cabinet Information Cabinet Information (Designer) (Designer) Designer models fit flush in standard 24” (61.0 cm) deep cabinet openings with no protrusion into the Designer models fit flush in standard 24” (61.0 cm) deep cabinet openings with no protrusion into the room except 2”(5.1 cm) curved handle depth.
  • Page 17: Custom Side Panel Dimensions (professional)

    Custom Side Panel Dimensions Custom Side Panel Dimensions (Professional) (Designer & Professional Integrated) 3/16” 3/4” (0.5 cm) Back filler (1.9 cm) Z-Bracket 1” panel End panel 3/4” (2.5 cm) 1/4” (0.6 cm) (1.9 cm) End panel 4 ” - 3 / 6 ”...
  • Page 18: General Information

    DO NOT tubing to the unit, flush at least 2 quarts • The installation of Viking units with a have a fuse in the neutral or grounding (1.9 L) of water through the copper tubing •...
  • Page 19: Installation

    Installation General Information • Most of the unit’s weight is at the top. TIP OVER HAZARD Extra care is needed when moving the unit Appliance is top heavy and tips easily to prevent tipping. when not completely installed. Keep doors closed until appliance is •...
  • Page 20: Hinge Adjustment

    Hinge Adjustment Front of unit Plug in power cord to verify operation. Place unit within 3” of being flush with cabinets. Remove four side screws and remove unit top. Loosen the four hinge screws. Adjust door. NOTE: Make sure power switch is in the “On” Position. Retighten four hinge screws.
  • Page 21: Kickplate Installation

    Door Stop Adjustment (Side-by-Side) 90˚ 110˚ 120˚ Turn on water supply and check for leaks. Lift unit off rollers to desired height and level unit using Open refrigerator door so door stop and shoulder Remove shoulder screw and place in 90° or a 5/16”...
  • Page 22: Water Filter Installation

    Water Filter Installation (Side-by-Side with Dispenser) Water Filter System Specification and Performance Data Sheet This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration of less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42/53.* (100% safety factors built- in for unmetered usage for health claims only.) Standard No.
  • Page 23: Performance Checklist

    Final Installation Performance Checklist Replace top air grille. Using an 8” magnetic nut driver, replace the two 1/4” screws. (Professional) Replace the center grille louver. (Designer) Replace the center grille louver. h Verify cabinet size. h Align/square door(s). h Verify drain pan is properly installed and h Verify electrical supply and water supply no leaks on water connection.
  • Page 24: Control Panels

    Service & Registration Verify Operations Control Panels Only authorized replacement parts may be used in performing service on the appliance. Bottom Mount Do not repair or replace any part of the appliance unless specifically recommended in ... COLDEST HIGH TEMP...
