Summary of Contents for SGM Q?7

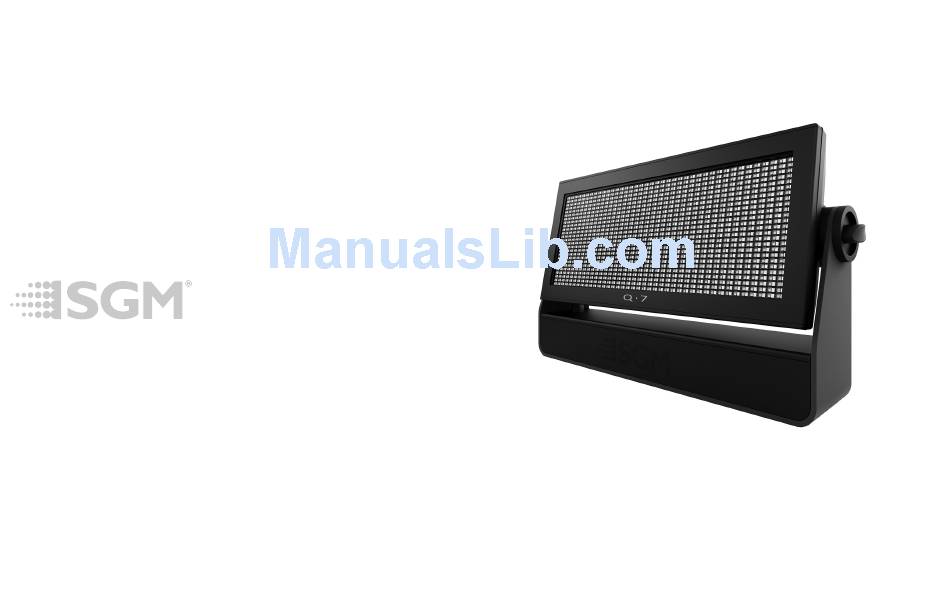

  • Page 1 Q‐7 Q‐7 WHITE...

  • Page 2: Q-7/ Q-7 W Dimensions

    Q-7/ Q-7 W dimensions Measurements in millimetres and inches (in brackets). Drawing not to scale.
  • Page 3  The SGM logo, the SGM name and all other trademarks in this document  pertaining to services or products by SGM or its affiliates and subsidiaries are trademarks owned or licensed by SGM or its affiliates or subsidiaries.

  • Page 4: Table Of Contents

    Contents Q-7/ Q-7 W dimensions ....................2 Safety information ......................7 Overview ........................10 Preparing for installation ..................... 11 Installing the Q-7 ......................12 Connecting AC power ....................14 Configuring the fixture ....................15 Configuring the fixture using an Android telephone via RFID ................. 15 Master/Slave configuration .............................
  • Page 5 About DMX ................................21 Setting the DMX address ............................21 Setting the DMX mode ............................22 Full Color Calibration and Color Temperature Correction (Q-7 only) ..............23 Fixture personality settings ..................24 Setting the dimming curve ............................24 Flipping the OLED display ............................24 Setting the OLED display saver ..........................
  • Page 6 Fixtures and Accessories .................... 47 Included items ................................. 47 Ordering information ............................... 47 User’s notes ........................ 49...

  • Page 7: Safety Information

    Read the safety precautions in this section before, unpacking, installing, powering or operating this product. The Q-7 series luminaries are multi-environmental fixtures with an IP-rating of 65, intended for professional use only. They are not suitable for household use. Impropre a l’usage domestique.
  • Page 8 Preventing fire and burns  WARNING! Take measures to prevent burns and fire. • Install in a location that prevents accidental contact with the fixture. • Install only in a well-ventilated space. • Install at least 0.3 m (12 in.) away from objects to be illuminated. •...
  • Page 9  Avoid personal injury WARNING! Take measures to prevent personal injury. • Do not look directly at the light source from close range. • Take precautions to prevent injury due to falls when working at height. For permanent installation, ensure that the fixture is securely fastened to a load-bearing surface with suitable  •...

  • Page 10: Overview

    Overview The Q-7 is a low-profile, compact IP65-rated, full-color LED flood light, incorporating 1,000 RGB + 1,000 White LEDs.  The Q-7 W is a low-profile, compact IP65-rated, cool white flood light incorporating 1,000 cool white LEDs. Both fixtures offer built-in wireless DMX support, stand-alone programs, dimming, RGB color mixing (Q-7 only), ...

  • Page 11: Preparing For Installation

    Unpack the fixture and inspect it to ensure that it has not been damaged during transport. ™ The Q-7 is shipped with two quarter-turn brackets, that can be used to mount the fixture at elevation, and a W-DMX wireless antenna.

  • Page 12: Installing The Q-7

    Installing the Q-7 The Q-7 may be installed in any  orientation, but if installed horizontally with a downward beam-angle, water can  potentially pool in the fan wells. Under normal operation the moisture will  evaporate. However, in locations with high rainfall, you may wish to fabricate a rain 300 (11.8 in.)
  • Page 13 Two quarter-turn brackets are supplied with the fixture if it is to be flown above the ground. Remove the floor stand/base and rig the Q-7 to a support truss or  structure using the supplied brackets and suitable clamps. Fasten a safety cable (not shown) between the support structure and the attachment point on the fixture.

  • Page 14: Connecting Ac Power

    Connecting AC power The Q-7 can operate on any 208–240 V, 50/60 Hz AC mains power supply. It draws approximately 2 amps at full power. For permanent installation, have a qualified electrician wire the mains cable directly to a suitable branch circuit. ...

  • Page 15: Configuring The Fixture

    Configuring the fixture using an Android telephone via RFID Q-7 fixtures can also be configured wirelessly, via RFID, using the SGM Tool app installed on an Android smart phone that has NFC support (ISO 15693 and ISO 18000-3 mode 1 compatible, operating on 13.56 MHz ±7k Hz carrier frequency).

  • Page 16: Master/Slave Configuration

    Master/Slave configuration You can set a Q-7 fixture to operate as master fixture to another Q-7 fixture (which then becomes a slave fixture), or an entire group of Q-7 fixtures (which then becomes slave fixtures). The assigned slave fixture(s) will mimic the settings of the master...

  • Page 17: Setting A Static Color Manually

    Setting a static color manually The fixture can be configured to display a predefined and static color (or white color, depending on the Q-7 model) using the “Manual→Quick color” menus (see “Control menu” on page 38). Note that whenever the “Manual→Quick color” settings are changed, the fixture will be set by default to automatically start in quick color mode whenever it is powered on.

  • Page 18: Using Stand-Alone Operation

    Using stand-alone operation Stand-alone operation is where the fixture is not connected to a control device, but is preprogrammed with a series of up to 24 scenes, that play continuously in a loop. Up to three stand-alone programs can be defined and run from the menus, and one of the programs can be set to run by default whenever the fixture is started.

  • Page 19: Connecting To A Dmx Control Device

    Connecting to a DMX control device The fixture is controllable using a DMX control device and it can be connected using either DMX cable or via the Q-7’s  built-in wireless W-DMX G4 receiver system. If using a cabled DMX system, connect the DMX in cable (with male 5-pin XLR plug) and out cable (with female 5-pin XLR plug) to the DMX data link.

  • Page 20: Enabling The W-Dmx G4 Wireless Receiver

    Enabling the W-DMX G4 wireless receiver The W-DMX G4 wireless receiver is an included accessory and is recommended for long-range wireless operation.   Before you connect the wireless receiver, ensure that there is no DMX cable connected to the fixture. Attach the supplied wireless DMX antenna to the connector on the back of the fixture.

  • Page 21: Configuring The Fixture For Dmx Control

    The first channel used to receive data from a DMX control device is known as the DMX start address. Each Q-7 must have a DMX start address set. For example, if a Q-7 has a DMX address of 10 and it is in 3-channel DMX mode, then it uses channels 10, 11, and 12.

  • Page 22: Setting The Dmx Mode

    Using the “DMX mode” menu available from the control panel, specify the DMX mode that provides the fixture controls that you require: Q-7 DMX mode Function Shutter, Intensity, and RGBW XC-5 Emulation RGBW Q-7 W DMX mode Function Shutter & Intensity (individual panels) X-5 Emulation Intensity (individual panels) Intensity & Strobe (individual panels) Intensity (all panels)

  • Page 23: Full Color Calibration And Color Temperature Correction (Q-7 Only)

    Full Color Calibration and Color Temperature Correction (Q-7 only) All channel modes except 3 Channel Mode RGB: Lets you choose between raw or white-calibrated color (6500K default) via the Control Menu (“Settings→White Calibrated”) 3 Channel Mode RGB: Features full color calibration (irrespective of current color setting) when you mix 2 or 3 colors to ensure uniform color between products.

  • Page 24: Fixture Personality Settings

    Linear control provides uniform adjustment throughout the control action, whereas gamma corrected dimming provides finer control at low light levels, where the eye is more sensitive to change. By default, the Q-7 uses gamma corrected dimming. For uniform response, set all fixtures to the same dimming curve. To set the desired dimming curve, use the “Settings→Dimming curve”...

  • Page 25: Setting The Fan Mode

    Setting the fan mode For operating environments where low-noise is a requirement or where the fixture will be operating in high temperatures, it is possible to adjust the default fan speed to low or high using the “Settings→Fan mode” menu.

  • Page 26: Service

    If in doubt, consult your SGM dealer for a suitable maintenance schedule. Clean the Q-7 using a soft cloth dampened with a solution of water and a mild detergent. Do not use products that contain solvents, abrasives or caustic agents for cleaning, as they can cause damage to both hardware, cables and connectors.

  • Page 27: Dmx Protocols

    DMX protocols Configuring DMX is described in “Setting the DMX mode” on page 22. This section contains “Q-7 DMX protocols” (below), and “Q-7 W DMX protocols” on page 32. Q-7 DMX protocols 6 Channel Mode - RGBW plus effects Default...
  • Page 28 Default Channel Name DMX value Description Info Fader type percentage value No light >  Intensity 0,0% 100,0% 0 (0%) Fade Maximum light No RED >  0,0% 100,0% 0 (0%) Fade Maximum RED No GREEN >  GREEN 0,0% 100,0% 0 (0%) Fade...
  • Page 29 8 Channel Mode - XC-5 Emulation Mode Default Channel Name DMX value Description Info Fader type percentage value No light >  Intensity 0,0% 100,0% 0 (0%) Fade Maximum light Short Pulse ON >  Duration 0,0% 100,0% 0 (0%) Fade Long Pulse ON Slow Rate >...
  • Page 30 Default Channel Name DMX value Description Info Fader type percentage value No WHITE >  WHITE 0,0% 100,0% 0 (0%) Fade Maximum WHITE 4 Channel Mode - RGBW Default Channel Name DMX value Description Info Fader type percentage value No RED >  0,0% 100,0% 0 (0%)
  • Page 31 3 Channel Mode - RGB (White is automatically controlled) Default Channel Name DMX value Description Info Fader type percentage value No RED >  0,0% 100,0% 0 (0%) Fade Maximum RED No GREEN >  GREEN 0,0% 100,0% 0 (0%) Fade Maximum GREEN No BLUE >...

  • Page 32: Q-7 W Dmx Protocols

    Q-7 W DMX protocols 6 Channel Mode - Individual Intensity Control For Each Panel Default Channel Name DMX value Description Info Fader type percentage value 0,0% 2,7% Closed 3,1% 5,9% Open 6,3% 59,2% Strobe Fast > Slow Shutter 59,6% 68,6% Pulse - Open Slow >...
  • Page 33 Default Channel Name DMX value Description Info Fader type percentage value No light >  Panel 2 0,0% 100,0% 0 (0%) Fade Maximum light No light >  Panel 3 0,0% 100,0% 0 (0%) Fade Maximum light No light >  Panel 4 0,0% 100,0%...
  • Page 34 Default Channel Name DMX value Description Info Fader type percentage value Slow Rate >  Rate 0,0% 100,0% Slow > Fast 0 (0%) Fade Fast Rate NOT  Effect 0,0% 100,0% 0 (0%) Snap IMPLEMENTED No light >  Panel 1 0,0% 100,0% 0 (0%)
  • Page 35 4 Channel Mode - Individual Intensity Control For Each Panel Default Channel Name DMX value Description Info Fader type percentage value No light >  Panel 1 0,0% 100,0% 0 (0%) Fade Maximum light No light >  Panel 2 0,0% 100,0% 0 (0%)
  • Page 36 4 Channel Mode - Conventional Strobe Light Emulation Mode Default Channel Name DMX value Description Info Fader type percentage value No light >  Intensity 0,0% 100,0% All Panels 0 (0%) Fade Maximum light Short Pulse ON >  Duration 0,0% 100,0% Short >...
  • Page 37 1 Channel Mode - All Panels Default Channel Name DMX value Description Info Fader type percentage value No light >  All Panels 0,0% 100,0% All 4 Panels 0 (0%) Fade Maximum light...

  • Page 38: Control Menu

    Displays product type. Firmware Version Displays installed software version. Serial Number Displays serial number. RDM ID Displays RDM ID (for use with the SGM Tool App). DMX View Displays received DMX levels. Displays fixture temperatures  Temperatures MB: LED: (Mainboard and LED panel)
  • Page 39 Level 1 Level 2 Level 3 Function Info LED On Time Displays LED on time (Red, Green, Blue, and White) (continued) R: G: B: W: LED On Time Resettable R: G: B: W: Displays recorded operating data and error codes. Debug Service use only.
  • Page 40 Stand-alone program 1, 2, or 3. Only used if the startup mode is set to “stand-alone”. 1 is default. Dimming Curve Linear Provides equal resolution dimming from 0-100% Gamma Provides high-resolution dimming at low levels. Corrected White Calibrated Calibrated Enables white calibrated color. (Q-7 only) Enables raw color.
  • Page 41 Low fan speed for quiet operation. Max Power High fan speed for maximum cooling effect. Always Full High fan speed with no adjustment. Power Minimum values Min. Red (Q-7) Adjust default minimum setting (0-1000). Min. Green (Q-7) Min. Blue (Q-7)
  • Page 42 Level 1 Level 2 Level 3 Function Settings Minimum values Min. White (Q-7) Adjust default minimum setting (0-1000). (continued) (continued) Line 1 (Q-7 W) Line 2 (Q-7 W) Line 3 (Q-7 W) Line 4 (Q-7 W) RFID Write Enable Disable...
  • Page 43 Level 1 Level 2 Level 3 Function Settings Factory Default Reset the fixture to factory default settings. (continued) Service Pin Service Menu Product Type Recalibrate SMPS PWN Out Power Out Calibration Info Update SMPS Bootloader...
  • Page 44 Static quick color - blue mix (0-255). Sets fixture to quick color startup mode. White Static quick color - white mix (0-255). Sets fixture to quick (Q-7/ Q-7 W) color startup mode. Run Program 1, 2, or 3 Stop Program Master/Slave Sets fixture to operate as Master or Slave fixture.
  • Page 45 Green value in currently selected scene (0-255). Blue (Q-7) Blue value in currently selected scene (0-255). White White value in currently selected scene (0-255). (Q-7 / Q-7 W) Shutter Shutter setting in currently selected scene (0-255): Shutter Blackout (0-7) Shutter Open (8-15)
  • Page 46 Level 1 Level 2 Level 3 Function Manual Editor Shutter Pulse Close (176-199) (continued) (continued) (continued) Variable Random Strobe (200-244) Shutter Open (245-255) Fade Time (Min.) Fade-in (transition) time to current scene in min. (0-999). Fade Time (Sec.) Fade-in (transition) time to current scene in sec. (0-59). Wait Time (Min.) Wait (static) time in current scene in min.

  • Page 47: Fixtures And Accessories

    Wireless DMX™ G4 antenna User manual Neoprene pouch Ordering information Q-7 Color Flood Light ..........................Order no: 80030524 Q-7 White ..............................Order no: 80030525 BCC-2 Dual Bracket ...........................Order no: 83060603 BCC-4 Quad Bracket..........................Order no: 83060604 Accessory holder (Q and X-series) ......................Order no: 83061123 Barn door 4-way ............................
  • Page 48 APPROVALS AND CERTIFICATIONS Conforms to..........................2004/108/EC: EMC Directive Conforms to................................UL Std. 1573 Conforms to........................2006/95/EC: Low Voltage Directive Conforms to..........................2011/65/EU: RoHS2 Directive The information in this document is subject to change without notice...

  • Page 49: User's Notes

    User’s notes...
  • Page 50 Distributor: www.techni-lux.com Phone: 407-857-8770 Fax: 407-857-8771 Email: sales@techni-lux.com SGM A /S · Sommer vej 23 · 8210 Aarhus V · Denmark Tel +45 70 20 74 00 · info@sgmlight.com · www.sgmlight.com...
