(6) Inputs 3/4: The Input 3/4 sockets are balanced 1/4" jack sockets. They are used with
synths, tapedecks, CD players, or any other devices or instruments that don't require phan-
tom powering.
(7) Input and Output 5/6: The RCA (phono) sockets 5/6 are used for digital input/output, and
syncing to external digital clocks. Typically, DAT tapedecks or synthesizers with digital ins/
outs utilize these sockets.
5.3 Top Panel

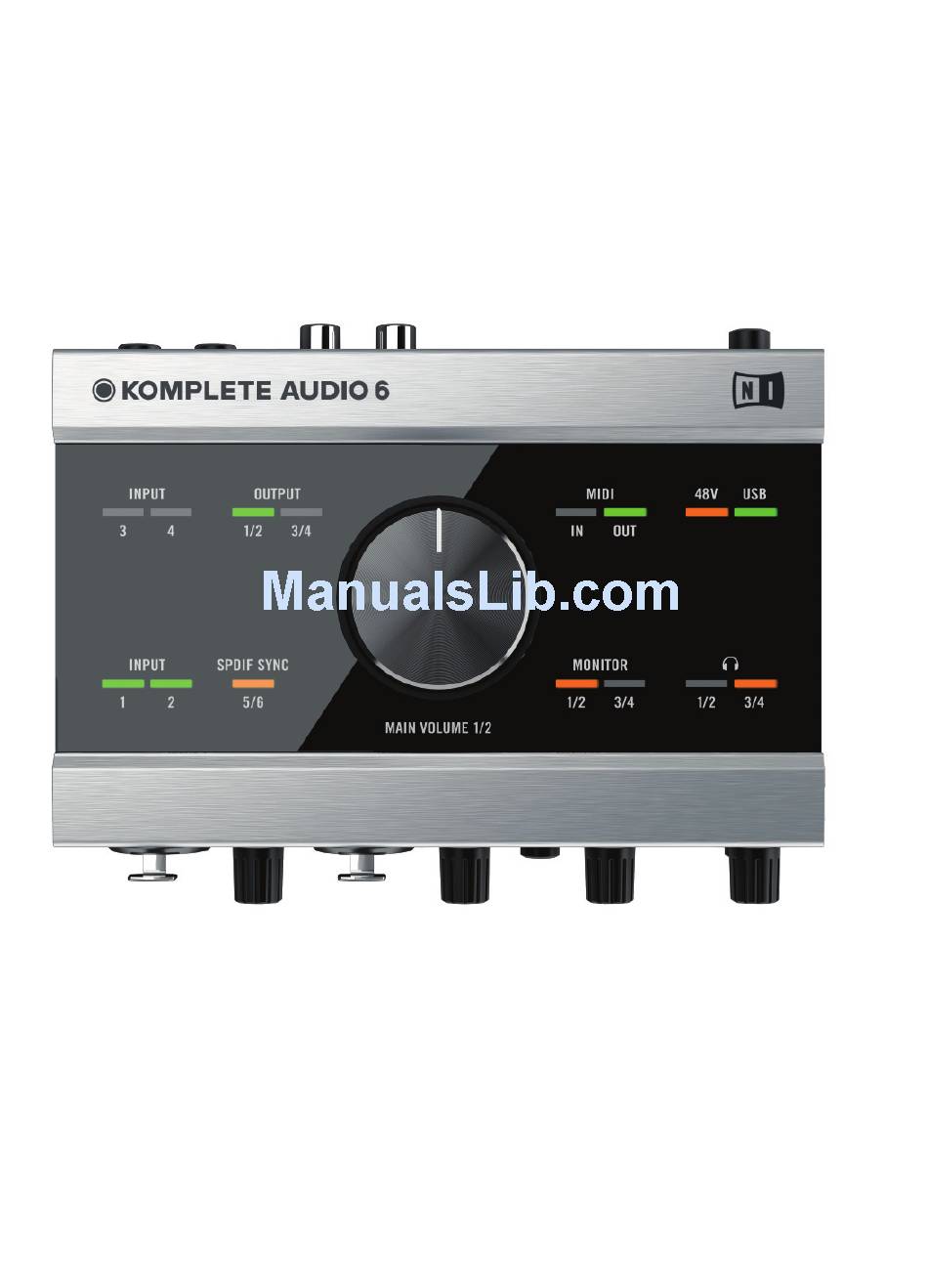

5.3 The top panel of the KOMPLETE AUDIO 6.
• Volume control knob (MAIN VOLUME 1/2): The knob at the center of the top panel provides a
master volume control for the main outputs (MAIN 1/2).
• Status LEDs: The status LEDs surrounding the Volume Control Knob allow you to quickly
identify the status of all the connections going in and out of the device, especially in
low lighting environments, where setup and troubleshooting can be cumbersome. See
the following list for the LED's tasks in more detail:
•
INPUT 1, 2, 3, and 4: Light green when incoming signal on the relevant channel is
detected. The LEDs light red when there is too much signal present, i.e. clipping.
•
OUTPUT 1/2 and 3/4: Lights green when there is an outgoing audio signal.
