1
-
3. DESCRIPTION
-
The
motorized slide is
design
ed
to
provide
accurate movement
of
a
welding
gun
either
horizontally
or
vertically.
To obtain both vertical
and
horizontal
gun
movement,
an
optional adapter
plati
and
two
slides
must
be used. An MSC-2
(Motorized
Slide Control)
or a
SYSTEM 9 weld control will
provide
electrical
power
and control gun
movement at
the slide.
When used with
a
SYSTEM
9,
gun
movement at
the
slide is obtained
automatically; however,
if manual
con
trol is
desired,
an
optional
Slide Control
(joystick)
is
available for installation
to
the
SYSTEM 9
unit.
When used with the
MSC-2,
gun
movement at
the slide
is
obtained
manually
with the MSC-2 slide control
(joystick).
A
terminal
strip
inside the MSC-2 is
provided
for
connecting
to
an
automatic device
(weld control)
to
obtain automatic control. of slide
movement.
Automatic Device
(Weld Control)
SECTION 2
-
INSTALLATION
TA~Q99 202
Slide Control
Handle
(Joystick)
Front Access Cover
Securing
Screw
Strain Relief
Clamp
(For User Connections)
Receptacle
RC3:
Right-Left
Control
TA.098
878
Customer
Supplied
Cord
Motorized
Connected To Terminal
Slide
Strip
Inside MSC-2

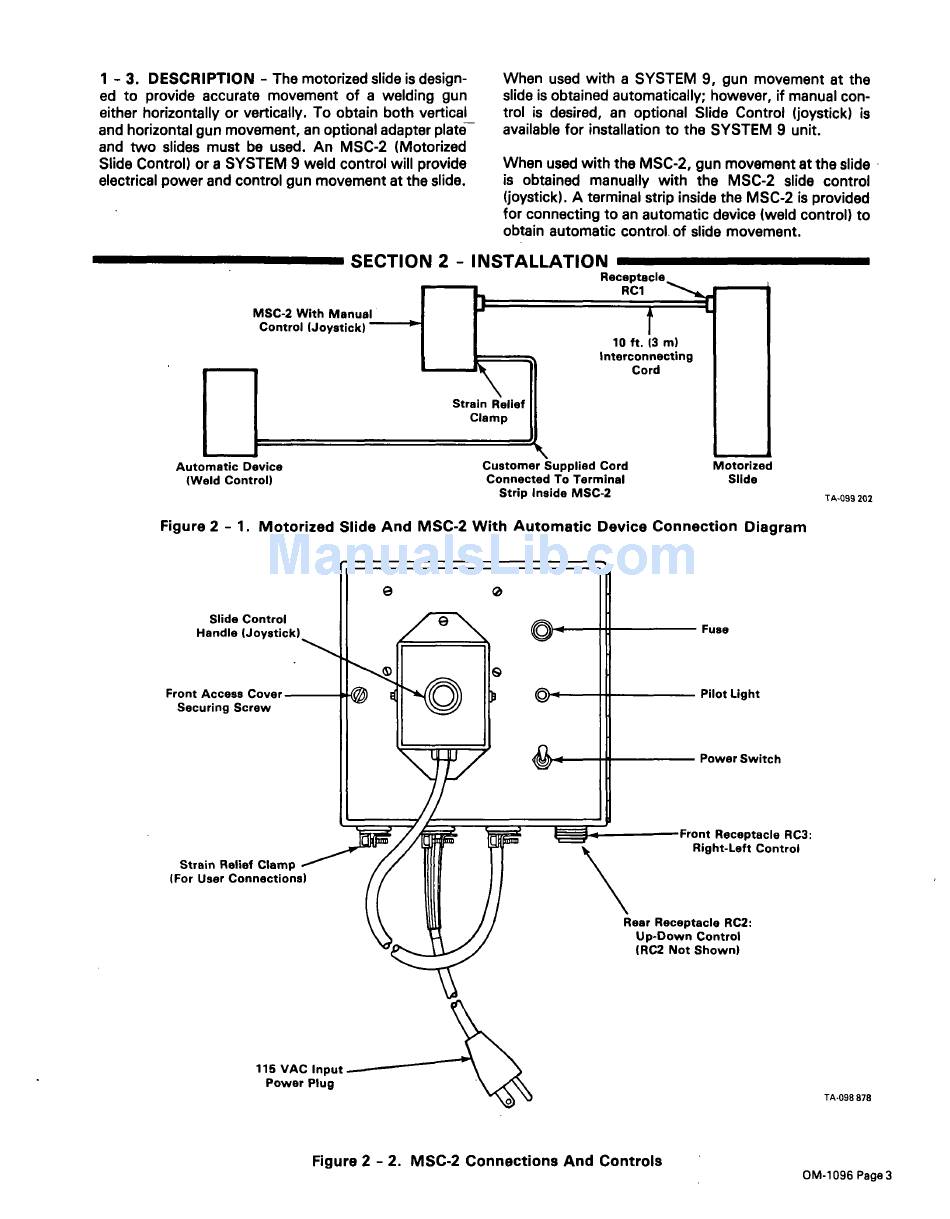

Figure
2
-
1. Motorized
Slide
And MSC-2 With
Automatic
Device Connection
Diagram
Fuse
Pilot
Light
Power Switch
Up-Down
Control
(RC2 Not Shown)
115 VAC
Power
Plug
Figure
2
-
2.
MSC-2 Connections And Controls
OM-1096
Page
3
