HIKVISION DS-9000-ST Series User Manual page 90

DS-7700NI-SP/9000/9600 Series HDVR/NVR User's Manual
2. If video clips were successfully saved to the HDD using the Playback Interface, they will
be listed in the Clips Export interface. The camera number as well as the time range and
clip size would be listed.
3. Select the video clips you would like to back up by checking the checkbox next to the
desired clips. You may also click
deleted by clicking
Check the Channel No. box will choose all clips. Check the Merge file option to merge all
selected video clips and export in one video file.
4. Connect at least one USB storage device to the DVR. If the device is compatible with the
DVR, it will automatically be detected. Select the backup device from the Device Name
dropdown menu.
5. If the available space on the storage device is adequate, select the Export button to
begin backup of the selected clips.
6. After clips have been backed up, you may click the Cancel button to return to the
Playback Interface.
Note:
If the USB storage device has not been properly initialized and formatted, you may click on the
Format button to do so.
Formatting a storage device will permanently delete ALL the files on that device.

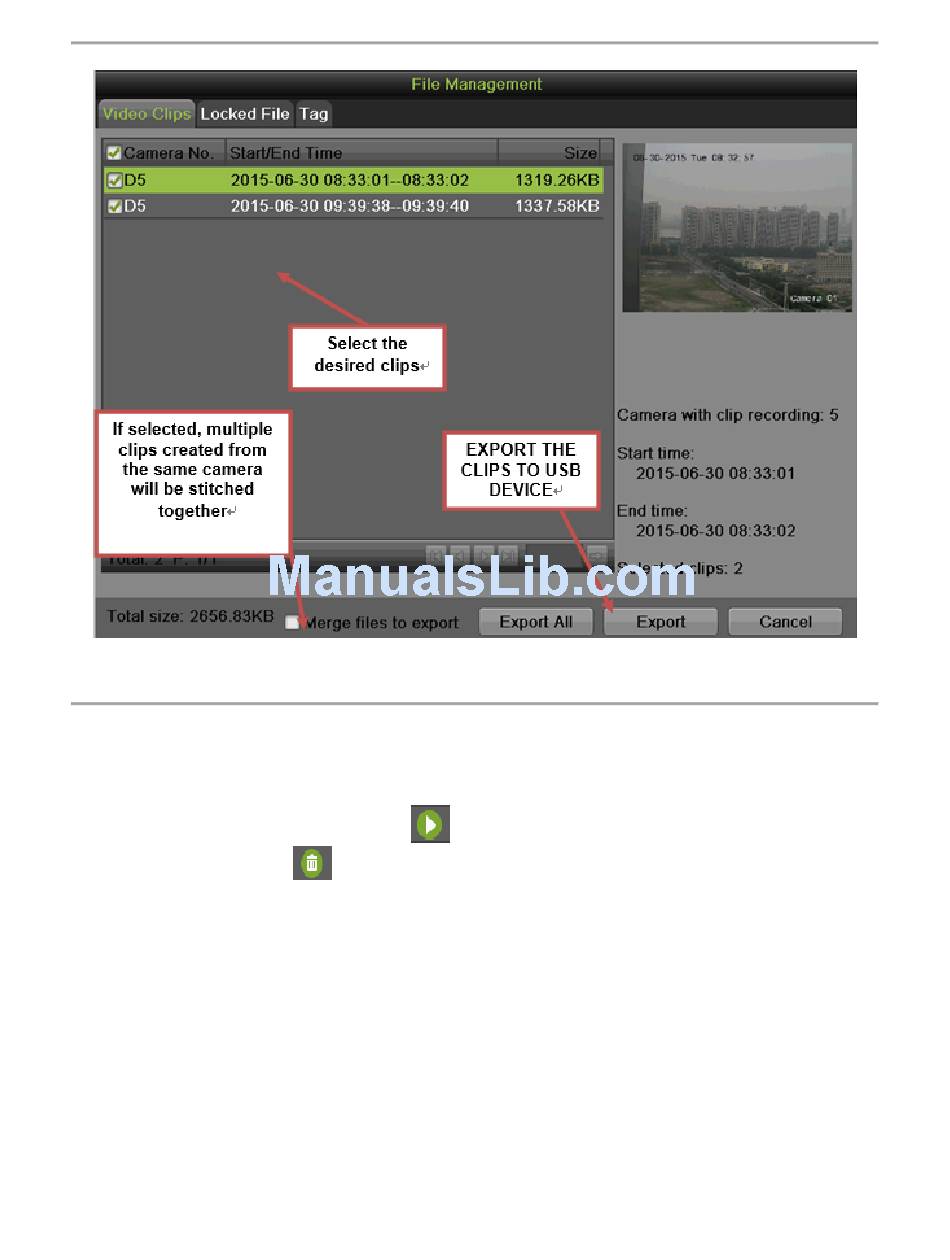

Figure 97 Clips Export Interface
to play and review the clip. Video clips can be
or by clicking the Delete button to delete the selected clips.
90
