1) Select the Trigger Channel tab and check the checkbox of channels which you want
the alarm to trigger recording. Click Apply to save the settings.
2) Select the Arming Schedule tab. Choose one day in a week and set an arming
schedule. If the schedule can also be applied to other days, click Copy. Click Apply
to save the settings.
3) Select the Handing tab which is same as Figure 137 to set other actions. Click
Apply to save the settings.
4) Select the PTZ Linking tab, as shown in Figure 138, to set the PTZ actions (only if a
PTZ camera is configured on the DVR). Only one PTZ action can be selected per
alarm input.
8. If the same settings can be applied to other alarm inputs, click the Copy button to copy
the settings to others.
9. Click Apply to save the settings.
10. You can check the alarm input status in the Alarm Input Status list on the Alarm Input
Interface.

Configuring Alarm Outputs

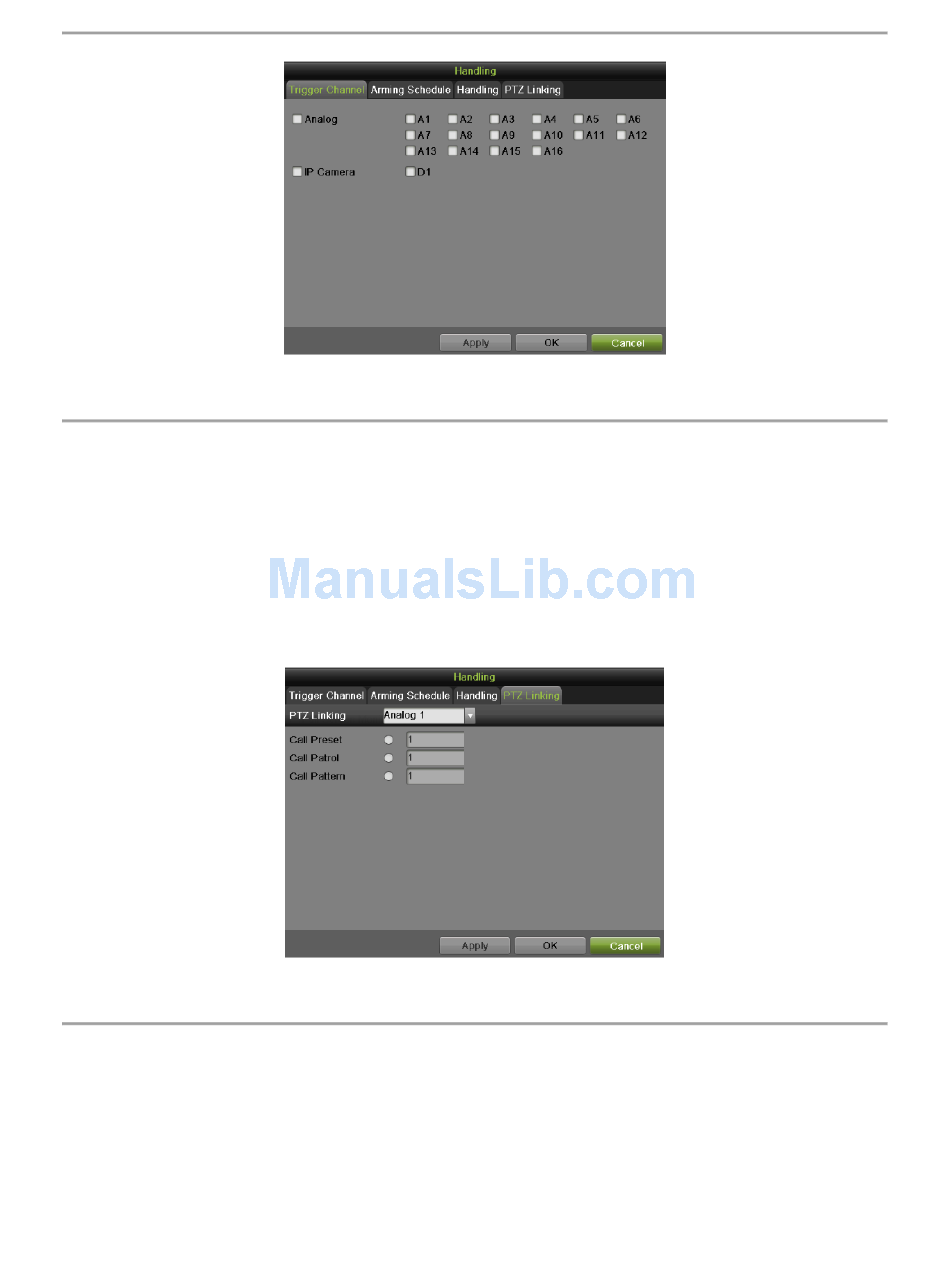

Figure 137 Trigger Channel Settings Menu
Figure 138 PTZ Linking Settings Menu
122
