4.3

Jumper

C l e a r R T C R A M ( C L R T C ) C l e a r R T C R A M ( C L R T C ) C l e a r R T C R A M ( C L R T C )
C l e a r R T C R A M ( C L R T C ) C l e a r R T C R A M ( C L R T C )
This jumper allows you to clear the Real Time Clock (RTC) RAM in
CMOS. You can clear the CMOS memory of date, time, and system
setup parameters by erasing the CMOS RTC RAM data. The RAM
data in CMOS, that include system setup information such as system
passwords, is powered by the onboard button cell battery.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Remove the battery.
3. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep
the cap on pins 2-3 for about 5-10 seconds, then move the cap
back to pins 1-2.
4. Re-install the battery.
5. Plug the power cord and turn ON the computer.
6. Hold down the <Del> key during the boot process and enter BIOS
setup to re-enter data.

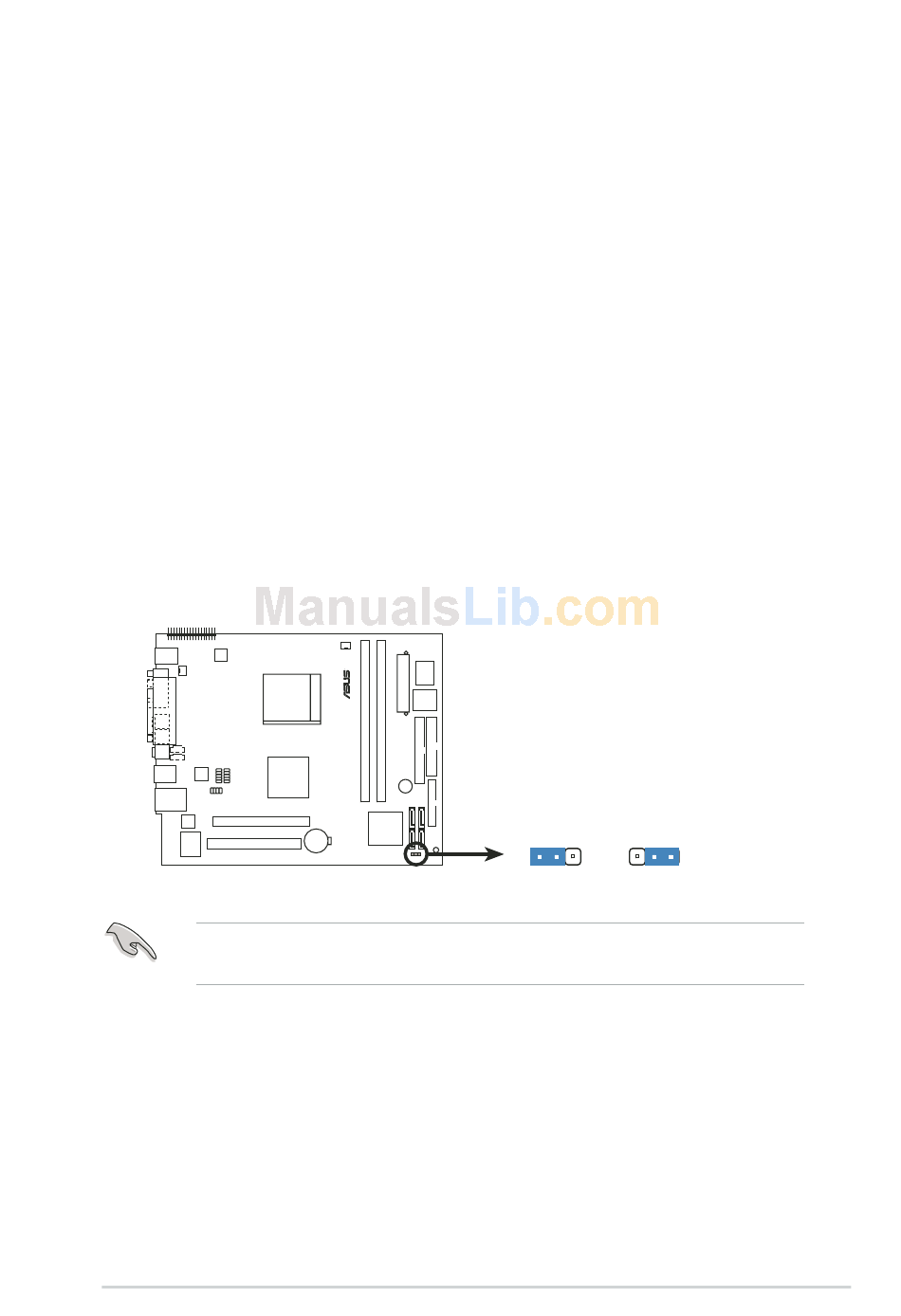

Clear RTC RAM
Except when clearing the RTC RAM, never remove the cap on CLRTC
jumper default position. Removing the cap will cause system boot failure.
A S U S T 2 - A H 1 A S U S T 2 - A H 1 A S U S T 2 - A H 1 A S U S T 2 - A H 1 A S U S T 2 - A H 1
CLRTC
1 2 2 3
Normal Clear CMOS
(Default)
4 - 3 4 - 3 4 - 3 4 - 3 4 - 3
