Installing a CPU

The motherboard comes with a surface mount 939-pin Zero Insertion Force
(ZIF) socket designed for the AMD Athlon™ 64 processor.
The 128-bit-wide data paths of this processor can run applications faster
than processors with only 32-bit or 64-bit wide data paths.
Take note of the marked corner (with gold
triangle) on the CPU. This mark should
match a specific corner on the socket to
ensure correct installation.
2.5.1 2.5.1

CPU installation

CPU installation
2.5.1 2.5.1 2.5.1 CPU installation CPU installation CPU installation
To install a CPU:

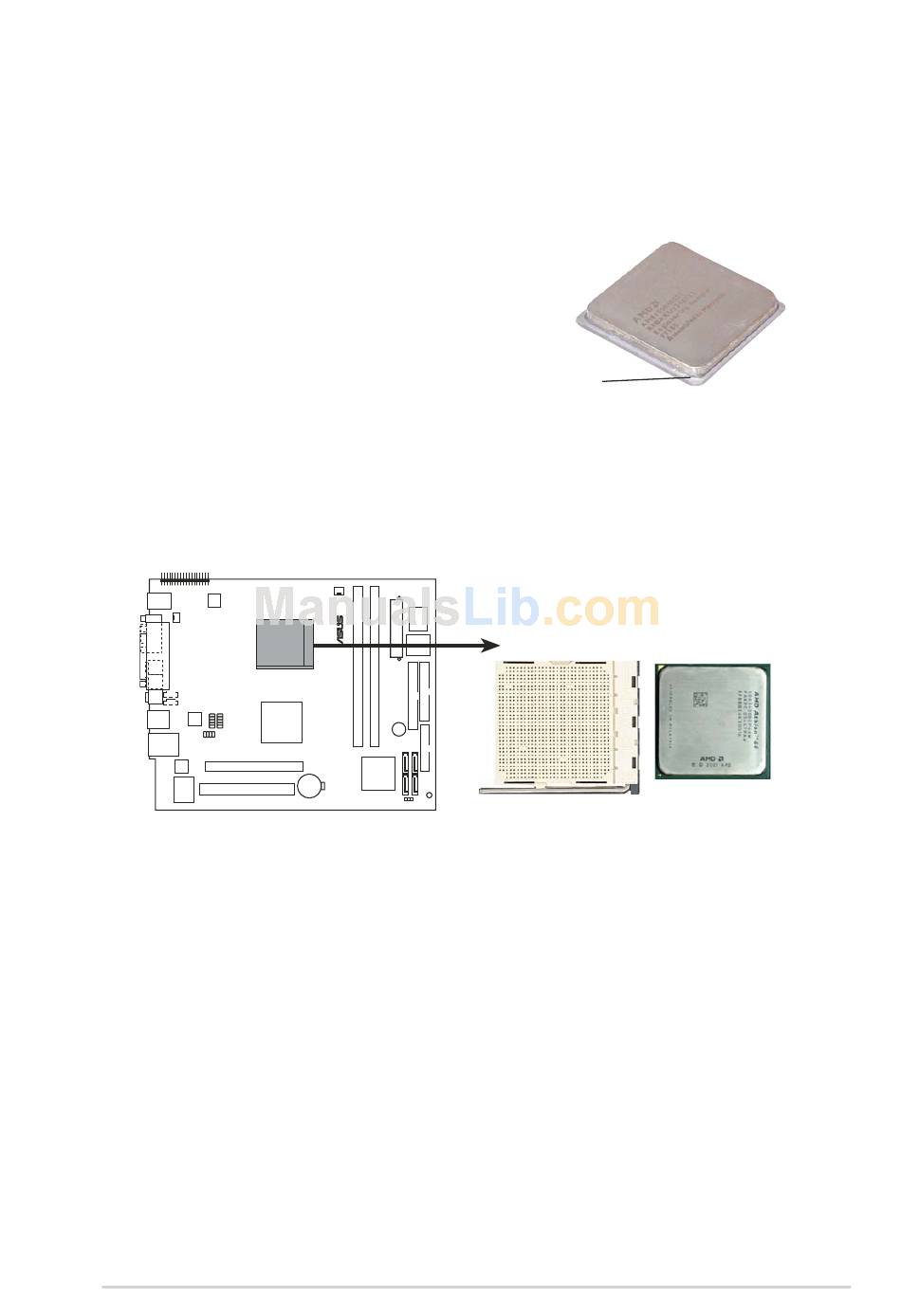

1. Locate the CPU socket on the motherboard.
CPU Socket 939
A S U S T 2 - A H 1 A S U S T 2 - A H 1 A S U S T 2 - A H 1 A S U S T 2 - A H 1 A S U S T 2 - A H 1
Gold triangle
2 - 5 2 - 5 2 - 5 2 - 5 2 - 5
