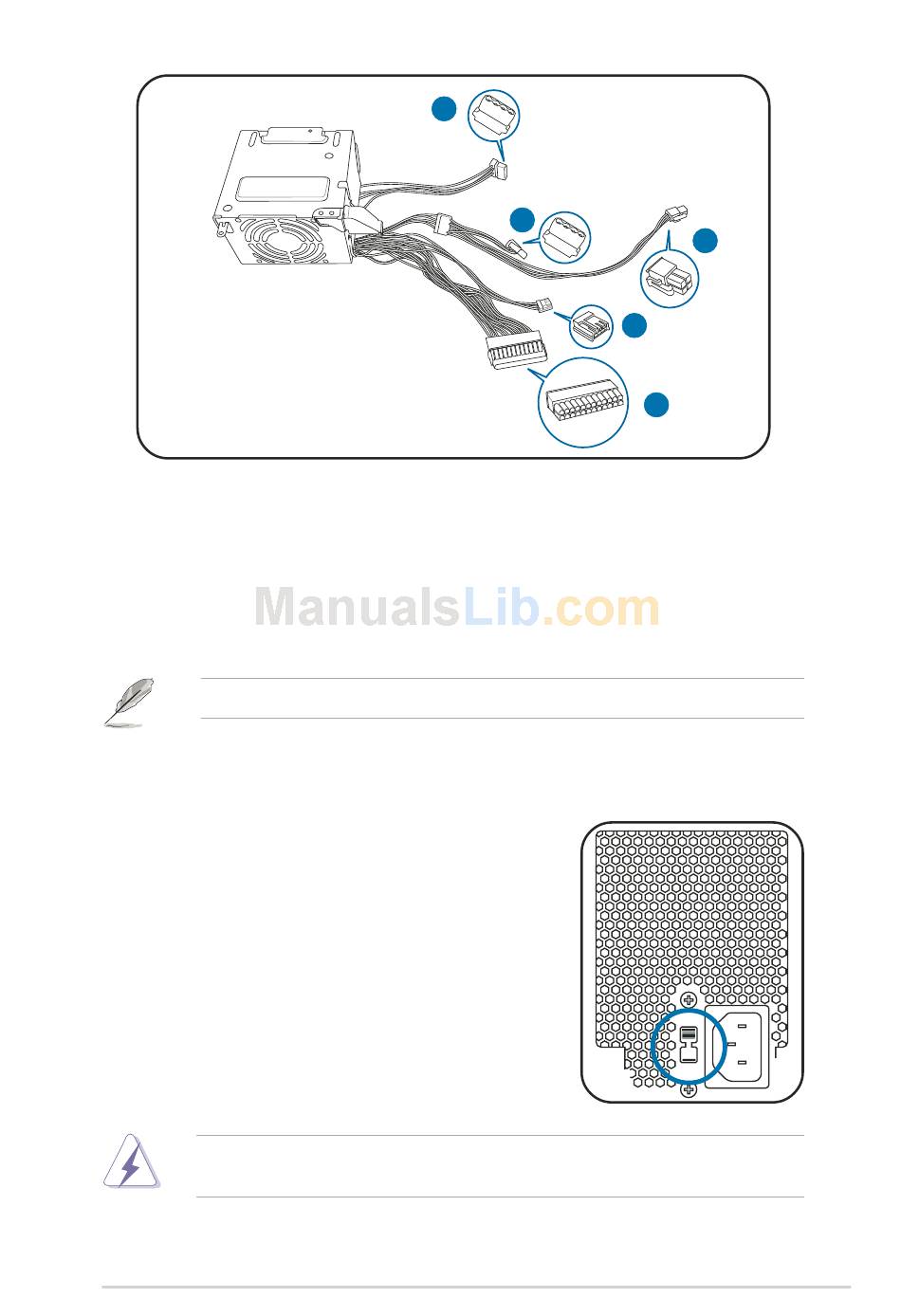

P o w e r s u p p l y u n i t p l u g s P o w e r s u p p l y u n i t p l u g s
P o w e r s u p p l y u n i t p l u g s P o w e r s u p p l y u n i t p l u g s P o w e r s u p p l y u n i t p l u g s
7. Connect the 4-pin power plug to the power connector of the floppy
disk drive.
8. Connect the 4-pin power plug to the power connector of the IDE hard
disk.
9. Connect the 4-pin power plug to the power connector of the optical
drive.
See the Appendix for the power supply specifications.

Voltage selector

Voltage selector
Voltage selector Voltage selector Voltage selector
The PSU has a 115 V/230 V voltage selector
switch located beside the power connector. Use
this switch to select the appropriate system
input voltage according to the voltage supply in
your area.
If the voltage supply in your area is 100-127 V,
set the switch to 115 V.
If the voltage supply in your area is 200-240 V,
set the switch to 230 V.
Setting the switch to 115 V in a 230 V environment will seriously
damage the system!
