Summary of Contents for Thomas crooser plus

  • Page 1 USER MANUAL Plus Plus Plus...
  • Page 2: Table Of Contents

    Warranty ..............................17 Should vacuum cleaning be fun? Sure! And we are glad that you have chosen your very own THOMAS . Compact, lightweight and agile, it will prove a welcome support in everyday cleaning while protecting both you and your furniture.
  • Page 3: Intended Use

    Efficient cleaning and the function of the appliance can only be guaranteed if you use genuine THOMAS filters vacuum cleaner without supervision if they have been instructed on using the and dustbags.

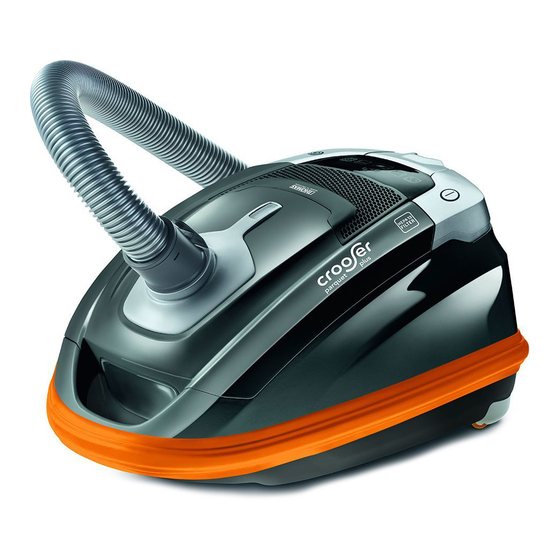

  • Page 4: Your Thomas Crooser

    Your THOMAS 1 Housing cover 2 Unlock button for housing cover 3 Carry handle 4 Suction port 5 Bumper 6 Wheels 7 Mains plug and power cord 8 Main On/Off switch 9 Cable winder 10 Touch display 11 Dustbag change indicator...
  • Page 5: Operation - It's Easy

    Operation – it’s easy Do not use appliance to vacuum any liquids or damp dirt. Allow steam-cleaned or shampooed rugs and carpeted flooring to dry completely before vacuuming. Make sure the unit rests securely on all three wheels. Check that a dustbag has been inserted. If there is no dustbag in the appliance or the dustbag change indicator shows that the bag is full, replace it (see section “Cleaning and maintenance”...
  • Page 6 Not all floor nozzles have a lock mechanism. Cleaning furniture, upholstery and car Connect the required nozzle. Gently press the nozzle and twist it sideways directly onto the handle. To select the proper nozzle for the task, see the section “Your THOMAS ”.
  • Page 7 Operation – it’s easy Hold the plug of the power cord. Pull the power cord out to the required length. Insert the plug into the mains socket. The power cord must be pulled out of the unit to its full length if operating time exceeds 30 minutes.
  • Page 8 Operation – it’s easy Perform cleaning. In addition to selecting the suction power level, you can reduce the suc- tion power mechanically if necessary by opening the auxiliary air slide on the handle of the suction hose. Close the auxiliary air slide to return to the full suction power of the previously selected level.
  • Page 9 Operation – it’s easy For brief pauses in vacuuming, use the parking aid on the back of the unit to fasten the suction pipe in the holder. For compact storage of the unit until next use, fasten the suction pipe in the parking aid on the underside of the unit. Slide the parking hook into the recess provided on the back.
  • Page 10: Operation – It's Easy

    Operation – it’s easy Changing the bumper You will find bumpers in other attractive colours in your THOMAS accessories. To change the bumper, proceed as follows: a) Remove the plug from the mains socket. b) Detach the suction hose. c) Place the unit in an upright position.
  • Page 11: Step-By-Step Cleaning And Maintenance

    Step-by-step cleaning and maintenance Only use genuine THOMAS spares and accessories. This is the only way to guarantee proper functioning and effective cleaning. No maintenance other than that described here is necessary. To replace defective components, contactTHOMAS customer service (see “Customer service”).
  • Page 12 Step-by-step cleaning and maintenance Remove the dustbag laterally from the dustbag holder. Pull the dustbag to the side by the coloured grip tab. Overcome the lock on the dustbag holder by pressing the plastic surface upward slightly. When you insert a dustbag into the holder, leave the dustbag folded up as it was when you removed it from the packaging.
  • Page 13 Step-by-step cleaning and maintenance Cleaning the Blue CleanAir filter The unit has a high-quality Blue CleanAir filter, which can be cleaned repeatedly as necessary, depending on the type of household dust. Clean the Blue CleanAir filter as required, depending on usage and decreasing suction power, every 6 months at the latest.
  • Page 14 Exchanging the motor protection filter Always exchange the motor protection filter for a new one if you are breaking open a new pack of THOMAS dustbags. Each pack of THOMAS dustbags includes a new motor protection filter. Exchange the motor protection filter for a new one if it is heavily soiled or shows signs of damage.
  • Page 15: Step-By-Step Cleaning And Maintenance

    Step-by-step cleaning and maintenance Changing the battery of the remote control on the handle of the suction hose (dependent on model) If your THOMAS can no longer be controlled by the remote control unit on the handle, the remote control unit battery must be replaced.
  • Page 16: Malfunctions - If A Problem Occurs

    Malfunctions – if a problem occurs Problems / malfunctions Reason / remedy The appliance will not start • Are the power cord, plug and socket intact? • Before inspecting, unplug the power cord; have all repairs carried out by authorised specialists •...
  • Page 17: Doing Your Part For The Environment

    Customer service or repairs to the appliance. Ask you dealer for the THOMAS customer service centre in your area. 5. Warranty services neither extend nor renew the warranty period for the appliance or any installed Please also provide the information on the nameplate of your THOMAS .
  • Page 20 WS10 8JS Phone 0044 (0)121 568 6660 Mobile 0044 (0)7538 050 56 Cameron.fowler@premier-aftercare.co.uk Robert Thomas Metall- und Elektrowerke GmbH & Co. KG Postfach 1820, 57279 Neunkirchen, Germany Hellerstraße 6, 57290 Neunkirchen, Germany Phone +49 (0) 2735 - 788 - 0 +49 (0) 2735 - 788 - 519 E-mail: service@robert-thomas.de...
