Summary of Contents for dji INSPIRE 1

Page 1 INSPIRE 1 User Manual V1.8 2015.9...
Page 2: Using This Manual
Warning Important Hints and Tips Reference Before Flight The following tutorials and manuals have been produced to ensure you to make full use of your Inspire 1. 1.Disclaimer 2.In the Box 3.Inspire 1 Quick Start Guide 4.Safety Guidelines 5.Inspire 1 User Manual 6.Intelligent Flight Battery Safety Guidelines...
Page 3: Table Of Contents
Contents Using this manual Legends Before Flight Watch the video tutorials Download the DJI GO app Product Profile Introduction Feature Highlights Assemble the Aircraft Aircraft Diagram Remote Controller Diagram Aircraft Flight Controller Flight Mode Flight Status Indicator Return to Home (RTH)
Page 4 Flight Flight Environment Requirements Flight Limits and Flight Restriction Area Preflight Checklist Calibrating the Compass Auto Take-off and Auto Landing Starting/Stopping the Motors Flight Test Appendix Specifications Intelligent Flight How to Update Firmware FCC Compliance © 2015 DJI. All Rights Reserved.
Page 5: Product Profile
Product Profile This chapter describes the features of Inspire 1, instructs you to assemble the aircraft and explains the components on the aircraft and remote controllers. © 2015 DJI. All Rights Reserved.
Page 6: Introduction

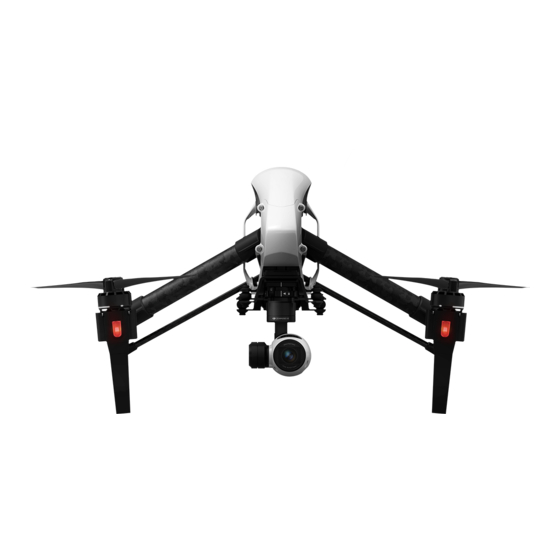

Product Profile Introduction The Inspire 1 is brand new quadcopter capable of capturing 4K video and transmitting an HD video signal (up to 2km) to multiple devices straight out of the box. Equipped with retractable landing gear, it can capture an unobstructed 360 degree view from its camera. The built-in camera has an integrated gimbal to maximize stability and weight efficiency while minimizing space.
Page 7 INSPIRE 1 User Manual Battery must be fully charged before using it for the first time. Refer to "Charging the Intelligent Flight Battery" (P21) for more information . If you have purchased the dual remote controller version, you must use the Master remote controller to deactivate Travel Mode.
Page 8 INSPIRE 1 User Manual Place all propellers onto the correct motor and tighten by hand to ensure security before flight. Attaching 1345s Quick-Release Propellers The 1345s Quick-Release propeller is the upgrade version of the propellers that greatly enhance the reliability of the propeller during the flight. Following the steps below to attach the 1345s Quick-Release propellers.
Page 9: Aircraft Diagram
INSPIRE 1 User Manual Aircraft Diagram Propeller (P17) Motor Front LED (P12) Landing gear Gimbal and Camera (P35) Intelligent Flight Battery (P18) Aircraft Micro-USB Port [11] [10] Rear LED (P12) [10 ] Camera Micro-USB Port [11 ] Camera Micro-SD Card Slot (P35)
Page 10 Circular LED around the RTH button displays RTH status. [16] [17] [18] [19] [10] Camera Settings Dial Turn the dial to adjust camera settings. Only functions when the remote controller is connected to a mobile device running the DJI GO app. [15] [10] [11]...
Page 12: Flight Controller
Use the Flight Controller mode switch to change the flight mode of the aircraft, refer to the “Flight Mode Switch” on P27 for more information. Flight Status Indicator The INSPIRE 1 comes with the Front LED, Rear LED and Aircraft Status Indicator. The positions of these LEDs are shown in the figure below: Aircraft Status Indicator...
Page 13: Return To Home (Rth)
Using the RTH button on the remote controller (refer to “RTH button” on P28 for more information) or the RTH button in the DJI GO app when GPS is available to enables smart RTH. The aircraft return to the latest recorded Home Point, you may control the aircraft's orientation to avoid collision during the Smart RTH.
Page 14 Low Battery RTH The low battery level failsafe is triggered when the DJI Intelligent Flight Battery is depleted to a point that may affect the safe return of the aircraft. Users are advised to return home or land the aircraft immediately when these warnings are shown.
Page 15: Dynamic Home Point
(65 feet) radius of the Home Point. Aircraft cannot avoid obstruction during the Failsafe RTH, therefore it is important to set an reasonable Failsafe altitude before each flight. Launch the DJI GO app and enter “Camera” view and select “MODE” to set the Failsafe altitude.
Page 16: Vision Positioning System
DJI Vision Positioning is a positioning system that uses ultrasonic and image data to help the aircraft identify its current position. With the help of Vision Positioning, your Inspire 1 can hover in place more precisely and fly indoors or in other environments where there is no GPS signal available. The main components of DJI Vision Positioning are located on the bottom of your Inspire 1, including [1]two sonar sensors and[2]one monocular camera.
Page 17: Flight Recorder
Attaching and Detaching the Propellers Use only DJI approved propellers with your Inspire 1. The grey or black nut on the propeller indicates the rotation direction of the propeller and where it should be attached. To attach the propellers properly, ©...
Page 18: Dji Intelligent Flight Battery
ONLY use original DJI propellers for a better and safer flight experience. DJI Intelligent Flight Battery The DJI Intelligent Flight Battery has a capacity of 4500mAh, voltage of 22.2V, and smart charge- discharge functionality. It can only be charged with an appropriate DJI approved charger.
Page 19 9. Short Circuit Protection: Automatically cuts the power supply when a short circuit is detected. 10. Battery Cell Damages Protection: DJI GO app shows warning message when damaged battery cell is detected. 11. Battery Information History: Show the last 32 entries of battery information records that include warning messages and so on.
Page 20 5℃ before using it in the low temperature environment. 5. When using the Inspire 1 in a low temperature environment, begin by allowing the aircraft to hover at a low altitude, for approximately one minute, to heat the battery.
Page 21 Do not charge the Intelligent Flight Battery and remote controller with standard charger (model: A14-100P1A) at the same time, otherwise the charger may overheat. Always turn off the battery before inserting it or removing it from the Inspire 1. Never insert or remove a battery when it is powered on.
Page 22 Leave it on until there is less than 5% of power left, or until the battery can no longer be turned on. Launch the DJI GO app to check battery level. Rapid: Fly the Inspire 1 outdoors until there is less than 5% of power left, or until the battery can no longer be turned on.
Page 23: Remote Controllers
Remote Controllers This chapter describes the features of the remote controller that includes aircraft and remote controller operations and dual remote controller mode. © 2015 DJI. All Rights Reserved.
Page 24: Remote Controller Profile
Powering On And Off The Remote Controller The Inspire 1 remote controller is powered by a 2S rechargeable battery with a capacity of 6000mAh. The battery level is indicated by the Battery Level LEDs on the front panel. Follow the steps below to power on your remote controller: 1.
Page 25 INSPIRE 1 User Manual Power Outlet Charger Power Button Controlling Camera Shoot videos or images and adjust camera settings via the Shutter Button, Camera Settings Dial, Playback Button and Video Recording Button on the remote control. [1] Camera Settings Dial Turn the dial to quickly adjust camera settings such as ISO and shutter speed without letting go of the remote controller.
Page 26 Moving the right stick control left and right changes the aircraft’s left and right pitch. Push left to fly left and right to fly right. The Inspire 1 will hover in place if the stick is centered. Push the stick further away from the center position for a larger pitch angle (maximum 35˚) and faster flight.
Page 27 IOC, refer to the IOC in Appendix. The Flight Mode Switch is locked in P mode by default. To unlock the switch, launch the DJI GO app, enter the "Camera" page, tap "MODE", and then activate "Multiple Flight Mode" .
Page 28 INSPIRE 1 User Manual 2. Lower: The landing gear will lower to its lowest position for landing. Do not raise the landing gear when the aircraft is on the ground. Ensure the landing gear is lowered before landing. RTH button Press and hold this button to start the Return to Home (RTH) procedure.
Page 29: Dual Remote Controllers Mode
INSPIRE 1 User Manual Optimal Transmission Range The signal transmission between aircraft and remote controller perform best within the range that displayed in the picture shown below: Optimal Transmission Range Strong Weak Ensure the aircraft is flying within the optimal transmission range. Adjust the distance and position between the operator and the aircraft to achieve optimal transmission performance.
Page 30 DJI GO app. Follow the steps below for setup: “Master” Remote Controller: 1. Connect the remote controller to your mobile device and launch the DJI GO app. 2. Go to the Camera page, and tap to enter the remote controller settings window.
Page 31: Remote Controller Status Led
“Slave” remote controller cannot control the orientation of the aircraft. Reset the remote controller to “Master” in DJI GO app if you wish to link the remote controller to the aircraft. 2. Search the “Master” remote controller in the surrounding area in the “Request Control” section.
Page 32: Linking The Remote Controller
The remote controller is linked to your aircraft before delivery. Linking is only required when using a new remote controller for the first time. Follow these steps to link a new remote controller: 1. Power on the remote controller and connect to the mobile device. Launch DJI GO app. 2. Power on the Intelligent Flight Battery.
Page 33: Remote Controller Compliance Version
“Slave” remote controller cannot control the orientation of the aircraft. Reset the remote controller to “Master” in DJI GO app if you wish to link the remote controller to the aircraft. Remote controller will disconnect from the linked aircraft if a new remote controller is linked to the same aircraft.
Page 35: Camera Profile
To store your photos and videos, plug in the micro-SD card into the slot shown below before powering on the Inspire 1. The Inspire 1 comes with a 16GB micro-SD card and supports up to a 64GB micro-SD card. A UHS-1 type micro-SD card is recommended, because the fast read and write capability of these cards enables you to store high-resolution video data.
Page 36: Gimbal
Camera Operation Use the Shutter and Record button on the remote controller to shoot the images or the videos through the DJI GO app. For more information about how to use these buttons, refer to “Controlling Camera” P25. ND Filter Attach an ND filter to the front of the camera to reduce over-exposure and “jello”...
Page 37 Using DJI GO App to Control Gimbal Follow the steps below to use DJI GO app to control the gimbal orientation: 1. Launch DJI GO app, enter “Camera” page.
Page 38 Three Gimbal operation modes are available. Switch between the different operation modes on the Camera page of the DJI GO App. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below for details: Pitch The angle between Gimbal’s orientation and aircraft’s nose remains...
Page 40: Camera
DJI GO App The DJI GO app is a new mobile app designed specifically for the Inspire 1. Use this app to control the gimbal, camera and other features of your flight system. The app also comes with Map, Store a User Center, for configuring your aircraft and sharing your content with friends.
Page 41 INSPIRE 1 User Manual [1] Flight Mode : The text next to this icon indicates the current flight mode. Tap to configure the MC (Main Controller) Settings. These settings allow you to modify flight limits and set the gain values.
Page 42 INSPIRE 1 User Manual Record : Tap once to start recording video, then tap again to stop recording. You can also press the Video Recording Button on the remote controller, which has the same functionality. Playback : Tap to enter the playback page. You can preview photos and videos as soon as they are captured.
Page 43: Library
Find out about our latest events, featured products and trending Skypixel uploads in the Explore page. If you already have a DJI account, you will be able to participate in forum discussions, earn Credits in the DJI Store, and share your artwork with the community ©...
Page 45: Flight Environment Requirements
Max Height & Radius limit flying height and distance, and the user may change these settings in the DJI GO App. Once complete, your Inspire 1 will fly in a restricted cylinder that is determined by these settings. The tables below show the details of these limits.
Page 46 If you fly out of the limit, you can still control the Inspire 1, but cannot fly it further. If the Inspire 1 flies out of the max radius in Ready to Fly (non-GPS) mode, it will fly back within range automatically.
Page 47 The value of R varies depending on the definition of the Restricted Area. (3) A “warning zone” has been set around each Restricted Area. When the aircraft is within 0.6 miles (1 km) of this zone, a warning message will appear in the DJI GO app. Restricted Areas...
Page 48 INSPIRE 1 User Manual GPS Signal Strong Blinking Green Aircraft Zone Restriction DJI GO App Prompt Status Indicator Warning: You are in a No-fly Motors will not start. zone. Take off prohibited. If the aircraft enters the No-fly Zone restricted area in A mode but...
Page 49: Preflight Checklist
4. Gimbal is functioning as normal. 5. Motors can start and are functioning as normal. 6. DJI GO app connected to the aircraft. Calibrating the Compass IMPORTANT: Make sure to calibrate the compass in every new flight location. The compass is very sensitive to electromagnetic interference, which can cause abnormal compass data leading to poor flight performance or even failure.
Page 50: Auto Take-Off And Auto Landing
1. When compass data is abnormal, and the Aircraft Status Indicator is blinking red and yellow. 2. When flying in a new location, or a location that is different from your last flight. 3. When the mechanical structure of the Inspire 1 has changed, i.e. changed mounting position of the compass.
Page 51: Starting/Stopping The Motors
Stopping Motors There are two methods to stop the motors. Method 1: When the Inspire 1 has landed, push the throttle down , then conduct CSC . Motors will stop immediately. Release both sticks once motors stop. Method 2: When the aircraft has landed, push the throttle down and hold. The motors will stop after 3 seconds.
Page 52 Video Suggestions and Tips 1. Work through the checklist before each flight. 2. Select desired gimbal working mode in the DJI GO app. 3. Aim to shoot when flying in P mode only. 4. Always fly in good weather, such as sunny or windless days.
Page 54 6. Do you have an LCD monitor available for the Inspire 1? No, DJI does not sell LCD or HD monitors for the Inspire 1. However, you can output the live streaming video to a compatible monitor or mobile device of your own.
Page 55 14. What flight controller does the Inspire 1 use? The Inspire 1 uses its own new flight controller. 15. Which motors and propellers does the Inspire 1 come with? The Inspire 1 uses 3510 motors and 1345 propellers. 16. Aircraft frame arm joints appear loosen, is that normal? The space of the joins shown in the below figure is normal and it will not affect the performance of aircraft, do not adjust the position of the screws on your own.
Page 57: Specifications
Station: 750 mA; Motion: 900 mA Angular Vibration Range ±0.03° Mounting Detachable Pitch: -90° to +30° Controllable Range Pan: ±320° Pitch: -125° to +45° Mechanical Range Pan: ±330° Pitch: 120°/s Max Controllable Speed Pan: 180°/s © 2015 DJI. All Rights Reserved.
Page 58 INSPIRE 1 User Manual Camera Name Model FC350 Total Pixels 12.76M Effective Pixels 12.4M Image Max Size 4000x3000 ISO Range 100-3200 (video) 100-1600 (photo) Electronic Shutter Speed 8 s to 1/8000 s FOV (Field Of View) 94° CMOS Sony EXMOR 1/2.3”...
Page 59 INSPIRE 1 User Manual Power Supply Built-in battery Charging DJI charger Dual User Capability Host-and-Slave connection Mobile Device Holder Tablet or Smart Phone Output Power Operating Temperature Range -10° to 40° C Less than 3 months: -20° to 45° C Storage Temperature Range More than 3 months: 22°...
Page 60: Intelligent Flight
The flight path can be saved and re-apply in the future. Enable Multiple Flight Mode by launching the DJI GO app > Camera View > > Advanced Settings > Mulitple Flight Mode before using the Intelligent Flight Mode for the first time.
Page 61: How To Update Firmware
Ensure the DJI GO app has been updated to v1.2.0 before updating the remote controller. The System Status bar in Camera View of the DJI GO App will flash several times if a firmware update is available. Follow these steps to update the firmware via the DJI GO App.
Page 62: Fcc Compliance
. If you do not have a SD card reader, you may insert the SD card into the gimbal and connect the gimbal with remote controller to upgrade the remote controller. You will only be able to update the remote controller firmware through the DJI GO app from this point onwards.
Page 63 INSPIRE 1 User Manual Compliance Information FCC Warning Message Any Changes or modifications not expressly roved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 64 INSPIRE 1 User Manual KCC Warning Message “해당무선설비는 운용 중 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다 .” “해당 무선설비는 운용 중 전파혼신 가능성이 있음” NCC Warning Message 低功率電波輻射性電機管理辦法第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 © 2015 DJI. All Rights Reserved.
