Section 3 - Advanced Setting

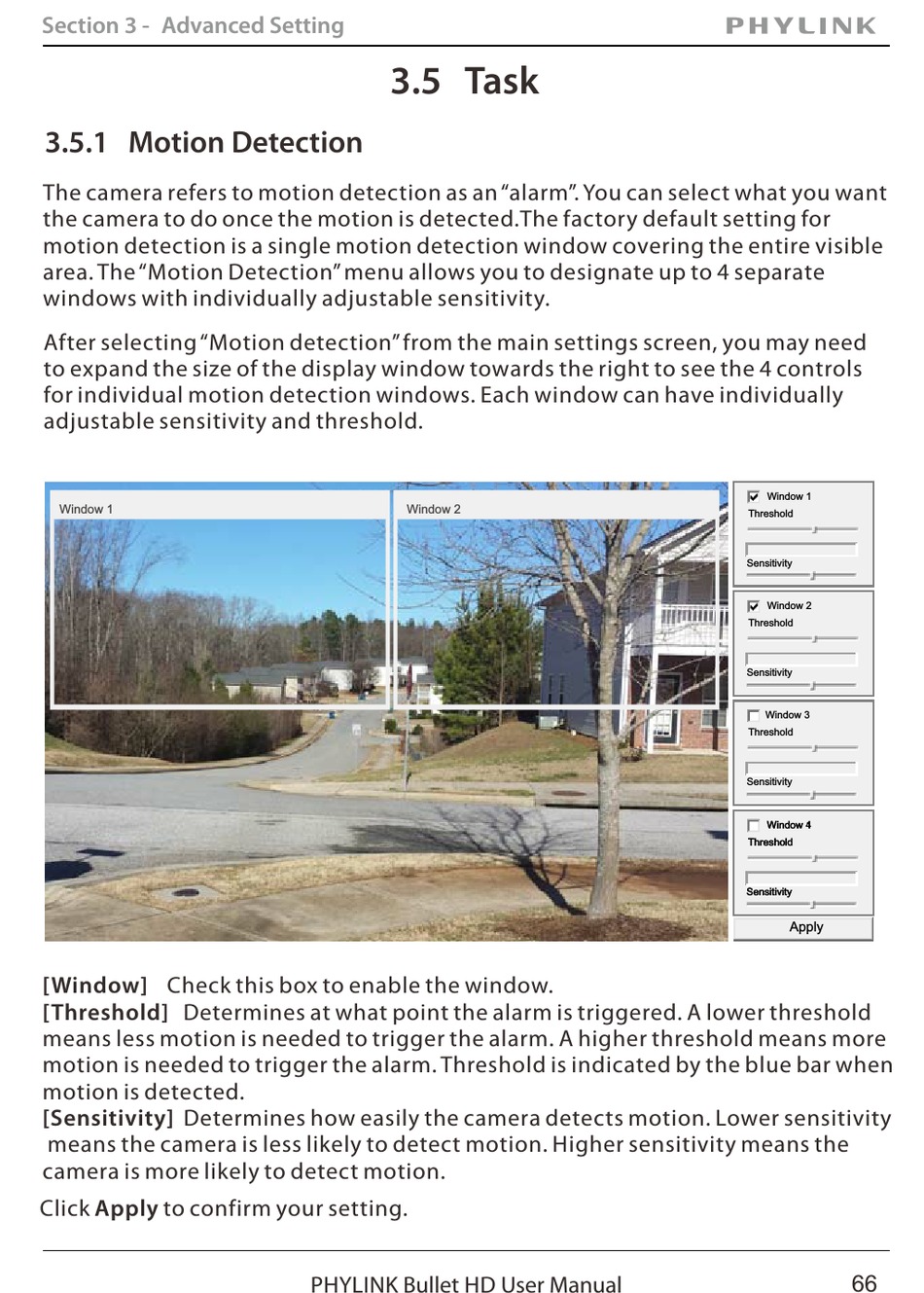

3.5.1 Motion Detection

The camera refers to motion detection as an "alarm". You can select what you want
the camera to do once the motion is detected.The factory default setting for
motion detection is a single motion detection window covering the entire visible
area. The "Motion Detection" menu allows you to designate up to 4 separate
windows with individually adjustable sensitivity.
After selecting "Motion detection" from the main settings screen, you may need
to expand the size of the display window towards the right to see the 4 controls
for individual motion detection windows. Each window can have individually
adjustable sensitivity and threshold.
Window 1
[Window] Check this box to enable the window.
[Threshold] Determines at what point the alarm is triggered. A lower threshold
means less motion is needed to trigger the alarm. A higher threshold means more
motion is needed to trigger the alarm. Threshold is indicated by the blue bar when
motion is detected.
[Sensitivity] Determines how easily the camera detects motion. Lower sensitivity
means the camera is less likely to detect motion. Higher sensitivity means the
camera is more likely to detect motion.
Click Apply to confirm your setting.

3.5 Task

Window 2
PHYLINK Bullet HD User Manual
Window 1
Threshold
Sensitivity
Window 2
Threshold
Sensitivity
Window 3
Threshold
Sensitivity
Window 1 Window 4
Threshold Threshold
Sensitivity Sensitivity
Apply
66
