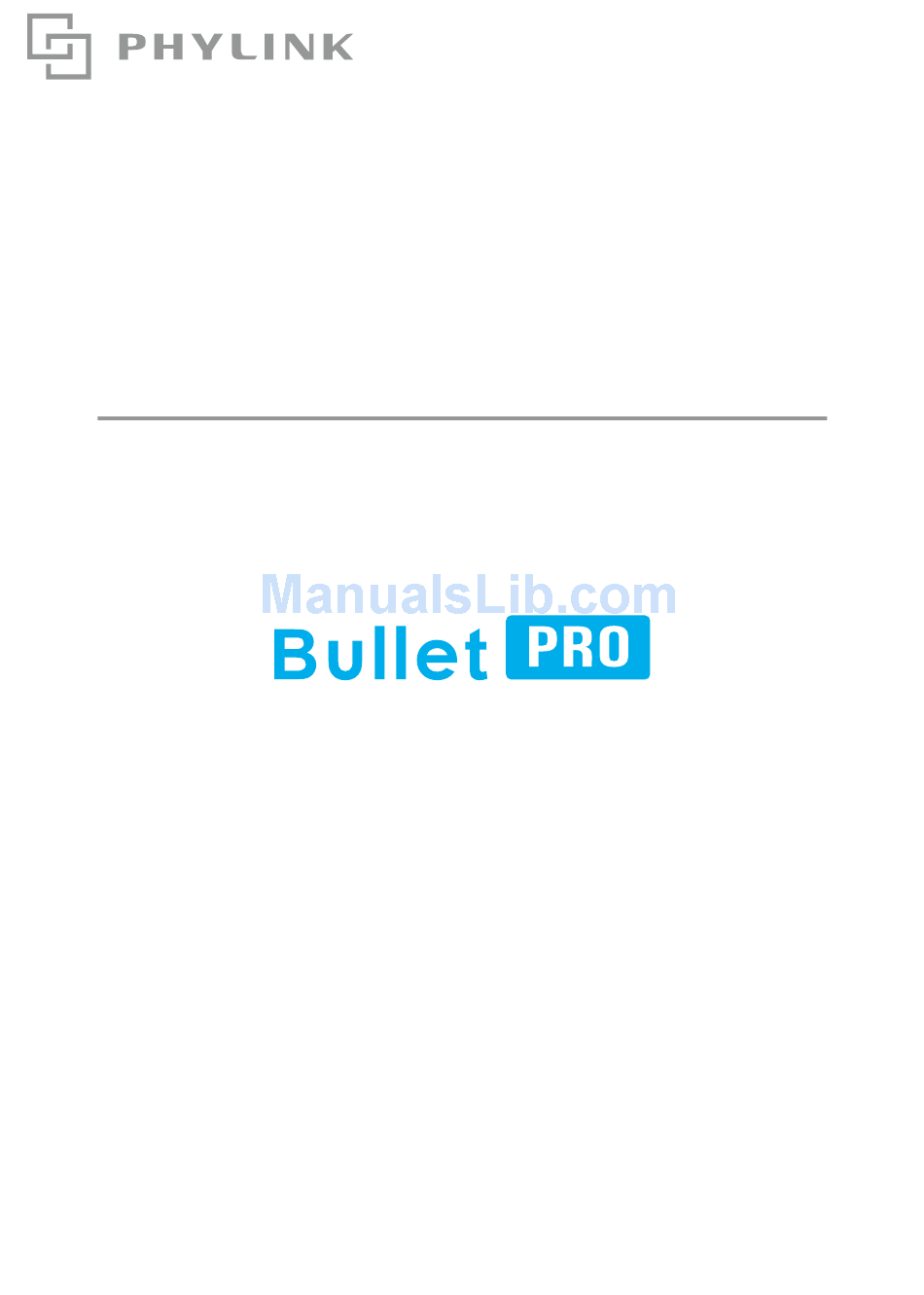

- Page 1 Quick Install Guide Outdoor Network Camera Quick Install Guide VERSION 1.0...
-
Page 2: Table Of Contents
PC (or Mac) . For more information, please read the User Manual on the CD included with this package. Phylink’s website contains the latest user documentation and software updates. Please visit www.phylink.com for more details. Contents 1. Verify the package contents ..............2 2. -
Page 3: Hardware Overview
Used to connect the camera to the power, network, amplified speaker and wired alarm devices. Light sensor Monitors lighting conditions and switches between color and infrared accordingly. Infrared LED Used to illuminate the camera's field of view at night. PHYLINK PLC-336PW Quick Install Guide... -
Page 4: Power Connector
Press this button for 5 seconds to reset the camera. Note that all settings will be restored to factory default. Micro SD Micro SD Card Slot Card Slot Local storage for storing recorded image and video. PHYLINK PLC-336PW Quick Install Guide... -
Page 5: Mounting Accessories
If you wish to mount the Extension Box outdoors, you must put it inside the waterproof box. It's not necessary to use Waterproof Box when you mount the Extension Box indoors. Mounting Accessories Used to fix the Waterproof Box on the wall. PHYLINK PLC-336PW Quick Install Guide... -
Page 6: Hardware Installation
Drop ceiling Mounting The camera can be mounted under the eaves or ceiling. You can replace one of the Sun Shield mounting screws with the included special mounting nut to mount the camera bracket from above. PHYLINK PLC-336PW Quick Install Guide... - Page 7 Extension Box can be mounted indoors and outdoors, it depend on your installation environment. Outdoor Indoor Building wall Extension Box DC Power Cable Network Cable A roughly 25mm diameter hole will be required for camera cable to pass through. Extension Box mount indoors PHYLINK PLC-336PW Quick Install Guide...
- Page 8 IR light from the underside of the Sun Shield would make the entire picture appear foggy, so for maximum night vision range you would either move the Sun Shield all the way back or remove it entirely. PHYLINK PLC-336PW Quick Install Guide...
-
Page 9: Micro Sd Card Installation
IMPORTANT! The PHYLINK Bullet Pro camera is completely weatherproof, but when you take off the Front Shell to insert a Micro SD-card, you must screw the Front Shell back tightly to avoid water leakage and humidity. Be careful not to lose seal O-ring on the Front Shell. - Page 10 You can NOT connect wirelessly to the camera without first setting it up via a network cable. After initial setup only the power cable is required for the Wi-Fi connection. PHYLINK PLC-336PW Quick Install Guide...
- Page 11 Digital output , Max. 40VDC, max. 400mA Digital input, OPEN/Short-to-GND Ground For more details about how to use General I/O terminal , please read the User Manual on the included installation CD or download from the PHYLINK support website. PHYLINK PLC-336PW Quick Install Guide...
-
Page 12: Quick Installation For Ios Device
" to the camera to help identify this camera if more than one camera is in use. ( The default name is "Camera". ) Press " Save " button and your camera will show up under “Camera List”. PHYLINK PLC-336PW Quick Install Guide... - Page 13 " to the camera to help identify this camera if more than one camera is in use. ( The default name is "Camera". ) Press " Save " button and your camera will show up under “ Camera List ”. PHYLINK PLC-336PW Quick Install Guide...
- Page 14 View saved pictures. Press to take a snapshot. Press to start listening or stop listening. Press to start speaking or stop speaking. Press the " Back " button to go back to the “ Camera List ”. PHYLINK PLC-336PW Quick Install Guide...
-
Page 15: Edit Camera
17:50 iPhone Edit Camera Back Back Advanced Setting Name Camera Motion Detection Account admin Alarm Recording Password Microphone Speaker Not available Reconnect Connected Video Quality Security Code Network Setup Advanced Setting Alarm Actions Login Account PHYLINK PLC-336PW Quick Install Guide... - Page 16 ” button to complete the Wi-Fi setup. iPhone 17:52 Enter Password Join Cancel Password After a successful wireless setup, you can remove the network cable and the camera should work through the wireless network after a short delay. PHYLINK PLC-336PW Quick Install Guide...
-
Page 17: Quick Installation For Android Device
Password: camera is in use. Camera Name: ( The default name is "Camera". ) Press " " button and then the camera Cancel will show up under the “Camera List”. PHYLINK PLC-336PW Quick Install Guide... - Page 18 " to the camera to help identify this camera if more than one camera is in use. ( The default name is "Camera". ) Press " " button and then the camera will show up under the “Camera List”. PHYLINK PLC-336PW Quick Install Guide...
- Page 19 Press to take a snapshort of live view. Press to start listening or stop listening. Press to start speaking or stop speaking. Press the “Back” button of Android to go back to the “Camera List”. PHYLINK PLC-336PW Quick Install Guide...
- Page 20 Wi-Fi password, and press " " button to complete setup. D-Link_DIR-612 D-Link_DIR-612 After successful wireless setup, remove the TP-Link_245416 network cable and the camera should work FAST_11DA2E through the wireless network after a short phr-002 delay. PHYLINK PLC-336PW Quick Install Guide...
-
Page 21: Camera Installation On Pc
Note: If the Installation CD program does not start automatically open CD-ROM drive and double click on "autorun". Install Camera Live Documents Exit Double click the Phylink Camera Live icon to start the software after the installation is completed. Setup Camera Multilive Video Album 6.2 Add a camera to Camera Live... - Page 22 Manually type the camera UID according to the sticker on the camera cable. The remaining steps are same, please refer to option 1. After the above steps, you have completed a camera installation on PC and you can view the live video now. PHYLINK PLC-336PW Quick Install Guide...
- Page 23 This icon indicates that the camera is online and connection established. This icon indicates that the camera is in disconnection status. Please check the UID and password you entered or your internet connection. Also check the Hardware Installation of your camera. PHYLINK PLC-336PW Quick Install Guide...
- Page 24 Multilive Video Album 1920x1080 8FPS 1.3Mbps Play Control Panel Take a snapshot Speak talk back Record video Zoom in display ratio Zoom out display ratio Full screen viewing Mute Back cameras preview Volume control bar PHYLINK PLC-336PW Quick Install Guide...
- Page 25 Camera Setup Multilive Video Album the live viewing window of camera, then the live viewing window will appear a blue border. You can only listen one camera home office audio at a time. bedroom school PHYLINK PLC-336PW Quick Install Guide...
- Page 26 Multilive Video Album Home Office Bedroom school 20140206_102606.mov 20140208_102605.mov 20140108_092905.mov 20140108_092903.mov Note: The recorded video file will be automatically created and you can find these files in Camera Live folder in My Documents on desktop. PHYLINK PLC-336PW Quick Install Guide...
- Page 27 Note: The recorded video file will be automatically created and you can find these files in Camera Live folder in My Documents on desktop. Setup Camera Multilive Video Album Home Office Bedroom school 20140206_102606.jpg 20140208_102605.jpg 20140108_092905.jpg 20140108_092903.jpg PHYLINK PLC-336PW Quick Install Guide...
-
Page 28: Installation Via Web Browser
7. Installation via Web Browser 7.1 Viewing Camera via Web Browser Start the Phylink Camera Live and click on button from Main Toolbar to enter the advanced setting via a web browser. Press the "Search" button then the program should automatically find your camera if it is correctly connected. - Page 29 Note: When using the camera for first time on a PC with Internet Explorer, the user may be prompted to select allow installation of "Active X" control. It is perfectly safe to install this add-on, so click "Allow" to install. PHYLINK PLC-336PW Quick Install Guide...
- Page 30 Infrastructure WPA2PSK TP-LINK_4B8C68 Infrastructure FAST_3AC1FE WPA2PSK WPA2PSK Tenda_0B0458 Infrastructure Cancel Select your Wi-Fi network from this list then click " ", and check if your network name has now been filled into the SSID field. PHYLINK PLC-336PW Quick Install Guide...
- Page 31 For more advanced setting, (such as Record, Task Management, Motion Detection, Alarm Action, Video Quality and more) please read the User Manual on the installation CD included with this package or download from the PHYLINK support website. PHYLINK PLC-336PW Quick Install Guide...
- Page 32 For more information or support, visit: Phylink Solutions LLC One Commerce Center-1201 http://www.phylink.com Orange St. #600 Or contact Wilmington support@phylink.com Delaware Copyright 2014 Phylink Solutions LLC. 19899 All Rights Reserved. United States...
