Insert Micro Sd Card Into Camera - Phylink Bullet HD User Manual

Section 2 - Installation

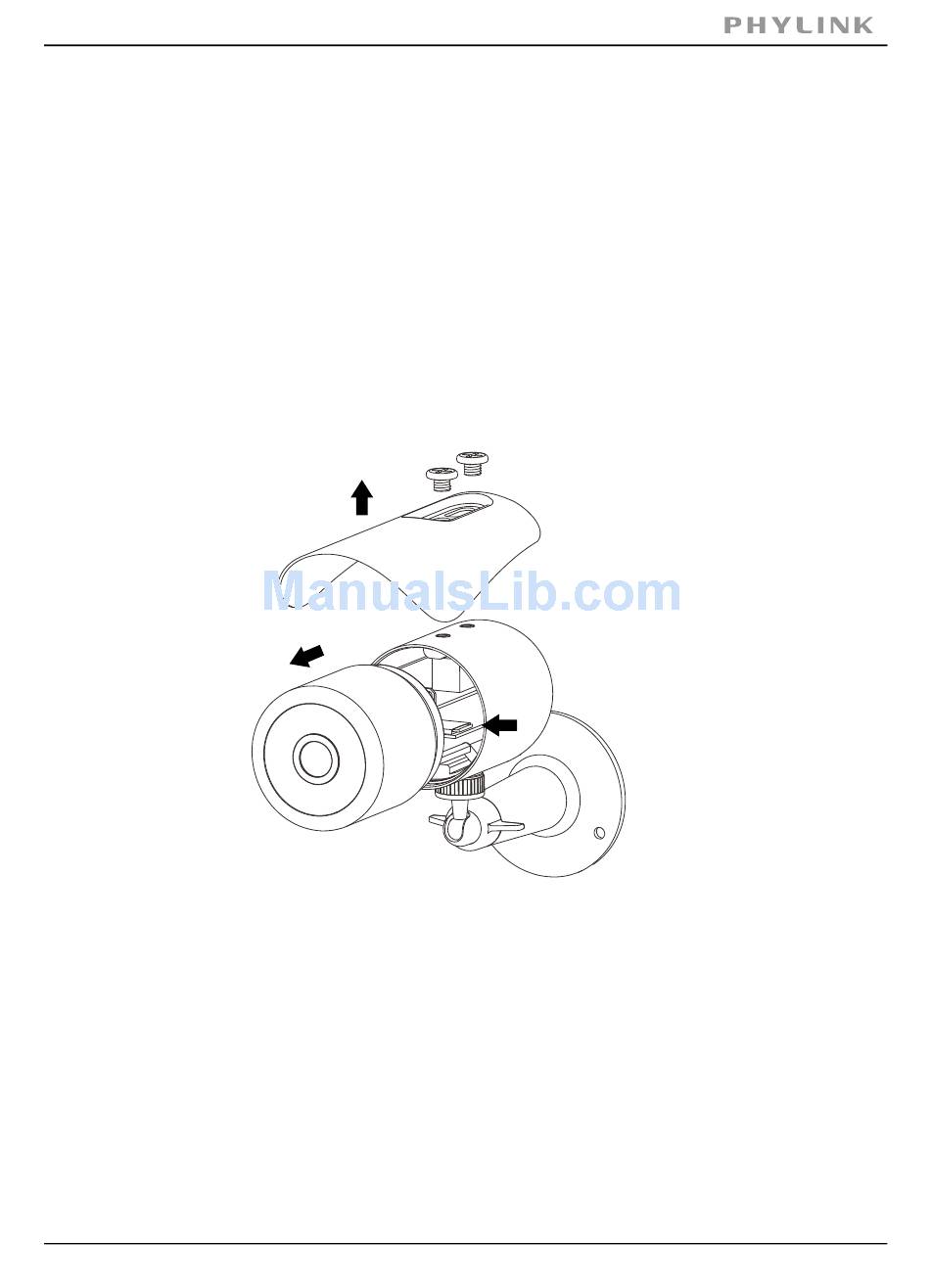

2.2 Insert Micro SD Card into Camera

To access the Micro SD card slot on the outdoor camera series, please bring the camera
indoors (in an area of low humidity), then unscrew the entire front part of the camera.
It is easiest to do it if you take the
Please be very careful not to touch the lens. The Micro SD slides into the slot and there
is a positive "click" when it is locked in place. If it doesn't want to go in effortless it is
probably upside down.
When done, please be careful when screwing the
threads are engaging nicely. Do not use any tools, hand tight is good enough.
Step 2
IMPORTANT! - The PHYLINK Bullet is for waterproof design, but when you take
off the Front Shell to insert a Micro SD-card, you must screw the Front Shell back
tightly to avoid water leakage and humidity.
Sun Shield
Step 1
PHYLINK Bullet HD User Manual
off first.
Front Shell back on to make sure the
Step 3
11
