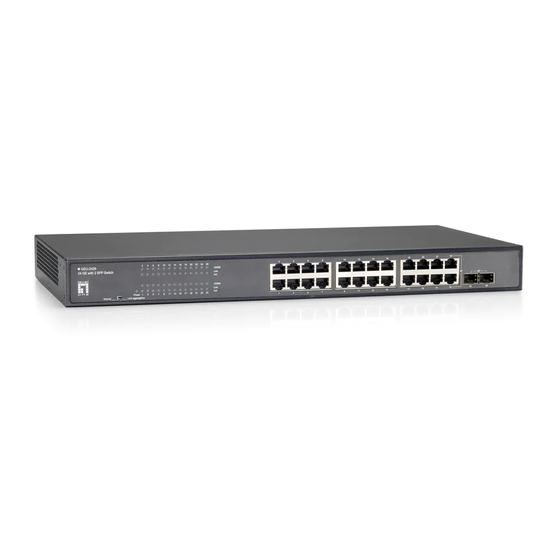

LevelOne GEU-2429 Manual

26-port gigabit ethernet switch, 2 ports sfp
Hide thumbs Also See for GEU-2429:
Table of Contents

Advertisement

Quick Links

GEU-2429
26-Port Gigabit Ethernet Switch, 2 Ports SFP
V1. 0_20150424

Advertisement

Table of Contents
loading

Related Manuals for LevelOne GEU-2429

Summary of Contents for LevelOne GEU-2429

  • Page 1 GEU-2429 26-Port Gigabit Ethernet Switch, 2 Ports SFP V1. 0_20150424...

  • Page 2: Declaration Of Responsibility

    Declaration of Responsibility This manual does not provide any express or implied warranty, including the function of products, information about products and products for a particular purpose and merchantability of the applicability of the implied warranty. Regarding product warranty, please refer to the standard warranty service commitments of the company.

  • Page 3: Table Of Contents

    Directory DECLARATION OF RESPONSIBILITY ................... 2 INTRODUCE ..........................4 ........................ 4 RODUCT OVERVIEW ........................4 PRODUCT FEATURE THE COMPONENT OF SWITCH ....................5 ..........................5 FRONT PANEL ..........................5 REAR PANEL ........................... 5 LATERAL SIDE ....................5 GGREGATION FUNCTION THE INSTALLATION OF THE SWITCH ................. 6 ........................

  • Page 4: Introduce

    1 Introduce This chapter mainly introduces the characteristics of 24 ports Gigabit Ethernet Switch. 1.1 Product overview The 24 ports full Gigabit Ethernet Switch provide adaptive 10/100/1000Mbps port, all Gigabit Ethernet Switch provides a simple, economic, high performance, seamless, standard migrated to 1000Mbps network solutions, provide a lot of flexibility in improving performance of the working party, has the use of simple and flexible, convenient installation, superior performance, the ideal is to build a medium or large network products, designed for quick connection and broadband services and design of...

  • Page 5: The Component Of Switch

    2 The component of Switch 2.1 front panel  LED display panel See chapter 4 for details  Twisted-pair cable connection All RJ45 port have MDI, MDIX auto-calibration function, automatic transformation of the intersection line with straight line, from the loaded down with trivial details that the cable is distinguished in the process of the actual use.

  • Page 6: The Installation Of The Switch

    3 The installation of the Switch In this chapter Introduce the installation of Switch. 3.1 list of articles Open the packing box, carefully counted and should include the following components:  A Switch  A standard power cord  Four rubbers ...

  • Page 7: Panel Work Status Display

    4 Panel work status display When the network devices connected to the switch, please read this chapter carefully, understand the meaning of each LED indicator light. 4.1 (Power) Switches after Power up, the Power light. 4.2 Port status indication In switches, each a twisted-pair port status indicators are as follows: ...

  • Page 8: Set Up The Network Connection

    Connecting cable length should follow the IEEE specification is less than 100 meters (328 ft), because the switches support MDI/MDIX automatic polarity, you can use ordinary straight lines to connect the workstation, or another switch/hub. GEU-2429 24-Port Gigabit Ethernet Switch...

  • Page 9: Ethernet Switch Technology Is Introduced

    6 Ethernet switch technology is introduced Today, is suitable for a variety of sophisticated applications (such as multimedia video conference CAD/CAM) computer technology development is very rapid, in order to apply these techniques more effectively to, to take on more traffic high-speed network put forward higher request. Because realize on bandwidth and low latency communications more urgently need a lot of technology, fast Ethernet technology to upgrade the existing 10 MBPS Ethernet is the most economic and puts forward the feasible solution.
  • Page 10 also follow the rule of the 100 base - TX wiring. Therefore, switched Ethernet has the following advantages: • Switched Ethernet does not need to replace other network hardware, including the cable and th e user's network card, only need to use a change Shared hub, switch to save the user's networ k upgrade costs.

  • Page 11: Appendix

    7 Appendix Product spec Table 1 Support of IEEE802.3、IEEE802.3i、IEEE802.3u, IEEE802.3ab、IEEE802.3z、 standards and IEEE802.3x protocols 24 RJ-45 port 2 SFP Lagging 52Gbps parameters Exterior size H * 440*220*44 W * L (unit: mm) 10BaseT Cat. 3, 4, 5 UTP/STP 100BaseTX Cat. 5 UTP/STP Network media 1000BaseT Cat.

  • Page 12: Wire Instructions

    structure operating temperature：0℃~40℃ operating enviro storage temperature：-40℃~70℃ nment operating humidity：10％~90％ RH noncondensing Storage Humidity：5％~90％ RHnoncondensin power dissipatio ≤20W 7.2 Wire instructions Switches can use two kinds of cable specification...
