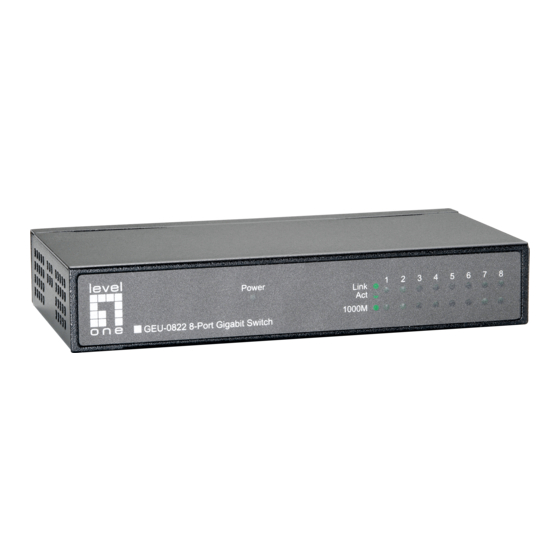

- Page 1 GEU-0822 8-Port Gigabit Switch V1. 2_20151223...
-
Page 2: Table Of Contents
1. INTRODUCTION ............3 Product Briefs ....................3 Product Features....................3 Hardware Introduction ..................4 2. CONNECTING THE SWITCH ........5 Package Contents ....................5 Before You Connect to the Network ..............5 3. Connecting the switch ........... 6 4. Appendix ............... 7 Technical Specifications .................. -
Page 3: Introduction
1. INTRODUCTION 1.1 Product Briefs The switch is a un-management layer 2 10/100/1000Mbps switch; it provide dedicated 10, 100 or 1000 Mbps Ethernet bandwidth on each port. The ports will automatically detect the speed, duplex and MDI/MDIX status of the device it is connecting to, and adjust these settings accordingly. -
Page 4: Hardware Introduction
objects, but with a tenfold increase in theoretical throughput over 100-Mbps Fast Ethernet and a hundredfold increase over 10-Mbps Ethernet. Since it is compatible with all 10-Mbps and 100-Mbps Ethernet environments, Gigabit Ethernet provides a straightforward upgrade without wasting a company’s existing investment in hardware, software and trained personnel. -
Page 5: Connecting The Switch
1.3.2 LED Indicators Table 1-3 Gigabit Ethernet Switch LED Indicators Panel Status Description signature Power Green ON Switch is powered ON Power Indicator Switch is powered OFF Green ON Link Status Link/Act Green Blinking Activity Indicator No link path Status Green ON 1000Mbps Link 1000M... -
Page 6: Connecting The Switch
ventilation around the Switch. Leave at least 10 cm (4 inches) of space at the front and rear of the Switch for ventilation. Install the Switch in a fairly cool and dry place for the acceptable temperature and humidity operating ranges. ... -
Page 7: Appendix
The 8-Port 10/100/1000Mbps Switch can be connected to another switch or other devices (routers, bridges, etc.) via a two-pair Category 3, 4, 5 UTP/STP Straight-Through or Crossover cable. A Category 5 cable must be used for 1000Mbps operation. The connection can be accomplished from any port on the 8-Port 10/100/1000Mbps Switch to any of the 10Mbps ,100Mbps or 1000Mbps ports on another switch or other devices. -
Page 8: Rj-45 Pin Specification
Per Port:1000Mbps Link Per Unit: Power Power Requirement 9V/1A Power Consumption < 5 Watts Dimensions 137mm×75mm×25mm(L x W x H) Weight <=0.5 kg Operating Temperature 0℃ to 40℃ Storage Temperature -20℃ to 70℃ Humidity Operating:10 to 90% RH (non-condensing) Storage: 5 to 95% RH (non-condensing) 4.2 RJ-45 PIN SPECIFICATION The following diagram and tables show the standard RJ-45 receptacle/connector and their pin assignments. - Page 9 Standard RJ-45 receptacle/connector...
