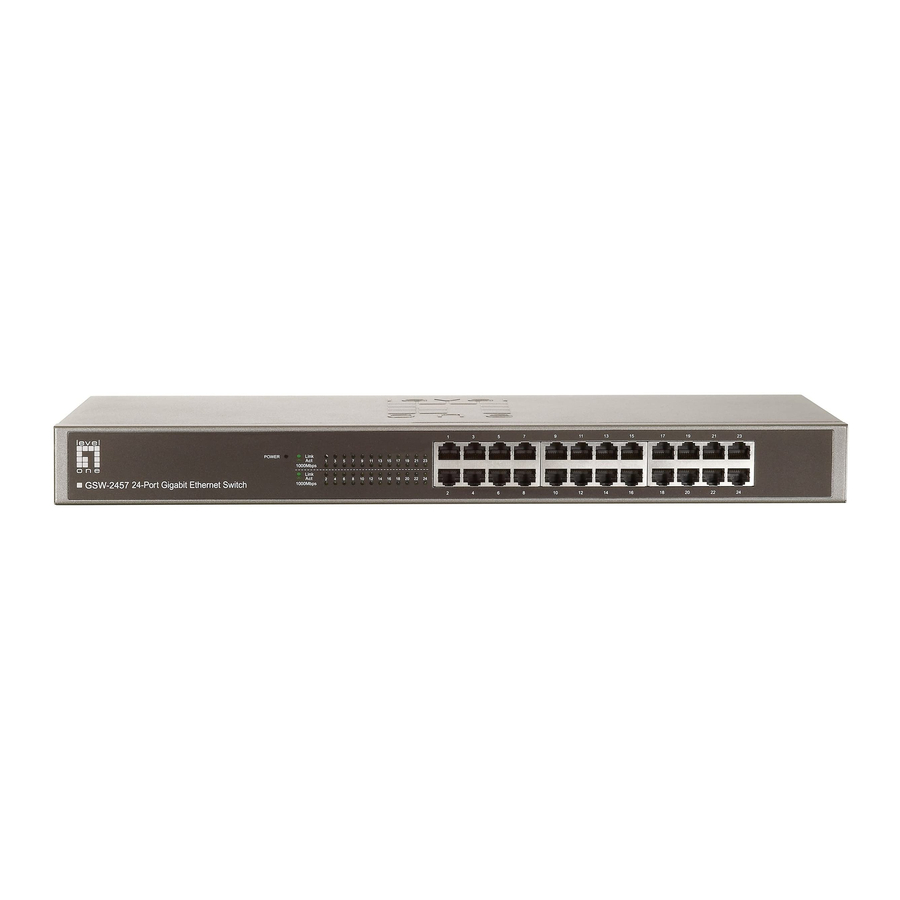

LevelOne GSW-2457 Brochure & Specs

24-Port Gigabit
Ethernet Switch
H/W Version: 2
Gigabit Speed
GSW-2457 is a 24-port Gigabit Ethernet Switch that
gives you a high-performance, low-cost, easy-to-use,
seamless upgrade to boost your network to 1000
Mbps. Increase the speed of your network backbone
to a massive 48Gbps and bring Gigabit speeds all the
way to your computers.
Control Your Network
With an 8K MAC address table, the GSW-2457 has
no problems remembering where to send the data
packets. Also featuring IEEE 802.3x flow control and
Key Features
- 24-Port Combo Ethernet Switch for high-
performance office networks
- Large 48Gbps Switch bandwidth
- Supports Auto-negotiation and Auto-MDI/MDI-X on
all ports
- Support 802.1p QoS
- Store-and-Forward switching architecture
- Compiles with 802.3, 802.3u and 802.3ab standards
- Wire-speed packet filtering and forwarding
- 8K MAC Address and 512KB buffer memory
- 19-inch Rack-Mountable

1 2 3
1. Power LED
2. LAN Port LEDs
3. LAN Ports
4. Internal power socket
IEEE 802.1p Quality of Service functions so you have
greater control over your networks. The switch also
supports Auto MDI/MDI-X cable detection on all ports
to eliminate the need for crossover or Uplink ports for
an easy plug-and-play installation.
Rack Mountable
This 19 inch rack mountable switch with internal
power is ideal for the professional office environment.
Works Well With
GSW-2457
4
GNC-0105T
32-bit Gigabit Ethernet PCI
Adapter
USB-0201
USB Gigabit Ethernet Adapter
