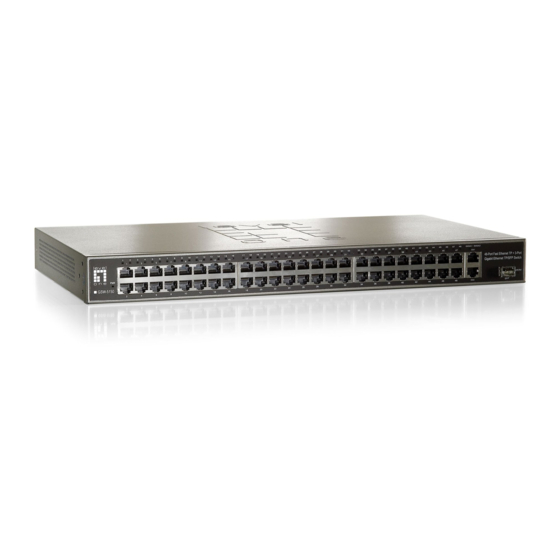

LevelOne GSW-5150 User Manual
48-port fast ethernet tp + 3-port gigabit ethernet tp/sfp
Hide thumbs
Also See for GSW-5150:
- Brochure (86 pages) ,
- Brochure & specs (3 pages) ,
- Quick installation manual (17 pages)
Subscribe to Our Youtube Channel
Related Manuals for LevelOne GSW-5150
Summary of Contents for LevelOne GSW-5150
- Page 1 GSW-5150 User's Guide 48-Port Fast Ethernet TP + 3-Port Gigabit Ethernet TP/SFP Ve r. 1 . 0 . 0 - 0 8 0 3 REV:1.0.0 71035980...
- Page 3 EC DECLARATION OF CONFORMITY (EUROPE) In compliance with the EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC, this product meets the requirements of the following standards: EN55022 EN55024 EN60950 SAFETY NOTICES Caution: Do not use this product near water, for example, in a wet basement or near a swimming pool.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Package Contents..................1 Chapter 1: Introduction of the Product.............2 1.1 Overview of the product.................2 1.2 Features.......................2 Chapter 2: Installation..................3 2.1 Mounting the Switch on a Desk................3 2.2 Mounting the Switch in a Rack................4 2.3 Mounting the SFP module..................5 Power on......................5 Chapter 3: Identifying External Components.......... -
Page 5: Package Contents
Rubber footpads for Desk-mount Rack-mount kit for installing the switch in a 19-inch rack Note: If any of the above contents is damaged or missing, please contact the retailer from whom you purchased the GSW-5150 Gigabit Ethernet Switch for assistance. -
Page 6: Chapter 1: Introduction Of The Product
GSW-5150 48-Port Fast Ethernet +3-Port Gigabit Chapter 1: Introduction of the Product This chapter describes the features of the GSW-5150 Gigabit Ethernet Switch. 1.1 Overview of the product The GSW-5150 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to boost your old network to 1000Mbps. -
Page 7: Chapter 2: Installation
GSW-5150 48-Port Fast Ethernet +3-Port Gigabit 1 SFP(Small Form Pluggable) module interface Supports Auto MDI / MDIX cable detection on all ports eliminate the need for crossover cable or Uplink port. Non-blocking switching architecture that forwards and filters packets at fullwire -speed for maximum throughput. -
Page 8: Mounting The Switch In A Rack
48-Port Fast Ethernet +3-Port Gigabit 2.2 Mounting the Switch in a Rack The dimension of GSW-5150 is designed according to the standard 19'' rack- mountable steel case of Electronic Industries Association. Turn off all the equipment connected to the Switch before mounting it in the rack, then rivet the two ’... -
Page 9: Mounting The Sfp Module
48-Port Fast Ethernet +3-Port Gigabit 2.3 Mounting the SFP module The front panel of the GSW-5150 consists of a SFP module, which support The Hot Plug- And- Draw. Should fixed the SFP into SFP pluggable when use the SFP module.The switch could identify and Config the SFP module automatically. -
Page 10: Rear Panel
3.2 Rear Panel The rear panel of the GSW-5150 only features a power receptacle, which is an AC power receptacle. Connect the female of the power cord head here, and the male head to the AC power outlet. -
Page 11: Appendix A: Specifications
GSW-5150 48-Port Fast Ethernet +3-Port Gigabit Appendix A: Specifications General Standards IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X ANSI/IEEE Std 802.3 Nway IEEE802.3x Protocol CSMA/CD Data Transfer Ethernet: 10Mbps (Half Duplex), 20Mbps (FullDuplex) Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex) - Page 12 GSW-5150 48-Port Fast Ethernet +3-Port Gigabit Environmental and Physical Power maximum 35W Operating Temperature 0°C ~40°C Storage Temperature -40°C ~70°C Operating Humidity 10%~90% non-condensing Storage Humidity 5%~95% non-condensing Dimensions 17.3×10.2×1.73 in.(440 mm×260 mm×44mm)
