Bang & Olufsen BEOLINK Handbook page 33

LexCom Home /IHC Net
®
Antenne
Antenne T110
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

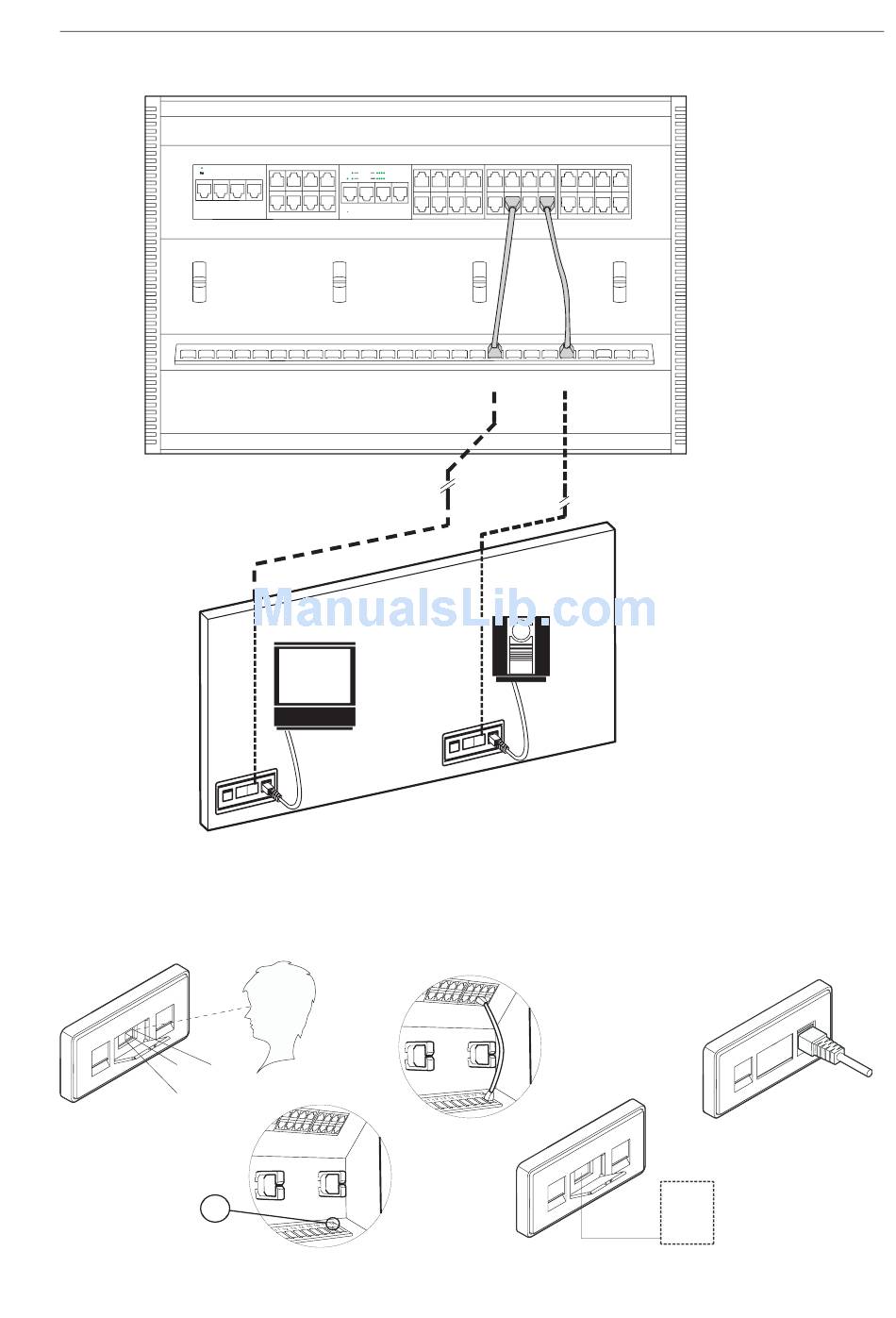

Connection procedure:
1. Determine the number of the
socket where the equipment is
connected.
1 8
18
18
2. Go to the main panel and find
the appropriate patch port.
main panel – Master Link
®
Tele Data Switch
Uplink 1 2 3 4
Link/Data
Pwr Link/Data
1 2 3 4
Tele T100
Data Switch S100-T
M L
3. Patch from Master Link module
to patch port.
MASTER LINK
Master Link Master Link Power Link
MasterLink BO 100-ML MasterLink BO 100-ML PowerLink BO 100-PL
M L
4. Go back to the wall socket and
attach the Master Link symbol.
5. Connect the cable from the wall
socket to the product.
ML
Symbol
