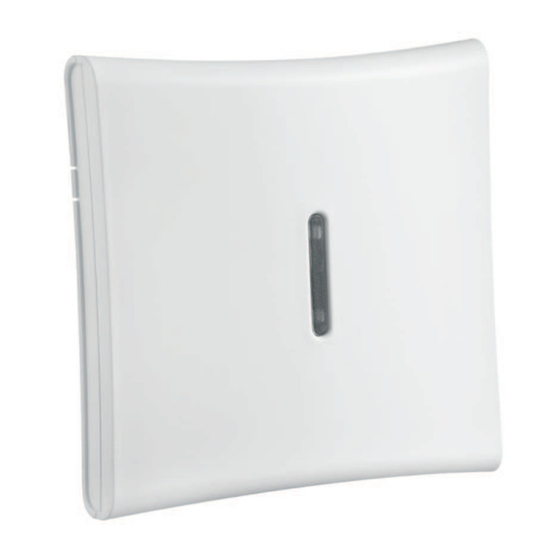

HSM2HOST 2-Way Wireless Transceiver
V1.1 Installation Manual
WARNING: This manual contains information on limitations regarding product use and function and information on the
limitations as to liability of the manufacturer. The entire manual should be carefully read.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSM2HOST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DSC HSM2HOST

Summary of Contents for DSC HSM2HOST

  • Page 1 HSM2HOST 2-Way Wireless Transceiver V1.1 Installation Manual WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. The entire manual should be carefully read.

  • Page 2: Table Of Contents

    Safety Instructions Introduction Installation Process Overview Controls and Indicators Tamper Setup and Wiring Mounting Connect the HSM2HOST Enroll The HSM2HOST Delete the HSM2HOST Permanently Mount Other Options Wireless Device Setup and Programming [804][000] Enroll Wireless Devices [804][001]-[716] Wireless Device Configuration...

  • Page 3: Specifications And Features

    Can be wired up to 1000 ft. / 230 m from the main panel with 22 AWG wire Connects to Corbus Compatibility: The HSM2HOST is used with PowerSeries Neo alarm panels Operating temperature: NA= 0°C – +49°C (32-122°F); EU= -10°C – +55°C...

  • Page 4: Compatible Wireless Devices

    Compatible Wireless Devices Compatible Wireless Devices The HSM2HOSTx (x= 4/8/9) can receive signals from the devices listed in the following chart. Please refer to the instruction sheet of the device for operating instructions. Throughout this document, x in the model number represents the operating frequency of the device as follows: 9 (912-919 MHz), 8 (868MHz), 4 (433MHz).

  • Page 5: Safety Instructions

    HSM2HOST Installation Manual Safety Instructions This equipment must be installed by Service Persons only (a service person is defined as a person having the appropriate technical training and experience necessary to be aware of hazards to which that person may be exposed in performing a task and of measures to minimize the risks to that person or other persons).

  • Page 6: Introduction

    This manual describes how to install, program and maintain the HSM2HOST. Note that only one HSM2HOST or one RFK keypad can be enrolled on the alarm system.

  • Page 7: Tamper

    HSM2HOST Installation Manual Tamper The HSM2HOST has separate built-in wall and case tampers. The case tamper is disabled by default on the NA version (enabled on EU version). Section [804][810] option 3 enables or disables the case tamper. Enable or disable the wall tamper by fastening the breakaway wall tamper bracket securely to the wall using one of the supplied screws.

  • Page 8: Setup And Wiring

    The HSM2HOST must be enrolled onto the alarm panel before any wireless devices can be enrolled. When the alarm system is powered up for the first time, the first keypad or the HSM2HOST (if using a wireless keypad as the first keypad) can be enrolled.

  • Page 9: Delete The Hsm2Host

    2. Press [*] to delete. Permanently Mount Once a suitable location is found, mount the HSM2HOST as follows: 1. Pull the Corbus wires through the holes at the back of the cabinet. 2. Mount the cabinet securely to the wall using the three screws supplied.

  • Page 10: Wireless Device Setup And Programming

    This section describes how to enroll and program wireless devices such as contacts, motion sensors and sirens on the alarm panel. [804][000] Enroll Wireless Devices Once the HSM2HOST is installed and enrolled on the alarm panel, wireless devices can be enrolled using the following method: 1. Enter Installer Programming section [804][000].

  • Page 11: [801] Rf Jam Detect

    HSM2HOST Installation Manual [804][801] RF Jam Detect RF jam detection (continuous interfering transmissions on the radio network) can be turned on or off. When on, RF jamming is logged and reported. To configure RF jamming: 1. Enter Installer Programming section [804][801] then select one of the following options:...

  • Page 12: [841] Motion Cameras

    [804][841] Motion Cameras RF Delin- On: the system cannot be armed if a wireless supervisory trouble exists. quency An RF delinquency trouble is generated. Off: wireless supervisory troubles do not prevent arming. Wireless On: if a supervisory or jamming trouble occurs during Away arming, the Supervisory/ siren activates and the event is logged and reported.

  • Page 13: [990][001 - 005] Show All Devices

    Note: This option is not fully supported by LED and ICON keypads. [804][999] Reset to Factory Defaults Selecting this option resets HSM2HOST programming to factory default settings. [904] Placement Testing Wireless Devices This test is used to determine RF signal status for wireless devices and can be performed at a system keypad or at the individual device.
  • Page 14 [904] Placement Testing Wireless Devices Icon* LED+ Status Strong Strong signal strength Good Good signal strength Poor Poor signal strength Not Test 5 Displayed as the Now result if no test was performed Not Test 5 Always displayed as the 24-hour result when testing wireless keys *For Icon keypads, digit 1 indicates 24-hour test results;...

  • Page 15: Programming Worksheets

    Delete Module 101 - Delete Keypads 102 - Delete Zone Expander 103 - Delete Output Expander 106 - Delete HSM2HOST 108 - Delete Audio Verification 109 - Delete Power Supply [903] Confirm Module 001 - Confirm Keypad 002 - Confirm Zone Expander...
  • Page 16 009: 002: 010: 003: 011: 004: 012: 005: 013: 006: 014: 007: 015: 008: 016: [806] HSM2HOST Label (1 x 14 Characters) [809] HSM2300 Power Supply Label (1 x 14 Characters) [810] HSM2204 High-Current Output Label (1 x 14 Characters)

  • Page 17: Wireless Programming

    HSM2HOST Installation Manual [820] Siren Labels (1 x 14 Characters) [821] Repeater Labels (1 x 14 Characters) [804] Wireless Programming [000] Enroll Wireless Device Zone Wireless Key Siren Keypad Repeater...

  • Page 18: [000] Wireless Device Enrollment - Zones

    [804][000] Wireless Device Enrollment – Zones [804][000] Wireless Device Enrollment – Zones Zone Defin- Zone Zone Label Partition ition Type...

  • Page 19: [000] Wireless Device Enrollment - Wireless Keys

    HSM2HOST Installation Manual [804][000] Wireless Device Enrollment – Wireless Keys Key# Partition# User Label Key# Partition# User Label [804][000] Wireless Device Enrollment – Wireless Sirens Partition# Siren Label Partition# Siren Label Siren# Siren#...

  • Page 20: [000] Wireless Device Enrollment - Wireless Keypads

    [804][000] Wireless Device Enrollment – Wireless Keypads [804][000] Wireless Device Enrollment – Wireless Keypads Keypad Keypad Keypad Label Keypad Label Keypad# Assignment Keypad# Assignment [804][000] Wireless Device Enrollment – Wireless Repeaters Repeater# Repeater Label...

  • Page 21: [001]-[128] Configure Wireless Zones 1-128 (Copy As Needed)

    HSM2HOST Installation Manual [804][001]-[128] Configure Wireless Zones 1-128 (copy as needed) Zone#: Toggle Options [001] Device Options [003] High Traffic Shutdown ✓ 01 – Alarm LED ✓ 01 – Not Active ✓ 02 – Reed Switch 02 – Yes - No Delay 03 –...

  • Page 22: [551]-[556] Configure Wireless Sirens 1-16 (Copy As Needed)

    [804][551]-[556] Configure Wireless Sirens 1-16 (copy as needed) [005] Image Contrast [016] Event Counter 01 – Image Contrast -3 001-002 (Default: 002) 02 – Image Contrast -2 [011] Camera Toggles 03 – Image Contrast -1 ✓ 01 – Color 04 – Image Contrast 0 ✓...

  • Page 23: Toggle Options

    HSM2HOST Installation Manual Zone# Toggle Options [000] Partition Assignment 1 2 3 4 5 6 7 8 [001] Device Toggles [002] Strobe Alarm [004] Squawk ✓ 01 – Fire Alarm 01 – Disabled 01 – Disabled ✓ 02 – Gas/CO Alarm ✓...

  • Page 24: [701]-[716] Wireless Keypad Programming (Copy As Needed)

    [601]-[632] Wireless Key 1-32 [601]-[632] Wireless Key 1-32 Wireless Key# Partition Button User Number Supervision Yes 1 2 3 4 5 6 7 8 1: ✓ Wireless Key# Partition Button Supervision Yes User Number 1 2 3 4 5 6 7 8 1: ✓...
  • Page 25 HSM2HOST Installation Manual 00 - Null Key 13 - Global Away Arm 31 - Local PGM Active 61 - Partition Select 1 02 - Instant Stay Arm 14 - Global Disarming 32 - Bypass Mode 62 - Partition Select 2 03 –...

  • Page 26: [801] Jam Detect

    [804][801] Jam Detect [101]-[128] Door Chime Beeps: 00 – Disabled 01 – 6 beeps ✓ 02 – Bing Bong 03 – Ding Dong 04 – Alarm Tone 05 – Zone Name Door Chime Zone Assignment: 1 ____ 2 ____ 3 ____ 4 ____ 5 ____ 6 ____...
  • Page 27 HSM2HOST Installation Manual [804][841] Motion Cameras 001 Visual Verification 01 – Disabled 02 – Enabled ✓ 002 View Time Window 01 – Alarm + 5 Minutes ✓ 02 – Alarm + 15 Minutes 03 – Alarm + 1 Hour 003 View Other Alarms 01 –...
  • Page 28 Power interruptions of any length are often accompanied by voltage fluctuations which may dam- only warranted to the extent that they do not function upon delivery. In such cases, DSC can replace or credit age electronic equipment such as a security system. After a power interruption has occurred, immediately con- at its option.
  • Page 29 You may not make any changes or modi- fications to the Software, without the written permission of an officer of DSC. You may not remove any pro- prietary notices, marks or labels from the Software Product. You shall institute reasonable measures to ensure compliance with the terms and conditions of this EULA.

  • Page 30: Fcc Compliance Statement

    © 2014 Tyco Security Products. All Rights Reserved. www.dsc.com The trademarks, logos, and service marks displayed on this document are registered in the United States [or other countries]. Any misuse of the trademarks is strictly prohibited and Tyco will aggressively enforce its intellectual property rights to the fullest extent of the law, including pursuit of criminal prosecution wherever necessary.
