Page 1: User Guide
® PacketStar PSAX 21-Port High-Density E1 Multiservice Module User Guide ® for PacketStar PSAX Multiservice Media Gateways Issue 1, September 2002 System Software Release 8.0 ® AQueView EMS Software Release 6.0 Doc. No.: 255-700-262...
Page 2 Copyright © 2002 by Lucent Technologies. All rights reserved. For trademark, regulatory compliance, and related legal information, see the "Legal Notices, Safety, and Regulatory Information" section.
Page 3: Legal Notices, Safety, And Regulatory Information
This material is protected by the copyright laws of the United States and other countries. It may not be reproduced, distributed, or altered in any fash- ion by any entity (either internal or external to Lucent Technologies), except in accordance with applicable agreements, contracts or licensing, without the express written consent of the originating organization and the business management owner of the material.
Page 4: Warranty Information
Warranty Information Software and Hardware Limited Warranties Lucent Technologies provides a 90-day limited software warranty, and a one- year limited hardware warranty on this product. Refer to the Software License and Limited Warranty Agreement and the Lucent Technologies InterNetworking Sys- tems Global Warranty that accompanied your package for more information.
Page 5: Regulatory Standards Compliance
EU-regulativer CE-mærkning Lucent Technologies erklærer hermed at PacketStar PSAX 1000 (-48 V dc og 220 v vekselstrøm), PSAX 1250 (-48 V dc og 220 v vekselstrøm), PSAX 2300, og PSAX 4500 Multiservice Media Gateways, inkl. det udstyr der findes behandlet i denne dokumentation, er i overensstemmelse med følgende EU-...
Page 6 Behördliche Standard-CE-Kennzeichnung für die Europäische Gemeinschaft CE-Markierung Hiermit erklärt Lucent Technologies, dass die PacketStar PSAX 1000 (-48 V DC und 220 V~), PSAX 1250 (-48 V DC und 220 V~), PSAX 2300, und PSAX 4500 Multiservice Media Gateways, einschließlich den in dieser Pub-...
Page 7 Euroopan unionin sääntelystandardi CE-merkintä Lucent Technologies vakuuttaa täten, että PacketStar PSAX 1000 (-48 V dc ja 220 V vaihtovirtaa), PSAX 1250 (-48 V dc ja 220 V vaihtovirtaa), PSAX 2300, ja PSAX 4500 Media Gatewayt ja tässä julkaisussa dokumentoidut laitteet, täyttävät seuraavien neuvoston direktiivien keskeiset vaatimukset ja asiaank-...
Page 8 Norm van de Europese Unie CE-markering Lucent Technologies verklaart hierbij dat de PacketStar PSAX 1000 (-48 V dc en 220V wisselstroom), PSAX 1250 (-48 V dc en 220V wisselstroom), PSAX 2300, en PSAX 4500 Multiservice Media Gateways voldoen aan de essentiële vereisten en andere relevante bepalingen van de volgende Rich-...
Page 9 Europeiska unionens standardförordning CE-märkning Lucent Technologies deklarerar härmed att PacketStar PSAX 1000 (-48 V likström och 220 V växelström), PSAX 1250 (-48 V likström och 220 V växelström), PSAX 2300, och PSAX 4500 Multiservice Media Gateways, ink- lusive den i denna publikation dokumenterade utrustning, uppfyller de väsentliga kraven och andra relevanta bestämmelser som gäller enligt föl-...
Page 10 ® PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 PacketStar 255-700-262...
Page 11: Table Of Contents
Related Reading ............1-2 Lucent Technologies Information Products ....... . .1-2 Product Information Library .
Page 12: Contents
Contents PSAX 2300 Multiservice Media Gateway ........1-3 PSAX 4500 Multiservice Media Gateway .
Page 13 Contents Before You Begin ............4-1 Avoiding Common Errors When Configuring Interfaces.
Page 14 Contents Bringing a Circuit Emulation Interface Into Service......4-72 Viewing the Parameters of a Specific Circuit Emulation Interface ....4-72 Viewing the Circuit Emulation Module Port Statistics.
Page 15 Contents Accessing Port and Channel Configuration Options......5-3 Configuring the Module ..........5-4 Configuring the Ports .
Page 16 Contents Accessing or Viewing the ILMI Configuration Page ..... . 6-45 Setting ILMI Configuration Values........6-45 Viewing Registered Addresses.
Page 17 Contents Pin Configurations ......... . . A-1 Overview of This Appendix .
Page 18: List Of Figures
List of Figures Main Menu Help Window ..........1-10 21-Port High-Density Multiservice E1 Module .
Page 19 4-12 Frame Relay LMI DLCI Status Window .........4-82 4-13 Frame Relay Interface Statistics Window .
Page 20 6-18 Frame Relay Interface Window (After Clicking Apply) ......6-67 6-19 Frame Relay LMI DLCI Status Table Window (Displaying Menu) ..... . 6-70 6-20 Frame Relay Interface Statistics Window .
Page 21 List of Tables Text Conventions ............1-5 Command Description Table Example .
Page 22 4-21 Field Descriptions for the Frame Relay Interface Configuration Window ....4-78 4-22 Windows on Which You Can Bring an Frame Relay UNI or NNI Interface into Service ..4-81 4-23 Field Descriptions for the Frame Relay LMI DLCI Status Table Window .
Page 23 Industry Compliance Specifications ..........B-9 Connection Type by Interface Type Table .
Page 24: Packetstar ® Psax 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release
® PacketStar PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 xxviii 255-700-262...
Page 25 Part 1: General...
Page 27: Getting Started
Getting Started Purpose of This Guide ® The PacketStar PSAX 21-Port High-Density E1 Multiservice Module User Guide provides a description of the 21-Port High-Density E1 Multiservice module. It also provides the following information: • PacketStar I/O module configuration overview • Using the PSAX system to configure ports and channels •...
Page 28: Related Reading
Lucent Technologies Information Products Product Information Library To install, operate, and configure your PSAX system and I/O and server mod- ules, read the PSAX publications provided on your Lucent Technologies Pack- etStar PSAX Multiservice Media Gateways Products, Product Information Library CD-ROM. Printed Documents...
Page 29: Psax 1000 Multiservice Media Gateway
PSAX 2300 Multiservice Media Gateway The PacketStar PSAX 2300 Multiservice Media Gateway offers carrier-grade, high-density multiservice ATM access functions. Designed as the multiservice media gateway for the central office or for a large enterprise customer, the PSAX 2300 system provides network access for time-division multiplex voice, frame relay, 10/100Base-T Ethernet, and ATM data applications.

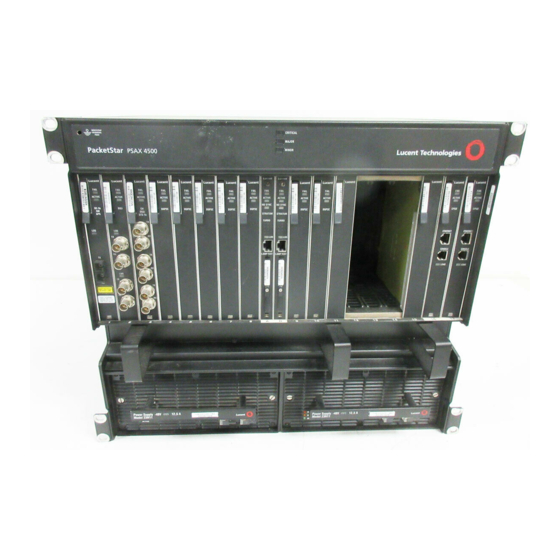

Page 30: Psax 4500 Multiservice Media Gateway
Chapter 1 Getting Started About the PacketStar PSAX Product Family When it is functioning in a redundant operating mode and after it has experi- enced a single-point failure, the PSAX 2300 system provides up to 1.9 Gbps of ATM cell bus capacity. The total ATM cell bus capacity of the system may also be scaled to provide nonblocking, nonredundant chassis bandwidths beyond 1.9 Gbps.
Page 31: Conventions
Chapter 1 Getting Started Conventions Conventions Text Types Used in This Document This guide uses a different typeface to denote text displayed on console inter- face windows and equipment, as well as data you enter. Table 1-1 shows how each typographical convention is used. Table 1-1.
Page 32: Use Of Field Description Tables
Chapter 1 Getting Started Conventions All configuration screen illustrations (windows) in this guide for both the console interface and for the AQueView EMS, are followed by a display or command description table describing the window display-only, command, or button functions displayed on the window. You are urged to read all the information in the command description table, especially upon first use, as commands may have special instructions or configuration constraints called out in the Function column cells by use of the...
Page 33: General Navigational Guidelines
Chapter 1 Getting Started General Navigational Guidelines General Navigational Guidelines Selecting Options, Fields, and Commands Using the Console Interface Follow these guidelines to select an option, field, or command on the PSAX console interface windows and to navigate through the windows: •...
Page 34: Selecting Menu Options And Fields In The Aqueview Gui
Chapter 1 Getting Started General Navigational Guidelines Table 1-5. Shortcut Keys for Navigating Console Interface Windows If you want to... press... redisplay the previous window Ctrl+B on the window. redisplay the Console Interface Main Menu Ctrl+G on the window. window refresh the window Ctrl+R on the window.
Page 35: Help Information
Chapter 1 Getting Started Help Information Table 1-7. How Fields Are Displayed in the AQueView GUI For a field displayed do this... as... a combo box (it displays select the displayed value and a drop-down list will appear with additional with a small triangle values.
Page 36: Technical Support
Chapter 1 Getting Started Technical Support Viewing and Navigating the Help Windows Begin 1 On the window for which help is desired, press the ? (question mark) key. The Help window for the current console window is displayed (see Figure 1-1). Your site name appears here after initial configuration Information line...
Page 37: Before You Begin
Chapter 1 Getting Started Before You Begin to the Lucent Technologies InterNetworking Systems Global Warranty, which accompanied your shipment, for instructions on obtaining support in your area. Before You Begin Before you start configuring and using your new 21-Port High-Density E1 Multiservice module, be sure you: •...
Page 38 Chapter 1 Getting Started Comments on This Guide ® PacketStar PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 1-12 255-700-262...
Page 39: Module Description
Module Description Overview of This Module The 21-Port High-Density E1 Multiservice module (see Figure 2-1) provides 21 ports, each with a line rate of 2.048 Mbps. The interfaces support ITU-T G.703 and ITU G.704. Each port can be independently configured to provide services for channelized and unchannelized frame relay configurations, circuit emulation service, and ATM service.
Page 40: Connection Options
Chapter 2 Module Description Connection Options Configured for channelized E1 service, the 21-Port High-Density E1 Multiservice module maps up to 31 individual high level data links (HDLC) on a single E1 connection (180 HDLC data links per module). This module provides a data service unit (DSU)/channel service unit (CSU) for each port in order to configure individual channels.
Page 41: 21-Port High-Density E1 Multiservice Modules Connected To The Psax 48-Port Rj Patch Panel
Chapter 2 Module Description Connection Options Figure 2-2 and Figure 2-3 show both connectors of two modules connected to a PSAX 48-Port RJ Patch Panel (COMCODE 300298544). Figure 2-4 and Figure 2-5 show one connector of a module connected to a PSAX 12-Port BNC Patch Panel (COMCODE 300298569).
Page 42: Software Features
Chapter 2 Module Description Software Features FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL FAIL ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE ACTIVE Power Supply Power Supply HD E1...
Page 43: Hardware Features
Chapter 2 Module Description Hardware Features • CAS Trunkline • CE: Circuit emulation service (CES) with ISDN PRI using 64 Kbps clear channel; 1 x 64 Kbps structured CAS; unstructured CES • Frame relay UNI and NNI (FRF.1, FRF.2, FRF.5, and FRF.8) •...
Page 44: Performance And Power Specifications
Chapter 2 Module Description Hardware Features Table 2-1. Physical Hardware Specifications <BlueItalic9>Continued<BlueDingbat9>Ø Specification Description Operating altitude range 197 feet below sea level to 13,123 feet above sea level Storage temperature range -40° to 70° C (-40° to 158° F) Storage humidity range 0 to 90% noncondensing Performance and Power Specifications Table 2-2 describes the chassis speed, power consumption, and memory...
Page 45: Led Indicators For The 21-Port High-Density E1 Multiservice Module
Chapter 2 Module Description Hardware Features Table 2-3. LED Indicators for the 21-Port High-Density E1 Multiservice Module Module Status One or More Initial Configured Configured No Cable on Power-On Ports Ports Port Cable on Port FAIL (red) Lights Not lit Lights only Not Appli- Not Applicable...
Page 46 Chapter 2 Module Description Hardware Features ® PacketStar PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 255-700-262...
Page 47 Part 2: Console Operation...
Page 49: Configuring Ports And Channels Using The Console Interface
Configuring Ports and Channels Using the Console Interface Overview of This Chapter This chapter describes how to use the console interface to perform the fol- lowing tasks: • Setting the values for the port and channel configuration of the 21-Port High-Density E1 Multiservice module •...
Page 50: Obtaining General Module Data And Accessing Ports And Channels
Chapter 3 Configuring Ports and Channels Using the Console Interface Obtaining General Module Data and Accessing Ports and Channels Line Loop Line Driver Receiver Port Connector Backplane Connector Local Loop Line Driver Receiver Backplane Connector Figure 3-1. Loopback Configuration Options Obtaining General Module Data and Accessing Ports and Channels This section describes how to obtain product, model, version, and serial num-...
Page 51: Sample Equipment Configuration Window On A Psax 1000 System
Chapter 3 Configuring Ports and Channels Using the Console Interface Obtaining General Module Data and Accessing Ports and Channels 4 Proceed to the section, “Configuring the Ports,” for module configuration procedures. Note: The sample Equipment Configuration windows in the following figures may not show the actual module you are configuring.
Page 52: Sample Equipment Configuration Window On A Psax 1250 System
Chapter 3 Configuring Ports and Channels Using the Console Interface Obtaining General Module Data and Accessing Ports and Channels Figure 3-3. Sample Equipment Configuration Window on a PSAX 1250 System (Page 1) Figure 3-4. Sample Equipment Configuration Window on a PSAX 2300 or PSAX 4500 System (Page 1) ®...
Page 53: Sample Equipment Configuration Window On A Psax 1000, Psax 2300, Or Psax 4500
Chapter 3 Configuring Ports and Channels Using the Console Interface Obtaining General Module Data and Accessing Ports and Channels Figure 3-5. Sample Equipment Configuration Window on a PSAX 1000, PSAX 2300, or PSAX 4500 System (Page 2) Figure 3-6. Sample Equipment Configuration Window on a PSAX 1250 System (Page 2) Commands The commands on this window have the following functions.
Page 54: Commands For The Equipment Configuration Window
Chapter 3 Configuring Ports and Channels Using the Console Interface Obtaining General Module Data and Accessing Ports and Channels Table 3-1. Commands for the Equipment Configuration Window Command Function Update Equipment Display Refreshes the current status of the mod- ules in the PSAX chassis Page Down Displays the second page of the Equip- ment Configuration window.
Page 55 Chapter 3 Configuring Ports and Channels Using the Console Interface Obtaining General Module Data and Accessing Ports and Channels Table 3-2. Field Descriptions for the Equipment Configuration Window (Continued) Field Name Field Values Description Alarm Status Default: No Alarm Displays the present alarm condition of the mod- ule.
Page 56: Configuring The Module
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module The alarm status descriptions for the Alarm Status field on the Equipment Configuration window are provided in Table 3-3. When underscored num- bers are displayed in this field, they represent one or more ports on the mod- ule that currently have a loss of signal.
Page 57: Console Interface Main Menu (Equipment Configuration Selected)
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Figure 3-7. Console Interface Main Menu (Equipment Configuration Selected) The Equipment Configuration window (see Figure 3-8) is displayed. Figure 3-8. Equipment Configuration Window (As Displayed on the PSAX 1250, PSAX 2300 and PSAX 4500 Console) ®...
Page 58: High-Density E1 Configuration Window
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module 2 On the Equipment Configuration window, select an HD-E1 module in the list and press Enter. The High-Density E1 Configuration window is displayed (see Figure 3-9). Figure 3-9. High-Density E1 Configuration Window Commands The commands in these windows have the following functions: Table 3-4.
Page 59: High-Density E1 Port And Channel Configuration Window
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Table 3-4. Command Function Bring All Interfaces Into Brings the out-of-service configured inter- Service faces for all the ports to in-service status. The number of interfaces in service is dis- played in the # Interfaces In Service field for all the ports.
Page 60 Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Command Function Show Straps Displays the High-Density E1 DS0s Strap Display window. Apply Port Configura- For a specified port number value, applies tion the port configuration field values you set. Reset Display Resets the port configuration fields to the last set of saved values.
Page 61: Field Descriptions For The High-Density E1 Port And Channel Configuration Window
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Field Descriptions 4 Enter values in the fields on this window according to the information provided in Table 3-5. Table 3-5. Field Descriptions for the High-Density E1 Port and Channel Configuration Window Field Name Field Values Description...
Page 62 Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Table 3-5. Field Descriptions for the High-Density E1 Port and Channel Configuration Window Field Name Field Values Description Channelization Default: Disabled Indicates whether theE1 port is divided into 31 channels.
Page 63 Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Table 3-5. Field Descriptions for the High-Density E1 Port and Channel Configuration Window Field Name Field Values Description UpStrmIntrworking Default: TrunkCond Displays the communications mode selected between the CE and ATM sides of a connection Range: N/A on this port during alarm conditions.
Page 64 Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Table 3-5. Field Descriptions for the High-Density E1 Port and Channel Configuration Window Field Name Field Values Description [Line Status] Indicates the line status of the interface: loop- (display only) back, failure, received and transmitted alarm information.
Page 65: Configuring A Port With One Channel
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Configuring a Port Configuring a Port with One Channel with One Channel Begin To configure one or more ports on the 21-Port High-Density E1 Multiservice module with only one channel for a port, use the following procedure: 1 Select Chnl 1 Unconfigured on the High-Density E1 Port and Channel Configuration window (see Figure 3-10) and press Enter.
Page 66 Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Table 1 Command Function Apply Configuration For a specified port and channel number value, applies the interface configuration you selected. Reset Display Resets the fields to the last set of saved values.
Page 67 Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module High Density E1 Channel Configuration Table 3-6. Field Descriptions for the Window Field Name Values Description Interface Type Default: Indicates the type of end-to-end connection pro- Unconfigured tocol that governs the transmission parameters of the configured channel interface.
Page 68: Field Descriptions For The High Density E1 Channel Configuration Window
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module High Density E1 Channel Configuration Table 3-6. Field Descriptions for the Window Field Name Values Description [Oper Status] (dis- Default: Displays the operational status of the channel and play only) Unconfigured whether the channel is exchanging a valid signal.
Page 69: Configuring A Port With Several Channels
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Configuring a Port Configuring a Port with Several Channels with Several Channels Begin To configure one or more ports on the 21-Port High-Density E1 Multiservice module with several DS0s strapped together in one channel and several channels for a port, use the following procedure: 1 Select Chnl 1 Unconfigured on the High-Density E1 Port and Channel Configuration window (see Figure 3-10) and press Enter.
Page 70: High-Density E1 Ds0S Strap Display Window
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module In the [DS0s Strapped] field (display only), the values for the DS0s you just selected are displayed. This first group of strapped DS0s are now shown as Channel 1 on the Port and Channel Configuration window, which you can view at any time.
Page 71: Viewing Port Statistics
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Table 2 Command Function Update Display Resets the fields to the last set of saved values. Go Back to E1 Port Redisplays the Port Configuration window Configuration (previous screen).
Page 72: Field Descriptions For The High-Density E1 Port Statistics Window
Chapter 3 Configuring Ports and Channels Using the Console Interface Configuring the Module Table 3-7. Command Function Continuous Update Updates the values in the fields every sec- ond. Reset Statistics Sets all field values to the value 0. Go Back to HD E1 Port Con- Redisplays the High-Density E1 Port and figuration Channel Configuration window.
Page 73: Saving The Equipment Configuration And Logging Off
Chapter 3 Configuring Ports and Channels Using the Console Interface Saving the Equipment Configuration and Logging Off Table 3-8. Field Descriptions for the High-Density E1 Port Statistics Window Field Names Values Description Path Coding Viola- Default: 0 A frame synchronization bit error in the D4 and tions DS1-noCRC formats, or a CRC error in the ESF Range: N/A...
Page 74 Chapter 3 Configuring Ports and Channels Using the Console Interface Saving the Equipment Configuration and Logging Off On the Console Interface Main Menu window, [Modified] is displayed next to the Save Configuration command, indicating you have made changes to your system that are not yet saved to the database. 2 Select the Save Configuration command.
Page 75: Configuring The Interfaces Using The Console Interface
Configuring the Interfaces Using the Console Interface Overview of This Chapter This chapter provides instructions for configuring the following interface types for the 21-Port High-Density E1 Multiservice module: • ATM interswitch signaling protocol (IISP) user • ATM interswitch signaling protocol (IISP) network •...
Page 76: Optimizing Svc Call Performance
Chapter 4 Configuring the Interfaces Using the Console Interface Optimizing SVC Call Performance • Entering field values that are outside of the configurable range of values • Attempting to configure an interface for a port or channel that has already been configured •...
Page 77: Configuring And Viewing The Atm Iisp Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces dard, pending completion of PNNI, Phase 1. Building on ATM UNI 3.0 and 3.1, it uses static routing tables established by the network administrator to route connections around link failures.
Page 78: Atm Iisp Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces Figure 4-1. ATM IISP Interface Configuration Window Commands The commands on this window have the following functions: Command Function Apply Interface Applies the configuration field values you Configuration set.
Page 79: Field Descriptions For The Atm Iisp Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces Command Function Take Interface Out of Ser- Takes an in-service configured interface to vice out-of-service status, and then displays the value OutOfService in the [Admin Status] field.
Page 80 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces Table 4-1. Field Descriptions for the ATM IISP Interface Configuration Window Field Name Field Values Description [Admin Status] Default: Indicates the administrative status of the inter- (display only) Unconfigured face.
Page 81 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces Table 4-1. Field Descriptions for the ATM IISP Interface Configuration Window Field Name Field Values Description UPC Support Default: Disabled Indicates whether usage parameter control is to be used on all VCs on this interface.
Page 82 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces Table 4-1. Field Descriptions for the ATM IISP Interface Configuration Window Field Name Field Values Description SSCOP Rx Wnd Default: 32 Indicates the service-specific connection-ori- Size ented protocol (SSCOP) layer receive window Range: 8–32...
Page 83 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces Table 4-1. Field Descriptions for the ATM IISP Interface Configuration Window Field Name Field Values Description [Mismatched Cells Default: 0 Displays the number of mismatched cells received Rcvd] since the statistics were last reset on this inter- Range: 0–2...
Page 84: Bringing One Or More Atm Iisp Interfaces Into Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces Table 4-1. Field Descriptions for the ATM IISP Interface Configuration Window Field Name Field Values Description [Egress Avail BW] Default: 0 Displays the total egress bandwidth available for (display only) connections for this interface.
Page 85: Viewing Iisp Interface Configuration Parameters
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces Table 4-2. Windows on Which You Can Bring an ATM IISP Interface into Service If the module you are configuring you can bring one or more interfaces into service on these windows: •...
Page 86: Viewing Iisp Interface Statistics
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces (see the Reference Information appendix in this guide for a list of what modules can be used for the interfaces available). You should always view an interface and determine whether you have chosen the correct one before you perform any of the procedures in step 2 below.
Page 87: Windows On Which You Can Take An Iisp Interface Out Of Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces • the Chnl_OperStatus_ field indicates the service status. An asterisk character after the interface type in the Chnl_OperStatus_ field indi- cates the interface is not in service; the absence of the asterisk indicates the interface is in service.
Page 88: Deleting One Or More Atm Iisp Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces Table 4-3. Windows on Which You Can Take an IISP Interface out of Service If the module you are working you can take one or more interfaces out of with is: service on these windows: •...
Page 89: Windows On Which You Can Delete One Or More Atm Iisp Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces 1 Make sure the interface is out of service before deleting it. See the “Tak- ing One or More IISP Interfaces Out of Service” procedure if you need to the take the interface out of service.
Page 90 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces Table 4-4. Windows on Which You Can Delete One or More ATM IISP Interfaces If the module you are working you can delete one or more interfaces on with is: these windows: •...
Page 91: Modifying Iisp Interface Values
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM IISP User and Network Interfaces The window returns to channel configuration window of the module from which the interface was just deleted. You may also delete an interface from the port and channel configuration window of the module configured for the IISP interface.
Page 92: Managing Atm Pnni Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Managing ATM PNNI Interfaces This section provides procedures on performing the following PNNI interface tasks: • Configuring and applying interface(s) • Bringing interface(s) into service • Taking interface(s) out of service •...
Page 93: Atm Pnni Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces 10 If your configuration requires you to bring the interface into service at this time, do so by selecting the Bring Interface Into Service com- mand. For more information on other configuration windows on which you can bring interfaces into service, see the “Bringing One or More Interfaces into Service”...
Page 94: Field Descriptions For The Atm Pnni Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Command Function Update InterfaceDisplay Refreshes the values on this window. Delete Interface and Deletes an out-of-service interface and redis- Return plays the Port and Channel Configuration window for the module you are configuring. You must first take interface out of service (using the Take Interface Out of Service command) before you can use this com-...
Page 95 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-5. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description Over Subscription Default: 10 Allows for the allocated reserved bandwidth for the line to be over-utilized by up to a factor of Range: 1–100 100.
Page 96 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-5. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description Traffic Shaping Default: Disabled Indicates whether traffic shaping is used on this interface.
Page 97 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-5. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description SSCOP Rx Wnd Default: 32 Indicates the service-specific connection-ori- Size ented protocol (SSCOP) layer receive window Range: 8–32 size.
Page 98 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-5. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description [Aggregate Token] Default: 0 Indicates the interface aggregate token, whose (display only) links to a given neighbor node are to be aggre- Range: gated and advertised as a single node link.
Page 99 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-5. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description [Oper Status] Default: Indicates whether the configured interface is (display only) OutOfService capable of carrying traffic.
Page 100 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-5. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description [Egress Avail BW] Default: 0 Displays the total egress bandwidth available for (display only) connections for this interface.
Page 101: Bringing One Or More Pnni Interfaces Into Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-5. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description AdminWeight- Default: 5040 Specifies the administrative weight for the RtVbr rtVbr service category.
Page 102: Viewing The Parameters Of A Pnni Interface
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-6. Windows on Which You Can Bring an PNNI Interface into Service If the module you are configuring you can bring one or more interfaces into service on these windows: •...
Page 103: Viewing Pnni Interface Statistics
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Begin 1 On the Equipment Configuration window, select the module for which you want to view the interface parameters. The module configuration window or the port and channel configuration window for the module is displayed.
Page 104: Atm Pnni Interface Statistics Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Figure 4-3. ATM PNNI Interface Statistics Window Commands The commands on this window have the following functions: Command Function Continuous Update Continuously updates all fields once every second.
Page 105: Taking One Or More Pnni Interfaces Out Of Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-7. Field Descriptions for the ATM PNNI Interface Statistics Window Field Name Field Values Description [Valid Cells Rcvd] Default: 0.0000 e0 Specifies the number of valid cells received into interface side A during the amount of time Range: 0-(2 shown in Time Elapsed field.
Page 106: Windows On Which You Can Take An Pnni Interface Out Of Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Begin 1 Depending on which type of module you are working with and which window you have currently displayed, select either the Take Interface Out Of Service or the Take All Interfaces Out Of Service command on the type of window shown in Table 4-8.
Page 107: Deleting One Or More Pnni Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Deleting One or More PNNI Interfaces You need to delete an PNNI interface before you can replace an interface for a specified port and channel. Note: Before you can delete an PNNI interface, you must first take the interface out of service.
Page 108: Windows On Which You Can Delete One Or More Pnni Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-9. Windows on Which You Can Delete One or More PNNI Interfaces If the module you are working you can delete one or more interfaces on with is: these windows: •...
Page 109: Modifying A Pnni Interface
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Depending on which module you are working with and which window you you have currently displayed, a prompt similar to one of the follow- ing is displayed: Delete interface: all connections for channel will be lost.
Page 110: Configuring Pnni Ilmi
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces 6 Bring the newly configured interface into service. See the procedure in the section, “Bringing One or More PNNI interfaces into Service.” Note: You now need to provision a new connection using the newly configured interface for the same specified port and channel for which you deleted the original interface (and connection).
Page 111: Field Descriptions For The Pnni Ilmi Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Command Function Apply ILMI Configu- Applies the user input values entered on the win- ration dow. Go Back to Interface Returns to the ATM PNNI Interface Configuration Screen window.
Page 112 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-10. Field Descriptions for the PNNI ILMI Configuration Window Field Name Field Values Description Connectivity Proce- Default: Disabled Indicates the establishment and subsequent loss dure of ILMI connectivity detection. Range: N/A Format: predefined Disabled...
Page 113 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Table 4-10. Field Descriptions for the PNNI ILMI Configuration Window Field Name Field Values Description Auto Configura- Default: Disabled Specifies the ability to automatically configure tion Procedure the actual VPI/VCI range based on the local Range: N/A VPI/VCI and the remote VPI/VCI ranges (VPI and...
Page 114: Viewing Pnni Ilmi Interface Statistics
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM PNNI Interfaces Viewing PNNI ILMI Interface Statistics Perform the steps in the following procedure to view PNNI ILMI statistics. Begin 1 To view interface statistics for this connection, select the ILMI Statistics command on the ATM PNNI Interface Configuration window and press Enter (or press Ctrl+I).
Page 115: Managing Atm Uni Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces 2 The values for this window are described on Table 4-11. Table 4-11. Field Descriptions for the ATM PNNI ILMI Interface Statistics Window Field Name Field Values Description [Valid Cells Rcvd] Default: 0.0000 e0...
Page 116 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Begin When you configure the value AtmUni3-0, AtmUni3-1, or AtmUni4-0 as the interface type on a module port and channel configuration window for a module that supports this type of interface, the ATM UNI Interface Configu- ration window is displayed (see Figure 4-6 for ATM UNI 3.0/3.1 and Figure 4-7 for ATM UNI 4.0).
Page 117 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Figure 4-7. ATM UNI Interface Configuration Window (ATM UNI 4.0 Selected on the Module) Note: The ATM UNI Interface Configuration window for UNI 4.0 has the addition of the VUNI Support field. 1 Enter values in the fields on this window according to the information provided in Table 4-12.
Page 118 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Command Function Bring Interface Into Service Brings an out-of-service configured inter- face to in-service status. The value InSer- vice is displayed in the [Admin Status] field. You must first configure the inter- face before you can use this command.
Page 119: Field Descriptions For The Atm Uni Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Table 4-12. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description Over Subscription Default: 10 Specifies the risk factor for this function, which indicates the level of oversubscription allowed by Range: 1–100 the system.
Page 120: Field Descriptions For The Atm Uni Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Table 4-12. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description Interface Name Default: N/A Specifies a textual name of this interface. This inter- face must be uniquely named on this system to dis- Range: 0–20 charac- tinguish parallel links with a neighboring system.
Page 121 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Table 4-12. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description UPC Support Default: Disabled Specifies whether usage parameter control (polic- ing) is to be used on this interface. UPC determines Range: N/A if traffic control is performing to the negotiated Format: Predefined...
Page 122 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Table 4-12. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description SSCOP Rx Wnd Size Default: 32 Specifies the service-specific, connection-oriented protocol (SSCOP) layer receive window size. This Range: 8–32 window shows the total number of packets that Format: Numeric...
Page 123 Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Table 4-12. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description [Oper Status] Default: Displays the operational status of the interface. (display only) Unconfigured Range: N/A Format: Predefined...
Page 124: Bringing One Or More Atm Uni Interfaces Into Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Bringing One or More ATM UNI Interfaces into Service Before you can configure a connection using an ATM UNI interface, you must first bring an ATM UNI interface into service. You can do this task from several different windows.
Page 125: Atm Uni Interface Statistics Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces The ATM UNI Interface Statistics window is displayed (see Figure 4-3). Table 1-3 describes the commands on this window. Table 4-7 describes the display-only fields on this window. Figure 4-8.
Page 126: Taking One Or More Atm Uni Interfaces Out Of Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Table 4-13. Field Descriptions for the ATM PNNI Interface Statistics Window Field Name Field Values Description [Valid Cells Rcvd] Default: 0.0000 e0 Specifies the number of valid cells received into interface side A during the amount of time Range: 0-(2 shown in Time Elapsed field.
Page 127: Windows On Which You Can Take An Atm Uni Interface Out Of Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Begin 1 Depending on which type of module you are working with and which window you have currently displayed, select either the Take Interface Out Of Service or the Take All Interfaces Out Of Service command on the type of window shown in Table 4-3.
Page 128: Deleting One Or More Atm Uni Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces The value OutOfService is now displayed in the [Admin Status] and the [Oper Status] fields. If a connection is already configured for this inter- face, the traffic flow is stopped. To resume traffic on the connection using this interface, you must bring the interface back into service (see the sec- tion, “Bringing One or More ATM UNI Interfaces into Service).
Page 129: Windows On Which You Can Delete One Or More Atm Uni Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Table 4-15. Windows on Which You Can Delete One or More ATM UNI Interfaces If the module you are working you can delete one or more interfaces on with is: these windows: •...
Page 130: Modifying An Atm Uni Interface
Chapter 4 Configuring the Interfaces Using the Console Interface Managing ATM UNI Interfaces Depending on which module you are working with and which window you you have currently displayed, a prompt similar to one of the follow- ing is displayed: Delete interface: all connections for channel will be lost.
Page 131: Managing Cas Trunkline Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing CAS Trunkline Interfaces Note: You now need to provision a new connection using the newly configured interface for the same specified port and channel for which you deleted the original interface (and connection). (See the PacketStar PSAX System Connections Provisioning Guide for more information.) Managing CAS Trunkline Interfaces...
Page 132: Cas Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing CAS Trunkline Interfaces Figure 4-9. CAS Interface Configuration Window Command Function Bring Interface Into Service Brings an out-of-service configured inter- face to in-service status. The value InService is displayed in the [Administra- tive Status] field.
Page 133: Field Descriptions For The Cas Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing CAS Trunkline Interfaces Command Function Delete Interface and Return Deletes an out-of-service interface and redisplays the port and phannel ponfigu- ration window for the module you are configuring. You must first take the interface out of service (using the Take Interface Out of Service command) before you can use this command.
Page 134 Chapter 4 Configuring the Interfaces Using the Console Interface Managing CAS Trunkline Interfaces Table 4-16. Field Descriptions for the CAS Interface Configuration Window Field Name Field Values Description CAS Direction Default: Both Specifies which direction CAS trunk or line will flow.
Page 135 Chapter 4 Configuring the Interfaces Using the Console Interface Managing CAS Trunkline Interfaces Table 4-16. Field Descriptions for the CAS Interface Configuration Window Field Name Field Values Description [Admin Status] Default: Unconfig- Specifies the administrative status of the CAS (display only) ured interface.
Page 136: Bringing One Or More Cas Interfaces Into Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing CAS Trunkline Interfaces Bringing One or More CAS Interfaces Into Service Before you can configure a connection using an CAS Trunkline interface, you must first bring an CAS Trunkline interface into service. You can do this task from several different windows.
Page 137: Viewing Cas Trunkline Configuration Parameters
Chapter 4 Configuring the Interfaces Using the Console Interface Managing CAS Trunkline Interfaces Viewing CAS Trunkline Configuration Parameters Begin The CAS Trunkline interface is accessed for viewing by the same path as configuring the interface. This path may vary depending on the module you used (see the Reference Information appendix in this guide for a list of what modules can be used for the interfaces available).
Page 138: Deleting One Or More Cas Trunkline Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing CAS Trunkline Interfaces Table 4-18. Windows on Which You Can Take an CAS Trunkline Interface out of Service If the module you are working you can take one or more interfaces out of with is: service on these windows: •...
Page 139: Windows On Which You Can Delete One Or More Cas Trunkline Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing CAS Trunkline Interfaces Begin 1 Depending on which module you are working with and which window you have currently displayed, select one of the following deletion com- mands on the type of window shown in Table 4-4: •...
Page 140: Modifying One Or More Cas Trunkline Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing CAS Trunkline Interfaces 2 Type y to continue. The interface is deleted, and any connections provisioned using the inter- face you just deleted are also automatically deleted. Modifying One or More CAS Trunkline Interfaces After you have configured an CAS Trunkline interface for a specified port and channel, you cannot directly change the parameters for this interface even if it is out of service.
Page 141: Managing Circuit Emulation Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Circuit Emulation Interfaces Note: You now need to provision a new connection using the newly configured interface for the same specified port and channel for which you deleted the original interface (and connection). (See the PacketStar PSAX System Connections Provisioning Guide for more information.) Managing Circuit Emulation Interfaces...
Page 142: Circuit Emulation Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Circuit Emulation Interfaces 8 On the Circuit Emulation Interface Configuration window, enter the val- ues in the fields on this window according to the information provided in Table 4-20. 9 Select the Apply Interface Configuration command to set the valus you selected.
Page 143 Chapter 4 Configuring the Interfaces Using the Console Interface Managing Circuit Emulation Interfaces Command Function Bring Interface Into Service Brings an out-of-service configured inter- face to in-service status. The value InService is displayed in the [Admin Sta- tus] field. Note: This command is displayed when the [Admin Status] field is OutOfService.
Page 144: Field Descriptions For The Circuit Emulation Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Circuit Emulation Interfaces Table 4-20. Field Descriptions for the Circuit Emulation Interface Configuration Window Field Names Field Values Description CAS Idle abcd Pat- Default: 0 Displays the Signaling abcd bit pattern for first 2.5 tern seconds.
Page 145 Chapter 4 Configuring the Interfaces Using the Console Interface Managing Circuit Emulation Interfaces Table 4-20. Field Descriptions for the Circuit Emulation Interface Configuration Window Field Names Field Values Description DownStream Inter- Default: TrunkCond Indicates that trunk conditioning will be done working with ATM network.
Page 146: Bringing A Circuit Emulation Interface Into Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Circuit Emulation Interfaces Bringing a Circuit Emulation Interface Into Service Begin Note: You may bring the Circuit Emulation interface into service from either of these windows: • the module port and channel configuration window, or •...
Page 147: Viewing The Circuit Emulation Module Port Statistics
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Circuit Emulation Interfaces Viewing the Circuit Emulation Module Port Statistics To view the Circuit Emulation interface statistics, perform the steps in the fol- lowing procedure. Begin The Circuit Emulation Interface Statistics are viewed on the Port Statistics window of the module you are using for the Circuit Emulation Interface.
Page 148: Deleting A Circuit Emulation Interface
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Circuit Emulation Interfaces Deleting a Circuit Emulation Interface Begin Note: You may delete the Circuit Emulation interface from either of these windows: • the module port and channel configuration window, or •...
Page 149: Managing Frame Relay Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces interface for the same port and channel. Perform the following procedures in the sequence shown to replace an Circuit Emulation interface that has parameters you do not want. Begin 1 On the Equipment Configuration window, select the module for which you want to replace an interface.
Page 150: Configuring The Frame Relay Uni Or Nni Interface
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces • Viewing interface(s) • Deleting interface(s) • Viewing interface statistics Configuring the Frame Relay UNI or NNI Interface This section provides instructions for configuring a PSAX I/O module for the frame relay user or network interface.
Page 151: Frame Relay Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Figure 4-11. Frame Relay Interface Configuration Window Commands The commands in this window have the following functions: Command Function Apply Interface Con- Applies the configuration field value you set. figuration Reset Interface Display Resets the fields to the last set of applied values.
Page 152: Field Descriptions For The Frame Relay Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Command Function Delete Interface and Deletes an out-of-service interface and redis- Return plays the port and channel configuration win- dow for the module you are configuring. You must first take interface out of service (using the Take Interface Out of Service command) before you can use this command.
Page 153 Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Table 4-21. Field Descriptions for the Frame Relay Interface Configuration Window Field Name Field Values Description DLCMI State Default: NoLmi No local management interface (LMI). Note: If you select this value, the fields described (for frame relay UNI only) in this table after Over Subscription will not...
Page 154: Bringing One Or More Frame Relay Uni Or Nni Interfaces Into Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Table 4-21. Field Descriptions for the Frame Relay Interface Configuration Window Field Name Field Values Description N393 Default: 04 System parameter counter for counting of moni- tored events, used with user and network. Range: 1–10 If the value of parameter N393 is set to one much less than N391, then the link could go in and out...
Page 155: Viewing One Or More Frame Relay Uni Or Nni Lmi Dlci Parameters
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Table 4-22. Windows on Which You Can Bring an Frame Relay UNI or NNI Interface into Service If the module you are configuring you can bring one or more interfaces into service on these windows: •...
Page 156: Frame Relay Lmi Dlci Status Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Complete the procedure below to view the Frame Relay Interface DLCIs from the Frame Relay Interface Configuration window (see the “Configuring the Frame Relay UNI or NNI Interface” procedure for instructions on accessing the Frame Relay Interface Configuration window).
Page 157: Viewing Frame Relay Uni Or Nni Interface Statistics
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Command Function Find DLCI: Searches this table by the value you enter in the DLCI field. Go Back to Previous Displays the Frame Relay Interface Con- Menu figuration window.
Page 158: Frame Relay Interface Statistics Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Figure 4-13. Frame Relay Interface Statistics Window Commands The commands in this window have the following functions: Command Function Continuous Update Continuously updates the information in the fields every second. Select this com- mand and press return to turn the contin- uous updating on and off as needed (simi- lar to a toggle switch).
Page 159: Viewing Frame Relay Lmi Statistics
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Table 4-24. Field Descriptions for the Frame Relay Interface Statistics Window Field Name Description [Cells Encoded ] Number of cells encoded going into interface side A during the amount of time shown in Time (display only) Elapsed field.
Page 160: Frame Relay Lmi Statistics Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Figure 4-14. Frame Relay LMI Statistics Window Commands The commands in this window have the following functions: Command Function Continuous Update Continuously updates the information in the fields every second. Select this com- mand and press return to turn the contin- uous updating on and off as needed (simi- lar to a toggle switch).
Page 161: Taking One Or More Frame Relay Uni Or Nni Interfaces Out Of Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Table 4-25. Field Descriptions for the Frame Relay LMI Statistics Window Field Name Field Values Description [Receive Status] Default: 0 Number of status messages received.2 (display only) Range: N/A Format: numeric [Enquiries...
Page 162 Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces • the [Oper Status] field indicates InService or OutOfService • the [Admin Status] field indicates InService or OutOfService On a module port and channel configuration window: • the Chnl_OperStatus_ field indicates the service status. An asterisk character after the interface type in the Chnl_OperStatus_ field indi- cates the interface is not in service;...
Page 163: Windows On Which You Can Take An Frame Relay Uni Or Nni Interface Out Of Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Table 4-26. Windows on Which You Can Take an Frame Relay UNI or NNI Interface Out of Service If the module you are working you can take one or more interfaces out of with is: service on these windows: •...
Page 164: Deleting One Or More Frame Relay Uni Or Nni Interface
Chapter 4 Configuring the Interfaces Using the Console Interface Managing Frame Relay Interfaces Deleting One or More Frame Relay UNI or NNI Interface The interface must be out of service before it can be deleted. To take an inter- face out of service, select the Take Interface Out Of Service command on the Frame Relay Interface Configuration window, or see the “Taking One or More Interfaces Out of Service“...
Page 165: Gr-303 Interface
Chapter 4 Configuring the Interfaces Using the Console Interface GR-303 Interface To change values on the Frame Relay Interface Configuration window (see Figure 4-11), you must first take the interface out of service (see the Taking One or More Frame Relay Interfaces Out of Service” procedure in this guide). You can change the values only in the following fields without first deleting the interface: •...
Page 166: Managing Hdlc Passthrough Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces Managing HDLC Passthrough Interfaces This section provides instructions for managing interfaces by performing the following tasks: • Configuring and applying interface(s) • Bringing interface(s) into service • Taking interface(s) out of service •...
Page 167: Hdlc Pass Through Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces Figure 4-15. HDLC Pass Through Interface Configuration Window Commands The commands in this window have the following functions: Command Function Bring Interface Into Service Brings an out-of-service configured inter- face to in-service status.
Page 168: Field Descriptions For The Hdlc Pass Through Interface Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces Command Function View HDLC Interface Statis- Displays the HDLC Passthrough Interface tics Statistics window. Go Back to Port Configura- Redisplays the port and channel configu- tion ration window of the module you are configuring.
Page 169: Bringing One Or More Hdlc Pass Through Interfaces Into Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces Table 4-27. Field Descriptions for the HDLC Pass Through Interface Configuration Window Field Name Field Values Description HDLC Default: Disabled Specifies whether whether HDLC data inversion DataInversion is to be performed by the I/O module for this Range: As noted interface.
Page 170: Windows On Which You Can Bring An Hdlc Pass Through Interface Into Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces Table 4-28. Windows on Which You Can Bring an HDLC Pass Through Interface into Service If the module you are configuring you can bring one or more interfaces into service on these windows: •...
Page 171: Viewing The Hdlc Pass Through Interface Configuration Parameters
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces Viewing the HDLC Pass Through Interface Configuration Parameters Begin The HDLC Passthrough interface is accessed for viewing by the naviga- tional steps as the steps for configuring the interface. This path may vary depending on the module you used (see the Reference Information appendix in this guide for a list of what modules can be used for the interfaces available).
Page 172: Hdlc Pass Through Interface Statistics Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces Figure 4-16. HDLC Pass Through Interface Statistics Window Command Function Continuous Update Updates the values in the fields every sec- ond. Reset Statistics Sets all field values to 0. Go Back to Previous Redisplays the HDLC Pass Through Inter- Screen...
Page 173: Taking One Or More Interfaces Out Of Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces Table 4-29. Field Descriptions for the HDLC Passthrough Interface Statistics Window Field Name Field Values Description [Frames Decoded] Default: 0 Provides a count of the number of encoded frames received by the I/O port over this interface (display only) Range: N/A...
Page 174: Windows On Which You Can Take An Hdlc Passthrough Interface Out Of Service
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces You can do this task from several different windows (see Table 4-3). To take one or more interfaces out of service, perform the steps in the following pro- cedure.
Page 175: Deleting One Or More Hdlc Passthrough Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces 2 Select Y. The interface is taken out of service. The value OutOfService is now displayed in the [Admin Status] and the [Oper Status] fields. If a connec- tion is already configured for this interface, the traffic flow is stopped.
Page 176: Modifying Interface Values
Chapter 4 Configuring the Interfaces Using the Console Interface Managing HDLC Passthrough Interfaces 5 If you need to delete more HDLC interfaces on a port or channel, repeat steps 1 through 4. Modifying Interface Values After you have configured an HDLC Passthrough interface for a specified port and channel, you cannot directly change the parameters for this interface even if it is out of service.
Page 177: Managing Pri Isdn Interfaces
Chapter 4 Configuring the Interfaces Using the Console Interface Managing PRI ISDN Interfaces Managing PRI ISDN Interfaces This section provides instructions for managing interfaces by performing the following tasks: • Configuring and applying interface(s) • Bringing interface(s) into service • Taking interface(s) out of service •...
Page 178: Enhanced Isdn Lapd And Bchannel Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing PRI ISDN Interfaces Figure 4-17. Enhanced ISDN LAPD and BChannel Configuration Window The commands in this window have the following functions: Command Function Apply Interface Configuration Applies the configuration field values you set. Reset Interface Display Resets the fields to the last set of applied values.
Page 179: Configuring The Pri Isdn Interface
Chapter 4 Configuring the Interfaces Using the Console Interface Managing PRI ISDN Interfaces Command Function Delete Interface and Return Deletes an out-of-service interface and redis- plays the Port and Channel Configuration win- dow for the module you are configuring. You must first take interface out of service (using the Take Interface Out of Service command) before you can use this command.
Page 180: Field Descriptions For The Enhanced Isdn Lapd And B Channel Configuration Window
Chapter 4 Configuring the Interfaces Using the Console Interface Managing PRI ISDN Interfaces The value OutOfService is displayed in the [Operational Status] field. Table 4-31. Field Descriptions for the Enhanced ISDN LAPD and B Channel Configuration Window Field Name Values Description [Oper Status] InService...
Page 181: Bringing The Interface Into Service
Chapter 4 Configuring the Interfaces Using the Console Interface Provisioning Connections Bringing the Interface Into Service Before you can configure a connection using an PRI ISDN interface, you must first bring an PRI ISDN interface into service. To bring one or more interfaces into service, perform the step in the following procedure.
Page 182 Chapter 4 Configuring the Interfaces Using the Console Interface Provisioning Connections ~ ATM-to-ATM virtual channel connection VCC (n) ~ ATM IISP CBR connection ~ ATM IISP VBR connection • SPVC connections: ~ ATM-to-ATM virtual channel connection (VCC) (z) ~ Circuit Emulation-to-ATM virtual channel connection (VCC) (y) ~ Circuit Emulation-to-ATM Std AAL2 virtual channel connection (VCC) ~ Frame relay-to-ATM virtual channel connection (VCC) SPVC connection ~ Variable bit rate (VBR)-to-ATM virtual channel connection (VCC) (w)
Page 183 Part 3: AQueView Operation...
Page 185: Configuring Ports And Channels Using The Aqueview
Configuring Ports and Channels ® Using the AQueView Overview of This Chapter This chapter describes how to use the AQueView EMS to perform the follow- ing tasks: • Setting the values for the port and channel configuration of the 21-Port High-Density E1 Multiservice module •...
Page 186: Context-Sensitive Help
® Chapter 5 Configuring Ports and Channels Using the AQueView Using the Right-Click Menu Figure 5-1. Sample Port Configuration (Displaying Right-Click Menu) Figure 5-2. Sample Channel Configuration (Displaying Right-Click Menu) Table 5-1. Option Function Configure Opens the port and channel configuration window of a module.
Page 187: Accessing Port And Channel Configuration Options
® Chapter 5 Configuring Ports and Channels Using the AQueView Accessing Port and Channel Configuration Options Figure 5-3. Sample of Context-Sensitive Help (Displayed on a Port and Channel Configuration Window) Accessing Port and Channel Configuration Options You must first configure the 21-Port High-Density E1 Multiservice module before you can set up connection provisioning.
Page 188: Configuring The Module
® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module The PSAX device that you opened appears in the Front Panel, and its components are also displayed in the Device Tree (see Figure 5-4). Figure 5-4. Device Tree and Device Window (Displaying a Typical Setup) Configuring the Module Configuring the Ports Perform the steps in the following procedure to configure ports on the...
Page 189: Front Panel View Of The High-Density E1 Module
® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module • In the Front Panel, right-click the port and a menu appears. Select Configure. • In the Device Tree, double-click the desired port symbol or identifier. • In the Device Tree, select a port, then right-click the icon for the mod- ule within Device Tree and a menu appears.
Page 190: High-Density E1 Port Configuration Window
® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module Figure 5-6. High-Density E1 Port Configuration Window Figure 5-7. High-Density E1 Port Configuration Window (Menu Displayed) ® PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 PacketStar 255-700-262...
Page 191 ® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module Figure 5-8. High-Density E1 Port and Channel Configuration Window The buttons on this window have the following functions: Button Function Close Closes this window. Apply Applies the configuration field value you set.
Page 192: Field Descriptions For The High-Density E1 Port And Channel Configuration Window
® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module • Open the Interface Configuration window to configure the interface • Select multiple channels, DS0 strapping, and interfaces Note: All interfaces must be out of service before changes can be made to the port settings;...
Page 193 ® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module Table 5-2. Field Descriptions for the High-Density E1 Port and Channel Configuration Window Field Name Field Values Description Note: When you select the value Unstructured Time Slot 16 Default: Ccs in the Data Transfer Type field, the Time Slot 16 field is display only, showing the value Ccs...
Page 194 ® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module Table 5-2. Field Descriptions for the High-Density E1 Port and Channel Configuration Window Field Name Field Values Description Line Coding Hdb3 High-density bipolar of order 3 (HDB3). A bipo- lar coding method that does not allow more than (display only) 3 consecutive zeros.
Page 195: Viewing Port Statistics
® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module Table 5-2. Field Descriptions for the High-Density E1 Port and Channel Configuration Window Field Name Field Values Description Interface Type AtmUni3_0 When the interface for the port is configured with one of the eight interface types, the inter- AtmUni3_1 face type (shown in the preceding column) dis-...
Page 196: Configuring Channels
® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module Table 5-3. Field Descriptions for the High-Density E1 Port StatisticsPanel Field Names Description Errored Seconds An errored second with at least one of the follow- ing: • Path code violations •...
Page 197: Applying An Interface To A Channel
® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module Applying an Interface Perform the steps in the following procedure to apply an interface to a chan- to a Channel nel on the 21-Port High-Density E1 Multiservice. Begin 1 Click the Channel Configuration tab.
Page 198: Strapping Ds0S
® Chapter 5 Configuring Ports and Channels Using the AQueView Configuring the Module 3 Click Apply to Selected. Figure 5-9. High-Density E1 Channel Configuration Window Note: All interfaces must be out of service before changes can be made to the port settings or the Apply button will appear to be ghosted. The buttons in this window have the following functions: Button Function...
Page 199: Configuring Interfaces
® Chapter 5 Configuring Ports and Channels Using the AQueView Provisioning Connections Note: You cannot select DS0s, nor apply strapping to DS0s, on an unchannelized port. 2 Click Apply To Selected > Close. Configuring Interfaces For a list of valid interface types for the 21-Port High-Density E1 Multiser- vicemodule, instructions on configuring interfaces, and instructions on changing an interface configuration, see Chapter 6.
Page 200: Sample Copy Port Configuration Window (After Initially Selecting The Copy Button From A Port Configuration Page)
® Chapter 5 Configuring Ports and Channels Using the AQueView Copying a Port Configuration Note: Step 3 not applicable unless you have configured at least one chan- nel of the port you are copying (see step 2) with an interface type. You may also choose to copy an interface configuration to range of slots from the appropriate Interface Configuration window.
Page 201: Obtaining Module Hardware Information
® Chapter 5 Configuring Ports and Channels Using the AQueView Obtaining Module Hardware Information The buttons in this window have the following functions: Table 5-5. Button Function Close Closes this window. Copy Copies this interface to a range of channels. Abort Cancels the copying process after it is initiated.
Page 202: Obtaining Hardware Data From A Module
® Chapter 5 Configuring Ports and Channels Using the AQueView Obtaining Module Hardware Information FAIL ACTIVE UNSTR DS3/E3 Click the bar code to open the Module Information window Figure 5-13. Obtaining Hardware Data from a Module The coresponding Module Information window appears (see Figure 5-14).
Page 203: Field Descriptions For The Module Information Window
® Chapter 5 Configuring Ports and Channels Using the AQueView Obtaining Module Hardware Information Table 5-6. Field Descriptions for the Module Information Window Field Name Field Values Description Module Type Default: N/A Indicates the name of the module in the slot. All modules supported by the PSAX systems and the Range: from PSAX AQueView system are listed in the section "I/O...
Page 204: Obtaining Module Status Information
® Chapter 5 Configuring Ports and Channels Using the AQueView Obtaining Module Status Information Table 5-6. Field Descriptions for the Module Information Window Field Name Field Values Description Product Element Default: N/A Displays the product element code (PEC) used to Code identify and order this type of module.
Page 205: Obtaining Led Status Indicator Data
® Chapter 5 Configuring Ports and Channels Using the AQueView Obtaining Module Status Information tems listed in the Device Tree. Alarms that display in the Front Panel tab and Device Tree clear automatically when the condition that created them is cor- rected.
Page 206: Obtaining Port Configuration Data
® Chapter 5 Configuring Ports and Channels Using the AQueView Obtaining Module Status Information Table 5-7. LED Status Indicator Descriptions LED Name on Indicator Description Faceplate Module Status A red light at the top of a module indicates the FAIL Indicators complete failure of a module.
Page 207: Port Status Data
® Chapter 5 Configuring Ports and Channels Using the AQueView Obtaining Module Status Information FAIL ACTIVE UNSTR DS3/E3 A port changes color to indicate it's status. Figure 5-16. Port Status Data ® PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 PacketStar 255-700-262...
Page 208: Ghosted Modules
® Chapter 5 Configuring Ports and Channels Using the AQueView Obtaining Module Status Information Module Indicator Name of PSAX Device Name of PSAX Device and Module Name Operational Status Port Indicators Figure 5-17. Device Tree Status Indicators Table 5-8. Port Status Data Color Description Dark Blue...
Page 209: Saving The Configuration
® Chapter 5 Configuring Ports and Channels Using the AQueView Saving the Configuration Table 5-9. Removing Ghosted Modules from the Front Panel If a module... and you want to... then do this ... has failed • retain all configurations on this remove the failed module and insert an module identical module.
Page 210 ® Chapter 5 Configuring Ports and Channels Using the AQueView Saving the Configuration ® PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 PacketStar 5-26 255-700-262...
Page 211: Ems
Configuring the Interfaces Using the ® AQueView Overview of the Chapter This chapter provides instructions for configuring the following interface types for the 21-Port High-Density E1 Multiservice module: • ATM inter-switch signaling protocol (IISP) user • ATM inter-switch signaling protocol (IISP) network •...
Page 212: Atm Iisp Configuration Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM IISP Interface After applying the IispUser or IispNetwork interface type to a channel from the Channel Configuration page, do one of the following to access the IISP Interface Configuration window: ~ Double-click the left mouse button on the channel for which you want to configure the interface.
Page 213: Setting The Values For The Atm Iisp Interface
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM IISP Interface The buttons in this window have the following functions: Button Function Retrieve from NSAP database If you have previously established an NSAP address database, click this button to retrieve an entry from this list to populate the Local NSAP Address (Hex) field.
Page 214: Field Descriptions For The Atm Iisp Interface Configuration Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM IISP Interface 2 To configure the Local NSAP Address (Hex) field, perform the steps in the section, “Adding NSAP Addresses,” in this chapter, and then return to this procedure. 3 To apply the interface configuration values, including the NSAP address configuration, click Apply.
Page 215 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM IISP Interface Table 6-1. Field Descriptions for the ATM IISP Interface Configuration Window Field Name Field Values Description Minimum SVC VCI Default: 32 The minimum VCI in which signaling can occur on this interface.
Page 216 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM IISP Interface Table 6-1. Field Descriptions for the ATM IISP Interface Configuration Window Field Name Field Values Description UBR Load Balanc- Default: Disabled Specifies whether UBR Load Balancing is to be used on this interface.
Page 217 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM IISP Interface Table 6-1. Field Descriptions for the ATM IISP Interface Configuration Window Field Name Field Values Description Egress Avail BW Default: 0 Displays the total egress bandwidth available for (cps) connections for this interface.
Page 218: Viewing Interface Statistics
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM IISP Interface Table 6-1. Field Descriptions for the ATM IISP Interface Configuration Window Field Name Field Values Description Traffic Shaping Default: Disabled Indicates whether traffic shaping is to be used on this interface.
Page 219: Atm Iisp Interface Statistics Page
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM IISP Interface The Interface Statistics page appears (see Figure 6-2). Figure 6-2. ATM IISP Interface Statistics Page The buttons in this window have the following functions: The buttons in this window have the following functions: Button Function Update...
Page 220: Viewing Interface Utilization Information
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM IISP Interface Table 6-2. Field Descriptions for the ATM IISP Interface Statistics Page Field Name Field Values Description Valid Cells Received Default: 0 Number of valid cells received into interface side (display only) A during the amount of time shown in Time Range: N/A...
Page 221: Atm Iisp Utilization Page
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM IISP Interface The Utilization page appears (see Figure 6-3). Figure 6-3. ATM IISP Utilization Page The buttons at the bottom of the window have the following functions: Button Function 60 sec Time, in seconds or minutes, to poll the PSAX device.
Page 222: Configuring The Atm Pnni Interface
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Button Function Clear Removes the data in the Average Bits/Sec and Average Throughput panels. Poll Poll+ continuously updates the statistics and changes the button label to Poll-. Poll- terminates polling and changes the button label to Poll+.
Page 223: Atm Pnni 1.0 Interface Configuration Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Figure 6-4. ATM PNNI 1.0 Interface Configuration Window ® PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 PacketStar 255-700-262 6-13...
Page 224 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface The buttons in this window have the following functions: Button Function Retrieve from NSAP database If you have previously established an NSAP address database, click this button to retrieve an entry from this list to populate the Local NSAP Address (Hex) field.
Page 225: Field Descriptions For The Atm Pnni Interface Configuration Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Begin 1 Select the values for the fields on this window from the values given in Table 6-3. 2 To configure the Local NSAP Address (Hex) field, perform the steps in the section, “Adding NSAP Addresses,”...
Page 226 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-3. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description Minimum SVC VCI Default: 32/65535 Specifies the lower boundary of the VCI for SVC connections.
Page 227 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-3. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description UPC Support Default: Disabled Indicates whether usage parameter control (policing) is used on this interface. UPC deter- Range: N/A mines if traffic control is performing to negotiated Format: Predefined...
Page 228 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-3. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description AdminWeight - Default: 5040 Specifies the administrative weight for the con- stant bit rate service category.
Page 229 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-3. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description VPI Signaling Default: 5 Displays the virtual channel identifier for SVC Channel signaling.
Page 230 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-3. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description Service Category Default: NrtVbr Indicates a quality of service class type. The speed (display only) and quality of transmission depends on the class- Range: N/A...
Page 231 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-3. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description Egress Avail BW Default: 0 Displays the total egress bandwidth available for (cps) connections for this interface.
Page 232: Viewing Interface Statistics
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-3. Field Descriptions for the ATM PNNI Interface Configuration Window Field Name Field Values Description Local NSAP Address Default: 0 Specifies the ATM NSAP address of the local end (Hex) of the connection.
Page 233: Atm Pnni 1.0 Interface Statistics Page
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Figure 6-5. ATM PNNI 1.0 Interface Statistics Page The buttons in this window have the following functions: Button Function Update Updates the information in the fields. Clear Removes the values in this window and resets them to 0.
Page 234: Configuring The Integrated Link Management Interface (Ilmi)
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-4. Field Descriptions for the ATM PNNI Interface Statistics Page Field Name Field Values Description Valid Cells Received Default: 0.0000 e0 Specifies the number of valid cells received into interface side A during the amount of time Range: 0-(2 shown in Time Elapsed field.
Page 235: Ilmi Configuration Page
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface 2 Select the values for the fields on this window from the values given in Table 6-5. 3 To apply the interface configuration values, click Apply. 4 To go back to the ATM UNI Interface Configuration window, click Close.
Page 236 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Button Function Close Closes this window. Update Updates the information in the fields. Table 6-5. Field Descriptions for the PNNI ILMI Configuration Window Field Name Field Values Description ILMI Operational Default:...
Page 237 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-5. Field Descriptions for the PNNI ILMI Configuration Window Field Name Field Values Description Attachment Point Default: Disabled Specifies that a change of attachment point Detection caused by possible swapping of 2 links that were Range: N/A...
Page 238: Viewing Registered Addresses
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-5. Field Descriptions for the PNNI ILMI Configuration Window Field Name Field Values Description Timer S Default: 1 Used to poll when link is not operational. (display only) Range: 0–(2 The value in this field in displayed as a 32-bit...
Page 239: Viewing Ilmi Statistics
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface addresses. If the scope is not set by the user, it will default to global (a value of 15). 2 To go back to the ATM UNI Interface Configuration window, click Close. Viewing ILMI You can view ILMI statistics on the ILMI Statistics panel of the ILMI Configu- Statistics...
Page 240: Viewing Interface Utilization Information
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Table 6-6. Field Descriptions for the ILMI Statistics Page Field Name Field Values Description PDUs Received Default: 0 Total number of packets received. (display only) Range: N/A Format: Numeric PDUs Transmitted Default: 0...
Page 241: Atm Pnni Utilization Page
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface The Utilization page appears (see Figure 6-8). Figure 6-8. ATM PNNI Utilization Page The buttons at the bottom of the window have the following functions: ® PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 PacketStar...
Page 242 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM PNNI Interface Button Function 60 sec Time, in seconds or minutes, to poll the PSAX device. Select a time interval from the pull-down menu: 5 sec 10 sec 20 sec 30 sec 60 sec (default)
Page 243: Configuring The Atm Uni Interfaces
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Configuring the ATM UNI Interfaces Accessing or Viewing the ATM UNI Interface Configuration Window This section provides instructions for configuring an I/O module for the ATM user-to-network interface (UNI) 3.0, 3.1, 4.0 and Integrated Link Manage- ment Interface (ILMI) interfaces.
Page 244: Atm Uni Interface Configuration Window (4.0)
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Figure 6-10. ATM UNI Interface Configuration Window (4.0) The buttons in the ATM UNI windows have the following functions: Button Function Retrieve from NSAP data- If you have previously established an base NSAP address database, click this button to retrieve an entry from this list to pop-...
Page 245 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Button Function Bring Into Service Displays when the Administrative Status field is OutOfService. Brings an out-of- service configured interface to in-service status. The value InService appears in the Administrative Status field.
Page 246 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces 3 To apply the interface configuration values, including the NSAP address configuration, click Apply. Table 6-7. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description Administrative Status...
Page 247 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-7. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description ATM Signaling Default: Disabled Specifies whether SVCs can be created on this inter- face.
Page 248 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-7. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description Note: This field is displayed only then you select the User Address Default: 2020.2020.
Page 249 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-7. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description UPC Support Default: Disabled Specifies whether usage parameter control (polic- ing) is to be used on this interface.
Page 250 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-7. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description Ingress Avail BW (cps) Default: 0 Displays the total ingress bandwidth available for (display only) connections for this interface.
Page 251 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-7. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description Egress Avail BW (cps) Default: 0 Displays the total egress bandwidth available for (display only) connections for this interface.
Page 252 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-7. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description VI Support Default: Disabled Virtual interfaces connect to a module’s physical ports and allow virtual channels (VCs) to be Range: N/A assigned to virtual trunks, each with its own priority...
Page 253: Viewing Atm Uni Interface Statistics
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-7. Field Descriptions for the ATM UNI Interface Configuration Window Field Name Field Values Description Traffic Shaping Default: Disabled An input cell selection algorithm (leaky bucket) that smooths bursts of input traffic.
Page 254: Atm Uni Interface Statistics Page
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces The ATM UNI Interface Statistics page appears (see Figure 6-11). Figure 6-11. ATM UNI Interface Statistics Page The buttons on this window have the following functions: Table 1 Button Function...
Page 255: Configuring The Integrated Link Management Interface (Ilmi)
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-8. Field Descriptions for the ATM UNI Interface Statistics Page Field Name Field Values Description Valid Cells Received Default: 0.0000 e0 Number of valid cells received into interface side A during the amount of time shown in Time Range: 0-(2 Elapsed field.
Page 256: Ilmi Configuration Page
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces 3 To go back to the ATM UNI Interface Configuration window, click Close. Figure 6-12. ILMI Configuration Page The buttons in this window have the following functions: Button Function Registered User Address...
Page 257: Field Descriptions For The Atm Uni Ilmi Configuration Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-9. Field Descriptions for the ATM UNI ILMI Configuration Window Field Name Field Values Description ILMI Operational Default: OutOfSer- Indicates that ILMI connectivity is not opera- Status vice tional.
Page 258: Viewing Registered Addresses
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-9. Field Descriptions for the ATM UNI ILMI Configuration Window Field Name Field Values Description Timer T Default: 5 Timer T in seconds. Used to poll when link is operational.
Page 259: Viewing Ilmi Statistics
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces The NSAP Address (Hex) column displays the user’s registered addresses. The Org Scope column displays the scope of the registered addresses. If the scope is not set by the user, it will default to global (a value of 15). 2 To go back to the ATM UNI Interface Configuration window, click Close.
Page 260: Viewing Interface Utilization Information
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Table 6-10. Field Descriptions for the ILMI Statistics Page Field Name Field Values Description PDUs Received Default: 0 Total number of packets received. (display only) Range: N/A Format: Numeric PDUs Transmitted Default: 0...
Page 261: Atm Uni Utilization Page
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Figure 6-14. ATM UNI Utilization Page The buttons at the bottom of the window have the following functions: ® PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 PacketStar 255-700-262...
Page 262 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the ATM UNI Interfaces Button Function 60 sec Time, in seconds or minutes, to poll the PSAX device. Select a time interval from the pull-down menu: 5 sec 10 sec 20 sec 30 sec 60 sec (default)
Page 263: Configuring The Cas Trunkline Interface
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the CAS TrunkLine Interface Configuring the CAS TrunkLine Interface Accessing or Viewing the CAS TrunkLine Interface Configuration Window This section provides instructions for configuring an I/O module for the CAS Trunk Line interface.
Page 264: Setting Cas Trunkline Interface Values
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the CAS TrunkLine Interface The buttons in this window have the following functions: Button Function Bring Into Service Displayed when the Administrative Status field is OutOfService. Brings an out-of-ser- vice configured interface to in-service status. The value InService displays in the Adminis- trative Status field.
Page 265: Field Descriptions For The Cas Interface Configuration Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the CAS TrunkLine Interface Table 6-11. Field Descriptions for the CAS Interface Configuration Window Field Name Field Values Description CAS Protocol Default: Wink-Start Specifies the type of CAS protocol to be used. The protocol selected must match that used on the Range: As noted other end of the trunk or line.
Page 266 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the CAS TrunkLine Interface Table 6-11. Field Descriptions for the CAS Interface Configuration Window Field Name Field Values Description CAS Addressing Default: Dtmf Specifies the addressing type used for the CAS Type trunk or line.
Page 267: Configuring The Circuit Emulation Interface
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Circuit Emulation Interface Table 6-11. Field Descriptions for the CAS Interface Configuration Window Field Name Field Values Description Operational Status Default: Unconfig- Specifies the operational status of the CAS inter- (display only) ured face.
Page 268: Circuit Emulation Interface Configuration Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Circuit Emulation Interface After applying the CircuitEmulation interface type to a channel from the Channel Configuration page, do one of the following to access the Circuit Emulation Interface Configuration window: ~ Double-click the left mouse button on the channel for which you want to configure the interface.
Page 269 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Circuit Emulation Interface The buttons on this window have the following functions: Button Function Retrieve from NSAP database If you have previously established an NSAP address database, click this button to retrieve an entry from this list to pop- ulate the Local NSAP Address (Hex) field.
Page 270 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Circuit Emulation Interface Button Function Configure H248 TID Displays the H.248 Termination ID Con- figuration window. For more informa- tion on using this module with H.248, see the H.248 Media Gateway Control User ®...
Page 271: Configuring Circuit Emulation Interface Values
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Circuit Emulation Interface Button Function Take Out of Service Displays when the Administrative Status field is InService. Takes an in-service con- figured interface to out-of-service status. The value OutofService displays in the Administrative Status field.
Page 272: Field Descriptions For The Circuit Emulation Interface Configuration Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Circuit Emulation Interface 3 To apply the interface configuration values, including the NSAP address configuration, click Apply. Table 6-12. Field Descriptions for the Circuit Emulation Interface Configuration Window Field Names Field Values Description Interface Type...
Page 273 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Circuit Emulation Interface Table 6-12. Field Descriptions for the Circuit Emulation Interface Configuration Window Field Names Field Values Description TC Final abcd Bits Default: CasBusy Specifies the bit pattern to be transmitted after 2.5 seconds.
Page 274: Configuring The Frame Relay User/Network Interfaces
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Frame Relay User/Network Interfaces Table 6-12. Field Descriptions for the Circuit Emulation Interface Configuration Window Field Names Field Values Description [Oper Status] Default: Indicates whether any condition is preventing the (display only) OutOfService interface from passing traffic.
Page 275: Frame Relay Interface Window (Before Clicking Apply)
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Frame Relay User/Network Interfaces The Frame Relay Interface Configuration window is displayed (see Figure 6-17). Figure 6-17. Frame Relay Interface Window (Before Clicking Apply) The buttons in this window have the following functions: Button Function Retrieve from NSAP...
Page 276: Setting Values For The Frame Relay Uni/Nni Interface
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Frame Relay User/Network Interfaces Button Function Bring Into Service Brings an out-of-service configured inter- face to in-service status. The value InSer- vice is displayed in the Administrative Status field. This button is (displayed when the Administrative Status field is OutOfService).
Page 277: Frame Relay Interface Window (After Clicking Apply)
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Frame Relay User/Network Interfaces 3 To apply the interface configuration values, including the NSAP address configuration, click Apply. If you selected a value other than NoLmi in the DLCMI State field, then the right-hand panel of the Frame Relay Interface Configuration window appears (see Figure 6-18).
Page 278 ® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Frame Relay User/Network Interfaces Table 6-13. Field Descriptions for the Frame Relay Interface Configuration Window Field Name Field Values Description Administrative InService Indicates that the interface is in service. Status OutOfService Indicates that the interface is not in service.
Page 279: Viewing Dlcis
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Frame Relay User/Network Interfaces Table 6-13. Field Descriptions for the Frame Relay Interface Configuration Window Field Name Field Values Description N391 Default: 6 System parameter counter for full status (status of all PVCs) polling, used with user and network.
Page 280: Viewing Frame Relay Statistics
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Frame Relay User/Network Interfaces The Frame Relay LMI DLCI Status Table window is displayed (see Figure 6-19). Figure 6-19. Frame Relay LMI DLCI Status Table Window (Displaying Menu) The buttons on this window have the following functions: Button Function Find...
Page 281: Frame Relay Interface Statistics Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Frame Relay User/Network Interfaces Figure 6-20. Frame Relay Interface Statistics Window The buttons in this window have the following functions: Button Function Update Updates the information in the fields. Clear Removes the values in the Interface Sta- tistics panel and resets them to 0.
Page 282: Viewing Lmi Frame Relay Statistics
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Frame Relay User/Network Interfaces Table 6-14. Field Descriptions for the Frame Relay Interface Statistics Page Field Name Description Cells Encoded Number of cells encoded going into interface side A during the amount of time shown in Time (display only) Elapsed field.
Page 283: Frame Relay Lmi Statistics Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the Frame Relay User/Network Interfaces Figure 6-21. Frame Relay LMI Statistics Window The buttons in this window have the following functions: Button Function Update Updates the information in the fields. Clear Removes the values in the Interface Sta- tistics panel and resets them to 0.
Page 284: Configuring The Hdlc Passthrough Interface
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the HDLC Passthrough Interface Table 6-15. Field Descriptions for the Frame Relay LMI Statistics Page Field Name Field Values Description Receive Status Default: 0 Number of status messages received.2 (display only) Range: N/A Format: numeric Enquiries Received...
Page 285: Hdlc Passthrough Interface Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the HDLC Passthrough Interface After applying the HdlcPassThrough interface type to a channel from the Channel Configuration page, do one of the following to access the HDLC Pass Through Interface Configuration window: ~ Double-click the left mouse button on the channel for which you want to configure the interface.
Page 286: Hdlc Passthrough Interface Values
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the HDLC Passthrough Interface Button Function Bring Into Service Displays when the Administrative Status field is OutOfService). Brings an out-of-service configured interface to in-service status. The value InService displays in the Administra- tive Status field.
Page 287: Hdlc Passthrough Interface Statistics Page
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the HDLC Passthrough Interface The HDLC PassThrough Interface Statistics page appears (see Figure 6-23). Figure 6-23. HDLC PassThrough Interface Statistics Page The buttons in this window have the following functions: Button Function Update...
Page 288: Configuring The Pri Isdn User/Network Interfaces
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the PRI ISDN User/Network Interfaces Table 6-16. Field Descriptions for the HDLC Passthrough Interface Statistics Page Field Name Field Values Description Frames Decoded Default: 0 Provides a count of the number of encoded (display only) frames received by the I/O port over this interface Range: N/A...
Page 289: Pri Isdn Interface Configuration Window (User)
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the PRI ISDN User/Network Interfaces The ISDN Interface Configuration window appears (see Figure 6-24) . Figure 6-24. PRI ISDN Interface Configuration Window (User) The buttons in this window have the following functions: Table 6-17.
Page 290: Configuring Pri Isdn Interface Values
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the PRI ISDN User/Network Interfaces Table 6-17. Button Function Delete Deletes an out-of-service interface and redis- plays the Port and Channel Configuration win- dow for the module you are configuring. You must first take interface out of service (by clicking the Take Out of Service button) before you can use this button.
Page 291: Field Descriptions For The Pri Isdn Network/User Configuration Window
® Chapter 6 Configuring the Interfaces Using the AQueView Configuring the PRI ISDN User/Network Interfaces Table 6-18. Field Descriptions for the PRI ISDN Network/User Configuration Window Field Name Values Description Interface Type Default: Indicates the primary rate network or user inter- (display only) Pri_Isdn_Network face that you are configuring.
Page 292: Adding Nsap Addresses
® Chapter 6 Configuring the Interfaces Using the AQueView Adding NSAP Addresses Table 6-18. Field Descriptions for the PRI ISDN Network/User Configuration Window Field Name Values Description L2 State Tei-unassigned, The current state of the ISDN Layer 2 protocol. (display only) tei-assigned, waiting- establishment,...
Page 293 ® Chapter 6 Configuring the Interfaces Using the AQueView Adding NSAP Addresses If the value entered in the Local NSAP Address (Hex) field is valid, the field becomes ghosted. The Select NSAP window appears (see Figure 6-25). You can populate the Slot, Port, Channel, and NSAP Address fields for an existing device, or add a new entry, and click Add.
Page 294: Correcting Errors When Applying An Interface
® Chapter 6 Configuring the Interfaces Using the AQueView Correcting Errors When Applying an Interface Figure 6-25. Select NSAP Window The buttons in this window have the following functions: Button Function Retrieve Enters the NSAP address for a device that is selected on the Select Remote NSAP window into the Remote NSAP Address field of the Interface Configuration window.
Page 295: Bringing An Interface Into Service
® Chapter 6 Configuring the Interfaces Using the AQueView Bringing an Interface Into Service The Utilization page can be displayed for some interface and connection types. You can use the Utilization page to calculate and display the average number of cells per second, average number of bits per second for a given ATM interface and for a given time interval.
Page 296: Performing An Action On An Interface
® Chapter 6 Configuring the Interfaces Using the AQueView Performing Bulk Operations Begin 1 Do one of the following: Table 6-19. Performing an Action on an Interface If you want to... then do this... create a new interface and apply From the Channel Configuration page, select a channel, select any it to a channel value in the Interface Type field, and click Apply to Selected.
Page 297: Enabling Or Disabling Traps Decision Table
® Chapter 6 Configuring the Interfaces Using the AQueView Performing Bulk Operations Table 6-20. Enabling or Disabling Traps Decision Table If you are performing this action... and you... then do this... creating an interface and applying it to a want to enable traps select Enable Traps channel Before Operation and click OK.
Page 298: Copying An Interface Configuration
® Chapter 6 Configuring the Interfaces Using the AQueView Copying an Interface Configuration To view the status of interface traps, click the Trap Activation tab and select Interface Events in the Show traps from: field at any time. Copying an Interface Configuration The Copy button on each Interface Configuration window allows you to copy an interface configuration to a range of channels, either from a given module, or for a range of modules...
Page 299: Sample Copy Interface Configuration Window (After Initially Selecting The Copy Button From A Port Configuration Page)
® Chapter 6 Configuring the Interfaces Using the AQueView Copying an Interface Configuration Figure 6-26. Sample Copy Interface Configuration Window (After Initially Selecting the Copy Button From a Port Configuration Page) Figure 6-27. Sample Copy Interface Configuration Window (After Selecting Valid Attributes) The buttons in this window have the following functions: Button...
Page 300: Changing Interface Configuration Values
® Chapter 6 Configuring the Interfaces Using the AQueView Changing Interface Configuration Values Changing Interface Configuration Values If you need to change the interface configuration values at any time after the interface has been brought into service, you must take the interface out of service, delete the current interface, and then re-create another interface after configuring the desired values.
Page 301: Deleting An Interface
® Chapter 6 Configuring the Interfaces Using the AQueView Changing Interface Configuration Values 2 Select the channel to be taken out of service. 3 Click Take Out Of Service. 4 Press the Y key (to indicate yes) to continue. The interface is taken out of service. Deleting an Interface To delete any interface type other than a virtual interface, perform the steps in the following procedure.
Page 302: Saving Your Configuration
® Chapter 6 Configuring the Interfaces Using the AQueView Saving Your Configuration 3 To re-create the interface, repeat steps in the procedure, "Setting the Val- ues for the Interface." 4 To save this interface configuration to the PSAX configuration database, in the Provisioning Menu Bar, click Device >...
Page 303 ® Chapter 6 Configuring the Interfaces Using the AQueView Provisioning Connections • SPVC connections: ~ ATM-to-ATM virtual channel connection (VCC) (z) ~ Circuit Emulation-to-ATM virtual channel connection (VCC) (y) ~ Circuit Emulation-to-ATM Std AAL2 virtual channel connection (VCC) ~ Frame relay-to-ATM virtual channel connection (VCC) SPVC connection ~ Variable bit rate (VBR)-to-ATM virtual channel connection (VCC) (w) ®...
Page 304 ® Chapter 6 Configuring the Interfaces Using the AQueView Provisioning Connections ® PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 PacketStar 6-94 255-700-262...
Page 305: Pin Configurations
Pin Configurations Overview of This Appendix This appendix describes the pinouts on the 21-Port High-Density E1 Multi- service module. The following information is provided to help you connect appropriately configured cables to the Multiservice Media Gateway systems. Configurations for the HD E1 Module Connectors Table A-1 shows the pin configurations for the 21-port High-Density E1 Mul- tiservice module.
Page 306: Pin Locations On The Mini-Champ Port Connector
Appendix A Pin Configurations Configurations for the HD E1 Module Connectors Table A-1. Mini-Champ Pinouts for the HD E1 Module (Continued) Network Network Top Row Bottom Row Port Port Signal Pair Signal Pair Tip Pin # Ring Pin # Connector A Connector B Connector A Connector B...
Page 307: A-2 Mini-Champ To Rj-48H Cable Wiring (Comcode 300550639)
Appendix A Pin Configurations Configurations for the HD E1 Module Connectors Table A-2. Mini-Champ to RJ-48H Cable Wiring (COMCODE 300550639) (Continued) Port Port Mini-Champ Signal Name RJ48H Pin Twisted Pair Connector A Connector B Socket Pin RRING_2 TTIP_3 TRING_3 RTIP_3 RRING_3 TTIP_4 TRING_4...
Page 308 Appendix A Pin Configurations Configurations for the HD E1 Module Connectors Table A-2. Mini-Champ to RJ-48H Cable Wiring (COMCODE 300550639) (Continued) Port Port Mini-Champ Signal Name RJ48H Pin Twisted Pair Connector A Connector B Socket Pin Not Used TRING_11 Not Used RTIP_11 Not Used RRING_11...
Page 309: Reference Information
Reference Information Overview of This Appendix This appendix contains reference tables that are helpful while configuring your PSAX Multiservice Media Gateway system. The following types of infor- mation are provided: • ATM Traffic Descriptors • ATM User-Network Interface Specification Cause Codes Table, Version 3.1(for Connection Retry) •...
Page 310: Traffic Descriptors Supported
Appendix B Reference Information ATM Traffic Descriptors • VBR-to-ATM VCC PVC Traffic Descriptors Supported The available traffic descriptors are as follows: • Best effort (Best-effort) This traffic descriptor allows the system to attempt to send all cells in a “best effort” fashion, without specifying traffic parameters, similar to the AQueMan algorithm.
Page 311: Spvc Connection Cause Codes Table For Connection Retry
Appendix B Reference Information SPVC Connection Cause Codes Table for Connection Retry This traffic descriptor uses the parameters two buckets, tagging, CLP=0+1 cells (high and low priority) for bucket 1, and CLP=0 cells (high priority) for bucket 2. For bucket 1, the Multiservice Media Gateway ignores the CLP bit value for cells passing into bucket 1 and drops all cells violating the value set for the PCR.
Page 312 Appendix B Reference Information SPVC Connection Cause Codes Table for Connection Retry Table B-1. Connection Cause Codes for SPVCs (Continued) Cause Prompts Referenced Description Code a Retry Standard Call was rejected. Although the equipment sending this cause ITU-T Q.850 code is neither busy nor incompatible, the equipment sending this cause code does not want to accept the call.
Page 313 Appendix B Reference Information SPVC Connection Cause Codes Table for Connection Retry Table B-1. Connection Cause Codes for SPVCs (Continued) Cause Prompts Referenced Description Code a Retry Standard Access information was discarded. The network failed to ITU-T Q.850 deliver access information to the remote user (for example, user-to-user, low-layer compatibility, high-layer compatibil- ity, or subaddress).
Page 314 Appendix B Reference Information SPVC Connection Cause Codes Table for Connection Retry Table B-1. Connection Cause Codes for SPVCs (Continued) Cause Prompts Referenced Description Code a Retry Standard Endpoint reference is not valid. The equipment sending this ATM Forum UNI cause code received a message with an endpoint reference 3.0/3.1 that is currently not in use on the user-network interface.
Page 315: Dsp Tone Detection Modes Table
Appendix B Reference Information DSP Tone Detection Modes Table Table B-1. Connection Cause Codes for SPVCs (Continued) Cause Prompts Referenced Description Code a Retry Standard 102 Recovery on timer expiration. A procedure has been initiated ITU-T Q.850 by the expiration of a timer that is related to error handling procedures.
Page 316: Dsp2C Module Channel Reduction When Using Fax Relay Mode
Appendix B Reference Information DSP2C Module Channel Reduction When Using Fax Relay Mode DSP2C Module Channel Reduction When Using Fax Relay Mode Table B-4. Channel Reduction Availability Caused by Fax Relay Connections vs. Voice Processing Connections on a DSP2C Module Number Percent of All DSP Total Connections...
Page 317: B-5 Industry Compliance Specifications
Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications Feature Name/Product Name Specification Title Notes Integrated Local Management af-ilmi-0065.000 Interface (ILMI) Integrated Local Management ILMI over PNNI Interface (ILMI) Channelized DS3, Channelized STS-1e, DS1 IMA, DS3 IMA, E1 IMA, DS3 ATM, E3 ATM, Enhanced DS1, Enhanced E1, High-Density E1, High Speed,...
Page 318 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes ATM Maintenance Mode af-pnni-0066000 In-band Management SVC Private Network-Network Inter- face (PNNI) Addendum (Soft PVC) Channelized DS3, Channelized af-sig-0061.000 STS-1e, DS1 IMA, DS3 IMA, E1 User-Network Interface (UNI) IMA, DS3 ATM, E3 ATM, Enhanced DS1, Enhanced E1,...
Page 319 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes GR-303 DLC Services af-vmoa-0145.000 VTOA AAL2 Trunking Narrow- Voice and Multimedia Over band Services ATM–Loop Emulation Service Using AAL2 Carrier Group AIS Alarm af-vtoa-0078.000 Includes 56 (DS1), Nx64 (DS1, I.610 OAM F4/F5 Processing...
Page 320 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes GR-303 DLC Services ANSI T1.602 VTOA AAL2 Trunking Narrow- Integrated Services Digital Net- band Services work (ISDN)- Data-link Layer Signaling Specification for Application at the User-Network Interface GR-303 DLC Services...
Page 321 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes ETSI 300 402-1 Integrated Services Digital Net- work (ISDN), Digital Subscriber Signaling System No. 1 (DSS1) Protocol; Data Link Layer, Part 1: General Aspects ETSI 300 402-2 Integrated Services Digital Net-...
Page 322 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes I.610 OAM F4/F5 Processing TR-NWT-00170 (remote defect indication [RDI] Bellcore Digital Cross-Connect and alarm indication signal System Generic Requirements [AIS]) and Objectives IETF RFC 1157 Simple Network Management Protocol (SNMP) Version 1.0...
Page 323 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes ITU-T G.706 Frame alignment and cyclic redundancy check (CGC) proce- dures relating to basic frame structures defined in Recom- mendation G.704 ITU-T G.707 Transmission Systems and Media—Digital transmission sys-...
Page 324 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes Includes Multiplex Section Pro- ITU-T G.832 tection (MSP) Transmission Systems and Media, Digital Systems and Net- works— Digital transmission systems—Digital networks— Network capabilities and func- tions: Transport of SDH Ele- ments on PDH Net-...
Page 325 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes ITU-T I.121 Integrated Services Digital Net- work (ISDN) General Structure and Service Capabilities: Broad- band Aspects of ISDN ITU-T I.150 B-ISDN ATM Functional charac- teristics ITU-T I.321 Integrated Services Digital Net-...
Page 326 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes Channelized DS3, Channelized ITU-T I.371 ABR not supported STS-1e, DS3 Frame Relay, High- Traffic control and congestion Density E1, Medium-Density control in B-ISDN DS1, Multi-Serial and Quadse- rial modules ITU-T I.372...
Page 327 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes ITU-T I.432.4 B-ISDN User-Network- Physical Layer Specification: 51 840 Kbps Operation Carrier Group AIS Alarm ITU-T I.610 Dual-homed PVCs B-ISDN operation and mainte- nance principles and functions I.610 OAM F4/F5 Processing (remote defect indication [RDI]...
Page 328 Appendix B Reference Information Industry Compliance Specifications Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes ITU-T Q.933 Annex A Digital Subscriber Signaling Sys- tem No. 1—Integrated Services Digital Network (ISDN) Digital Subscriber Signaling System No. 1 (DSS 1)—Signaling Specifica- tions for Frame Mode Switched and Permanent Virtual Connec- tion Control and Status Moni-...
Page 329: Interface Type By Connection Type
Appendix B Reference Information Interface Type by Connection Type Table B-5. Industry Compliance Specifications (Continued) Feature Name/Product Name Specification Title Notes ITU-T V.8 Procedures For Starting Ses- sions of Data Transmission Over the General Switched Telephone Network ITU-T V.25 Automatic Answering Equip- ment and General Procedures for Automatic Calling Equip- ment on the General Switched...
Page 330: Connection Type By Interface Type Table
Appendix B Reference Information Interface Type by Connection Type Table B-6. Connection Type by Interface Type Table Interface Connection AAL2 Trunking ATM-to-ATM vir- tual channel con- nection (VCC) PVC ATM-to-ATM vir- tual path connec- tion (VPC) PVC Bridge-to-ATM VCC PVC Bridge-to-bridge Circuit emulation- to ATM VCC PVC...
Page 331: Interface Type By I/O Module Type
Appendix B Reference Information Interface Type by I/O Module Type Table B-6. Connection Type by Interface Type Table (Continued) Interface Connection Circuit emulation- to-ATM VCC SPVC CE-to-ATM Std AAL2 VCC SPVC Frame relay-ATM VCC SPVC VBR-to-ATM VCC SPVC VBR-to-ATM Std AAL2 VCC SPVC Interface Type by I/O Module Type Table B-7 shows the available interface types for each PacketStar PSAX I/O...
Page 332 Appendix B Reference Information Interface Type by I/O Module Type Table B-7. Interface Types by I/O Module Types (Continued) Interface Module 12-Port Medium- Density DS1 Multiservice ( 12-Port Medium- Density DS1 IMA MD DS1 IMA 12-Port Medium-Density DS1/E1/DS0A CES MD DS1/E1/DS0A E1 Interface Modules 6-Port E1 IMA ( 6-Port Enhanced E1...
Page 333 Appendix B Reference Information Interface Type by I/O Module Type Table B-7. Interface Types by I/O Module Types (Continued) Interface Module 1-Port DS3 IMA DS3 IMA 1-Port Unchannelized DS3 Frame Relay ( 2-Port DS3 ATM DS3 ATM 2-Port E3 ATM ( 3-Port Channelized DS3/STS-1e CES CH DS3/STS-1e...
Page 334 Appendix B Reference Information Interface Type by I/O Module Type Table B-7. Interface Types by I/O Module Types (Continued) Interface Module 1-Port OC-3c Multimode with Traffic Shaping OC-3c (MM TS) 1-Port OC-3c Single-Mode with Traffic Shaping OC-3c (SM TS) 1-Port OC-3c 1+1 APS Multimode OC-3c MM APS 1-Port OC-3c 1+1...
Page 335 Appendix B Reference Information Interface Type by I/O Module Type Table B-7. Interface Types by I/O Module Types (Continued) Interface Module 1-Port STM-1 1+1 MSP Single-Mode STM-1 SM MSP OC-12c/STM-4c Interface Modules 1-Port OC-12c/STM-4c Multimode OC-12c/STM-4c MM 1-Port OC-12c/STM-4c Single-Mode OC-12c/STM-4c SM Voice 2-Wire Interface Modules 4-Port Voice 2-Wire...
Page 336: Minimum Aal2 Trunk Size Requirements
Appendix B Reference Information Minimum AAL2 Trunk Size Requirements Minimum AAL2 Trunk Size Requirements Setting up channels with standard AAL2 multiplexing helps reduce traffic delay, as voice samples from at two channels or more are multiplexed into one VC, decreasing the amount of time necessary to fill one ATM cell before it is transmitted.
Page 337: Fax Relay Using Aal2 Requirements
Appendix B Reference Information Module Alarm Status Table Table B-9. Non-Multiplexed AAL2 Transmission Rates Compression Rate (in Kbps) Cell/sec Fax Relay Using AAL2 Requirements Table B-2 shows the cell rate for fax relay modulation/demodulation using Algosets 4 or 6 on the DSP2C or DSP2D Voice Server modules. •...
Page 338: Quality Of Service (Qos) Information Tables
Appendix B Reference Information Quality of Service (QoS) Information Tables Table B-10. Alarm Status Descriptions for Modules on the Equipment Configuration Window Module Type Number Alarm Status Description Affected NoAlarm NoAlarm indicates that the module is inserted in the chassis slot and not config- ured.
Page 339: Psax System-Supported Quality Of Service Classes
Appendix B Reference Information Quality of Service (QoS) Information Tables Table B-11. PSAX System-Supported Quality of Service Classes ATM Service Class Description Constant Bit Rate (CBR) This service operates on a connection basis and offers consistent delay predictability. CBR is used for applications such as circuit emulation, voice, and video.
Page 340: System
Appendix B Reference Information Quality of Service (QoS) Information Tables based on your network applications supported by the PSAX system. The flex- ibility of the PSAX system allows you to tailor the system based on the required service applications by selecting the appropriate priority levels. Table B-13.
Page 341: Glossary
Glossary Numeric 1+1 APS (automatic protection In a North American SONET, 1+1 protection switching is switching) commonly referred to as automatic protection switching (APS). See APS for additional information. 1+1 MSP (multiplex section protec- In a European synchronous digital hierarchy (SDH) network, tion) 1+1 protection switching is commonly referred to as multi- plex section protection (MSP).
Page 342 Glossary available bit rate. ABR changes after a connection is estab- lished, and allows the receiving device to accept data from a variety of transmitting devices which are operating at differ- ent speeds, without the need to set up data rates in advance. ACELP algebraic code excited linear prediction.
Page 343 Glossary A-Law This ITU-T companding standard used in PCM systems for conversion between analog and digital signals. The A-Law standard is primarily used in European telephone networks. algebraic code excited linear predic- See ACELP. tion alternate mark inversion See AMI. alternating current See AC.
Page 344 Glossary AQueMan algorithm A traffic management algorithm that also supports ATM Forum classes of service. This adaptive algorithm allocates bandwidth by statistically multiplexing traffic within two sets of queues according to weighted priorities. One set of queues addresses the avoidance of cell loss, which is normally a con- cern for data traffic, while the other manages cell transfer delay, which is critical to voice and some video traffic.
Page 345 Glossary ATM edge switch A device that resides at the edge of a carrier network and pro- vides access from the end user to a carrier’s ATM network backbone. ATM Forum This organization is a consortium of corporations who develop hardware and software products using ATM to facili- tate the development, deployment, and standardization of ATM protocols and specifications.
Page 346 Glossary administrative weight. This parameter allows network archi- tects to indicate relative link preference when deciding between alternate routes. B channel A channel that carries 56-Kbps or 64-Kbps of user data on a line using ISDN D-channel signaling. B8ZS bipolar 8-zero substitution. This encoding scheme is used for transmitting data bits over T1 transmission systems.
Page 347 Glossary committed burst size. This parameter is used in frame relay, and is the maximum number of bits transferred during time interval “T.” Time interval “T” is the time interval over which the number of bits used to average the number of bits trans- mitted is averaged.
Page 348 Glossary block-error correction scheme This scheme provides a method for accomplishing forward error correction (FEC) to compensate for error bursts created in data transmission. This method is done by specifying a polynominal that plots, or statistically samples, a large num- ber of points in a data block.
Page 349 Glossary connection admission control. The set of actions a network takes during a call setup or renegotiation phase that deter- mine whether to accept or reject a connection request. CAD/CAM computer-aided design/computer-aided manufacturing. A computer and its related software and terminals that is used to design and manufacture all types of hardware devices.
Page 350 Glossary constant bit rate. An ATM service that supports a constant or guaranteed rate to transport services such as video or voice, as well as circuit emulation. CBR requires rigorous timing con- trol and performance parameters. CCITT Consultive Committee for International Telephony and Teleg- raphy, formerly known as the United National International Telecommunications Union, or ITU.
Page 351 Glossary cell extraction The removal of a cell from a data stream. cell header A cell header precedes payload data (user information) in an ATM cell. The header contains various control data specific to the cell switching protocol. cell loss margin See CLM.
Page 352 Glossary channel service unit See CSU. channel suppression The inhibition of a portion of a line’s bandwidth. channel tunneling A way of overcoming protocol restrictions on a network by encapsulating channels that use one protocol inside channels that use a protocol supported by the network. channel-associated signaling See CAS.
Page 353 Glossary circuit-switched network A network that sets up and maintains a connection for the exclusive use of two or more communicating parties for the duration of their call. The familiar, voice telephone network is circuit-switched. clear channel A digital circuit where no framing or control bits are required, thus making the full bandwidth available for communica- tions.
Page 354 Glossary community name The name given to an SNMP community for identification purposes. A member has associated access rights (read-only or read/write). compand (Com)pression + Ex(pand)ing). A technique of compressing voice or data before transmission and extracting (expanding) it at the target device to use bandwidth as economically as possible during transmission.
Page 355 Glossary connector A device connecting wires or fibers in cable either to equip- ment or to other wires or fibers. connector pin The contacts protruding from a connector. constant bit rate See CBR. Consultive Committee for Interna- See CCITT. tional Telephony and Telegraphy context In the H.248 Media Gateway protocol, a context is an associa- tion of not more than two terminations.
Page 356 Glossary cyclic redundancy check. A method of error detection using cyclic redundancy code. Based on the contents of the message transmitted, a CRC value is generated at the transmitting ter- minal. An identical CRC generation is performed at the receiving terminal, and any mismatch indicates the message was received incorrectly.
Page 357 Glossary D4 framing A common framing format in the T-1 environment. The name stems from the way framing is performed in the D-series of channel banks from AT&T. There are 12 separate 193-bit frames in a super-frame. A D-4 framing bit is used to identify both the channel and the signaling frame.
Page 358 Glossary debouncing Bouncing is the tendency of any two metal contacts in an elec- tronic device to generate multiple signals as the contacts close or open; debouncing is any kind of hardware device or soft- ware that ensures that only a single signal will be acted upon for a single opening or closing of a contact.
Page 359 Glossary DLCI Data Link Connection Identifier. A frame relay term which defines a 10-bit field within the address field that includes committed information rate, committed burst size, committed rate measurement interval, and excess burst size. DMA interface Direct Memory Access Interface. A fast method of moving RAM which in turn, speeds processing.
Page 360 Glossary Data (or digital) Service Unit. A device designed to connect data terminal equipment to a digital phone line, thus allowing fully digital communications. DSU/CSU Data Service Unit/Channel Service Unit. Devices that are used to access digital data channels. Data Terminal Equipment. Equipment to which DCE (Data Communications Equipment) is connected, such as personal computers or data terminals.
Page 361 Glossary echo cancellation A method of controlling speaker echo on long haul digital trunks. An echo cancellation system monitors the transmitted signal, digitally predicts the echo, then cancels it by subtract- ing the prediction from the received signal. echo canceller Equipment that removes the echo introduced into a voice call by telephone handsets and is further handicapped by network delay.
Page 362 Glossary end-to-end provisioning Service-level provisioning that allows a network management systems (NMS) to issue commands that will set up connec- tions to go throughout the network, without setting up con- nections on each individual switching device. end-to-end provisioning server See EEPS. enhanced data rates for global evolu- See EDGE.
Page 363 Glossary ETSI European Telecommunications Standards Institute. Equiva- lent to ANSI. ETSI is creating a single European telecommu- nications system as part of the single European market pro- gram. European Telecommunications Stan- See ETSI. dards Institute events browser The events browser is a view of the received events contained in AQueView’s $OV_LOG/trapd.log and $OV_LOG/trapd.log.old.
Page 364 Glossary fiber optic cable Fiber made of extremely pure glass. To date, the best option for voice/data/video communications, being faster and less resistant than metal. FIFO First In, First Out. A buffering scheme in which the first byte of data that enters the buffer is also the first byte received by the CPU.
Page 365 Glossary frame relay See FR. Frame Relay Forum Based in Foster City, CA, this organization of frame-relay equipment vendors, carriers, and users was formed in 1991 to speed the development and deployment of frame relay prod- ucts and interfaces with other broadband technologies such as ATM.
Page 366 Glossary FRF.8 Frame Relay/ATM PVC Service Interworking Implementation Agreement. The interoperability standard adopted by the ATM Forum which defines a standard way for a frame relay site to communicate with an ATM site; it depends on conver- sion of the frames into ATM cells. FRF.x A reference to a voice over Frame Relay Implementation Agreement, which specifies how frames are relayed.
Page 367 T1 circuits. This standard allows a remote terminal such as a Central Office PacketStar PSAX Multiservice Media Gateway to interface with a Central Office voice switch, such as the Lucent Technologies 5ESS switch. graphical user interface See GUI.
Page 368 Glossary heartbeat An Ethernet-defined signal quality error (SQE) signal quality test function, as defined in IEEE 802.3. Heartbeat is created by a circuit (normally part of the transceiver) that generates a collision signal at the end of a transmission. This signal is used by the controller interface for self-testing.
Page 369 Glossary input/output. The interrelated tasks computers do (in addi- tion to processing) that provide information to the computer, perhaps by keyboard (input) and get the results of processing to the user, perhaps by a printer (output). In cell bus traffic shaping, ATm traffic shaping, and UPC, output is ATM data streams leaving a switch to go to another switch or network, (as distintuished from traffic output from one switch hard-...
Page 370 Glossary Interface Management Entity, two entities; either an end user and a public or private network, or a public network and a private network. in-band management A network management application that configures and man- ages an interface based on simple network management pro- tocol (SNMP).
Page 371 Glossary Internet Originally developed by the U.S. Defense Department, the Internet has become the world’s largest computer network. It is a packet-switched network, running on the TCP/IP proto- col. internet control message protocol See ICMP. Internet Engineering Task Force See IETF. Internet Protocol See IP.
Page 372 Glossary IPO - internet PRI offload The Lucent Softswitch Internet Primary Rate Interface (PRI) Offload (IPO) solution relieves traditional switch port conges- tion by offloading calls onto ATM networks. It serves as an intelligent bridge between network elements that speak dif- ferent signaling protocols, and simplifies the interworking between circuit-switched and data networks.
Page 373 Glossary kilobyte See KB. local area network. A geographically localized network that includes both hardware and software and typically links per- sonal computers, printers, file servers, and other peripherals. LANET Limitless ATM Network Protocol. The LANET protocol, cou- pled with a simple error-tolerant addressing scheme, addresses the fundamental problem of noise in adapting ATM to low-speed environments.
Page 374 Glossary link management interface See LMI. link out of delay synchronization See LODS. link state routing In Private Network-Network Network Interface, link-state routing is a LAN routing technique where neighboring rout- ers exchange routing table updates as they occur. logical link control. An IEEE 802.2 standard that includes end-system addressing and error-checking.
Page 375 Glossary loop emulation This service uses the ATM AAL2 network to essentially create an extension cord between voice ports on the CPE and the corresponding voice ports on the class 5 switch, that termi- nates on the GR-303 based voice gateway. The interface between the CPE and the first ATM-based edge switch or DSLAM may be T1 or xDSL.
Page 376 Glossary minimum cell rate. Parameter defined by the ATM Forum for ATM traffic management. MCR is defined only for ABR trans- missions, and specifies the minimum value for allowed cell rate. media access control (MAC) layer See MAC. media gateway A device that converts media streams from one type of net- work to a different format for another type of network.
Page 377 IP to be routed over a single ATM VCC using the MAC header. Multiservice Media Gateway A Lucent Technologies ATM access concentrator/switch that efficiently forwards data, handling incoming calls for a net- work point of presence (POP). In general, a Multiservice...
Page 378: View)
Glossary N to M protection group N:1 Traffic Protection modules PacketStar PSAX I/O modules that support the N:1 Protection feature on the PSAX 4500 system. These modules do not have external connectors; they rely on LIM3-4 modules to receive and send traffic outside the PSAX 4500 system. narrowband In communications technology, digital communication at the rate of 64,000 bits per second or lower.
Page 379 Glossary network interface card See NIC. network management system See NMS. network mask A 32-bit number that distinguishes the portion of an IP address referring to the network or subnet from the portion referring to the host. network service access point See NSAP.
Page 380 Glossary Operations, Administration, and Maintenance. These cells typically provide network fault indications, performance information, and data diagnosis functions. OC-12 Optical carrier 12. A SONET channel that transmits at 622 Mbps. OC-3 Optical carrier 3. A SONET channel equal to three DS3s, which is equal to 155.52 million bits per second.
Page 381 ® PSAX family of products The Lucent Technologies PacketStar PSAX Multiservice Media PacketStar Gateways are a product line of scalable, flexible multiservice ATM access devices offered to service providers’ Central Offices, and small to large enterprises.
Page 382 Glossary pulse code modulation. The most common method of encod- ing an analog voice signal into a digital bit stream. The most common PCM method samples a voice conversation at 8,000 times a second, twice the highest frequency in a voice line, 4,000 Hz.
Page 383 Glossary pinout A description or diagram of the pins of a chip or connector. plain old telephone service See POTS. PLAR private line, automatic ringdown. A leased voice circuit con- necting two telephones. When either handset is lifted, the other telephone rings automatically. PLCP Physical Layer Convergence Protocol.
Page 384 Glossary private branch exchange See PBX. private line automatic ring-down See PLAR. service private network-to-network inter- See PNNI. face programable read-only memory See PROM. PROM Programable Read-Only Memory. A programmable semicon- ductor device whose contents are not intended to be altered during normal operations.
Page 385 Glossary Permanent Virtual Circuit. A virtual circuit that provides the equivalent of a dedicated private line service over a packet switching network between two DTEs. Virtual circuits and SDNs are other types of virtual networks. quality of service. An ATM Forum Protocol that is defined in terms of an end-to-end ATM connection under ITU-T Recom- mendation 1.350.
Page 386 Glossary Reed Solomon (RS) coding An algorithm that performs forward error correction (FEC) in order to compensate for error bursts in data transmission. remote access service See RAS. remote alarm indication See RAI. remote defect indication See RDI. remote dial-access server See RAS.
Page 387 Glossary rounding error A cumulative calculation error caused by omission of pre- selected values. The omitted values can be the ones, tens, and/or hundreds decimal places. A typical rounding algo- rithm increases the value to the left by one if the value to the right is over 5.
Page 388 Glossary Service Access Point. The point at which the services of an OSI layer are made available to the next highest layer. A SAP is used for the following purposes: 1. When the application initiates an outgoing call to a remote ATM device, a destination_SAP specifies the ATM address of the remote device, and also specifies further addressing that identifies the target software entity within the remote device.
Page 389 Glossary selector. A subfield in the SETUP message part of an ATM endpoint address domain specific part (DSP), defined by ISO 10589. This is not used for ATM network routing, but by ATM end systems only. semipermanent virtual circuit See SPVC. serial A transmission method that sends each data bit sequentially on a single channel.
Page 390 Glossary signaling The control of information a network uses to set up and maintain connections. On-hook and off-hook are, for instance, the familiar voice-telephone signals that tell the Central Office that you have picked up the telephone handset or hung up at the end of a call. In-channel signaling reserves part of the available data-com- munication bandwidth for control information.
Page 391 Glossary SNMP Simple Network Management Protocol. A standard way for computers to share networking information. In SNMP, two types of communicating devices exist: agents and managers. An agent provides networking information to a manager application running on another computer. The agents and managers share a database of information, called the Manage- ment Information Base (MIB).
Page 392 Glossary Signaling System 7. A signaling method, separate from voice or data channel, that allows intelligent network elements exchange information among themselves. SSCOP Service-Specific Connection-Oriented Protocol. This protocol provides mechanisms for establishing, releasing, and monitor- ing signaling information exchanged between peer signaling entities.
Page 393 Glossary subchannel connection The associations between IP network interfaces and their traf- fic-bearing connections. subnet A portion of a network, possibly a physically independent network, which shares a network address with other portions of the network and is distinguished by a subnet number. A subnet is to a network what a network is to the Internet.
Page 394 Glossary synchronized dynamic random See SDRAM. access memory synchronous digital hierarchy See SDH. synchronous optical network See SONET. systems network architecture See SNA. A digital transmission link with a capacity of 1.544 Mbit/s, used in North America. Typically channelized into 24 DS0s, each link is capable of carrying a single voice conversation or data stream.
Page 395 Glossary termination In the H.248 Media Gateway protocol, a termination is an origination or destination of a media stream. Terminations can be persistent (permanent) or ephemeral (set up and torn down). See also context. throughput The measure of the rate at which data flows through a device. time-division multiplex access See TDMA.
Page 396 Glossary ToS Value An indicator that denotes a better quality of service on a user’s line. For example, voice data would be set with a ToS value for minimum delay. traffic descriptor Generic traffic parameters that capture the intrinsic traffic characteristics of a requested ATM connection.
Page 397 Glossary undefined (or unspecified) bit rate. An ATM service class that handles bursty LAN traffic and data that is tolerant of delays and cell loss. UBR is a best-effort service that does not specify bit-rate or traffic values, and offers no QoS guarantees. undefined (or unspecified) bit rate See UBR.
Page 398 Glossary validation The checking of data for correctness or for compliance with applicable standards, rules, and conventions. variable bit rate See VBR. variable bit rate - real time See VBR-RT variable bit rate- non-real time See VBR-NRT. variable bit rate. A voice service over an ATM switch which provides only as much bandwidth as voice conversations need at any moment (making bandwidth “elastic”).
Page 399 Glossary Virtual Interface. Connections made to a module’s physical ports that allow virtual channels (VCs) to be assigned to vir- tual trunks, each with its own priority queue. By using VIs instead of physical connections, it is possible to achieve advanced bandwidth management capability that allows for fully flexible service provisioning.
Page 400 Glossary virtual path. A group of VCs carried between two points that provide a way to bundle traffic headed in the same direction. virtual path connections. Unidirectional virtual path links between virtual path terminators. Virtual Path Identifier. An ATM term for the 8-bit field in the ATM cell header that indicates which virtual path the ATM should use in routing the cell.
Page 401 Glossary ZBTSI Zero Byte Timeslot Interchange. A technique used with the T carrier extended superframe (ESF) in which an area in the ESF frame carries information about the location of all-zero bytes (eight consecutive “0”s) within the data stream. zero code suppression. This type of line coding substitutes a 1 for the second least-significant bit of every all-zero byte in AMI-encoded data.
Page 402 Glossary ® PacketStar PSAX 21-Port High-Density E1 Multiservice Module User Guide, Issue 1 Release 8.0 Glossary-62 255-700-262...

This manual is also suitable for:

Packetstar psax 1250 Packetstar psax 1000 Packetstar psax 4500

Lucent Technologies PacketStar PSAX 2300 User Manual

Legal Notices, Safety, and Regulatory Information

Contents

List of Figures

1 Getting Started

2 Module Description

3 Configuring Ports and Channels Using the Console Interface

4 Configuring the Interfaces Using the Console Interface

5 Configuring Ports and Channels Using the Aqueview

Quick Links

User Guide

Related Manuals for Lucent Technologies PacketStar PSAX 2300

Summary of Contents for Lucent Technologies PacketStar PSAX 2300
