PacketStar
PSAX Multiservice Media Gateways
PSAX 1250 110 V ac Power Supply Module Description and Specifications
Model 20N04
Purpose of This Document
Identifying the Module
®
PacketStar
PSAX Multiservice Media Gateways
PSAX 1250 110 V ac Power Supply Module Description and Specifications
Part Number: 522M0A0001Z3
This document identifies and describes the PSAX 1250 110 V ac Power Supply
module and related safety information. It also includes procedures for installation
and removal of the module from the PSAX chassis and verification of the initial
module startup, as well as information on obtaining troubleshooting assistance.
Regulatory standards compliance is also described for the module.

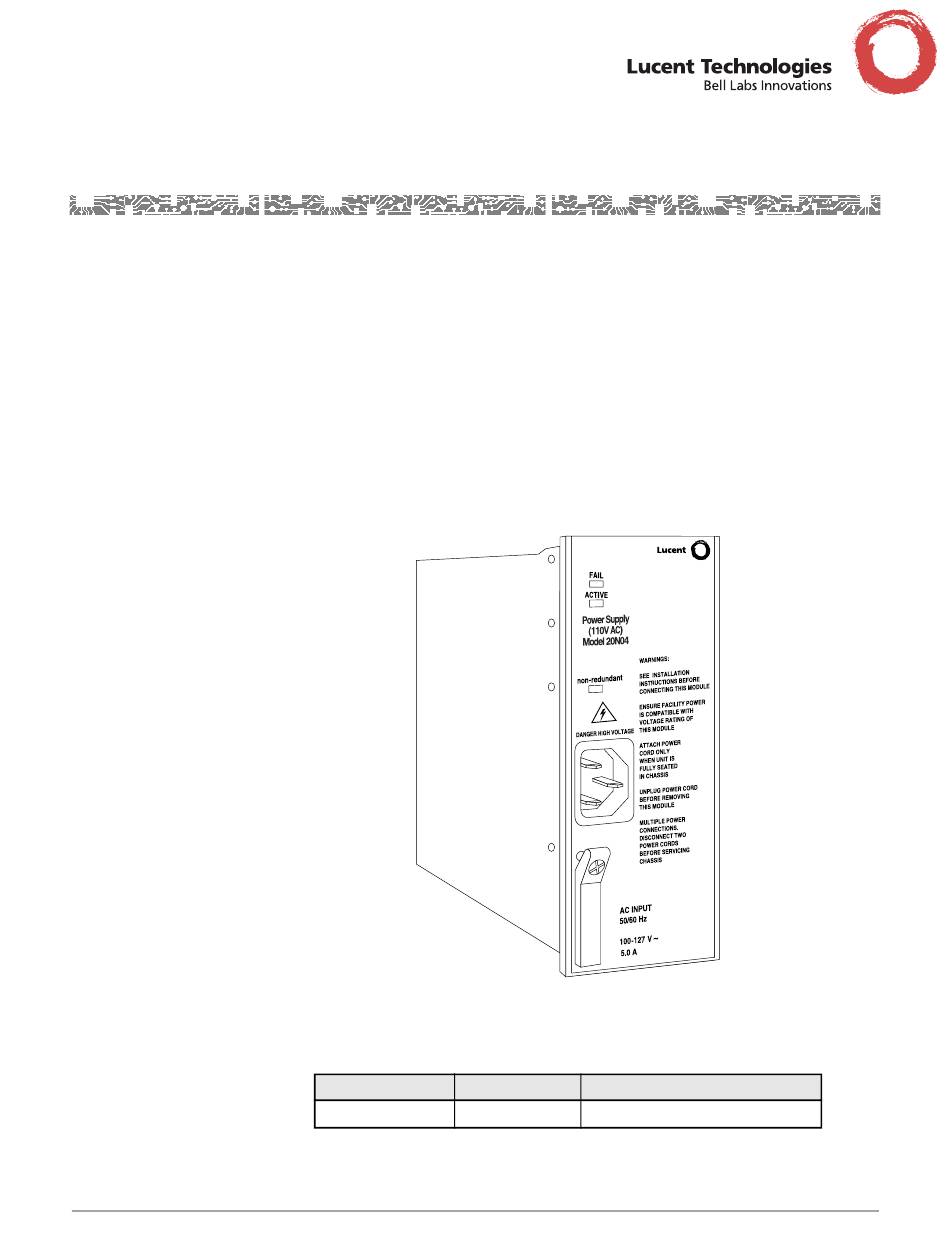

The PSAX 1250 110 V ac Power Supply module is illustrated in Figure 1.
Figure 1. PSAX 1250 110 V ac Power Supply Module
The PSAX 1250 110 V ac Power Supply module is identified as follows:
COMCODE
300161411
Model
20N04
Power Supply (110V AC)
Faceplate Label
Page 1 of 8
Document Number: 255-700-375
