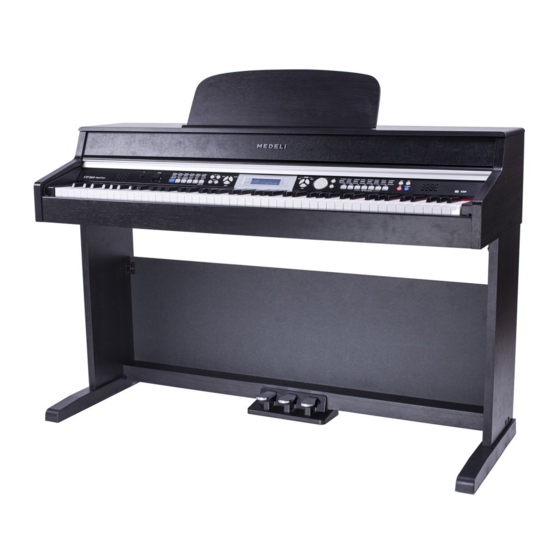

Summary of Contents for Medeli DP269
- Page 2 Congratulations Congratulation on your purchase of the professional digital piano. This piano is an easy-to-use digital piano. Inside the slim cabinet, it has so many professional and modernized preset styles and songs, easy but powerful functions, and features that enhance your performance.
- Page 3 Important Notes Please read the following carefully before use: Do not expose the piano to high temperature, direct sunlight and excessively dusty places. Do not place the piano too close to other electrical appliances such as television and radio. It may cause interference. Do not place the piano to excessive humid area.
- Page 4 Main Features ● Keyboard: 88-keys touch response keyboard with 3 touch levels. Display: ● Multi-function LCD display. Operation: ● Friendly user-interface, using dial or add/sub button to select styles, songs and voices. ● Voices: 220 voices. 16 voices can be selected by direct select button. ●...
-
Page 5: Table Of Contents
Contents Set-up Guide Mixer General Guide 9-10 Memory 26-27 - Memory Bank The Connectors 11-12 - Store/Load Parameter Using the AC power jack - Memory Data - Using headphones jack - Clear Memory Data - Using AUX OUT jack One Touch Setting - Using the foot pedals Record - Using the USB jack... -
Page 6: Set-Up Guide
Set-up Guide 1Before assembly, please make sure that all of the following items are present. 1.Piano Cabinet 8. Screws M6X12 (2pcs) 9. Hand screws (2pcs) 2.Right Side Panel 3.Left Side Panel 10.Power Supply Cable 4.Big Rear Panel 11.Pedal Cable 12.Plastic Cap(4pcs) 5.Pedal Box 13.Feet bar 6.Screws 6X60(10pcs) - Page 7 Set-up Guide 3.Side Panel and Pedal Box assembly Place t he p edal b ox o n t he t wo s ide p anel s a nd t hen u se 4pieces s crews t o f as ten t he s ide p anels a nd c over ⑥...
- Page 8 Set-up Guide 5.Attach the Piano Cabinet Place t he p iano cabinet on the stand,f ix it using f our hand screws . 9.Screws hand screws (X4 pcs) 4pcs Hand screws 6.Fix the cables Attach 2 adhesive clamps on right and the left side panels to fix the cables. Insert the DIN plug of pedal cable into the proper socket of cabinet.
-
Page 9: General Guide
General Guide Plane Control Panel Music Stand Headphones Jack Piano Keyboard Rear Panel Pedal Jack USB Jack Power Supply Cable AUX OUT Jack Front Panel Soft Pedal Sostenuto Pedal Sustain Pedal... -
Page 10: Power Switch And Master Volume
General Guide Control Panel ACC. VOL VOLUME 001 8 Beat 034 Rock 062 Swing 087 Tango 096 March 102 S.Waltz MIXER FUNCTION 008 Pop16Bt1 044 Disco 083 Rhumba 091 Samba 099 Polka 112 Dandut2 START/ STOP SYNC INTRO/ENDING FILL A FILL B A.B.C. -
Page 11: The Connectors
The Connectors Using the AC power jack VOLUME 1、 Ensure the piano is turned Turn the volume switch 2、 off when connecting and anti-clockwise to reach disconnectiong the power. the minimum volume level. Turn off Set to minimum 3、 Plug the power cable into 4、... -
Page 12: Using The Foot Pedals
The connectors Using the foot pedals Connect the plug of the foot pedal unit to the pedal jack on the rear panel. You will experience the sustain/soft/sostenuto effect. NOTE: When the sustain pedal is pressed, notes continue to play after their keys have been released. Releasing the pedal will silence the sustained notes. -
Page 13: Basic Operation
Basic Operation Power Switch and Master Volume 1、 First, make sure the correct connections. GrdPiano STYLE SONG FILE TEMPO VEL MEASURE BEAT MEMORY TICK O.TS. card Turn the [POWER] switch on. The LCD display lights up. 2、 Turn on LCD lights up Use the [VOLUME] control switch to adjust the volume 3、... -
Page 14: Voice And Effects
Voices and Effects There are 220 voices in total (see appendix). Select a Voice A.B.C. DUAL GrdPiano 1、 When power on, the default VOICE R1 is No.001, the FILLA SPLIT VOICE R1 flag lit up and the voice name appears on LCD. STYLE SONG FILE TEMPO VEL MEASURE... -
Page 15: Lower Voice/Split Point
Voices and Effect Select the dual voice number 2、 Press [＋] / [－] button , or turn the dial to select the dual voice number. The default dual voice number is No. 50 Strings2. A.B.C. DUAL SynthSt1 FILL A SPLIT STYLE SONG FILE TEMPO VEL... -
Page 16: Auto Accompaniment
Auto Accompaniment Select a Style There are 120 styles in total, from 001 to A.B.C. DUAL 120 (see appendix). FILL A SPLIT STYLE SONG FILE TEMPO VEL MEASURE BEAT MEMORY FILL B TOUCH 1、 When power on, the default style number is 001. TICK O.TS. -
Page 17: Start The Style
Auto Accompaniment Start the Style SYNC INTRO/ENDING START/STOP FILL A FILL B A.B.C. MELODY OFF Start immediately: 1、 Start the style immediately Press [START/STOP] button to start the style(only drum). A.B.C. DUAL FILL A SPLIT STYLE SONG FILE TEMPO VEL MEASURE BEAT MEMORY... -
Page 18: Fill A/B
Auto Accompaniment FILL A/B START/STOP SYNC INTRO/ENDING FILL A FILL B A.B.C. 1、 In NORMAL mode, press [FILL A] button to insert 1 measure fill and LCD flashes 'FILL A'. After one measure is over, it will smoothly lead to NORMAL style. MELODY OFF Flashing A.B.C. -
Page 19: Accomp Volume
Auto Accompaniment Accomp Volume 1、 You can change the general volume of style through ACC.VOL Accomp Accompaniment volume adjustment. STYLE SONG FILE TEMPO VEL MEASURE BEAT MEMORY TICK O.TS. card TEMPO 2、 Press the [ACCOMP＋] / [ACCOMP－] button to adjust the volume. -
Page 20: Chord Recognize
Auto Accompaniment Chord Recognize START/STOP SYNC INTRO/ENDING FILL A FILL B A.B.C. "A.B.C." is disabled during the default setting. Press [A.B.C./MELODY OFF] button to turn on this "auto bass chord" function; the A.B.C. flag on the LCD MELODY OFF is lightened. The left section of the keyboard is known as the "chord area", while playing the chord, both the A.B.C. -
Page 21: Chord Basics
Auto Accompaniment Chord Basics Three or more notes played together constitute a " chord ". The most basic chord type is the "triad" consisting three notes: the root, third, and fifth degrees of the corresponding scale. A "C major triad", for example, is made up of the notes C (the root), E(the third note of the C major scale),and G (the fifth note of the C major scale). -
Page 22: Metronome
Auto Accompaniment METRONOME MIXER FUNCTION Press [METRO] button to turn on metronome and the 1、 Strings2 metronome sound will be played. STYLE SONG FILE TEMPO VEL MEASURE BEAT MEMORY TICK O.TS. card 2、 METRO In the Function menu, you can adjust the beat with dial, [+]/[-]. -
Page 23: Function
Function Transpose SYNC. STOP MIXER FUNCTION In TRANSPOSE menu, the value of transpose appears on Transpos the LCD. STYLE SONG FILE TEMPO VEL MEASURE BEAT MEMORY TICK O.TS. card You can press [＋] / [－] button or dial to adjust the METRO value from －12 to 12 semitones. -
Page 24: Split Point
Function Split Point In split point menu, press [＋] and [－] button or MIXER FUNCTION dial or press the key to set its value. Split pt STYLE SONG FILE Parameter Range: from 1 to 88, the default value is 34. TEMPO VEL MEASURE BEAT... -
Page 25: Mixer
MIXER Press [MIXER] button to enter the menu of MIXER. The default option of the menu is Drum volume. When MIXER FUNCTION you enter this menu next time, you will find the option Drum Vol is the same as last time. STYLE SONG FILE TEMPO VEL MEASURE... -
Page 26: Memory
Memory Memory can be used to memorize 16 complete control－ panel setups (4 banks with 4 presets each) that you can recall whenever needed. Memory Bank A.B.C. DUAL GrdPiano FILL A SPLIT STYLE SONG FILE TEMPO VEL MEASURE BEAT MEMORY FILL B TOUCH TICK O.TS. -
Page 27: Clear Memory Data
Memory Clear Memory Data POWER BANK STORE Press [STORE] and [M1] together, then turn on the piano, 1、 the default data will be loaded to the piano. Press together Turn on POWER Press [＋] and [－] together, then turn on the piano, the 2、... -
Page 28: Record
Record Record Waiting DUAL A.B.C. GrdPiano FILL A SPLIT STYLE SONG FILE 1、 Press [RECORD] to enter record waiting mode, the REC f TEMPO VEL MEASURE BEAT MEMORY FILL B TOUCH TICK O.TS. lag lit up on LCD, the beat starts flashing. card MELODY OFF RECORD... -
Page 29: Song
Song The piano has 60 songs with MELODY OFF function, which allows you to listen to the Song playback without the melody ,useful DEMO for you to play with the song. STYLE VOICE 1、 Press [SONG] to enter song mode, the flag of song lit up TEMPO VEL MEASURE BEAT... -
Page 30: Specifications
Specifications 1 Keyboard............: 88 Keys, 3 kinds of touch level. 2 Voices............: 220 Voices. 120 Voices. 3 Styles............: 3 Demos，60 Songs. 4 Demo/Song..........: 64-note（turn off DSP effect）、38-note（turn on DSP effect）. 5 Polyphony..........: Multi-functional LCD display with blue backlit. 6 Display............: POWER SWITCH、VOLUME、AUTO BASS CHORD、MELODY OFF、... -
Page 31: Appendix 1-Voice List
Appendix 1- Voice List NAME NAME NAME... - Page 32 Appendix 1- Voice List NAME NAME &...
-
Page 33: Appendix 2-Style List
Appendix 2-Style List NAME NAME NAME 8 BEAT & 16 BEAT Country Folk 6/8 Rock 8 Beat 2/4 Country Rock & Roll Guitar Pop 1 Country Pop 2 70 s Rock & Roll 8 Beat Disco Country Shuffle Rock Shuffle 8 Beat Dance C ountry Q uick S teps 4/4 Blues... -
Page 34: Appendix 3-Demo List
Appendix 3-Song List 附录六: 歌曲（SONG）中英文对照表 NAME NAME Happy New Year PIANO It`S Beginn ing To Look Fur Elise A Lot Like Christmas Habanera Jeanie With The Light Four Little Swans Brown Hair Moseta Dance My Bonnie Germanic Dance Song Of The Pearlfisher Turkish March The Stage Coach March... -
Page 35: Appendix 5-Chord Chart
Appendix 5-Chord List C Madd9... -
Page 36: Appendix 6-Midi Implementation
Appendix 6-MIDI Implementation Chart Function Transmitted Recognized Remarks Basic Default 1-16ch Channel Changed 1- 16ch 1- 16ch × Default × × Mode Messages × Altered *********** Note 9-120 0- 127 Number ： 0- 127 True voice *********** 〇 9nH,V=1 -127 〇...
