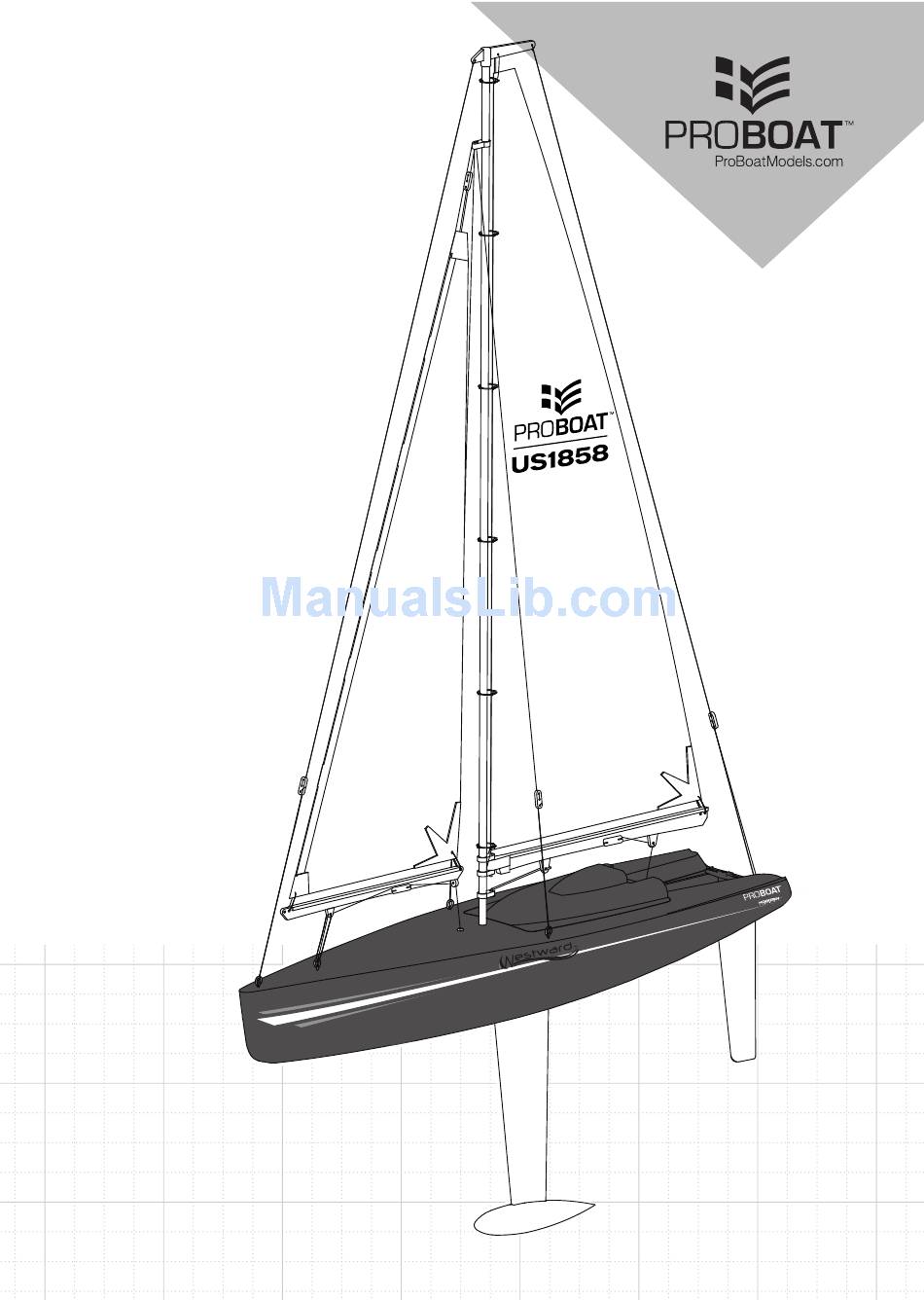

- Page 1 PRB07002 Westward ™ 18 READY - TO - RUN SAILBOAT Owners Manual Bedienungsanleitung Manuel de l’utilisateur Manuale dell’utente...
-
Page 2: Water-Resistant Boat With Waterproof Electronics
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Table Of Contents
General Precautions Wet Conditions Maintenance • Read the WET CONDITIONS MAINTENANCE • Drain any water that has collected in the hull by procedures and make sure that you have all the tools removing the drain plug or canopy and tilting the you will need to properly maintain your boat. -
Page 4: Display Stand Assembly
Display Stand Assembly 1. Apply glue to the tabs (A) and insert them into the slots (C) of one end piece of the display stand as shown. 2. Apply glue to the other ends of the tabs and insert them into the slots of the other end piece of the display stand. -
Page 5: Battery Installation
Battery Installation 3. Before you sail, connect the holder connector to the + and - BD (bind) port pins on the included receiver. NOTICE: Always attach the red (+) wired connector to the + pin and the black (-) wired connector to the - pin or damage to the receiver will occur. -
Page 6: Transmitter Controls
Transmitter Controls Antenna LEDs The transmitter antenna Transmitter battery level bends at the hinge (A) indicators: Green (good) and only bends to the left or red (replace). side of the transmitter. The antenna cannot point to the right or back of the Steering Rate transmitter. -
Page 7: Control Direction Test
Control Direction Test Ensure your boat and transmitter are bound before doing these tests (see Binding). Move the controls on the Perform a Control Direction Test to see how quickly transmitter to ensure the rudder and sails move correctly your sailboat responds to transmitter controls. In and in the proper direction. -
Page 8: Trimming
Trimming Take your time to prepare your sails for the conditions. Tip: When there is little wind, tighten the sails so Control Centering they catch more wind. When there is more wind, loosen the sails to allow them to flap and let Before the first voyage, or in the event of an accident, excess wind spill around the edges of the sails. -
Page 9: Sailing Tips
Sailing Tips Launching Choose a launching place that will let you put your boat We recommend sailing in winds of 5 to 12 mph in water deeper than the keel, but out of strong wind. (8 to 19 km/h) with waves no higher than 1 inch (2.5 cm). Adjust your sails for the wind and enter the wind before attempting any turns. -
Page 10: When You Are Finished
When You Are Finished 1. Disconnect the battery. 2. Power off the transmitter. 3. Remove the battery from the boat. 4. Loosen all lines. ‰ Always power off the receiver before powering off the transmitter to maintain control of the boat and to retain transmitter binding. -
Page 11: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat receiver is not bound to the transmitter Bind the receiver to the transmitter Boat does not Replace/recharge batteries respond to the Low or no power Ensure connections are secure and powered on transmitter Fouled or broken sails, lines or servo Straighten, tighten or replace damaged parts Rigging may be worn... -
Page 12: Warranty And Service Contact Information
LIMITED WARRANTY What this Warranty Covers from state to state. Horizon reserves the right to change or modify this warranty at any time without notice. Horizon Hobby, LLC (Horizon) warrants to the original WARRANTY SERVICES purchaser that the product purchased (the "Product") will be free from defects in materials and workmanship at the Questions, Assistance, and Services date of purchase. - Page 13 accepts money orders and cashier’s checks, as well as ATTENTION: Horizon service is limited to Product Visa, MasterCard, American Express, and Discover cards. compliant in the country of use and ownership. If By submitting any item to Horizon for service, you are received, a non-compliant Product will not be serviced.
-
Page 14: Fcc Information
FCC Information IC Information This device complies with part 15 of the FCC rules. This device complies with Industry Canada licence- Operation is subject to the following two conditions: exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause (1) This device may not cause harmful interference, and interference, and (2) this device must accept any (2) This device must accept any interference received,... - Page 15 47201 Created: 05/2015 ©2015 Horizon Hobby LLC. Westward, Pro Boat, the Pro Boat logo and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc. All other trademarks, service marks and logos are property of their respective owners. Patents pending.
