WebWay IP/GPRS & WebWay GPRS/PSTN Installation Manual
WebWay pre-Installation notes
IMPORTANT 1: for all Fire Systems
The 'WebWay IP/GPRS LPS Fire' and 'WebWay GPRS/PSTN LPS Fire' shall be used in conjunction with Fire alarm control and
indicating equipment compliant with EN54-2 and capable of meeting options with requirements associated with clauses 7.9,
8.2.4(g), 8.2.5(b), 8.9, 9.4.1(c), 9.4.2(b), 10.1(e), 11(a), and 11(b).
Fire alarm and fire fault or trouble signals from the fire alarm control and indicating equipment must only be connected via PIN
inputs. The PIN inputs shall be programmed as End of Line (EOL)
The 'WebWay IP/GPRS LPS Fire' and 'WebWay GPRS/PSTN LPS Fire' shall be housed within a metallic enclosure providing
protection against ingress to IP30 at access level 2 and connected to an integral power supply compliant with EN54-4.
Configuration settings – 'LPS 1277 EN54-21 Type 1' (IP/GPRS) and 'LPS 1277 EN54-21 Type 2' (GPRS/PSTN) must be used.
IMPORTANT 2: read this guide before installing the equipment
The WebWay IP/GPRS and WebWay GPRS/PSTN have been certificated to LPS 1277 by the LPCB (Loss Prevention Certification
Board). This certification ensures High Security, Maximum Performance, and Availability when configured with the following
profiles:
WebWay IP/GPRS LPS I&HAS & WebWay IP/GPRS Fire
I&HAS signalling configuration –
Enhanced configuration profiles are available for Intruder and Hold-up systems when using the WebWay IP/GPRS. These should
be selected at the time of ordering the system and they will be configured into the WebWay IP/GPRS when it is commissioned to
your selected ARC:
When installed as a WebWay IP/GPRS I&HAS Signalling System the LPCB label will be identified by a tick in the 1022b/01 box
denotes the approved hardware and configuration.
Configuration
- Grade 2 Alarm systems - LPS1277 ATS5
- Grade 3 Alarm systems - LPS1277 ATS5
- Grade 4 Alarm systems - LPS1277 ATS5
Fire signalling configuration
Fire Alarm Systems – LPS1277 Type 1 Alarm Transmission and fault warning routing equipment
When installed as a FIRE Signalling System a tick in the 22/5005 and the 1022a/01 boxes denotes the approved hardware and
configuration will identify the CE label.
Configuration
The configuration settings for compliance with EN54-21 Type 1 are LPS 1277 EN54-21 Type 1 (Part number 1411AD155001)

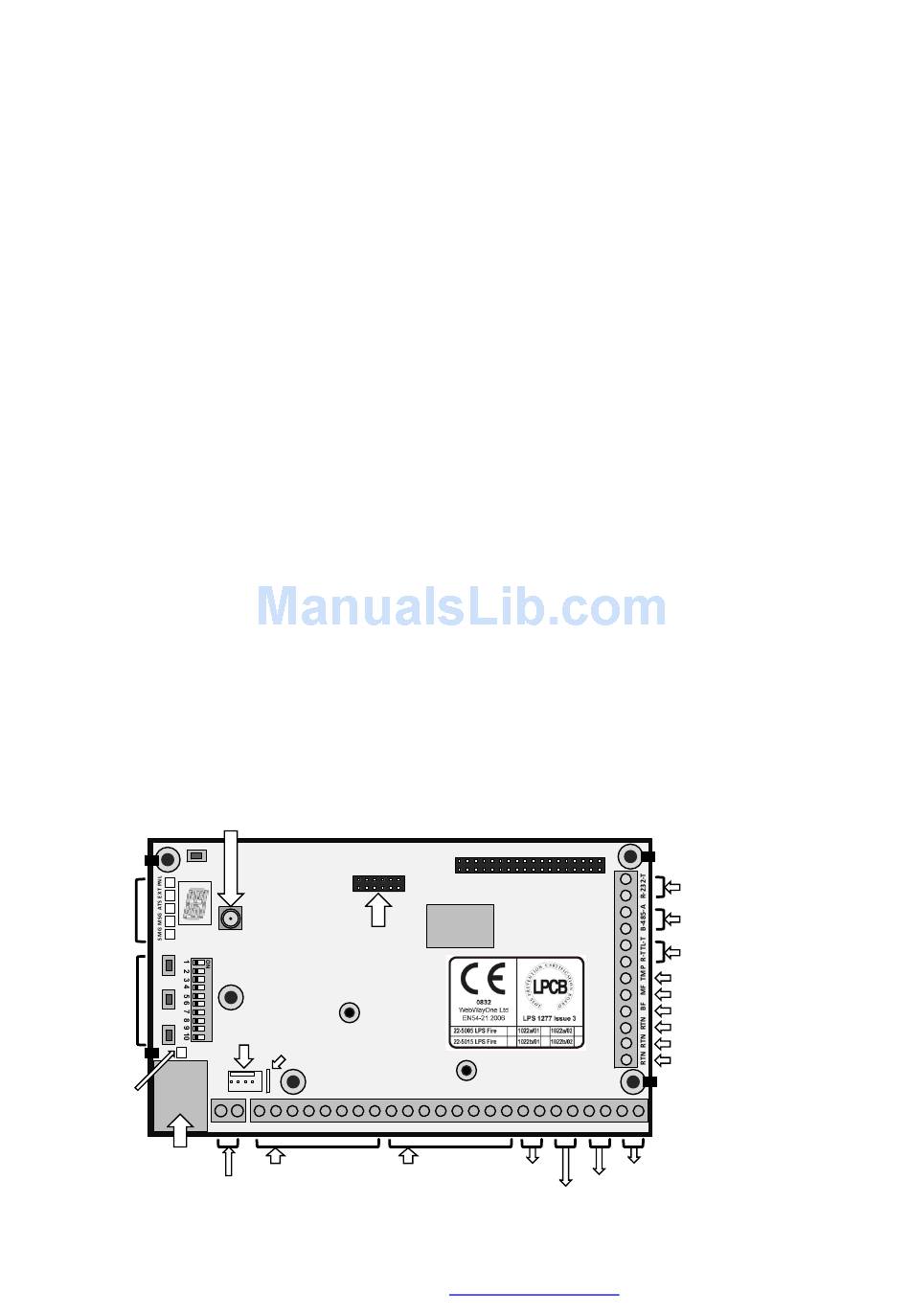

WEBWAY IP/GPRS LPS FIRE & WEBWAY GPRS/PSTN LPS FIRE
Affix label and tick box to denote hardware type
ANTENNA
RESET
INDICATORS &
DISPLAY
DISPLAY
DIP SWITCHES
A
B
CONFIGURATION
BUTTONS
C
CONSOLE PORT
Ethernet
INDICATOR
Interface
ETHERNET
+ PWR -
ETHERNET
POWER
________________________________________________________________________________________________________
OPTION BOARDS
- PSTN
- RS232
- RS485
EARTH TAG
CONSOLE
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
PINS 1-8 END OF LINE
PINS 9-16
WebWayOne Ltd, 11 Kingfisher Court, Newbury, Berkshire, RG14 5SJ
Tel 01635 231514: Email
SIM
10
11
12 13
14 15
16
A+ A-
1A 1B 2A
10
11 12
13 14 15
16
A+ A-
1A 1B 2A 2B
BIAS VOLTAGES
PIN OUTPUT 1
support@webwayone.co.uk
Page 5
RS232
SERIAL
RS485
SERIAL
TTL
SERIAL
TAMPER
MAINS FAIL
BATTERY FAIL
RETURN
PATH
GROUND
2B 3A 3B
3A
3B
PIN OUTPUT 3
PIN OUTPUT 2
