WebWay IP/GPRS & WebWay GPRS/PSTN Installation Manual
Alarm panel connection – Modem Capture
The Modem capture module may be used for Intruder & Hold up alarm signalling, Upload/Download and remote servicing. . Please
visit http://www.webwayone.co.uk/download/webway-manuals/Default.htm for the most update installation guides for all major
panel manufacturers.
Modem capture module
IMPORTANT NOTE: 1 When using the Modem capture in association with a fire system Fire Alarm, Fire Fault or Trouble
messages must be transmitted using the PIN interfaces.
IMPORTANT NOTE: 2 Remove power before fitting or removing the module.
- Before fitting the Modem Capture module set the OSC jumper to 66Mhz.
- Fit the Modem capture module onto the 15-pin PL1 connector and fix to the steel spacing pillar on the main board using the screw
provided.
- Connect the WebWay to the Modem capture module and the alarm panel. You will be required to configure the panel according
to the instructions detailed in the WebWay document. Please visit http://www.webwayone.co.uk/download/webway-
manuals/Default.htm for the most update installation guides for all major panel manufacturers. If you need assistance call
WebWay support on 01635 231514.

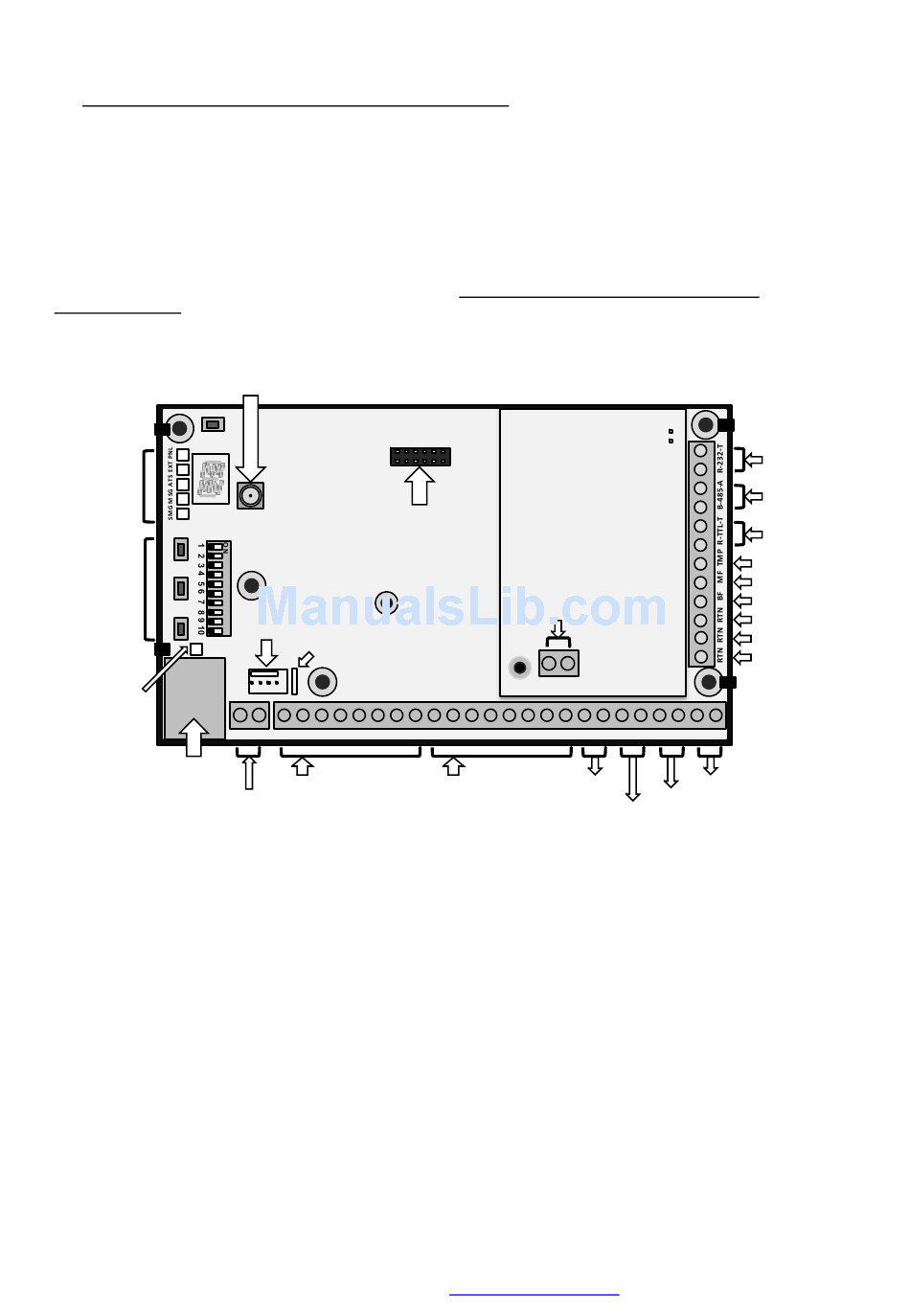

Modem Capture interface board
RESET
INDICATORS &
DISPLAY
DISPLAY
A
B
CONFIGURATION
BUTTONS
C
Ethernet
INDICATOR
Interface
ETHERNET
ETHERNET
POWER
Hard wired PIN Inputs
PIN Input - Tamper configured as for simple low or high inputs
PIN Input - Battery fail configured as for simple low or high inputs
PIN Input - Mains fail configured as for simple low or high inputs
ANTENNA
OPTION BOARDS
- PSTN
- RS232
DIP SWITCHES
- RS485
CONSOLE PORT
EARTH TAG
CONSOLE
+ PWR -
1
2
3
4
5
6
7
1
2
3
4
5
6
7
PINS 1-8 END OF LINE
WebWayOne Ltd, 11 Kingfisher Court, Newbury, Berkshire, RG14 5SJ
Tel 01635 231514: Email
Modem Capture
Option board
OPTION BOARDS
- MODEM CAPTURE
- AUDIO VERIFICATION
MODEM INTERFACE
TO ALARM PANEL
A B
8
9
10
11
12 13
14 15
16
A+ A-
8
9
10
11 12
13 14 15
16
A+ A-
BIAS VOLTAGES
PINS 9-16
support@webwayone.co.uk
Page 12
RS232
SERIAL
RS485
SERIAL
TTL
SERIAL
TAMPER
MAINS FAIL
BATTERY FAIL
RETURN
PATH
GROUND
1A 1B 2A
2B 3A 3B
1A 1B 2A 2B
3A
3B
PIN OUTPUT 3
PIN OUTPUT 2
PIN OUTPUT 1
