Summary of Contents for i-SENS CareSens N Pop

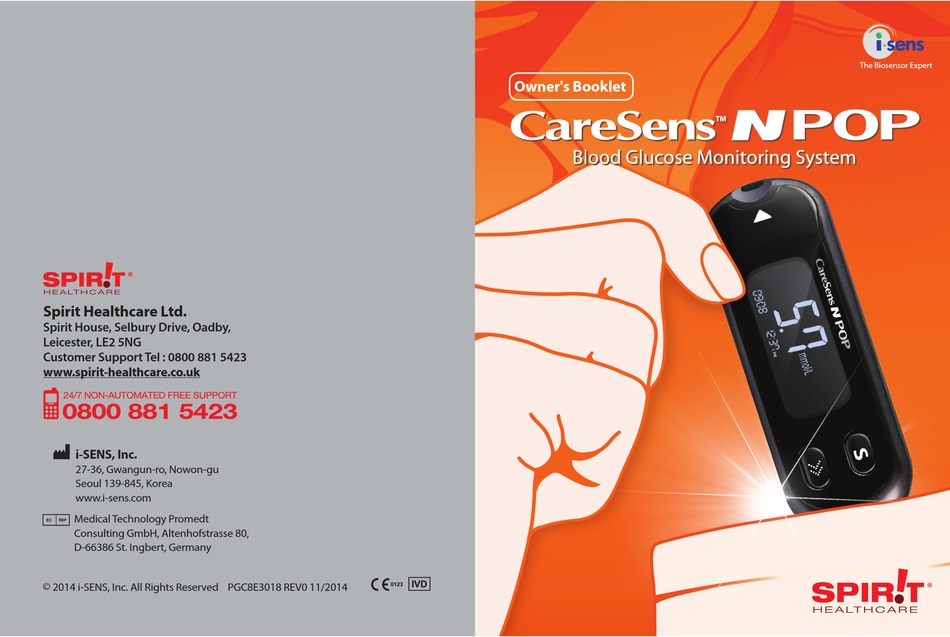

Page 1 Leicester, LE2 5NG Customer Support Tel : 0800 881 5423 www.spirit-healthcare.co.uk i-SENS, Inc. 27-36, Gwangun-ro, Nowon-gu Seoul 139-845, Korea www.i-sens.com Medical Technology Promedt Consulting GmbH, Altenhofstrasse 80, D-66386 St. Ingbert, Germany ® © 2014 i-SENS, Inc. All Rights Reserved PGC8E3018 REV0 11/2014...
Page 2: Blood Glucose Monitoring System
Welcome to the CareSens N POP Blood Glucose Monitoring System Thank you for choosing the CareSens N POP Blood Glucose Monitoring System. The system provides you with safe, fast, and convenient blood glucose in vitro (i.e., outside the body) diagnostic monitoring. You can obtain accurate results in just 5 seconds with a small (0.5 μL) blood sample.
Page 3: Table Of Contents
Table of Contents Information Important Information:Read This First! Specifications CareSens N POP Blood Glucose Monitoring System Inserting or Replacing the Batteries CareSens N Blood Glucose Test Strip CareSens N POP Blood Glucose Meter CareSens N POP Blood Glucose Meter Display...
Page 4: Important Information:read This First
• G lucose in blood samples reacts with the chemical in the Intended use: test strip to produce a small electrical current. CareSens N POP Blood Glucose Monitoring System is used for • T he CareSens N POP Blood Glucose Meter is designed to the quantitative measurement of the glucose level in capillary minimize code related errors in monitoring by using the whole blood as an aid in monitoring diabetes management no-coding function.
Page 5: Specifications
Specifications CareSens N POP Blood Glucose Monitoring System • Product specifications Components Reported result range 1.1-33.3 mmol/L 1. CareSens N POP Blood Glucose Meter Sample size Minimum 0.5 μL 2. CareSens N Blood Glucose Test Strips Test time 5 seconds 3. CareLance(Lancing Device)
Page 6: Inserting Or Replacing The Batteries
Inserting or Replacing the Batteries CareSens N Blood Glucose Test Strip The CareSens N POP Meter uses two 3.0 V lithium batteries. The CareSens N POP Blood Glucose Monitoring system Before using the meter, check the battery compartment and measures blood glucose quickly and accurately. It automatically insert batteries if empty.

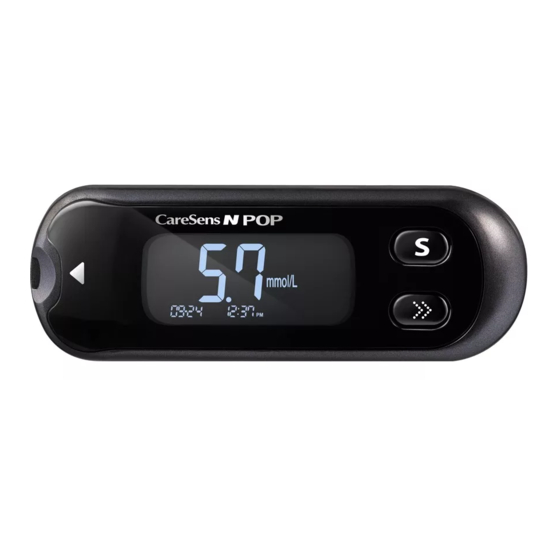

Page 7: Caresens N Pop Blood Glucose Meter
CareSens N POP Blood Glucose Meter Warning! • T he CareSens N Test Strip should be used only with fresh S Button capillary whole blood samples. Turns the meter on/off, confirms menu selections, • D o not reuse test strips. and changes information Display • D o not use test strips past the expiration date. Shows results, • T est strips in new, unopened vials and test strips in vials that...
Page 8: Caresens N Pop Blood Glucose Meter Display
CareSens N POP Blood Glucose Meter Display Setting Up Your System It is recommended to check if the display screen on the meter Press and hold the button for 3 seconds to enter the SET matches the illustration below every time the meter turns on.
Page 9 The meter can be set in the AM/PM (12-hour) or the 24-hour clock format. Press to select a format. The AM•PM symbol is not displayed in the 24-hour format. After selecting the format, press the button to progress to setting the hour. 14 www.i-sens.com www.spirit-healthcare.co.uk 15...
Page 10: Setting The Sound On/Off
Press and hold to quickly October of 2017, the meter displays scroll through the numbers. "EP" at the start of November of 2017. 16 www.i-sens.com www.spirit-healthcare.co.uk 17...
Page 11: Turning On The Hypoglycaemia (Hypo) Indicator
• W hen you want to practice the test procedure using the diabetes nurse to help you decide what your hypoglycaemia control solution instead of blood level will be. • W hen using the meter for the first time 18 www.i-sens.com www.spirit-healthcare.co.uk 19...
Page 12: Control Solution Testing
The CareSens Control Solution can be obtained free from Spirit applied within 2 minutes of the symbol appearing on the Healthcare on 0800 881 5423. screen. If the meter turns off, remove the strip, reinsert, and start from step 1. 20 www.i-sens.com www.spirit-healthcare.co.uk 21...
Page 13: Comparing The Control Solution Test Results
(thick hard skin). Choose a the Spirit Healthcare 24/7 Freephone Support Line for a free different site each time you test. replacement of your meter at 0800 881 5423 or go to www. spirit-healthcare.co.uk. 22 www.i-sens.com www.spirit-healthcare.co.uk 23...
Page 14: Preparing The Lancing Device
The lancing device's aligned with the load confirmation adjustable tip allows the best depth of skin penetration to window and release button as shown get an adequate sample size. in the diagram. 24 www.i-sens.com www.spirit-healthcare.co.uk 25...
Page 15: Preparing The Meter And Test Strip
Wait a few seconds for a blood drop to form. Marking Post-meal Test Results A minimum volume of 0.5 microlitre is needed to fill the The CareSens N POP meter allows you to mark a result of a confirmation window (actual size of 0.5 μL: ). post-meal test with symbol.
Page 16: Discarding Used Lancets
If the test strip is removed after the test result is displayed, the meter will automatically switch off after 3 seconds. Discard used test strips safely in appropriate containers. Caution: The lancet is for single use only. Never share or reuse a lancet. Always dispose of lancets properly. 28 www.i-sens.com www.spirit-healthcare.co.uk 29...
Page 17: Alternative Site Testing
• T wo (2) hours after an insulin injection Then press the release button while continuing to apply pressure. Keep holding the lancing device against your skin until sufficient (at least 0.5 μL, actual size: ) blood is drawn. Carefully lift the lancing device away from your skin. 30 www.i-sens.com www.spirit-healthcare.co.uk 31...
Page 18: Hi And Lo Messages
Try puncturing again in a smoother area. Note: Please contact the Spirit Healthcare 24/7 Freephone Support Line at 0800 881 5423 or go to www.spirit- healthcare.co.uk, if such messages are displayed even if you do not have hyperglycaemia or hypoglycaemia. 32 www.i-sens.com www.spirit-healthcare.co.uk 33...
Page 19: Target Blood Glucose Ranges
5.6-7.7 mmol/L. *Fasting is defined as no caloric intake for at least eight (8) hours. Reference American Diabetes Association. “Standards of Medical Care in Diabetes – 2012. ” Diabetes Care. January 2012; 35(1):S11-S63. 34 www.i-sens.com www.spirit-healthcare.co.uk 35...
Page 20: Meter Memory
Meter Memory The CareSens N POP meter can save up to 1,000 glucose test Step 3 Viewing Pre-meal Averages results with time and date. If the memory is full, the oldest test Repeatedly press the to view 1, 7, 14, 30 and 90 day result will be deleted and the latest test result will be stored.
Page 21: Viewing Test Results
3 seconds. The button ‘PP2’ character and the ‘OFF’ character will appear on the screen. Then the screen will change automatically to the memory check button mode without the ‘alarm’ character being displayed. 'alarm' disappears 38 www.i-sens.com www.spirit-healthcare.co.uk 39...
Page 22: Setting The Strip Expiration Date Indicator
The test strip expiration date indicator can be set in the Step 3 Setting the Month CareSens N POP meter. The strip expiration date is printed on A number indicating the month will the test strip vial. blink in the left corner of the screen.
Page 23: Caring For Your System
> Do not use the meter. Contact the Spirit Healthcare 24/7 Freephone Support Line at 0800 881 5423 or go to www. spirit-healthcare.co.uk. The test was not performed properly. > Repeat the test with a new test strip. 42 www.i-sens.com www.spirit-healthcare.co.uk 43...
Page 24: General Troubleshooting
• C heck the expiration date of the way you feel. test strip. • P erform control solution test. Note: If the problem is not resolved, please contact the Spirit Healthcare 24/7 Freephone Support Line at 0800 881 5423 or go to www.spirit-healthcare.co.uk. 44 www.i-sens.com www.spirit-healthcare.co.uk 45...
Page 25: Performance Characteristics
2.0 mmol/L and 26.4 mmol/L System has been evaluated in laboratory and in clinical tests. Accuracy: The accuracy of the CareSens N POP BGM System Within ± 0.83 mmol/L and Within ± 15 % (Model GM505WAC, GM505WBC) was assessed by comparing 598/600 (99.7%)
Page 26 2.8% at glucose concentrations below 5.55 mmol/L and 98.3% Hydrocortisone 0.02 mmol/L 1.9% within ±15% of the medical laboratory values at glucose Ibuprofen -0.1 mmol/L 2.8% concentrations at or above 5.55 mmol/L. Icodextrin -0.2 mmol/L -0.5% 48 www.i-sens.com www.spirit-healthcare.co.uk 49...
Page 27: Warranty Information
Warranty Information Manufacturer’s Warranty i-SENS, Inc. warrants that the CareSens N POP Meter shall be free of defects in material and workmanship in normal use for a period of five (5) years. The meter must have been subjected to normal use. The warranty does not cover improper handling, tampering, use, or service of the meter.
