Ë Ë Ë Ë Ë Display

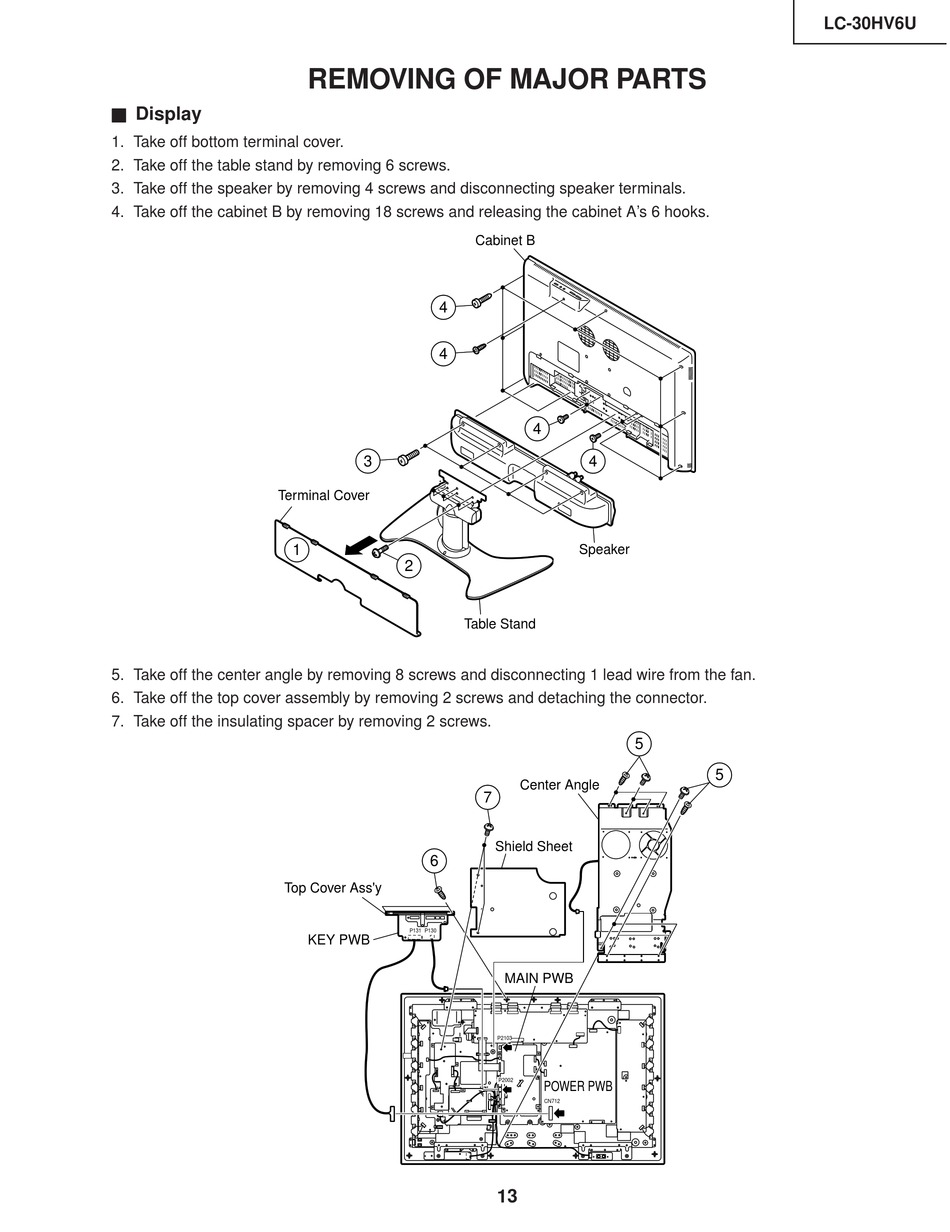

1. Take off bottom terminal cover.
2. Take off the table stand by removing 6 screws.
3. Take off the speaker by removing 4 screws and disconnecting speaker terminals.
4. Take off the cabinet B by removing 18 screws and releasing the cabinet A's 6 hooks.
Terminal Cover
5. Take off the center angle by removing 8 screws and disconnecting 1 lead wire from the fan.
6. Take off the top cover assembly by removing 2 screws and detaching the connector.
7. Take off the insulating spacer by removing 2 screws.
Top Cover Ass'y

REMOVING OF MAJOR PARTS

4
4
3
1
2
Table Stand
6
P131 P130
KEY PWB
Cabinet B
4
4
Speaker
5
Center Angle
7
Shield Sheet
MAIN PWB
P2103
P2002
POWER PWB
CN712
13
LC-30HV6U
5
