LC-30HV6U

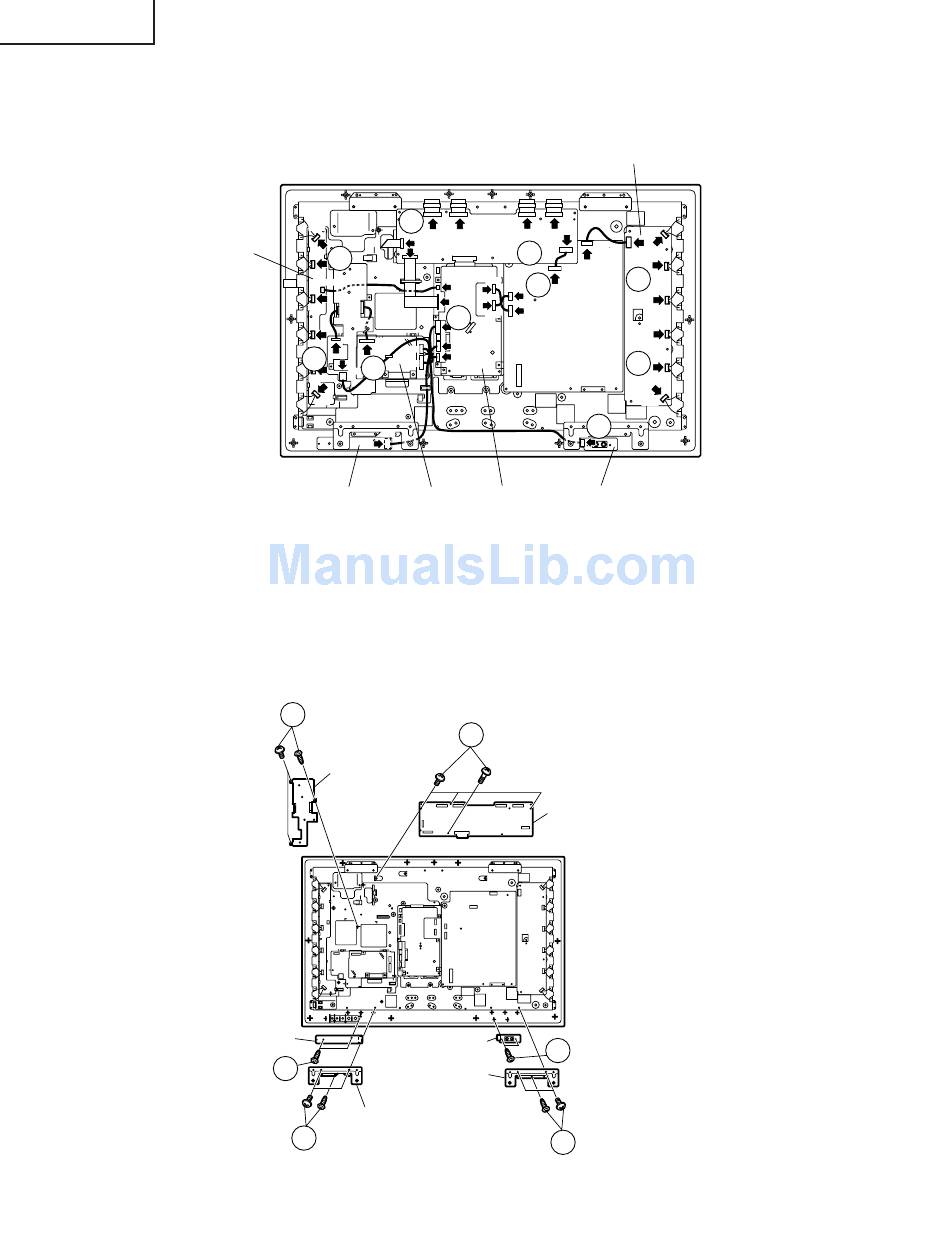

8. Detach each connector
(8 from the LCD Control PWB, 7 from the Main PWB, 4 from the Power PWB, 7 from the Inverter PWB, 1 from the
speaker-Jack PWB, 1 from the R/C, LED PWB, 6 from the Inverter-GND PWB, 3 from the Audio PWB.)
INVERTER-GND
PWB
9. Take off the 1-Bit Amp. PWB chassis by removing 3 screws.
10.Take off the LCD Control PWB by removing 4 screws.
11.Take off the Speaker retaining angle by 3 screws.
12.Take off the R/C, LED PWB by 2 screws.
13.Take off the Speaker-Jack PWB by 2 screws.
14.Take off the Speaker retaining angle by 3 screws.
R/C, LED PWB
8
P8601
SC4603
SC4601
SC4601
LCD CONTROL PWB
8
SC4605
P8602
P8607
P2106
SC2001
P8603
8
P2004
P3903
P3803
P8604
P2004
P3801
8
P2104
P3804
8
P3204
P8605
P8606
P101
R/C, LED Unit
AUDIO PWB
9
1-Bit Amp. PWB
Chassis
SPEAKER-JACK
PWB
12
Speake Retainig
Angle
Speaker Retaining Angle
11
14
INVERTER PWB
SC4602
SC4604
CN209
8
P7701
P6564
CN723
8
P2101
8
CN722
P2102
CN724
POWER PWB
8
8
P201
MAIN PWB
SPEAKER-JACK PWB
10
LCD CONTROL PWB
13
14
P6551
P6553
P6555
P6558
P6560
P6562
